DS18 X1 Ultra Compact Monoblock Class D 1-Channel Car Amplifier
900 Watts
Amazing power and an amazing small footprint is what the DS18 X1 amp is all about. This tiny amp packs a powerful punch all while fitting in the palm of your hand! It is a perfect selection for audiophiles cramming audio in tight spaces. For example, you can fit multiple X series amps in most motorcycle fairings powering an entire system all while safely tucked away.
Small enough to fit in your hand but powerful enough to power four high powered speakers, this bass amp little powerhouse pumps out 140 watts RMS at 4 ohms, 220 watts RMS at 2 ohms and 300 watts RMS at 1 ohm which is enough to get super loud sound with great clarity.
Highlights
- Huge power for such a small size giving it high versatility in applications in which it can be used.
- Fits in most tight spaces and a high power per size ratio.
- 2 and 4 ohms stable pumping out 140 watts RMS at 4 ohms, 220 watts RMS at 2 ohms and 300 watts RMS at 1 ohm.
- Easily adjustable filters making tuning for mids or tweeters easy.
Great For
- Motorcycle Audio
- Pro Audio
- Car Audio
- Marine Audio
- Powersports Audio
- Jeep Audio
Technical Details
| CLASS | CLASS-D |
| AMPLIFIER TYPE | MICRO MONOBLOCK AMP |
| CHANNELS | 1 |
| TOTALWATTS (PEAK) | 900W |
| RMS POWER @ 4 OHMS | 140W x 1CH |
| RMS POWER @ 2 OHMS | 220W x 1CH |
| RMS POWER @ 1 OHM | 300W x 1CH |
| RMS POWER @ 4 OHMS BRIDGE | - |
| FREQUECY RESPONSE | 20Hz - 500Hz |
| SIGNAL/NOISE RATIO | >90 dB |
| EFFICIENCY @ 4 OHMS | >80% |
| DAMPING FACTOR | >200 |
| THD % | <0.2% |
| LOW LEVEL INPUT RANGE | 0.2-5V |

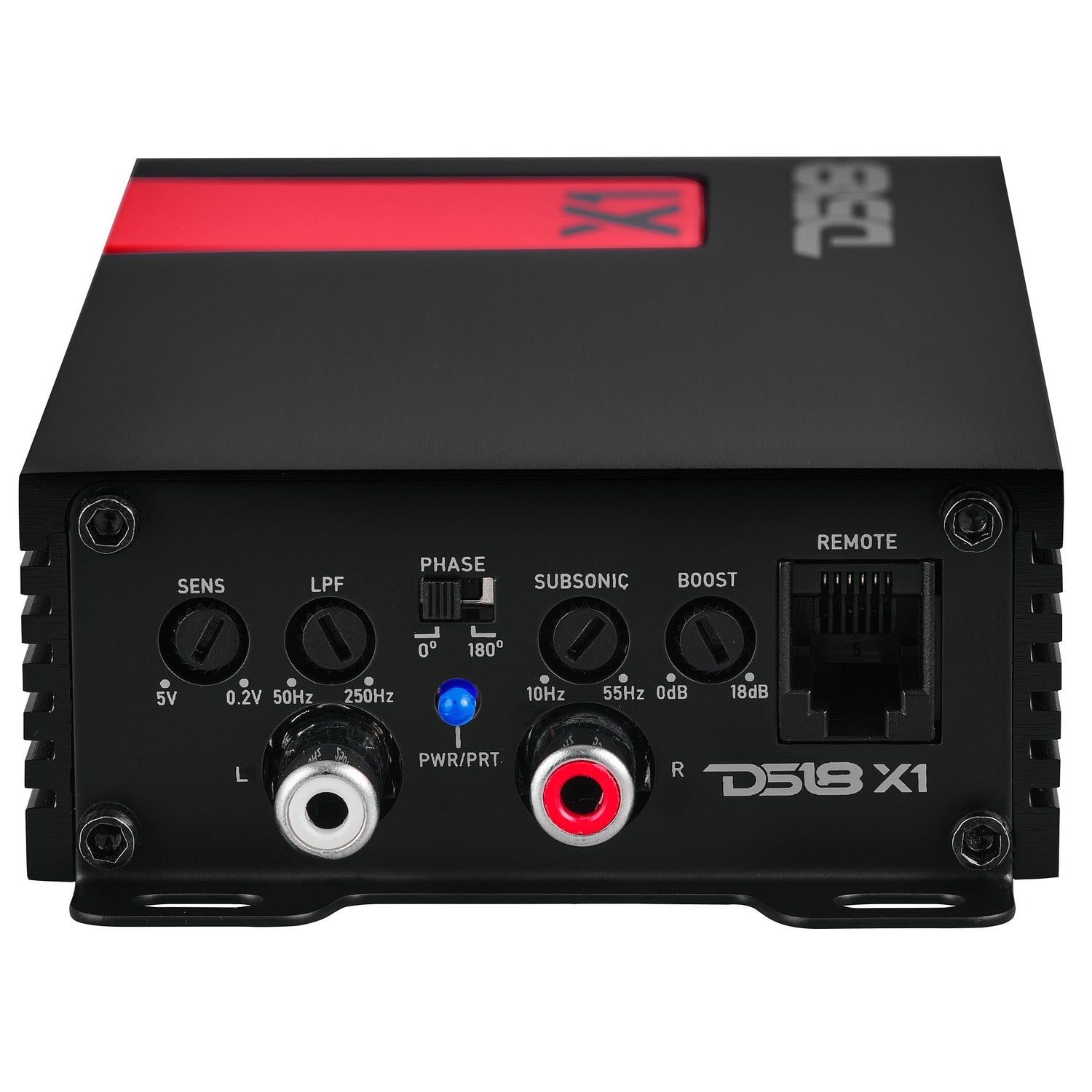

| SELECTABLE X-OVER | FIXED LPF |
| X-OVER FILTER RANGE | 50Hz - 250Hz |
| BASS BOOST RANGE | 0 - 18 dB |
| BASS BOOST FREQUENCY | 40Hz |
| INFRASONIC FILTER | 10 - 55Hz |
| PHASE SELECTOR | 0 - 180 DEGREES |
| MINIMUM IMPENDANCE | 1 OHM |
| LED INDICATOR | POWER/PROTECTION |

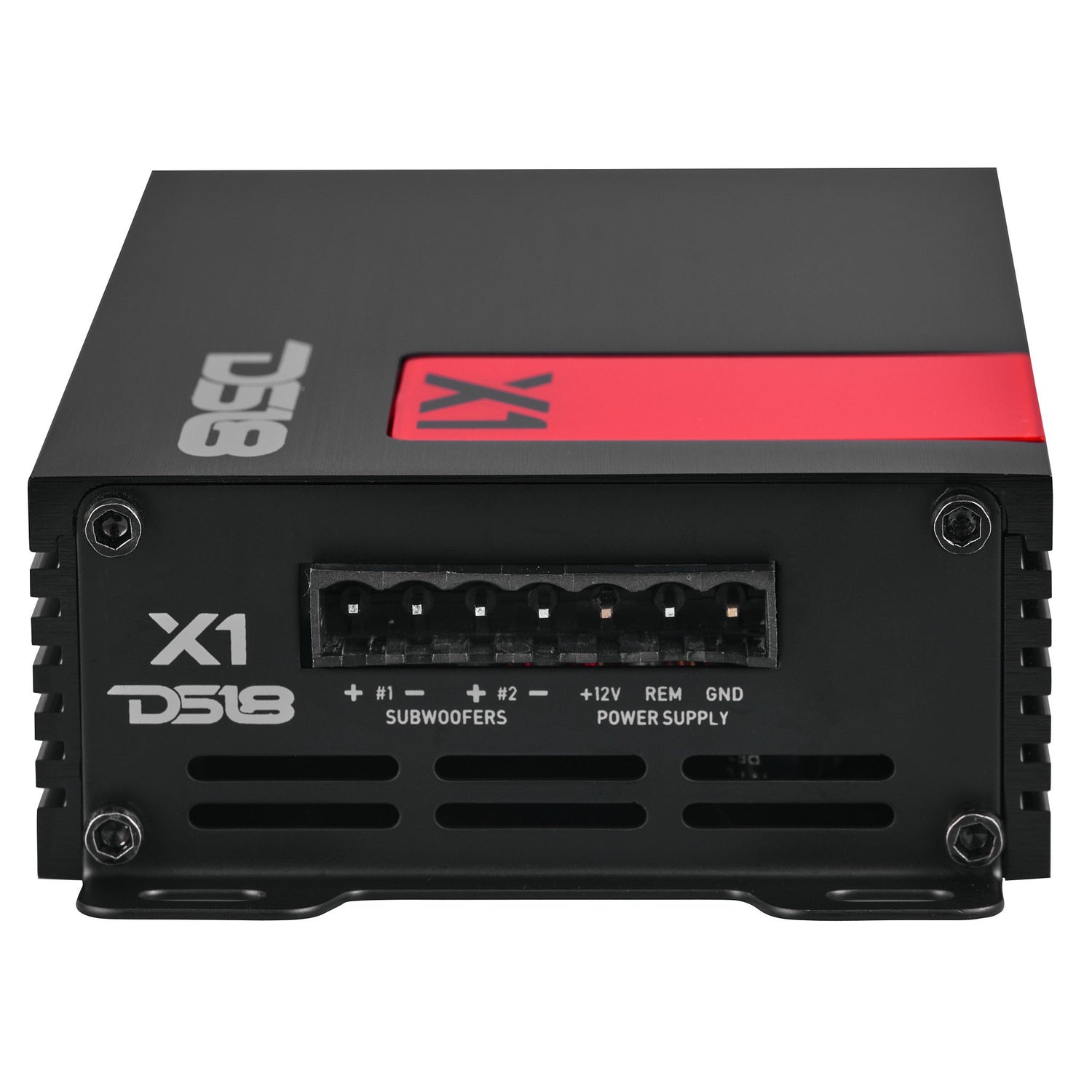

| POWER INPUT SIZE | 12GA |
| FUSE RATING | 30A |

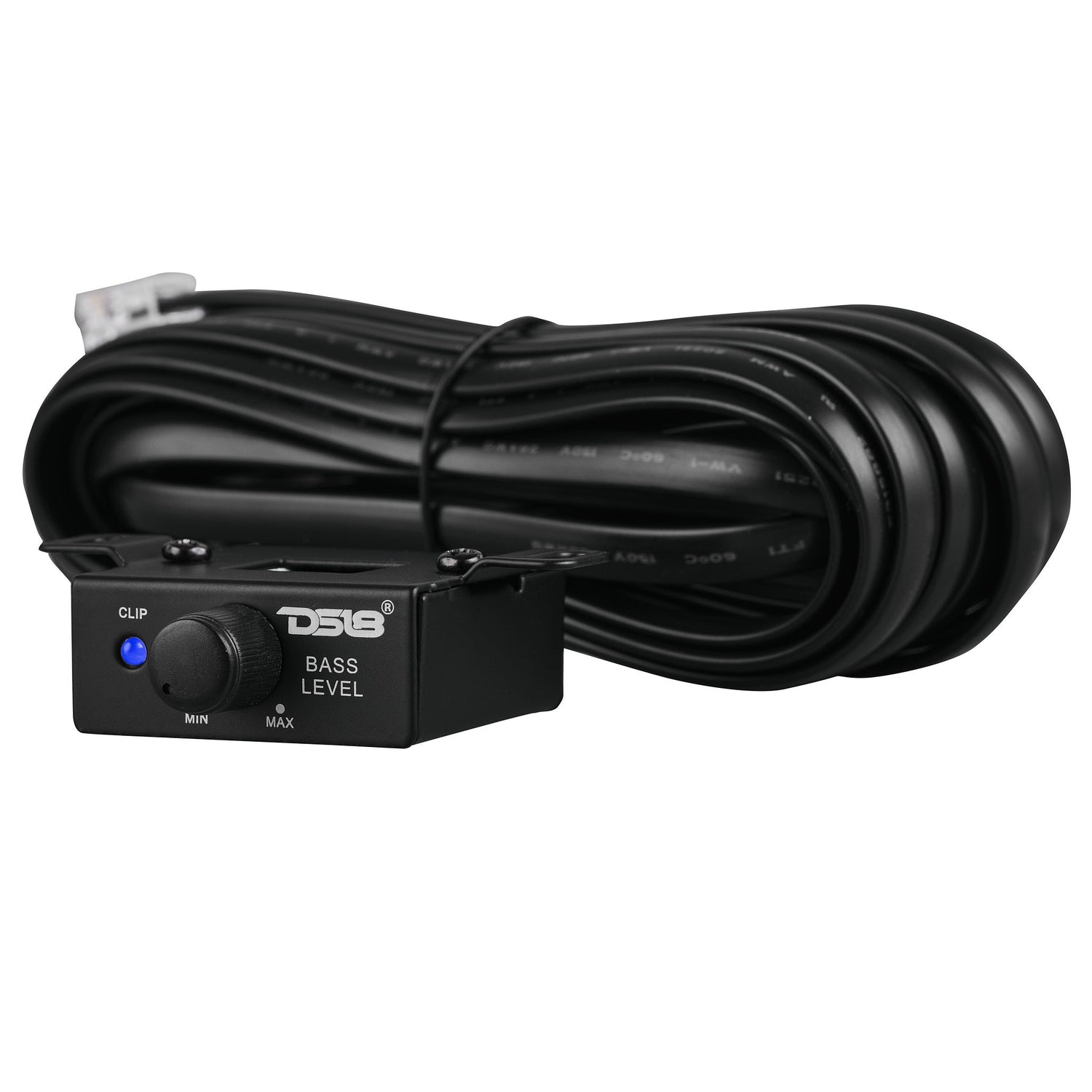

| REMOTE LEVEL CONTROL | YES - DASH MOUNT |
| THERMAL PROTECTION | YES |
| OVER-LOAD PROTECTION | YES |
| DC OUTPUT PROTECTION | YES |
| SHORT CIRCUIT OUTPUT PROTECTIONVOLTAGE INPUT PROTECTION | YES |
| VOLTAGE INPUT PROTECTION | YES |
| DIMENSIONS LxWxH (INCHES) | 5.54 x 3.24 x 1.37" |
| HEATSINK LENGTH | 4.75" |
| COMPACT SIZE TO EASY INSTALLATION FOR ANY APLICATIONS | YES |
| STABLE/RELIABLE FOUR LAYERS TRACES PCB DESIGN | YES |
| SURFACE MOUNT COMPONENT TECHNOLOGY | YES |
| AUDIO PRECISION QUALITY CONTROL VERIFICATION | YES |
| CONFIGURATION 2CH/4CH INPUT SELECTOR | NO |
