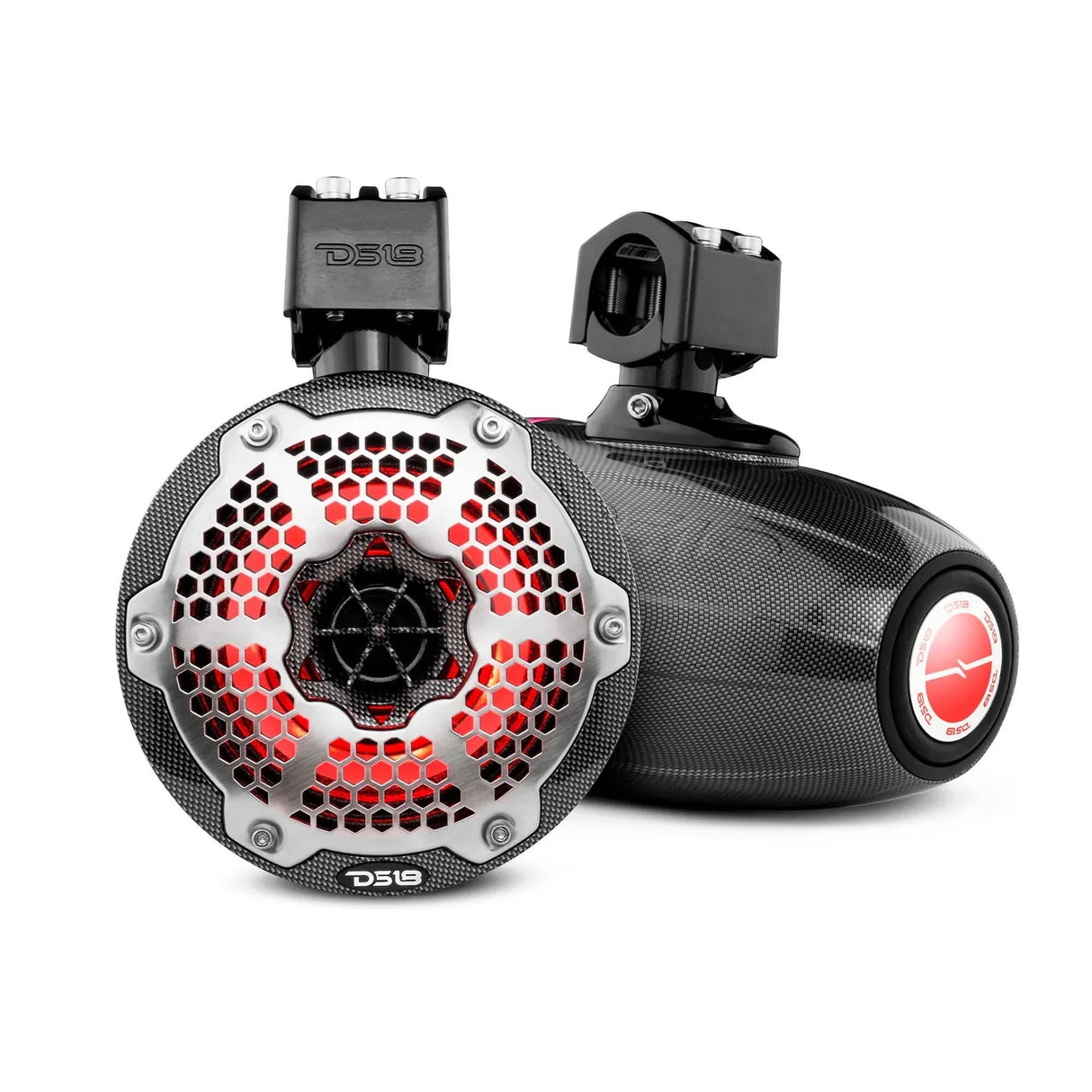

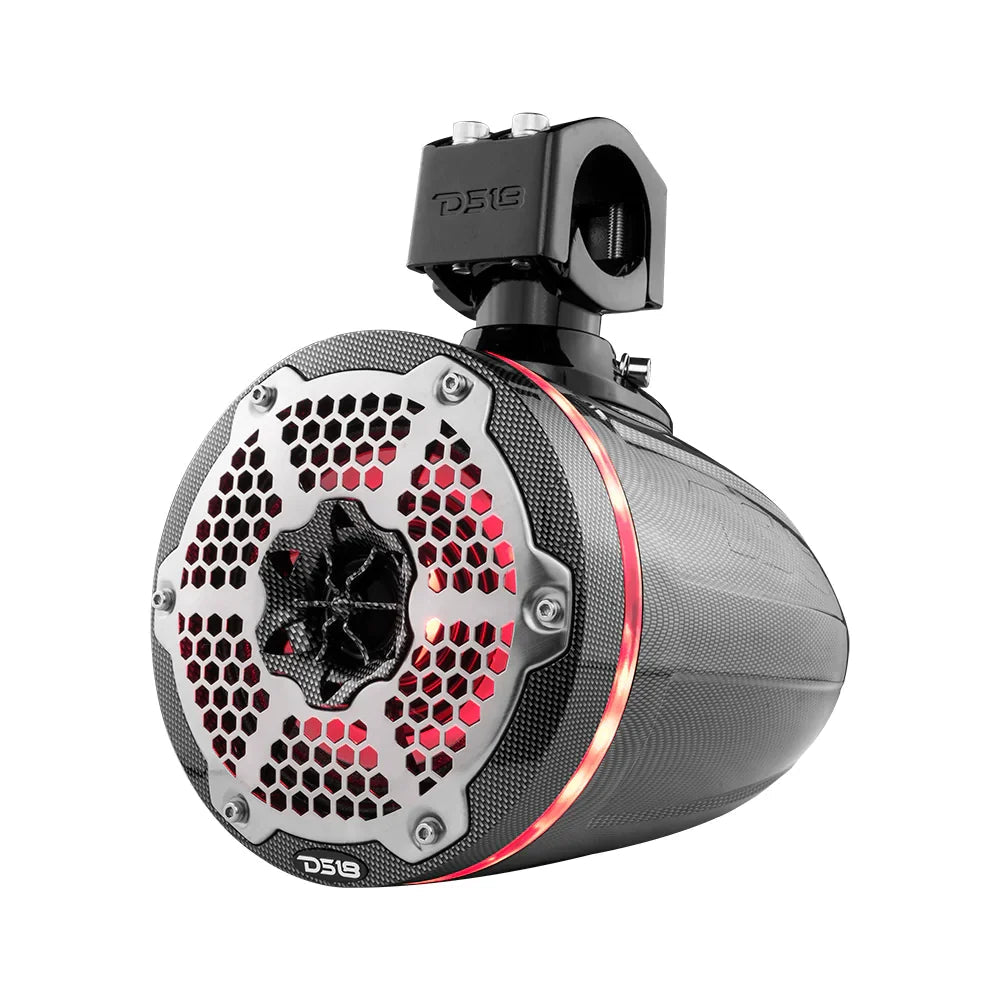

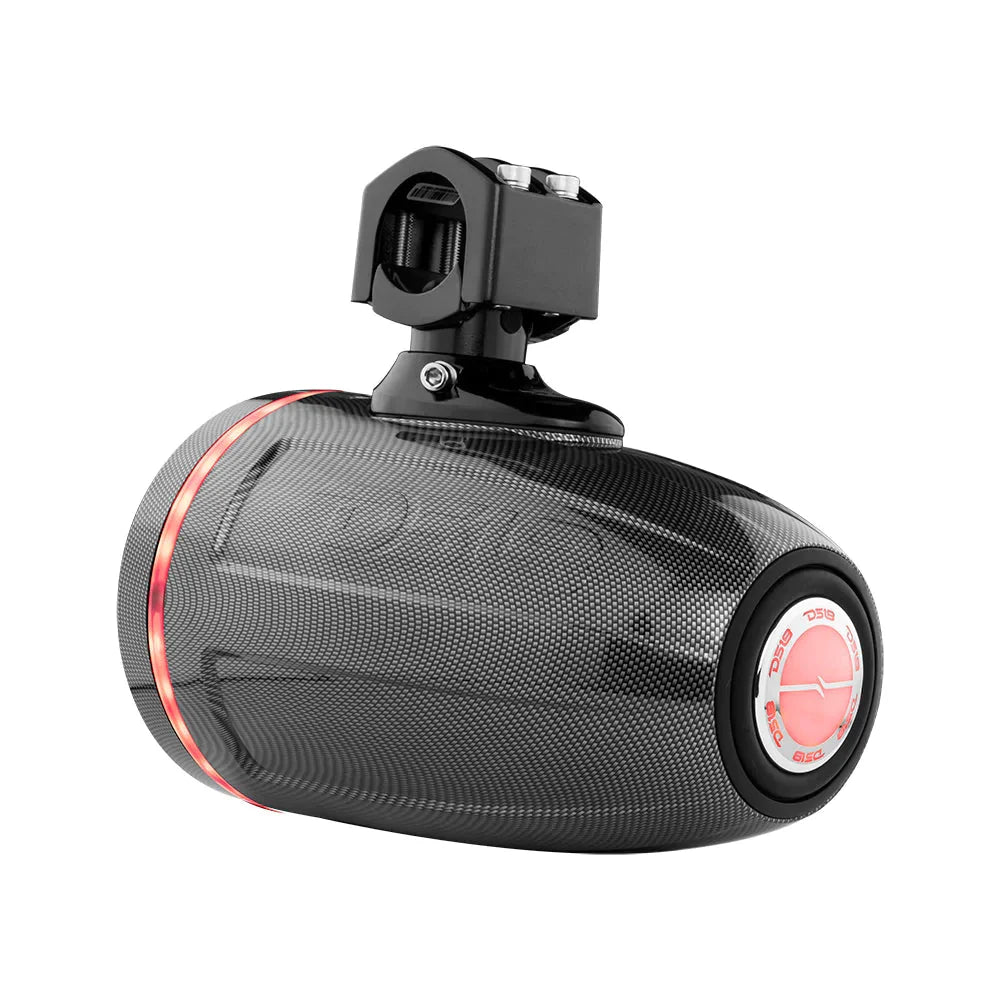

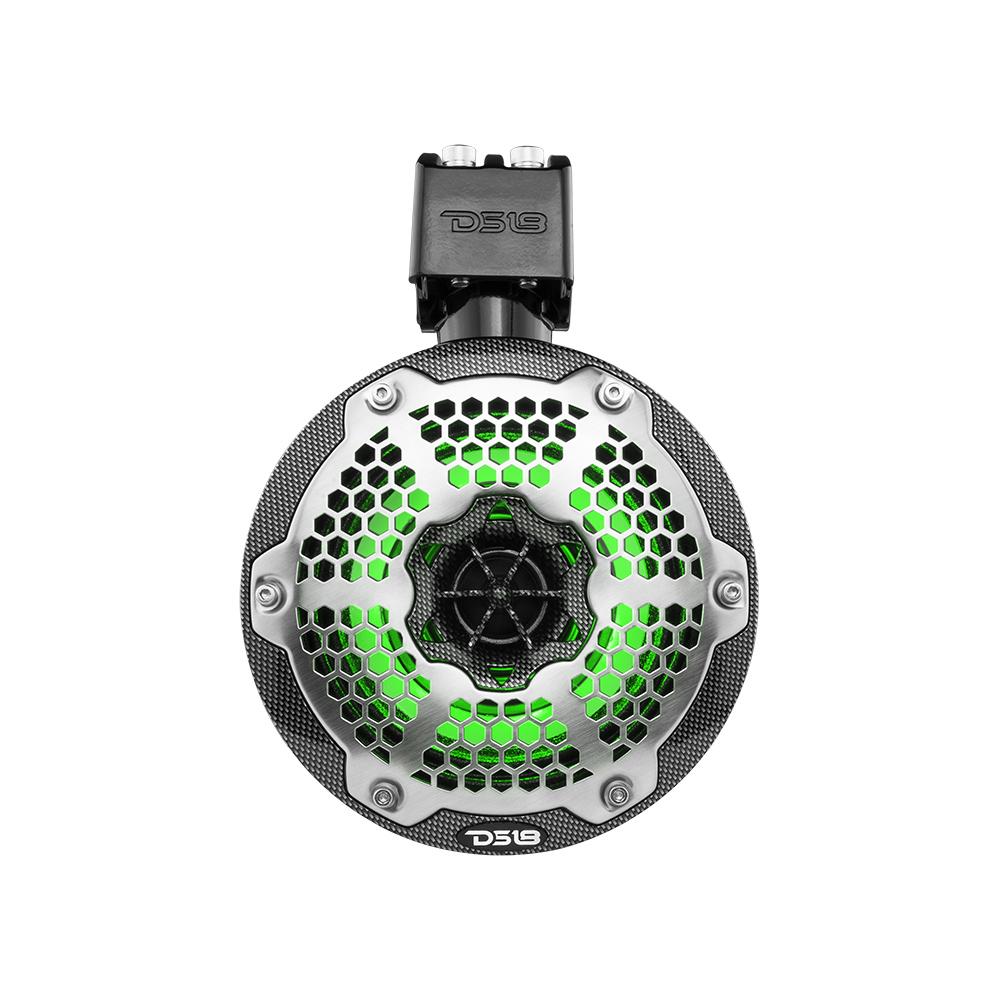

DS18 HYDRO CF-X6TPNEO
DS18 HYDRO CF-X6TPNEO is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150 Watts |
| MAX Power Handling | 450 Watts |
| Sensitivity (1w/1m) | 93 dB |
| Frequency Response | 70Hz - 21KHz |
| Recommended HI Pass Crossover | 90 Hz |
| Body / Features | |
| Enclosure Material | Injection PC+ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker |

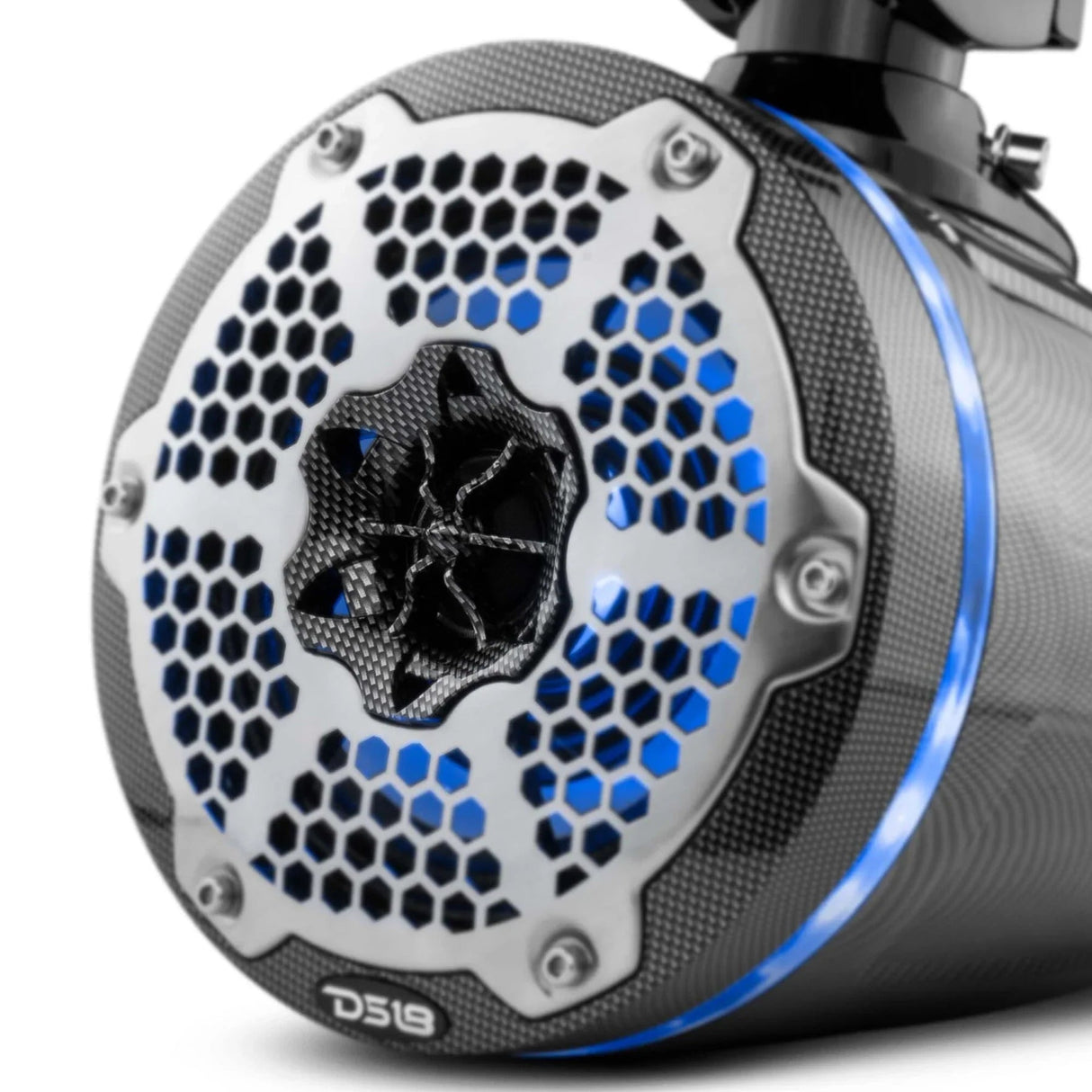

| Grill Type | ABS+316 Stainless Metal Mesh |

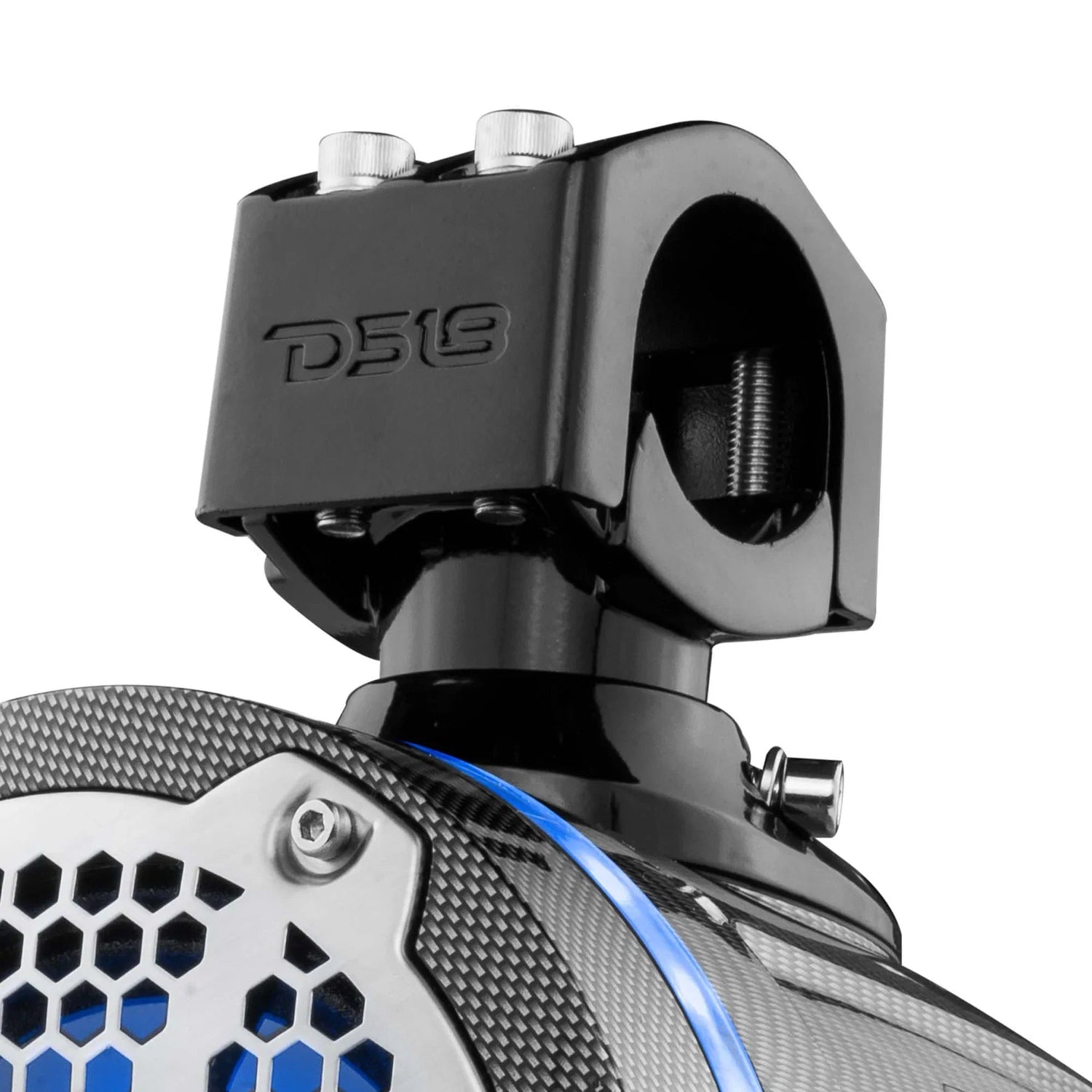

| Clamps | Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws,Stop Washers,Hexagon wrench, Safety Rope,Screw fastening Glue) |
| Front Logo | Can be Rotated For Correct Angle Display |
| Rear Logo | Radiator Fixed Position |
| Finish | Gloss Black Carbon Fiber Texture |
| Woofer Specifications | |
| Voice Coil Diameter | 1.5" |
| Cone Material | Waterproof Compress Paper+Carbon Fiber |
| Surround Material | Soft PC Damping Glued |
| Basket Material | PC Injection Molded Composite |
| Magnet Material | Neodymium |
| Magnet Grade | N40H |
| Passive Radiator | 3.5" With LED RGB Light |
| Tweeter Specifications | |
| Voice Coil Diameter | 1" |
| Type | Compression Driver with CNC Solid Aluminum Horn |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Crossover | 12dB with Over Power Protection |
| Thiele & Small Parameters | |
| Equivilant Volume | Vas 8.5 L |
| Excursion (one way) | Xmax 3 mm |
| Free Air Resonance | Fs 75 Hz |
| Total Factor | Qts 0.783 |
| Speaker Measurements | |
| Overall Diameter | 6.93" / 176.1mm |
| Overall Depth | 11.42" / 290.2mm |
| Overall Height | 10.7" / 271.7mm |
