Description
Description

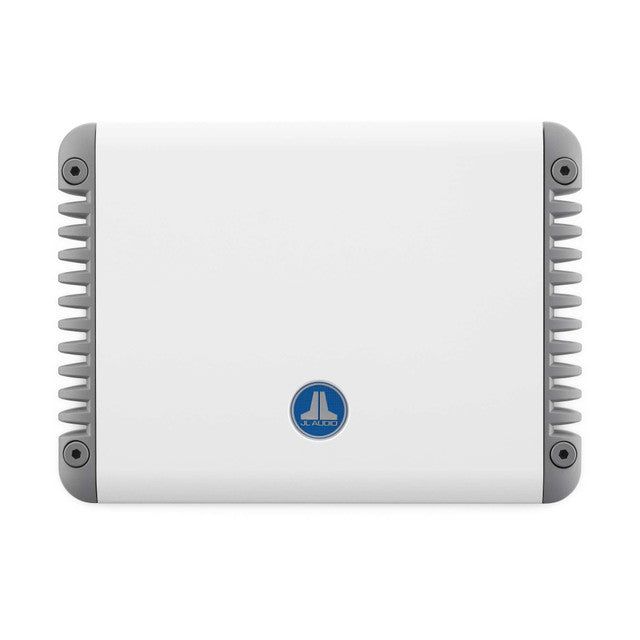

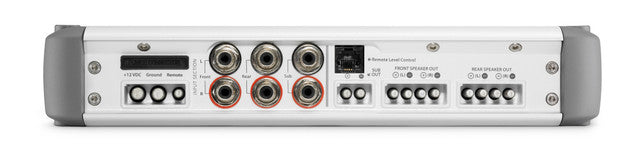

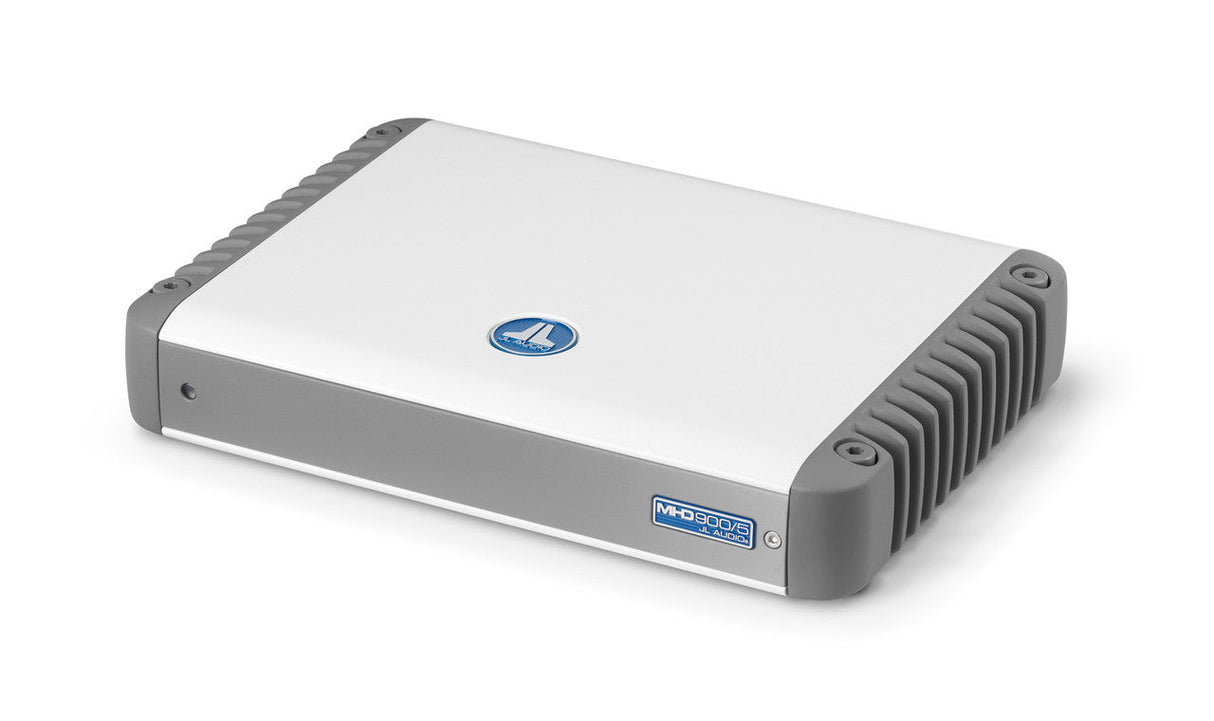

JL Audio MHD900/5
5-Channel Class D Marine System Amplifier, 100 W x 4 + 500 W x 1
Thanks to its ability to act as a "one-box solution", the MHD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using our Single Cycle Control switching design and R.I.P.S. technology, the MHD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Rated Continuous (RMS) Power @ 14.4 V
| Main Channels @ 4 Ω | 100 W RMS x 4 |
| Main Channels @ 3 Ω | 75 W RMS x 4 |
| Main Channels @ 2 Ω | 75 W RMS x 4 |
| Main Channels @ 1.5 Ω | 75 W RMS x 4 |
| Main Channels - Bridged @ 8 Ω | 200 W RMS x 2 |
| Main Channels - Bridged @ 4 Ω | 150 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | 500 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| Main Channels @ 4 Ω | 100 W RMS x 4 |
| Main Channels @ 3 Ω | 75 W RMS x 4 |
| Main Channels @ 2 Ω | 75 W RMS x 4 |
| Main Channels @ 1.5 Ω | 75 W RMS x 4 |
| Main Channels - Bridged @ 8 Ω | 200 W RMS x 2 |
| Main Channels - Bridged @ 4 Ω | 150 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | 500 W RMS x 1 |
General Specifications
| Frequency Response (Main Channels) | 12 Hz - 28 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 12 Hz - 10 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Main Channels) | >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >400 / 50 Hz |
| Damping Factor @ 2 Ω | >200 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <0.03% @ 4 Ω |
| THD+N @ Rated Power (Subwoofer Channel) | <0.05% @ 4 Ω |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | Accepts up to 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |
