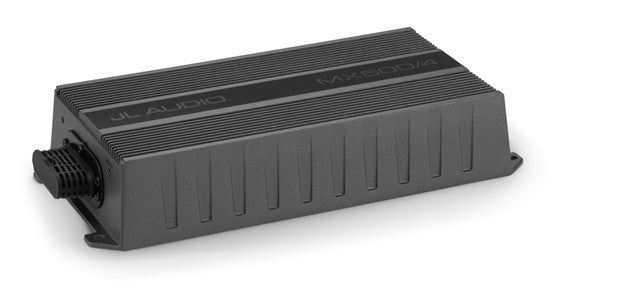

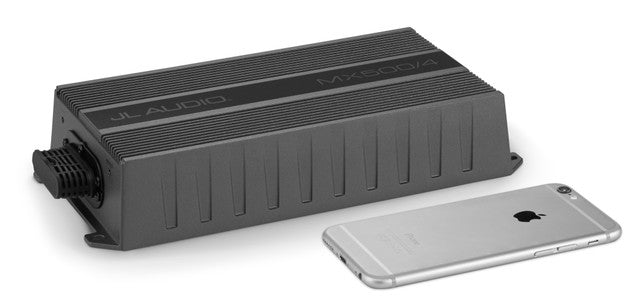

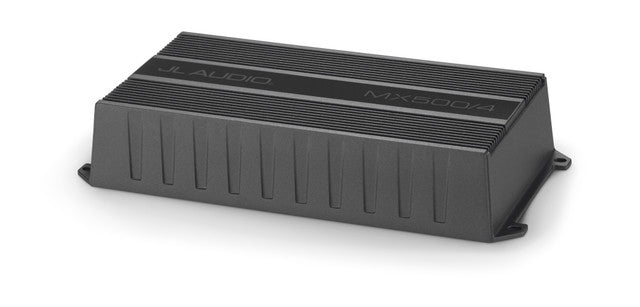

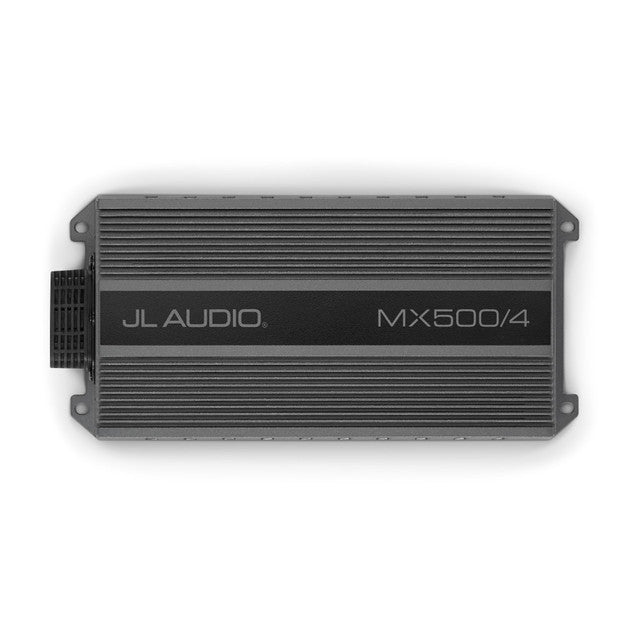

JL Audio MX500/4 | 4-Channel Compact Marine/Powersports Amplifier
JL Audio MX500/4 | 4-Channel Compact Marine/Powersports Amplifier is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 70 W RMS x 4 |
| @ 2 Ω | 125 W RMS x 4 |
| Bridged @ 4Ω | 250 W RMS x 2 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 55 W RMS x 4 |
| @ 2 Ω | 90 W RMS x 4 |
| Bridged @ 4Ω | 180 W RMS x 2 |
General Specifications
| Frequency Response | 20 Hz - 20 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >92 / 50 Hz |
| Damping Factor @ 2 Ω | >43 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 35 Hz - 300 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | No |
| Remote Level Modes | N/A |
| Channel Input Mode Switch | Yes (2/3/4 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Physical Specifications
| Height (H) | 1.77 in / 45 mm |
| Width (W) | 9.33 in / 237 mm |
| Depth (D) | 4.50 in / 115 mm |
