Description
Description

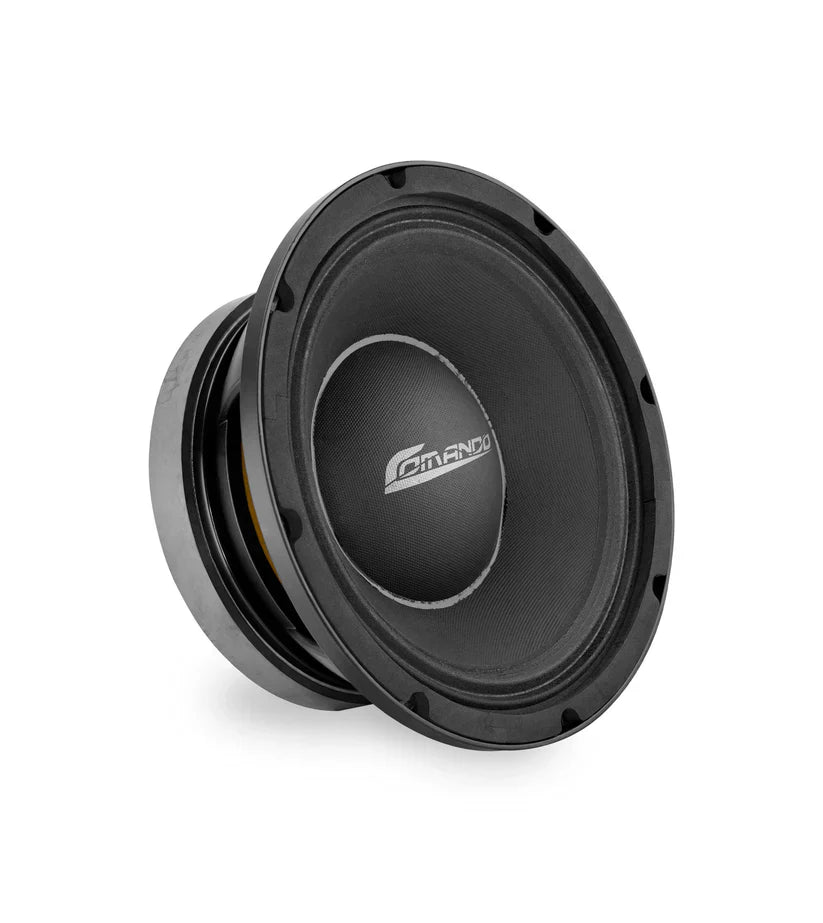

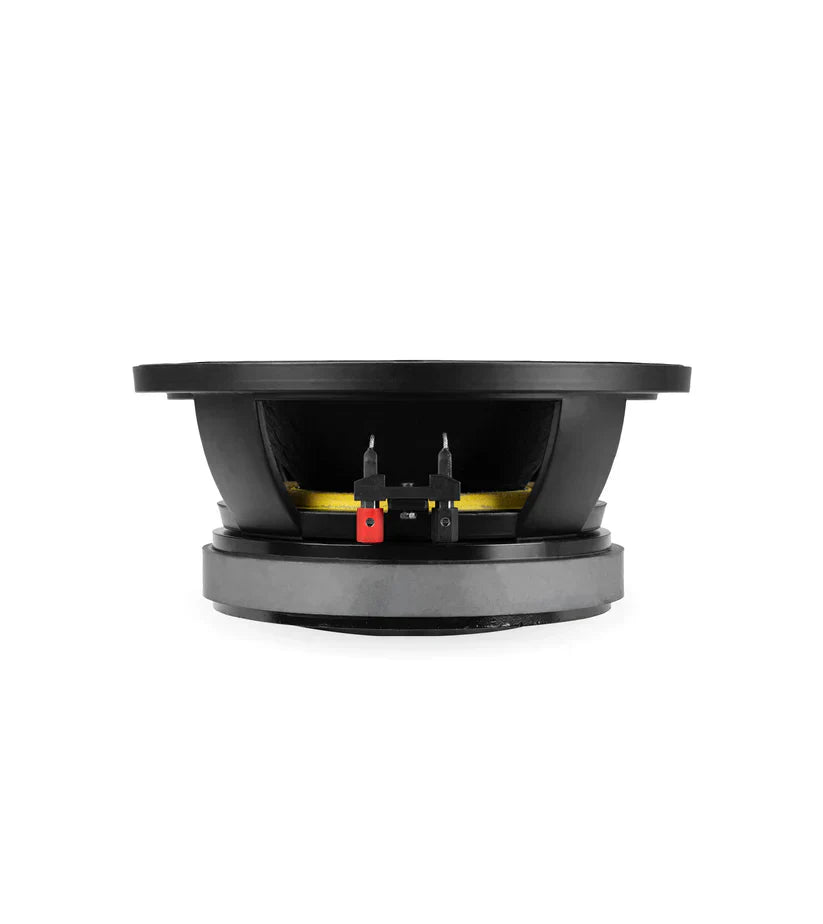

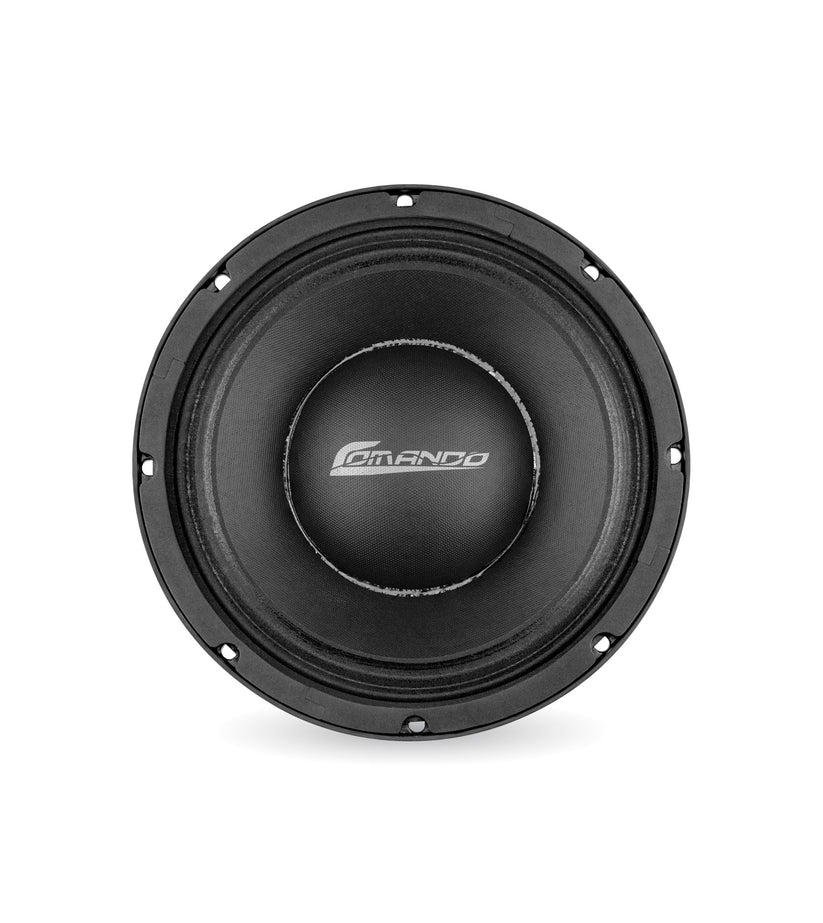

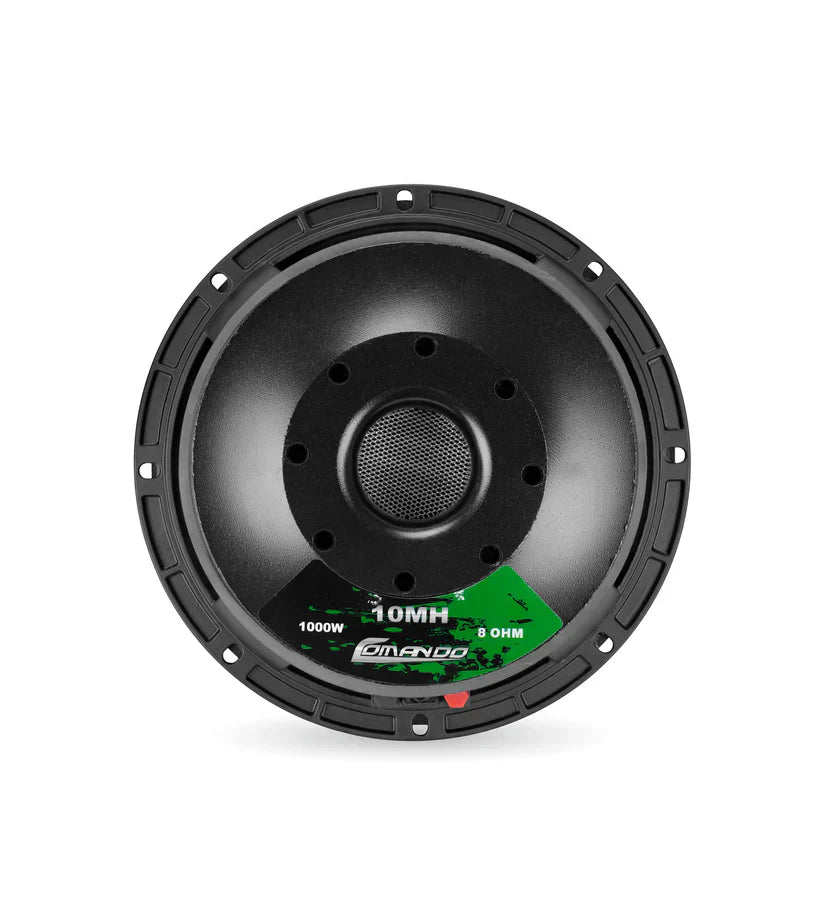

This 10-inch mid-high speaker has been designed to operate at the level of a professional mid-range audio speaker; delivering incredible sound, volume and performance. It uses an extremely light and powerful high performance ferrite magnet and a single strong 8Ω coil, allowing this speaker to deliver unmatched sound clarity.
We recommend them as the best option when you want to install your midrange speakers in any professional audio setup, and even more so in door panel installations, etc. where the weight of the speakers is often a major limitation to successfully achieve the ideal sound stage with high performance and quality, so that the best listening experience is obtained.
| Nominal Chassis Diameter | 10"/255mm |
| Max Power | 1000Watts |
| RMS Power | 500Watts |
| Impedance | 8Ω |
| Frequency Response | 70-4KHz |
| Sensitivity(1W/1m) | 98dB |
| Voice Coil Diameter | 4"/99.2mm |
| Winding material | Aluminium |
| Magnet | Ferrite |
| FS Hz | 70Hz |
| Vas | 22.6 Litres |
| Re Ohms | 5.3Ω |
| Qms | 5.064 |
| Qes | 0.422 |
| Qts | 0.39 |
| BL T/m | 15.329 |
| MMS(gms) | 40.132 |
| Xmas(mm) | 3.5 |
| Sd | 35.299 |
| Efficiency % | 1.797 |
| Le(1k Hz) | 32.357 |
| EBP | 179Hz |
| Overall Diameter | 10"/255mm |
| Bolt Circle Diameter | 9.6"/244mm |
| Baffle cutout Diameter | 9.17"/233mm |
| Depth | 4.9“/125mm |
| Net Weight | 7.5kgs |
| Shipping Weight | 8.6kgs |
| Shipping Box | 28*28*15.5cm |
