SKU: XM-5ES

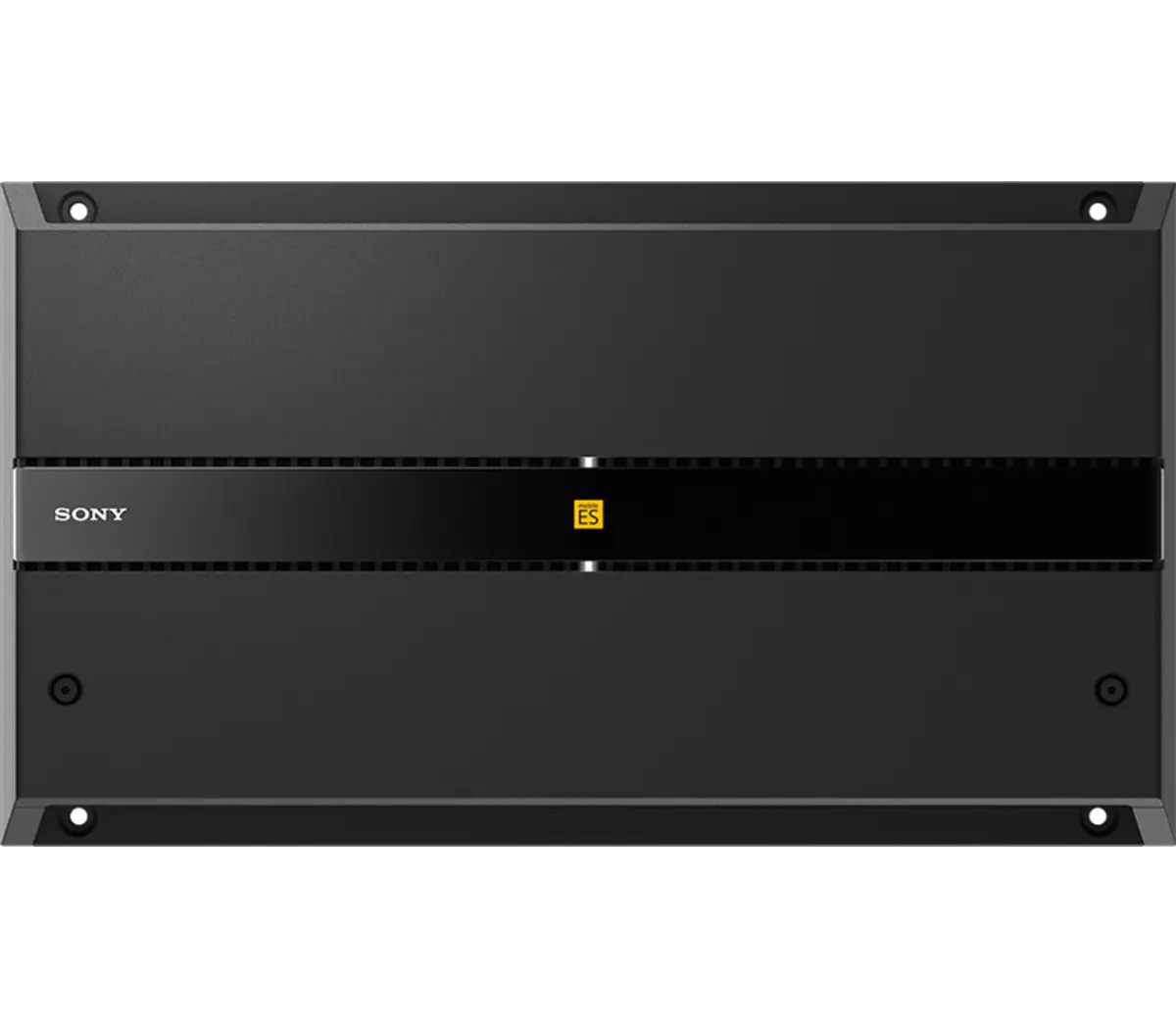

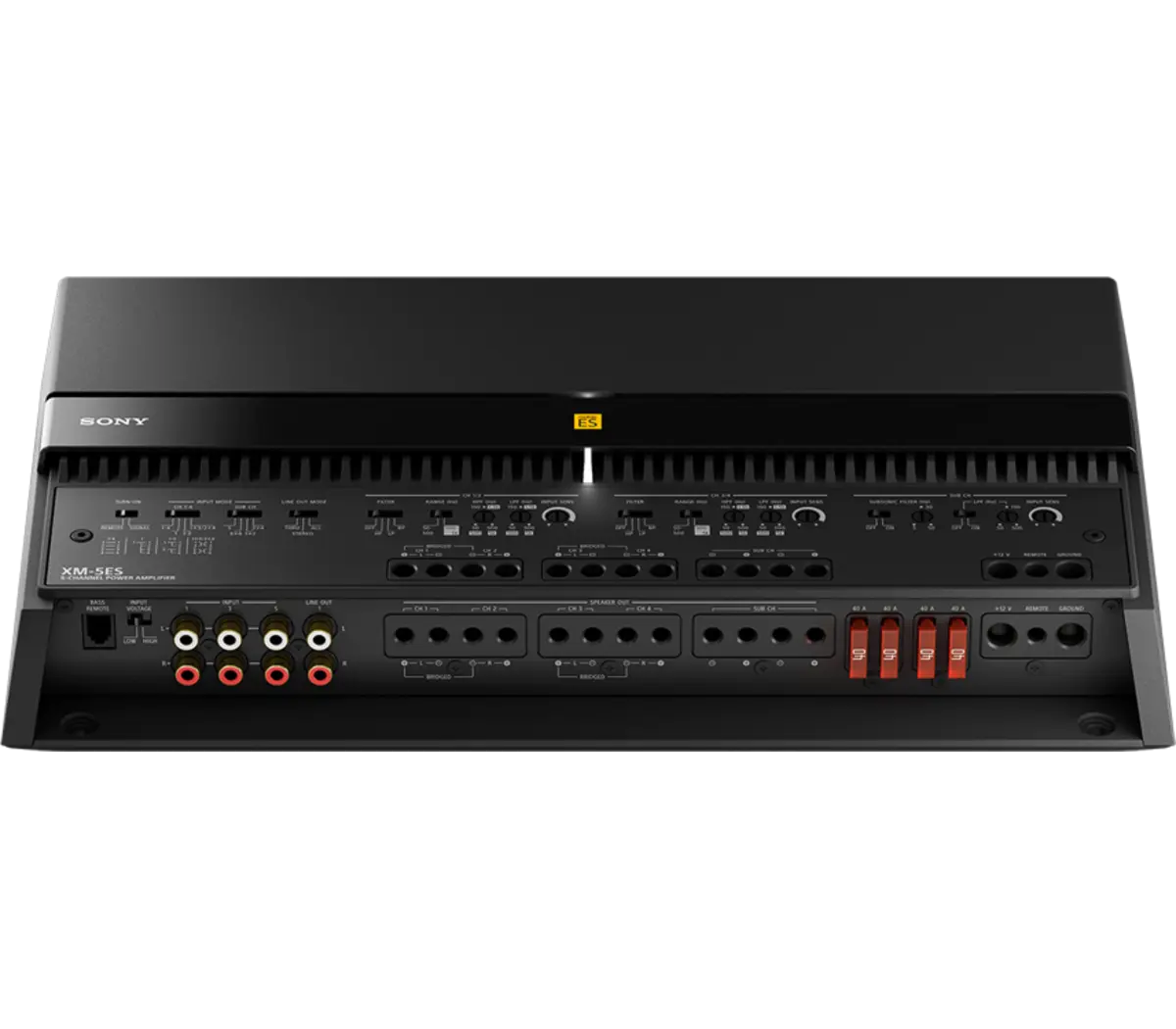

Sony XM-5ES Mobile ES™ Series 5-channel car amplifier — 100 watts RMS x 4 at 4 ohms + 750 watts RMS x 1 at 2 ohms

No reviews yet. Bought this? Write the first review
Regular price $798.00
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Sony XM-5ESMobile ES™ Series 5-channel car amplifier — 100 watts RMS x 4 at 4 ohms + 750 watts RMS x 1 at 2 ohms

Sony's Elevated Standard hi-res amp

Sony's Mobile ES Series XM-5ES Elevated Standard 5-channel amplifier will boost the level of your music while retaining its pristine, crisp, and full-range sound and impact. Capable of handling high-resolution sources and programs, this amp will help make it sound like you're right there with the musicians in the studio or on stage. With 100 watts RMS output for each front and rear channel plus up to 750 watts RMS for a subwoofer, there'll be plenty of volume available for playing your music the way you want.

Signal handling

You can bridge a couple of the amp's channels together to power a subwoofer or high-performance speaker with up to 330 watts RMS — so you could use the amp to power three subwoofers, or a couple of high-performance speakers plus a sub. A more common application would be to use the amp to power two tweeters, two midrange drivers, and a sub. The front and rear channels both feature wide-range adjustable high-, low-, and band-pass filters, so you can fine-tune the sound to fit almost any combination of high-frequency tweeters, midrange drivers, and full-range speakers. The subwoofer channel has its own, separate tuning controls. The inputs can be summed and assigned, so factory pre-processed channels can be mixed together to produce full-range signals for the amp to boost. Preamp outputs let you easily add another stereo or mono amp to your system.

Sony XM-5ES

Product highlights:

  • 5-channel car amplifier
    • 100 watts RMS x 4 + 450 watts RMS x 1 at 4 ohms
    • 165 watts RMS x 4 + 750 watts RMS x 1 at 2 ohms
    • 330 watts RMS x 2 bridged at 4 ohms + 750 watts RMS x 1 at 2 ohms
  • CTA-2006 compliant
  • Class D amp technology — frequency response: 10-40,000 Hz on front and rear channels
  • variable high-, low-, and bandpass filters (50-5,000 Hz, 12 dB/octave) on front and rear channels
  • variable low-pass filter (50-500 Hz, 24 dB/octave) on subwoofer channel
  • variable subsonic filter (5-50 Hz, 24 dB/octave) on subwoofer channel

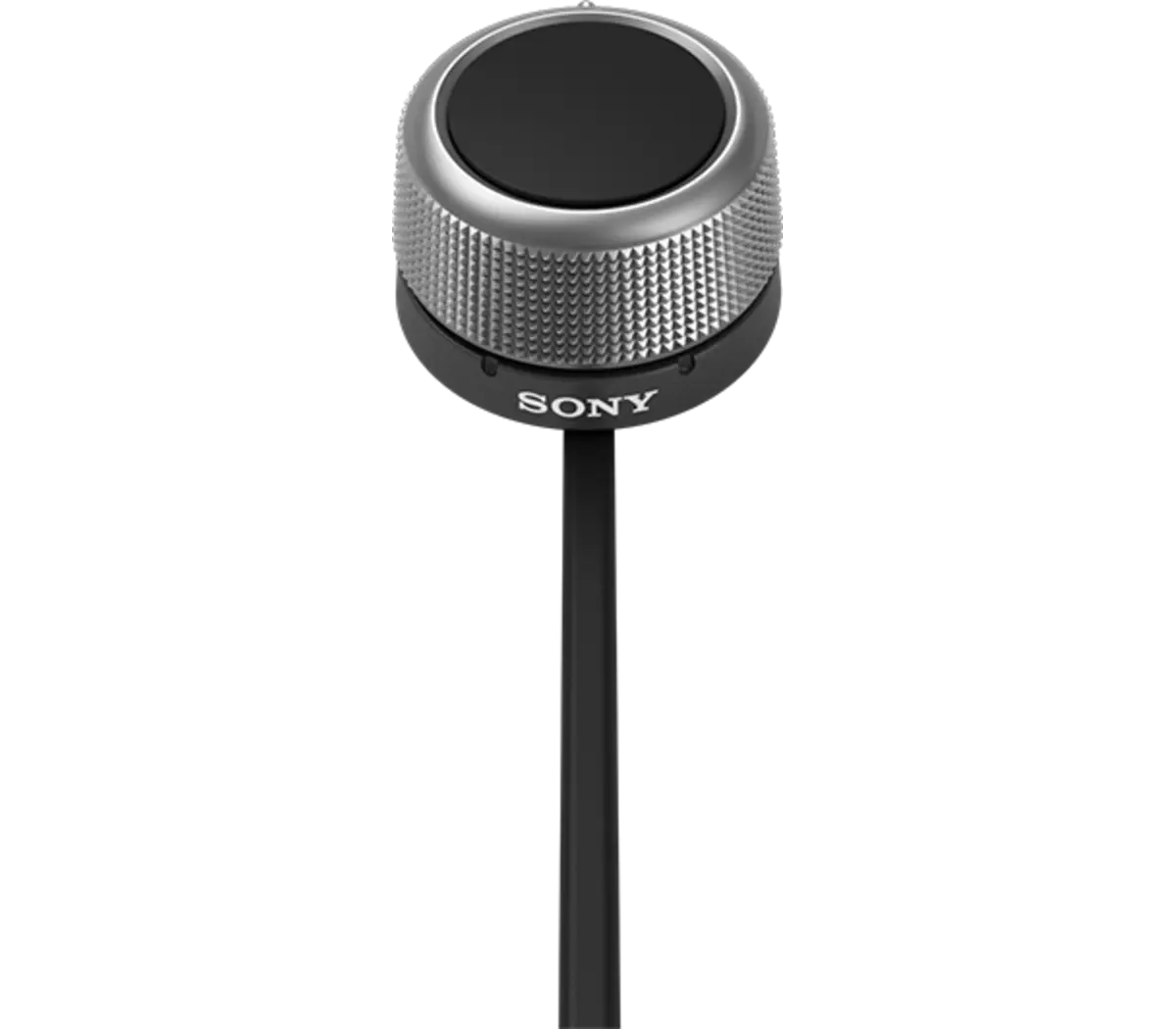

  • wired remote bass level control included
More Info:
  • resonance-damping aluminum chassis
  • gold plated connectors
  • preamp inputs and outputs
  • speaker-level inputs
  • wiring and hardware not included with amplifier
    • 1/0-gauge power and ground leads recommended
  • fuse rating: 40A x 4
  • dimensions: 15"W x 2-3/8"H x 8-1/2"D
  • warranty: 3 years
  • MFR # XM5ES

What's in the box:

  • 5-Channel amplifier
  • Four 40-amp ATO fuses (installed)
  • Wired remote control (attached 18' cable)
  • 2.5mm Allen wrench
  • Remote mounting bracket
  • Adhesive backed pad
  • Four 3/4" Screws
  • Two 1/2" Screws
  • Two 1/4" Screws
