Description
Description

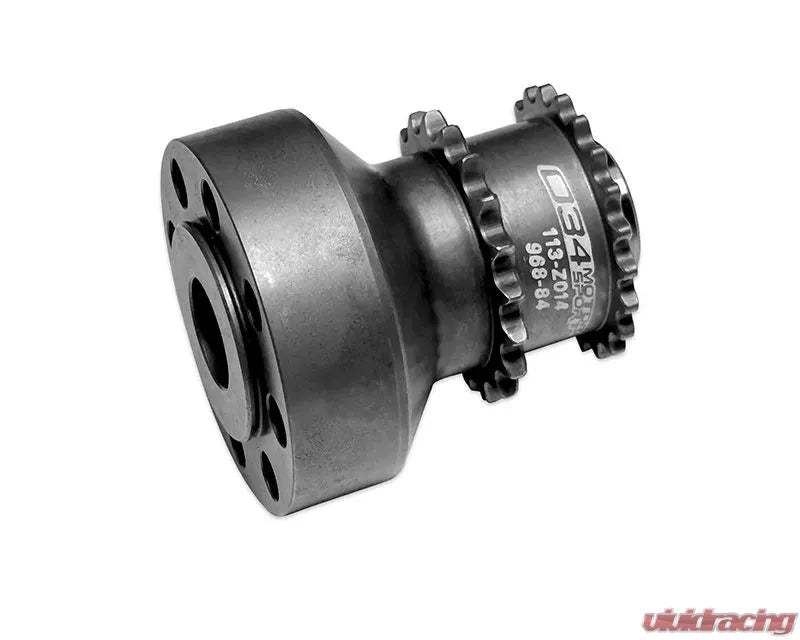

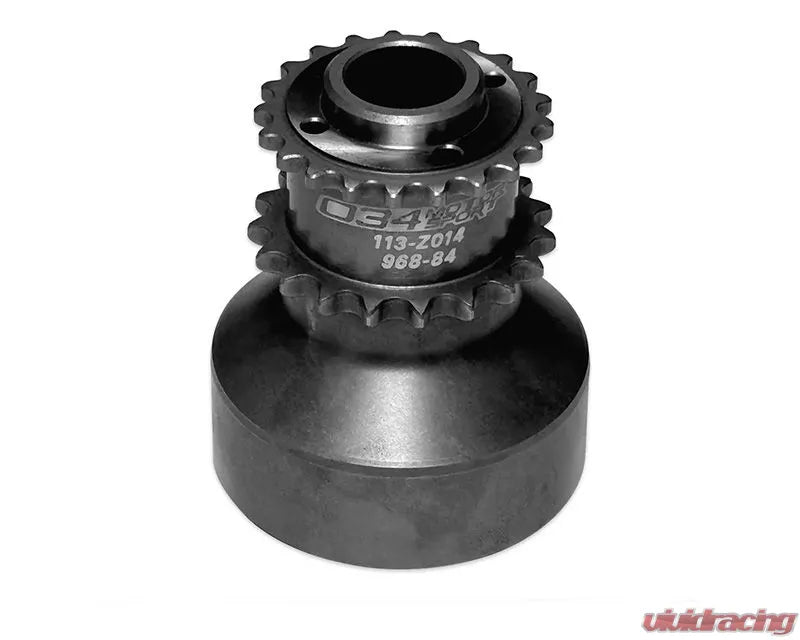

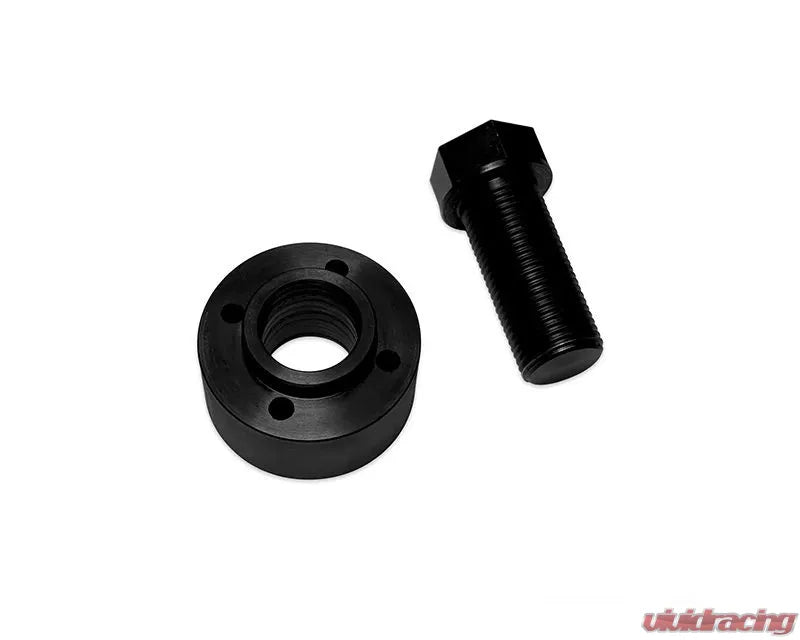

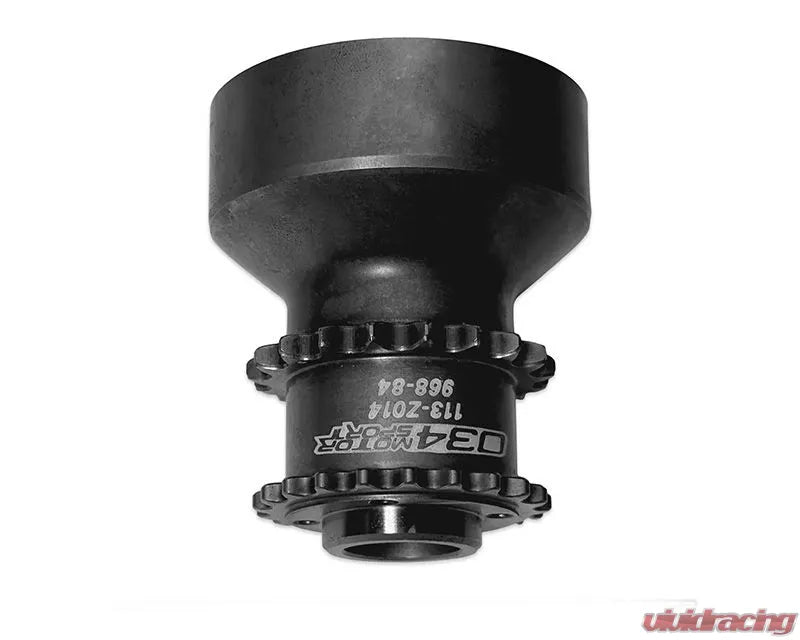

This 034 Motorsport 1-Piece Crank Hub is CNC-machined from heat-treated EN36 steel and eliminates crank hub slip on high-output BMW N55 and S55 engines. It includes a billet aluminum crank bolt capture plate that locks the OE bolt in place for added security.

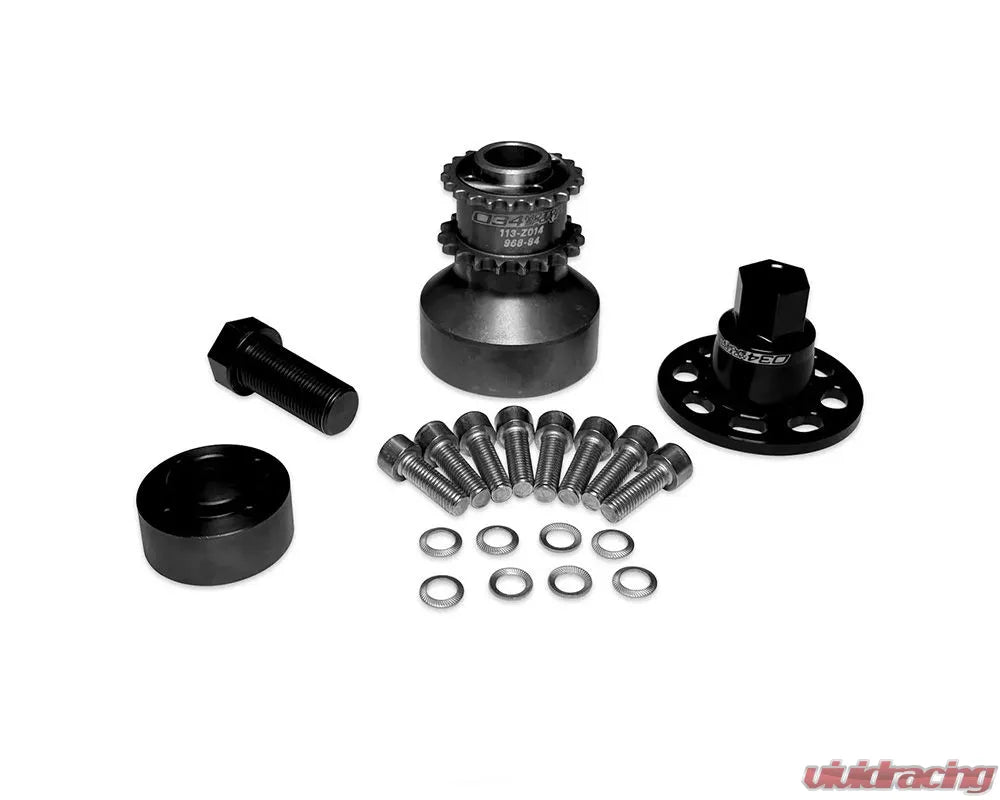

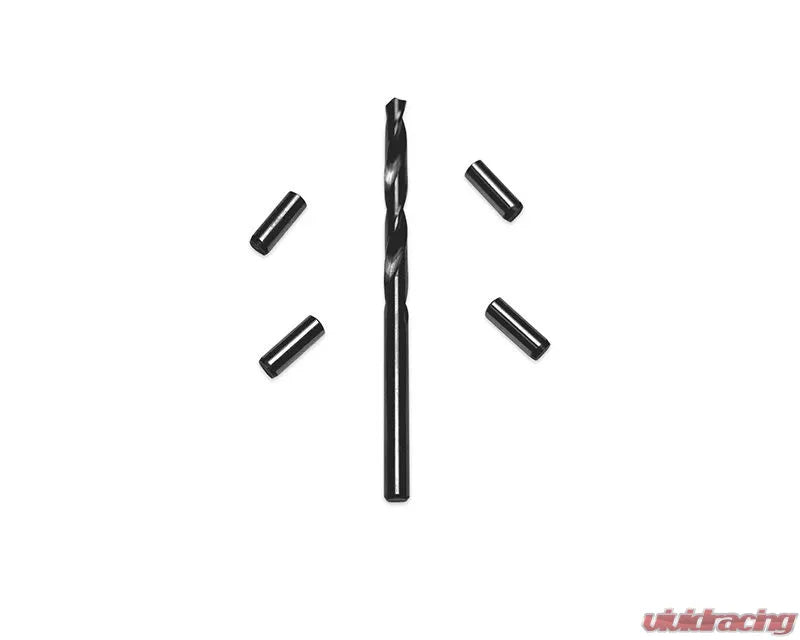

The kit comes with a jig, guide, locating bolt, carbide drill bit, and a new OE crank bolt for straightforward installation. Choose between pinned (4-pin) or unpinned configurations to match your build.
| Material | Heat-treated EN36 steel with 0.75 mm case hardening |
| Crank Bolt Capture Plate Material | 6061-T6 billet aluminum, anodized |
| Configuration Options | Pinned (4-pin) or Unpinned |
| Included Components | Crank hub, jig, guide, locating bolt, carbide drill bit, new OE crank bolt |
| Compatibility | BMW N55 and S55 engines (2006+) |
| Model Number | 034-113-Z015 |
