1 1/4" Heim Joint 3 Link Suspension Kit

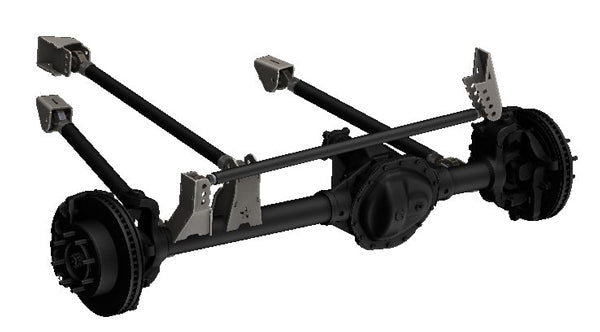

This is a complete, high quality 3 link suspension kit with all the parts you need to install a three link suspension on your rig at home.  All the parts in our three link kit are made to stand up to the abuse that Rock Crawlers and Trail Rigs see and then some.  This kit includes our heat treated chromoly heim joints, these are high quality heim joints with great longevity.  Depending on your needs we have also included the option for 1 1/4" heim joints or 7/8" heim joints for your upper control arm.  We recommend 1 1/4" joints for heavier rigs and hardcore offroad rigs, the 7/8" upper is a good option for lighter rigs and the occasional off-roading.



Read our blog for: 3 Link Installation Tips

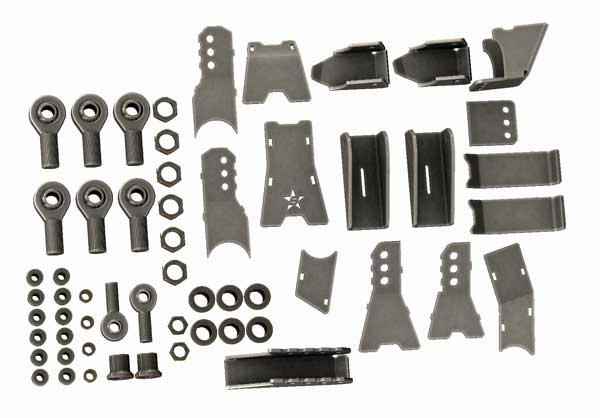

The kit includes:

• 2 Axle Link Mounts 10 Deg Standard
• 2 Frame Link Mounts
• 1 Adjustable Inner Frame Link Mount 0 Deg
• 1 Link Tower
• 1 Outside Frame Panhard / Trackbar Mounting Bracket
• 1 Offset Axle Panhard Bracket
• 1 Chromoly 3/4" - 16 X 3/4" Heim RH
• 1 Chromoly 3/4" - 16 X 3/4" Heim LH
• 2 High Misalignment Spacers - 3/4" to 5/8" (Comes in pairs)
• 1 3/4" - 16 Jam Nut RH
• 1 3/4" - 16 Jam Nut LH
• 1 Tube Insert (3/4"-16) 1" ID Tube RH
• 1 Tube Insert (3/4"-16) 1" ID Tube LH
• 3 Chromoly 1 1/4"- 12 Heim RH
• 3 Chromoly 1 1/4"- 12 Hiem LH
• 3 Jam Nuts LH
• 3 Jam Nuts RH
• 2 Heavy Wall Tube Insert (1-1/4"-12) 1 1/2" ID Tube LH
• 2 Heavy Wall Tube Insert (1-1/4"-12) 1 1/2" ID Tube RH
• 1 Standard Tube Insert LH
• 1 Standard Tube Insert RH
• 6 High Misalignment Spacers 1-9/16 (Comes in pairs)

 This is great for the do it yourself fabricators looking do their own 3 link system.
