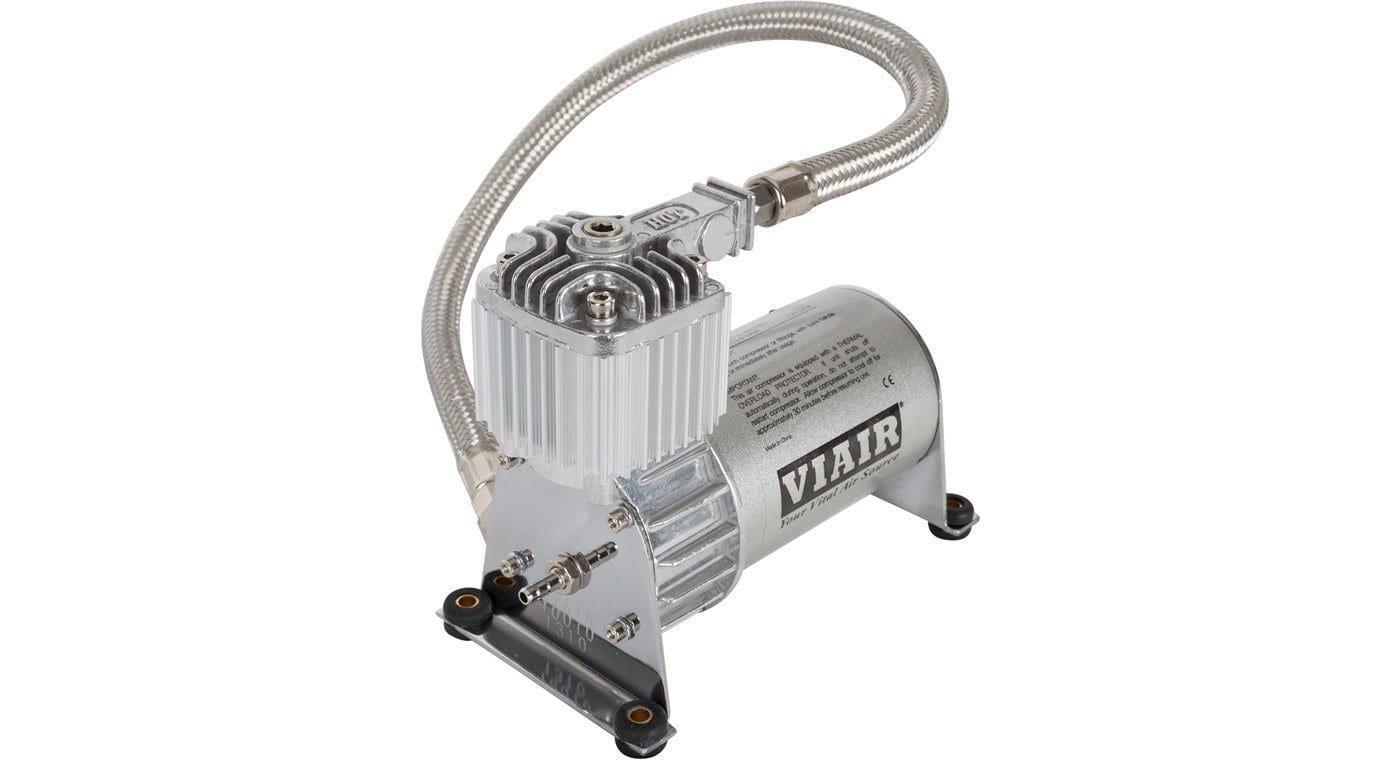

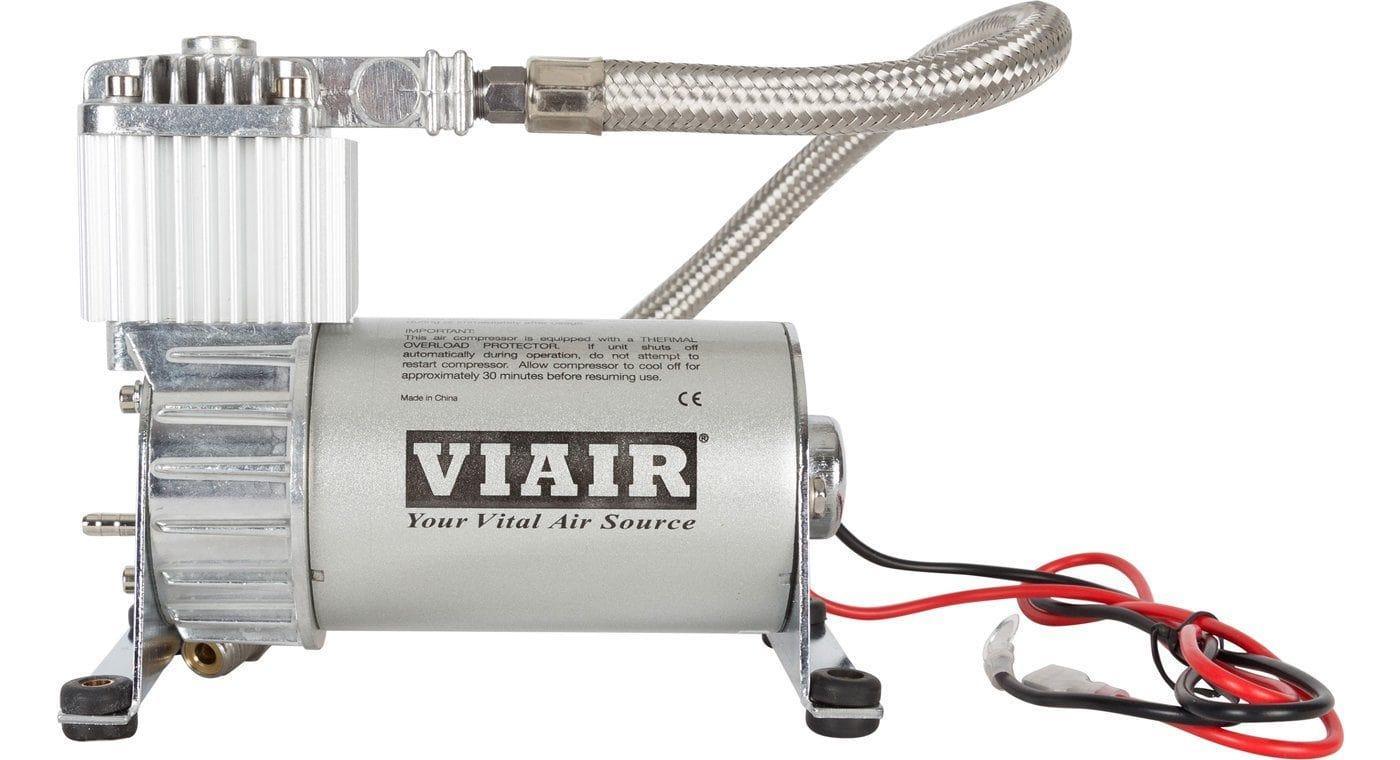

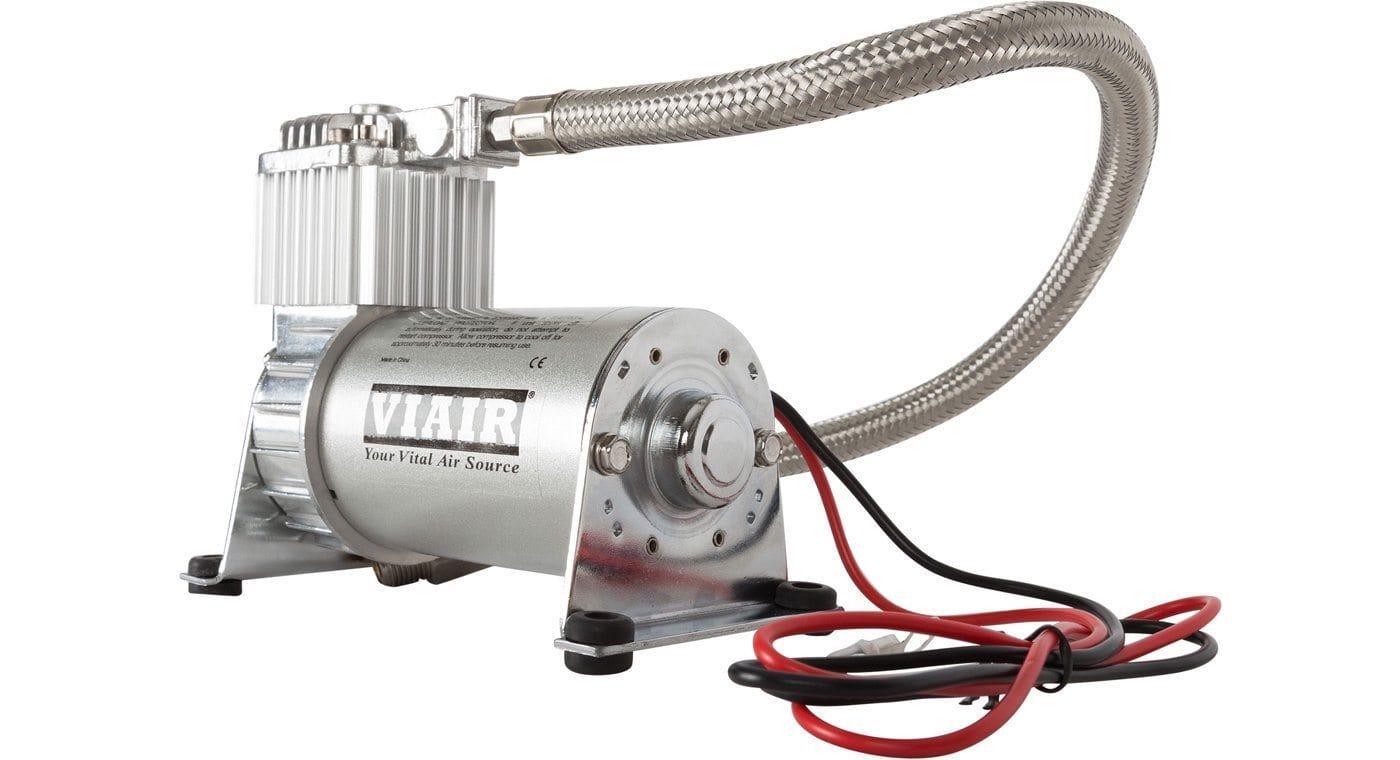

Viair 100C Silver Air Compressor
Viair 100C Silver Air Compressor is backordered and will ship as soon as it is back in stock.
Description
Description
A SILVER BULLET OF AIR.
Looking for a pint-sized powerhouse that delivers big-time air compression? Meet the Viair 100C Silver Air Compressor! With a lightning-fast recharge time of only 35 seconds, this baby can fill up your 1-gallon tank quicker than you can say "compressed air." Plus, it comes with a one-and-a-half-foot-long metal-braided leader hose and rubber-isolated mounting feet that make installation a breeze. So go ahead and give your ride the air it deserves with the Viair 100C!
**To ensure the longevity and proper function of the air compressor, it is recommended to install it in a sheltered area, away from exposure to weather conditions and the elements.**
- Non-Weather Resistant
- Permanent Magnetic Motor
- Oil-Less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 1/4" Braided Leader Hose
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.27 | 9 | 0 | 36.0 | 9 |
| 10 | 0.90 | 10 | 1.0 | 25.0 | 10 |
| 20 | 0.85 | 11 | 2.0 | 22.5 | 11 |
| 30 | 0.79 | 11 | 3.0 | 21.0 | 12 |
| 40 | 0.76 | 12 | 4.0 | 20.0 | 13 |
| 50 | 0.72 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.71 | 13 | 6.0 | 17.0 | 12 |
| 70 | 0.67 | 13 | 7.0 | 15.0 | 12 |
| 80 | 0.64 | 12 | 8.0 | 13.7 | 12 |
| 90 | 0.59 | 12 | 9.0 | 12.3 | 12 |
| 100 | 0.55 | 12 | |||
| 110 | 0.52 | 12 | |||
| 120 | 0.48 | 12 | |||
| 130 | 0.45 | 12 |
* Supply Voltage: 13.8 Volts
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 10 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 00 sec. (± 05 sec.) |
| 90 to 120 PSI | 17 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 25 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 00 sec. (± 10 sec.) |
| 90 to 120 PSI | 35 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts

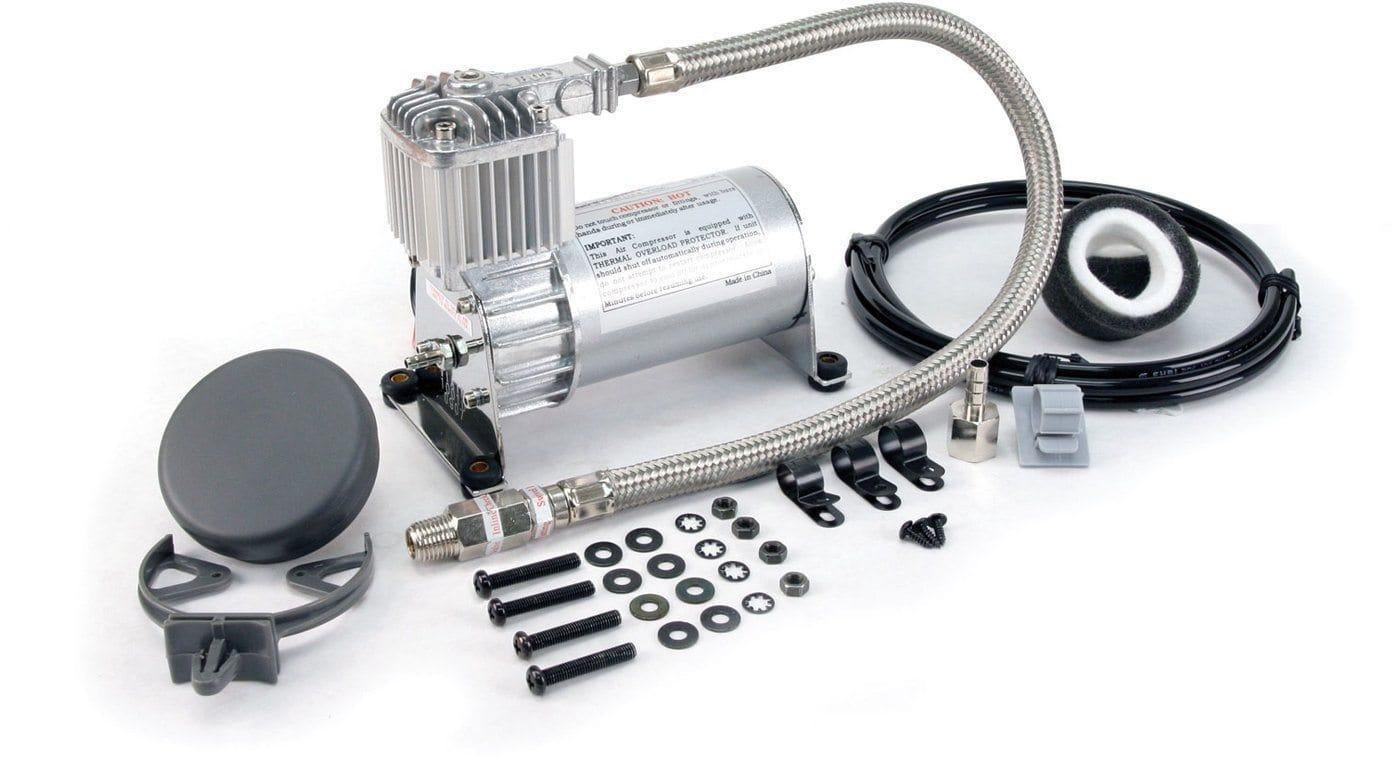

- Viair 100c 12 Volt Air Compressor
- 1/4" NPT Braided Leader Hose & Check Valve
- Remote Mountable Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year Manufacturer's Defect Warranty
- Mounting Hardware
| SPECIFICATIONS | |
|---|---|
| Part Number | AC-100 |
| Manufacturers Part Number | 10010 |
| Voltage | 12 Volts DC |
| Max Amperage | 14 Amps |
| Maximum Duty Cycle | 15% @ 100 PSI |
| Maximum Pressure | 130 PSI |
| Max Tank Size | 1 Gallon |
| CFM | 1.27 CFM |
| Length | 6.35″ (161.3 mm) |
| Width | 3.3″ (83.4 mm) |
| Height | 4.9″ (125.7 mm) |
| Weight | 3.50 lb (1.59 Kg) |
-
