12MB1000FT 12" MIDBASS LOUDSPEAKER
12MB1000FT 12" MIDBASS LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Description
Description
For high output speaker systems, PRV Audio’s 12MB1000FT mid bass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.

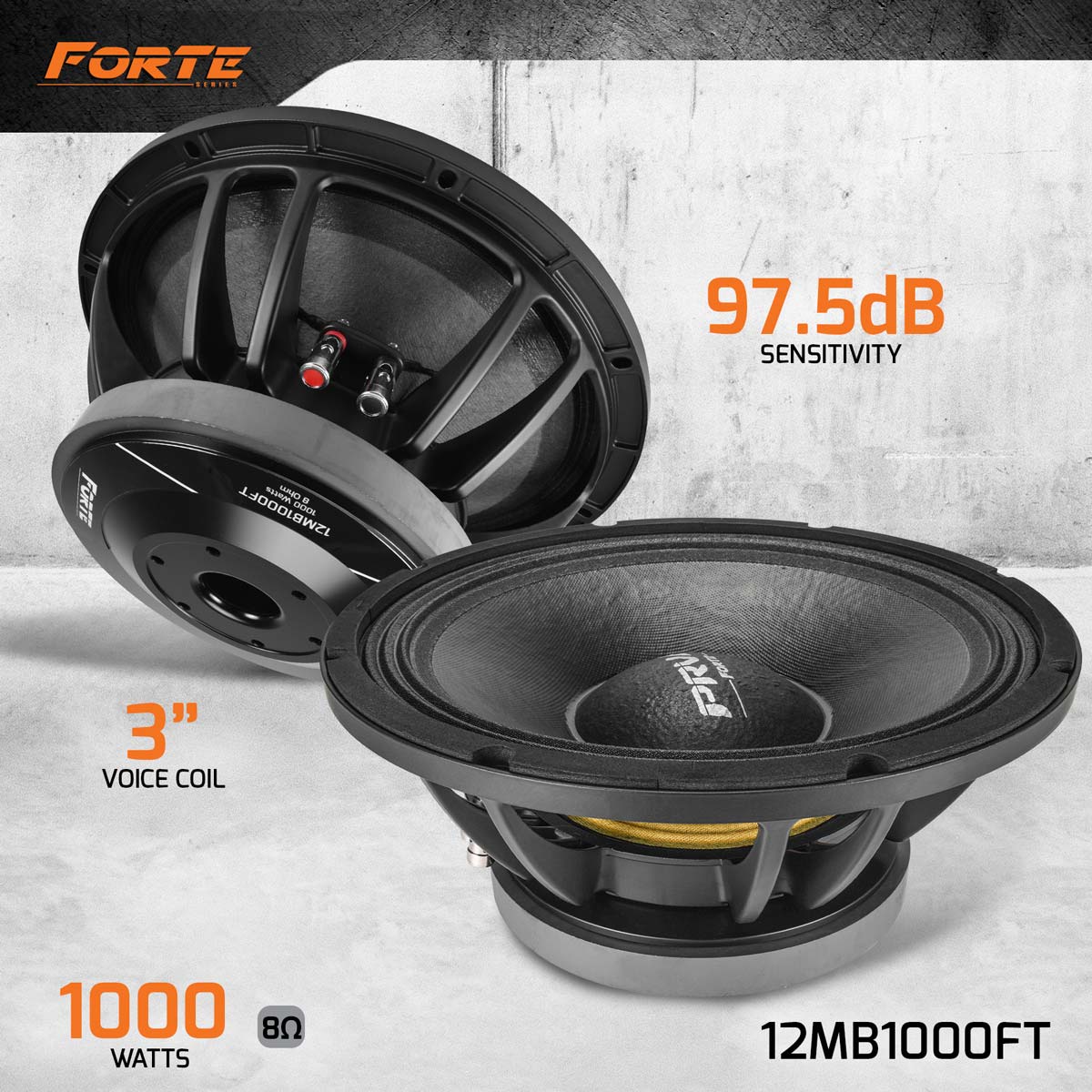

All this attention to detail in the 12MB1000FT makes it one impressive driver. With 97.5 dB efficiency and 1000 watts of continuous program power (RMS), this mid bass is ideally suited to be used as a stage monitor, or in auditorium, touring and outdoor systems. Also, its smooth response from 70 to 3,200 Hz makes it perfect for 2 or 3-way designs.
- 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more Midbass output
- 1,000 watts continuous program power rating makes high acoustical output
- Excellent performance in 2-way or 3-way systems
- Weather-resistant paper cone and dust cap
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (310 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 500 Watts |
| Continuous Program Power (RMS)** | 1000 Watts |
| Max Peak Power*** | 2000 Watts |
| Sensitivity 2.83V at 1m | 97.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
110 Hz 12db Per Octave Crossover |
| Frequency Response | 70 – 3,200 Hz |
| Voice Coil Diameter | 3″ (76 mm) |
| Voice Coil Wire | Aluminum |
| Voice Coil Winding Depth | 19.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10.5 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 74.57 l |
| Excursion (mathematical)*** | Xmax | 6.87 mm |
| Free Air Resonance | Fs | 52.72 Hz |
| Mechanical Factor | Qms | 13.35 |
| Electrical Factor | Qes | 0.38 |
| Total Factor | Qts | 0.37 |
| Cone Area | Sd | 573 cm² |
| Mechanical Mass | Mms | 55.94 g |
| Bl Factor | Bl | 16.54 Tm |
| Dc Resistance | Re | 5.7 Ohms |
| Inductance | Le | 1.00 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 48.19 g |
| Mechanical Compliance | Cms | 0.162 mm/N |
EXTRA INFO

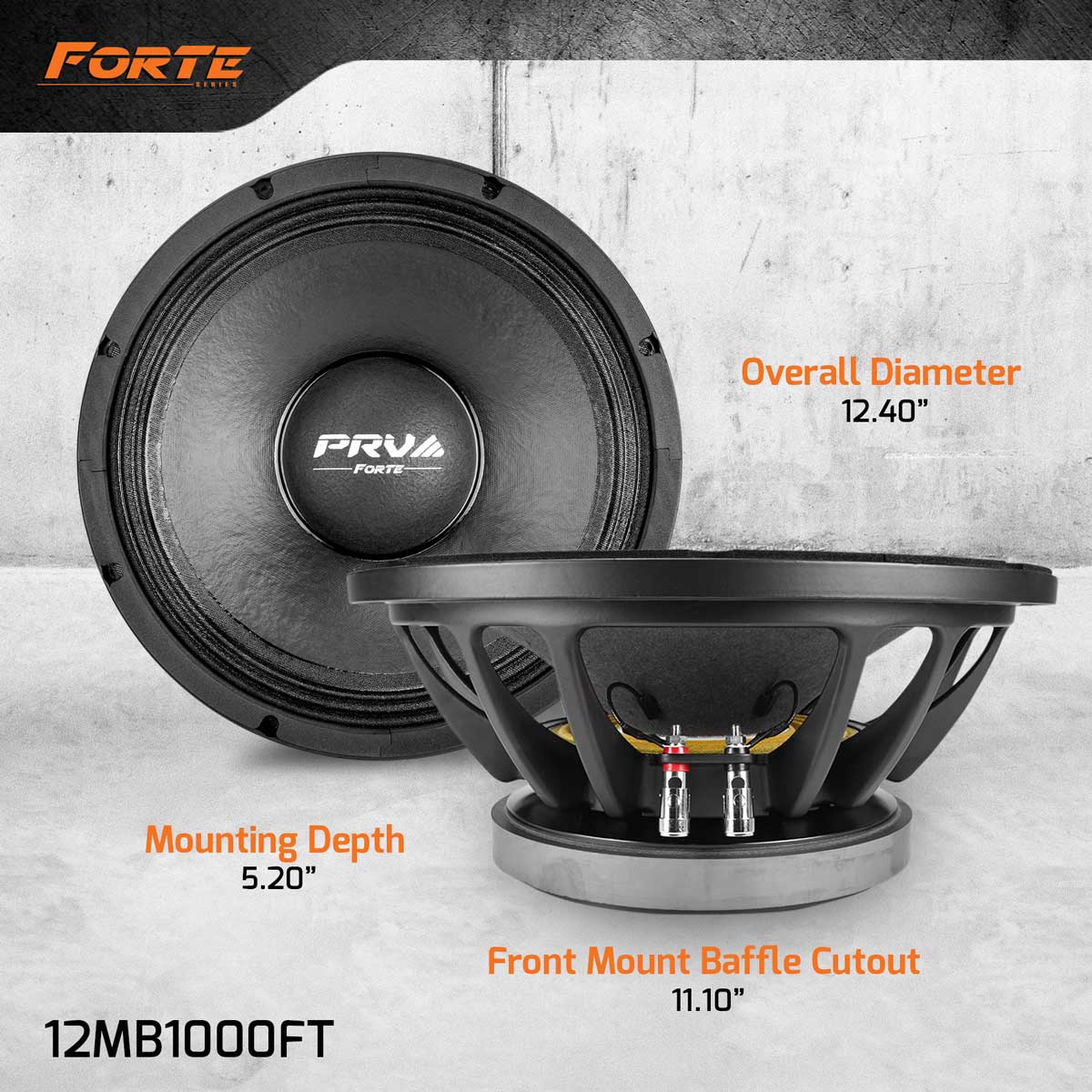

| Overall Diameter | 12.40” (315 mm) |
| Front Mount Baffle Cutout | 11.10” (282 mm) |
| Mounting Depth | 5.20”(132 mm) |
| Overall Depth | 5.76”(146.5 mm) |
| Net Weight | 16.8 Lbs (7.62 kg) |
| Shipping Weight | 18.2 Lbs (8.25 kg) |
| Carton Dimensions W x L x H | 13.5”x 13.5” x 7.0” (343 x 343 x 178mm) |
