Description
Description
The PRV 12MB1500FT has an excellent linear response, well controlled down to 75 Hz, which makes it a great option for 2-way cabinet systems that require strong BL magnet force and midbass punch. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.

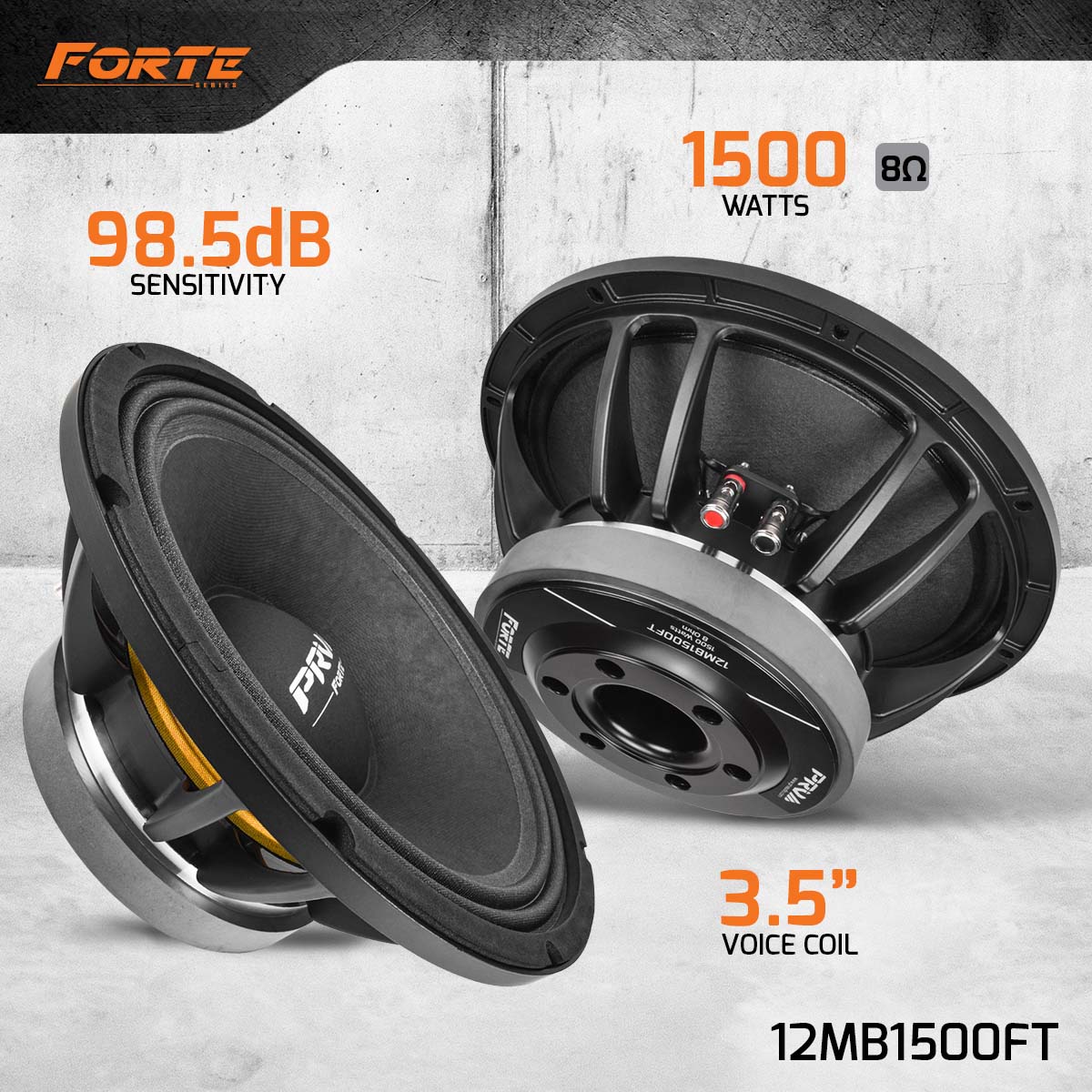

- High BL factor and Xmax for outstanding Low output
- Rated at 1500 watts RMS Continuous Program Power
- 98.5 dB sensitivity, which makes it capable of generating a lot of output!
- 3.5″ Inside/Out CCAW voice coil wound on fiberglass former for hi-temp performance, 8 Ohm
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 750 Watts |
| Continuous Program Power (RMS)** | 1500 Watts |
| Max Peak Power*** | 3000 Watts |
| Sensitivity 2.83V at 1m | 98.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
90 Hz 12db Per Octave Crossover |
| Frequency Response | 75 – 5,000 Hz |
| Voice Coil Diameter | 3.5″ (89 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 17.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 62.37 l |
| Excursion (mathematical)*** | Xmax | 6.00 mm |
| Free Air Resonance | Fs | 57.2 Hz |
| Mechanical Factor | Qms | 10.87 |
| Electrical Factor | Qes | 0.37 |
| Total Factor | Qts | 0.36 |
| Cone Area | Sd | 585 cm² |
| Mechanical Mass | Mms | 59.32 g |
| Bl Factor | Bl | 17.27 Tm |
| Dc Resistance | Re | 5.2 Ohm |
| Inductance | Le | 0.963 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 51.31 g |
| Mechanical Compliance | Cms | 0.130 mm/N |
EXTRA INFO

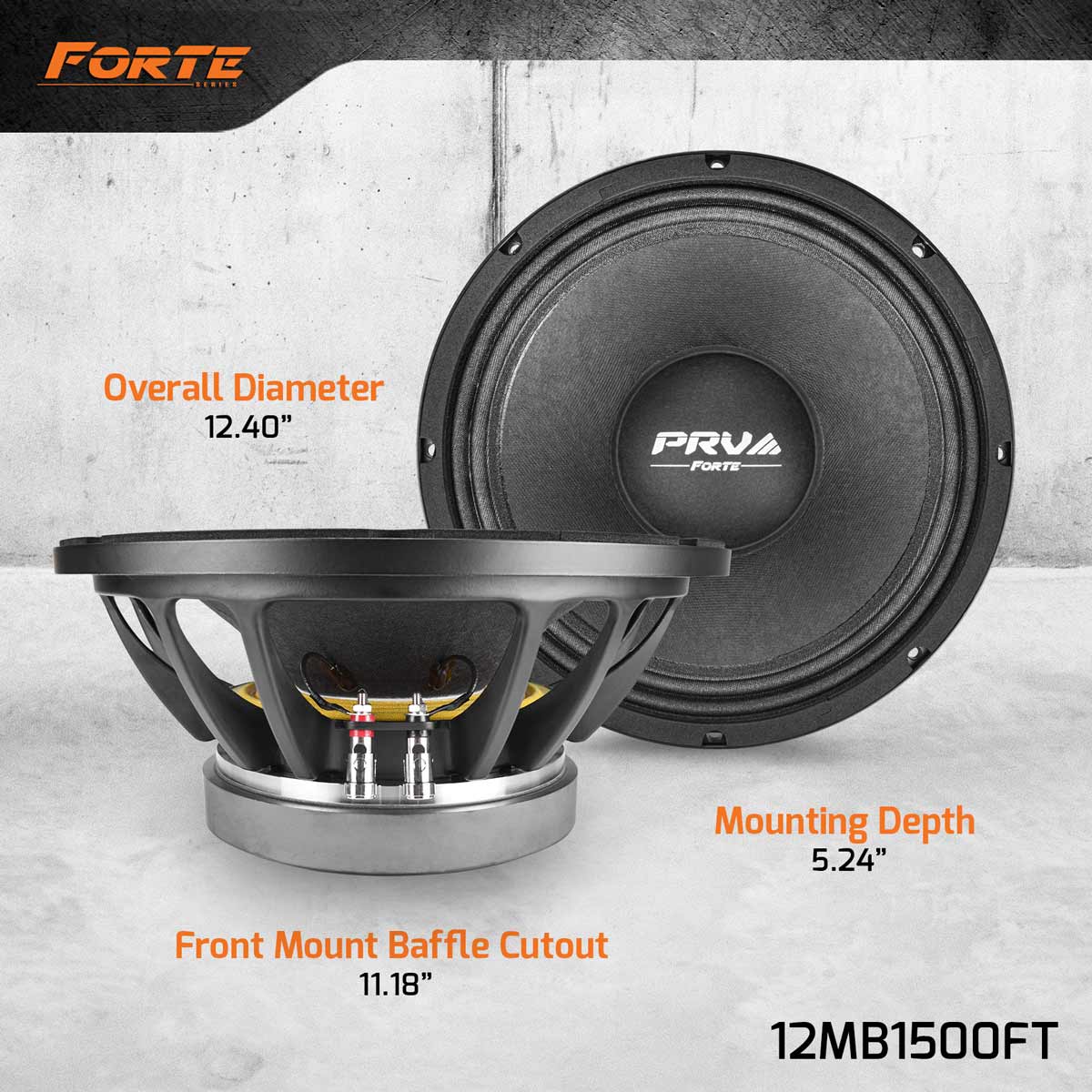

| Overall Diameter | 12.40” (315 mm) |
| Front Mount Baffle Cutout | 11.18” (284 mm) |
| Mounting Depth | 5.24”(133 mm) |
| Overall Depth | 5.87”(149 mm) |
| Net Weight | 16.32 Lbs (7.4 kg) |
| Shipping Weight | 17.55 Lbs (8 kg) |
| Carton Dimensions W x L x H | 13.50”x 13.50” x 7” (343 x 343 x 178 mm) |
