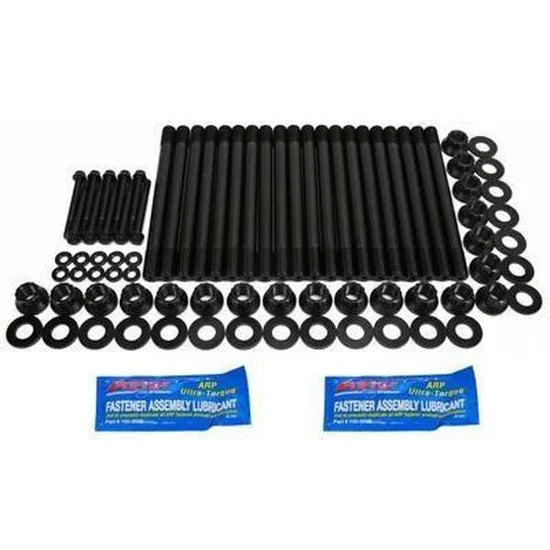

2008-2010 Powerstroke 6.4L Head Stud Kit Black Oxide ARP2000 (250-4203)

2008-2010 Powerstroke 6.4L Head Stud Kit Black Oxide ARP2000 (250-4203)

Install an ARP 250-4203 Diesel Head Stud Kit from OCDiesel and upgrade your 2008-2010 Ford 6.4L Powerstroke. It's a proven fact that OEM head bolts are the weak link in a diesel engine; especially if the engine has been modified. That's because most engines are typically assembled from the factory using Torque-To-Yield (TTY) bolts and preloaded to yield and beyond (typically 100-110%). Any increases in combustion pressure can lead to problems like blown head gaskets or catastrophic engine failure. Furthermore, because TTY bolts are yielded by design, they should never be re-used.

ARP is the industry leader when it comes to fasteners and manufactures heavy-duty head studs for a wide variety of popular diesel applications. Using head studs instead of standard head bolts provides your engine with the clamping force required to keep your Powerstroke cylinder heads from lifting and blowing a head gasket due to higher combustion pressures. For the 250-4203 Head Studs, ARP starts with a premium grade ARP2000 alloy that is rated far superior to aircraft quality alloy steels. ARP2000 is an alloy steel that can be safely heat treated to a higher level, producing a greater strength material than Chrome Moly 8740. While 8740 and ARP2000 share similar characteristics, ARP2000 is capable of achieving a higher clamp load at 220,000 psi.

Each stud beings by being placed vertically into special racks and precisely heat-treated. This procedure ensures complete heat penetration. The head studs then go through a centerless grinding process to ensure that they are perfectly concentric. As many as ten machining steps are required to achieve this level of accuracy. The thread rolling operation is also done after the heat-treatment, which gives them about 2000% (that's 20X) better fatigue strength than lesser studs that are threaded prior to heat-treat. It costs a lot more to do it this way, because it's tough on tooling, but the results are well worth the extra effort. Fasteners are then shot-peened to remove any surface irregularities and improve overall external integrity. The final step is a metal finishing process that is also performed in-house at ARP with a black oxide coating applied for long lasting corrosion resistance.

There is a good reason that virtually every top professional engine builder relies on ARP head studs for their all-out competition powerplants. Simply put, there's not a better stud setup on the market today. This head stud kit is a direct-fit for the 6.4 Powerstroke engine found in Ford F-250/350/450/550 Super Duty pickups.
