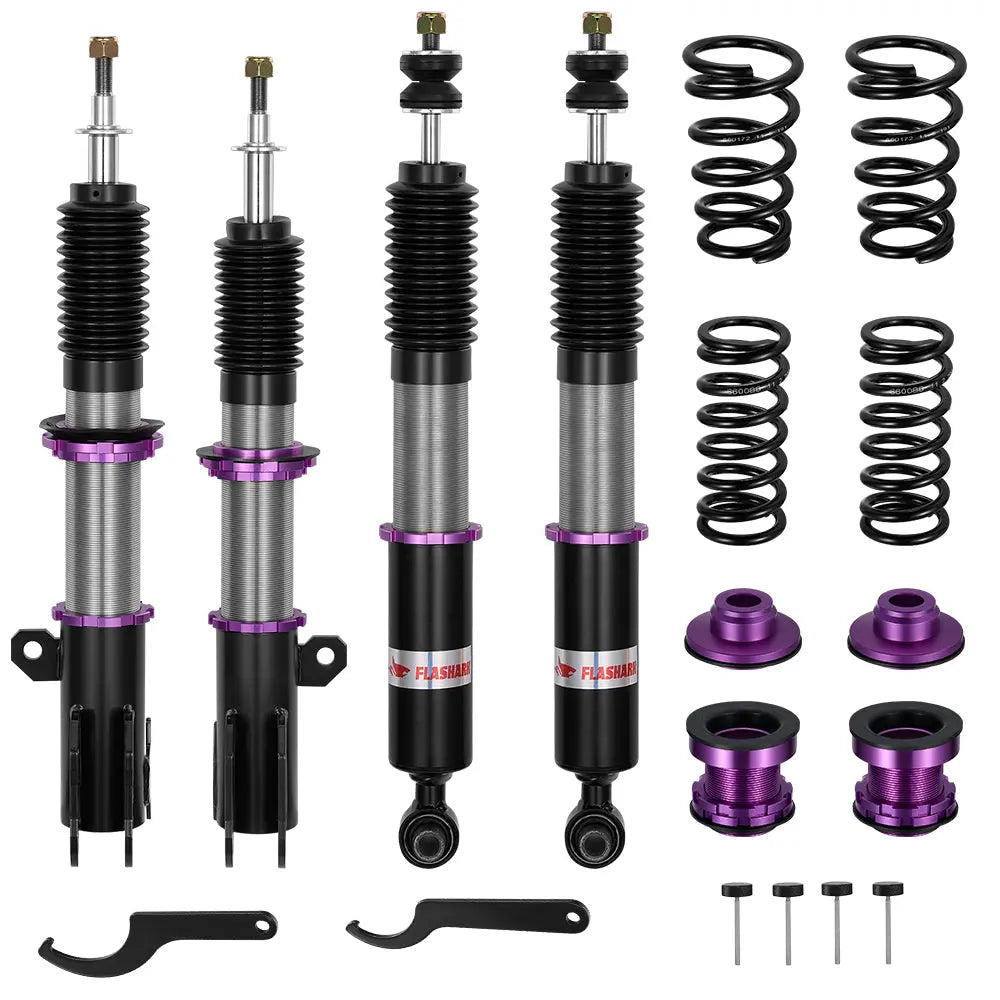

Give your Yaris a lower, more planted stance while keeping the suspension adjustable for daily driving and more responsive cornering. Designed for compatible 2013-2019 Toyota Yaris hatchback models on the XP130 and XP150 platforms with a 1.5L four-cylinder gasoline engine, these Flashark Yaris coilovers combine 2" to 4" of ride-height adjustment with 32-way rebound damping. The complete shock absorber and strut setup helps reduce body movement, sharpen handling, and let you fine-tune the ride for different road conditions.

Specifications:

Shock Type: Mono-Tube
Spring Preload: 7-10 mm
Adjustable Height: Yes, lowering 2" to 4"
Surface Materials: Aluminum, Steel
32-Way Damping Force Adjustment

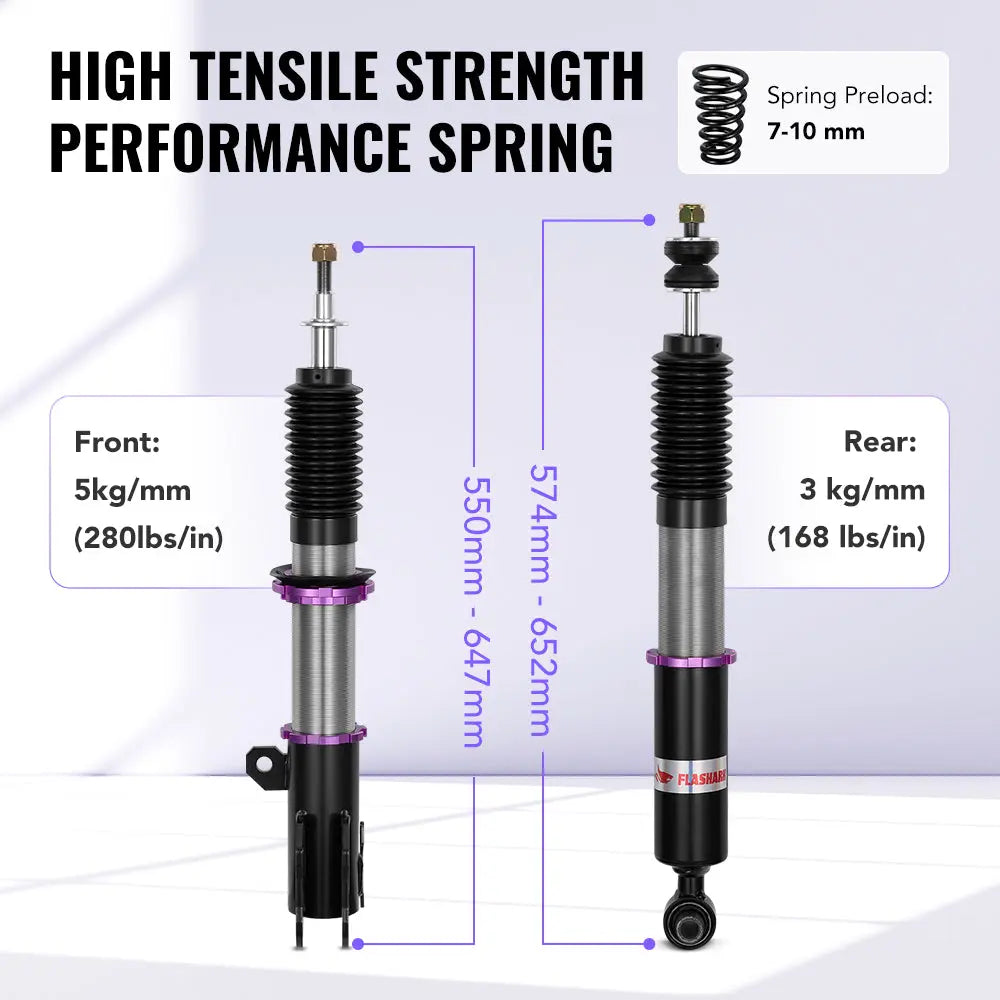

Spring Rate Front: 5 kg/mm(280 lbs/in)
Spring Rate Rear:3 kg/mm(168 lbs/in)
Spring length Front: 200mm
Spring length Rear: 193mm
Coilover overall length Front: 550mm-647mm
Coilover overall length Rear: 574mm-652mm

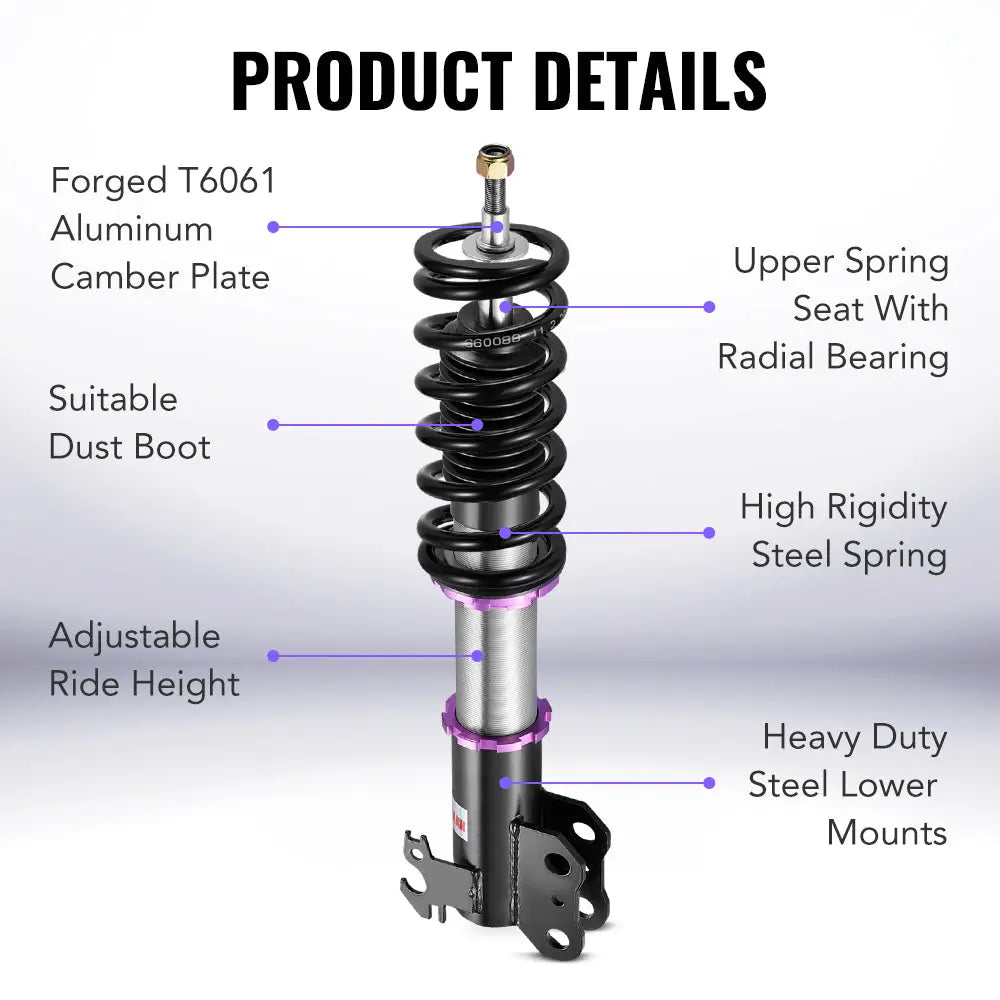

Features:

1. Twin-tube structure allows sufficient stroke within the shock absorber.
2. High-tensile performance spring—Stress tested over 600,000 times, with spring distortion less than 0.04%. Plus, the special surface treatment improves durability and performance.

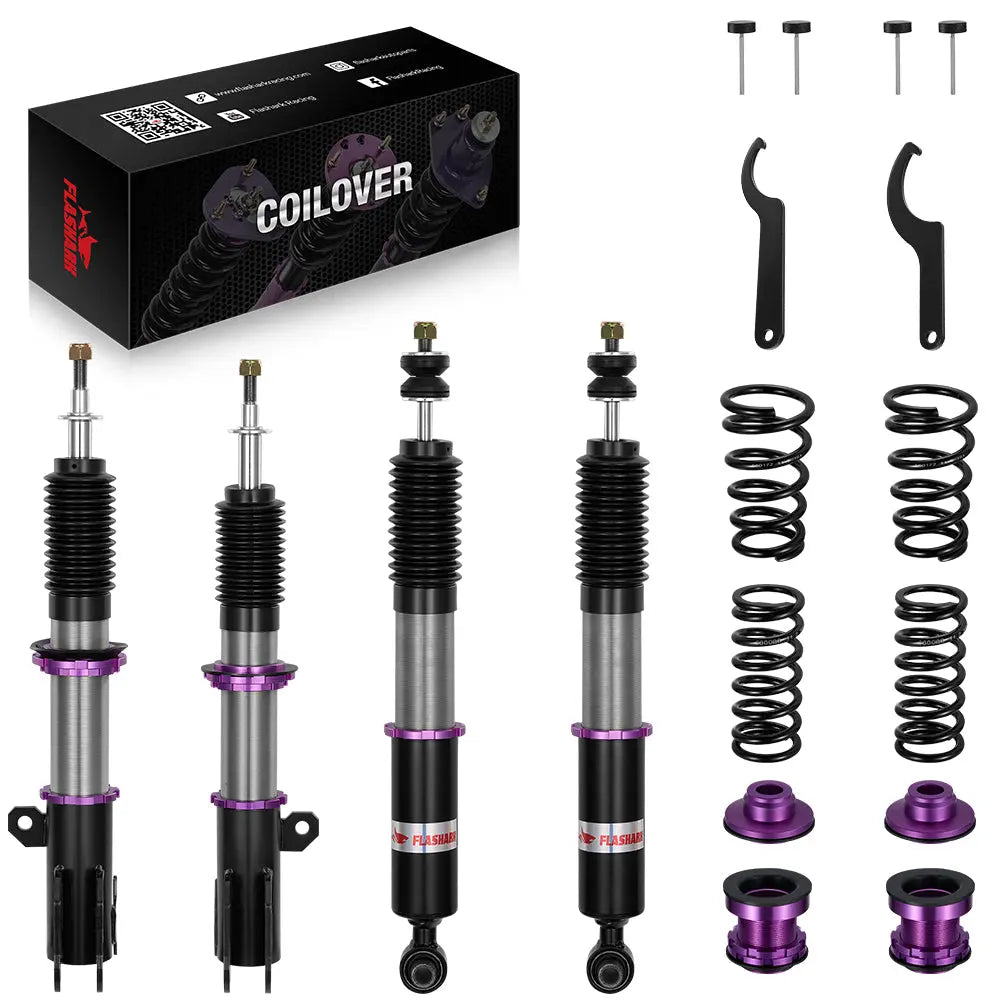

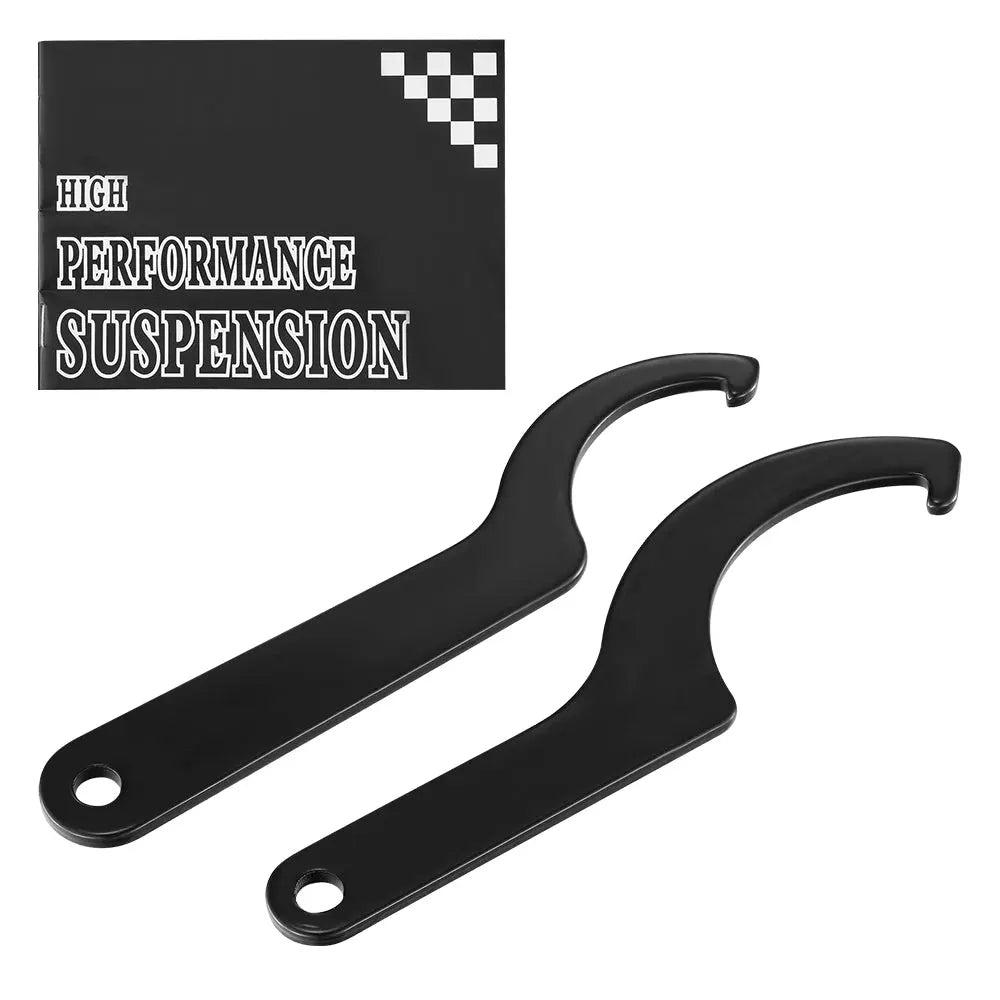

3. Height Adjustment tools included.
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

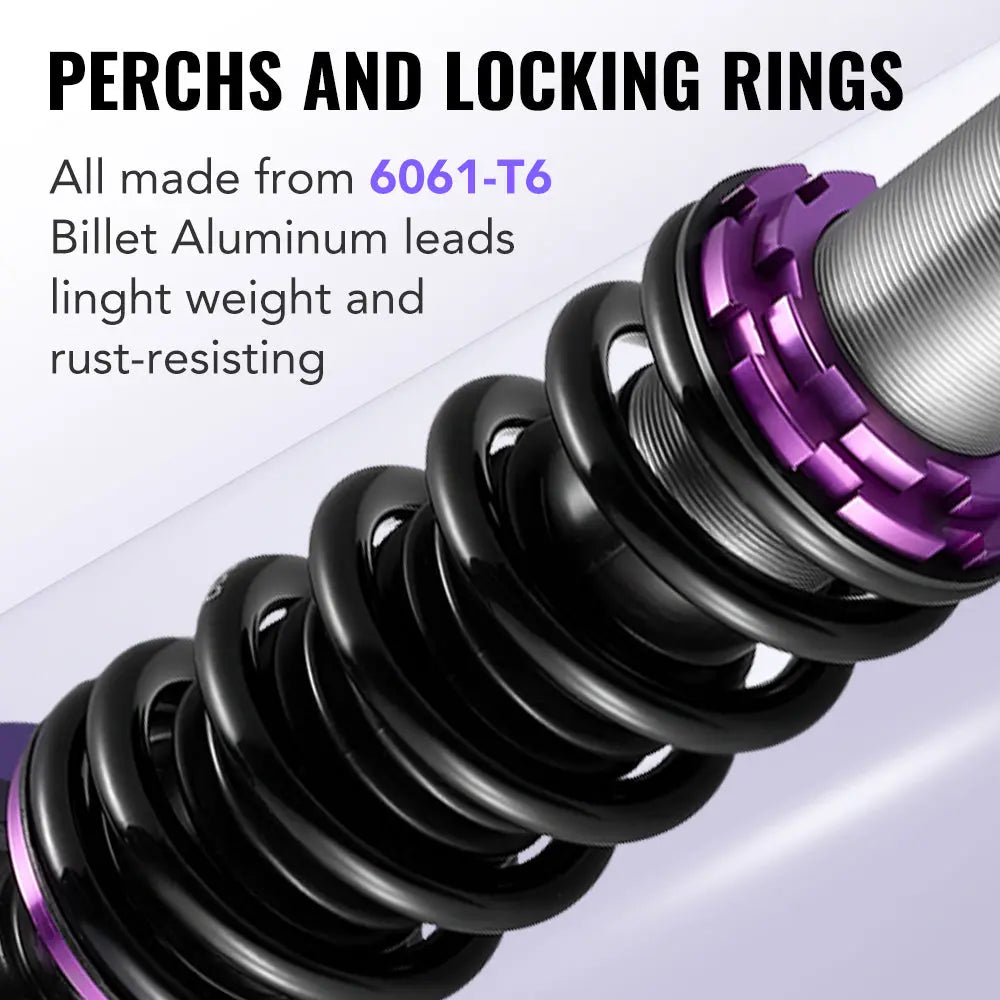

5. Most pieces in our coilover systems, including mounts, collars, and spring perches, are designed from 6061-T6 Billet Aluminum, resulting in lightweight, durable, and rust-resistant components.

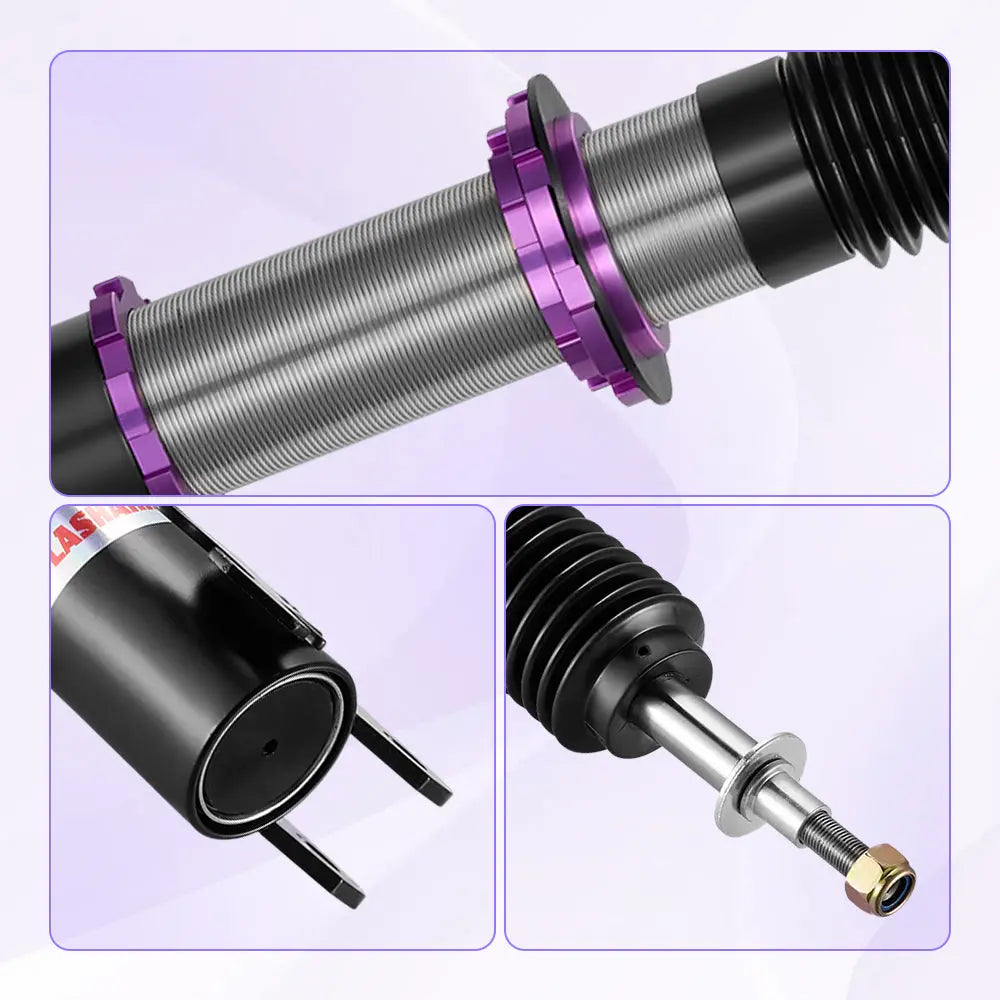

6. Separate height adjustment does not affect damper stroke.
7. Full rebuildable.

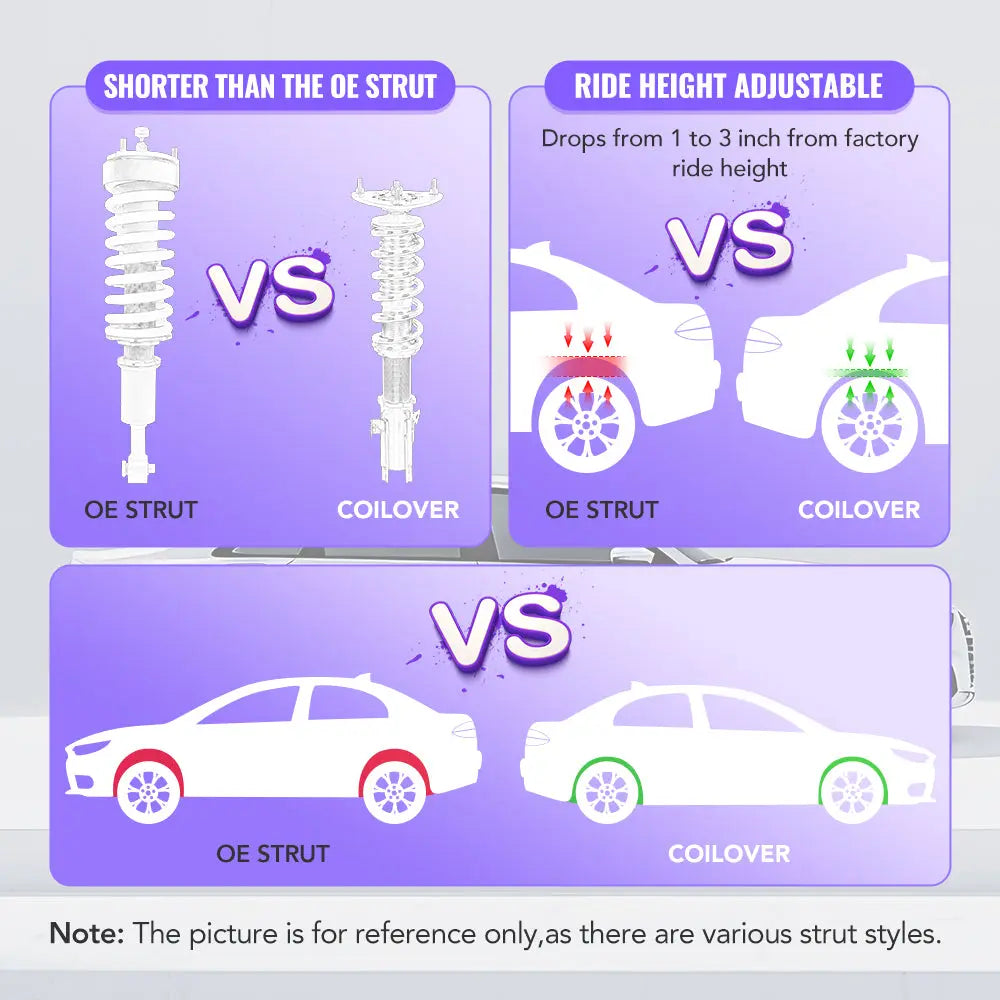

8. Lowered height adjustment from 2" - 4" which allows a lower center of gravity and also adds a more aggressive stance

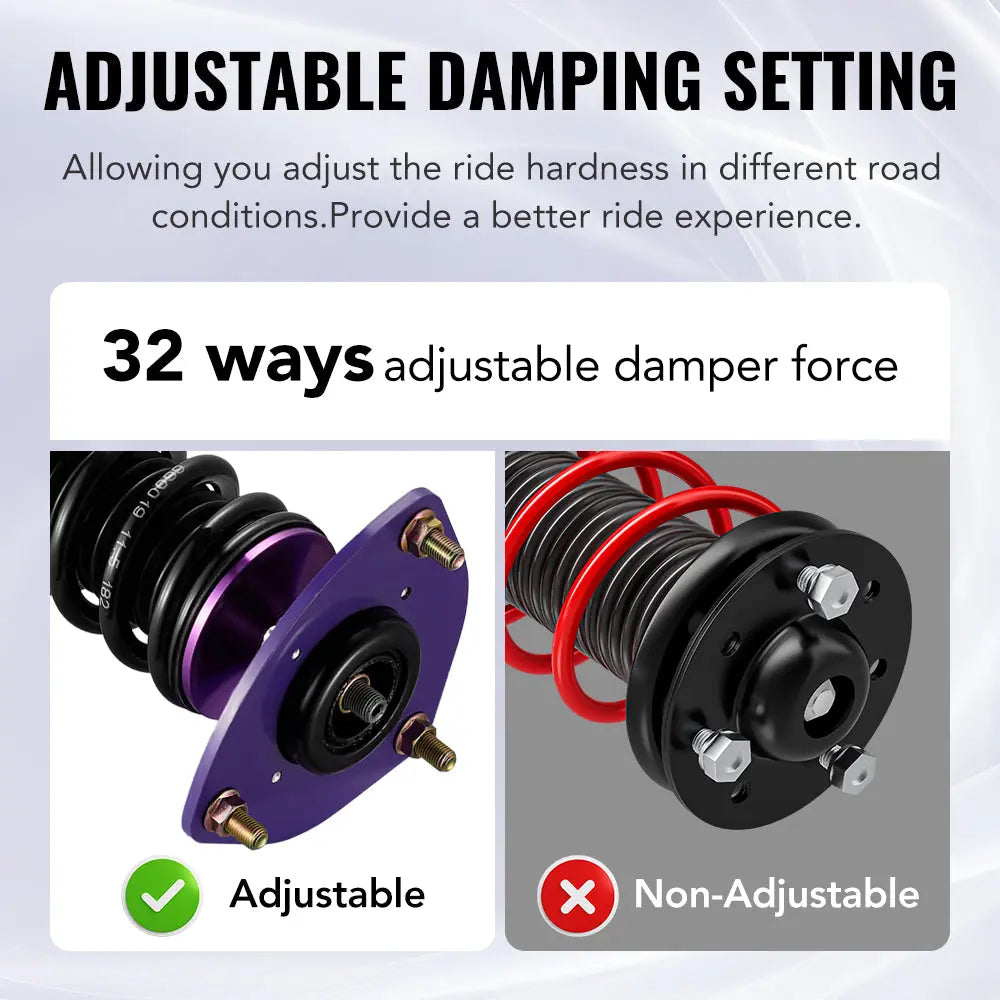

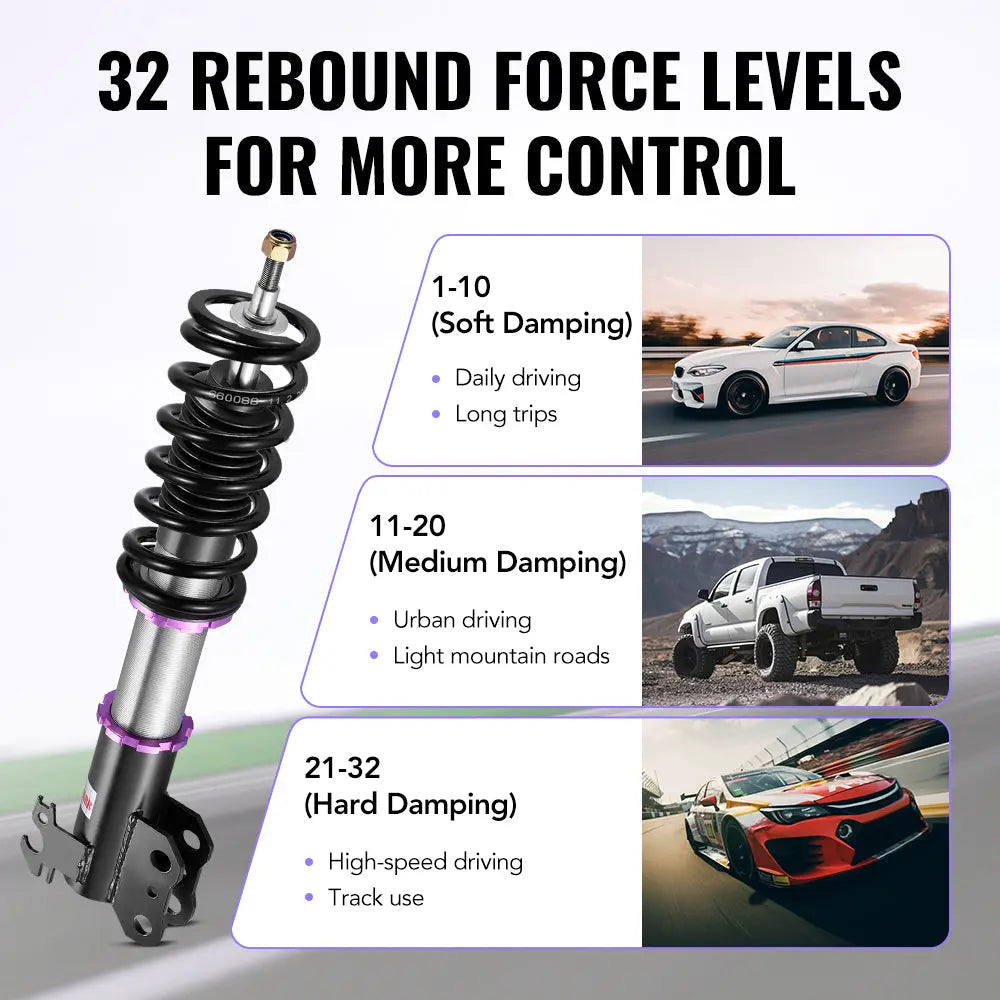

9. A 32 rebound damping adjustment level allows you to dial in your coilover setup perfectly. You will experience better ride quality in all road conditions.
