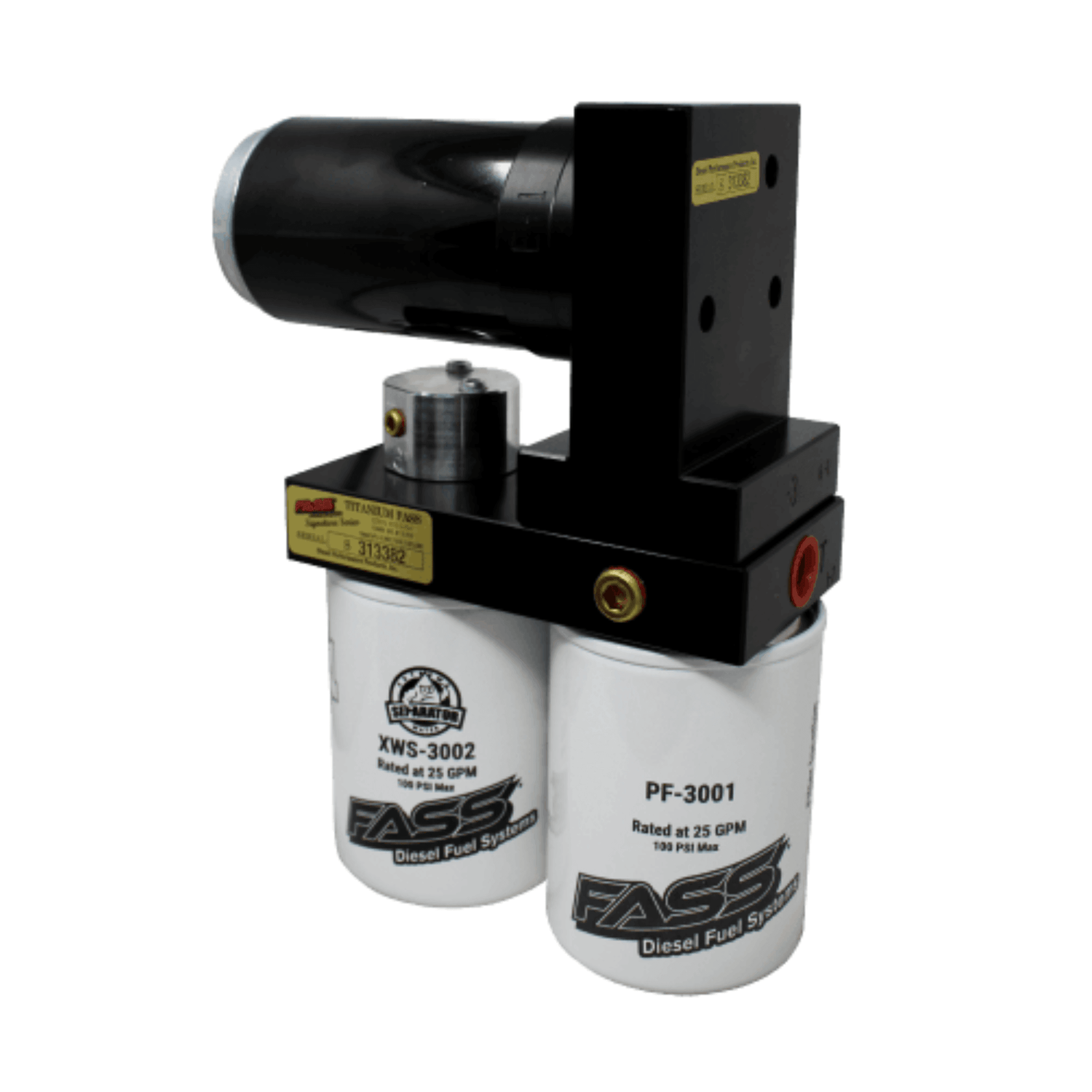

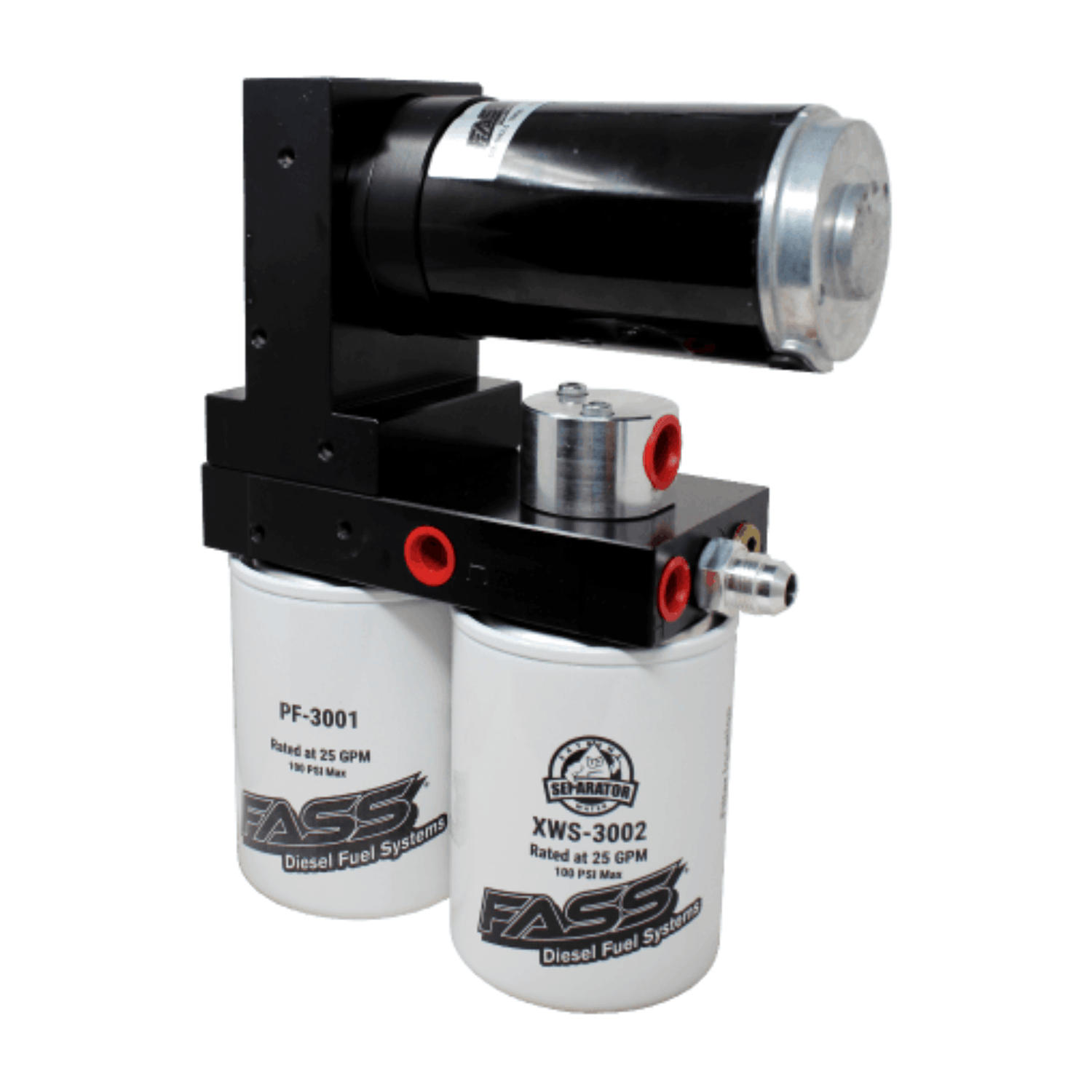

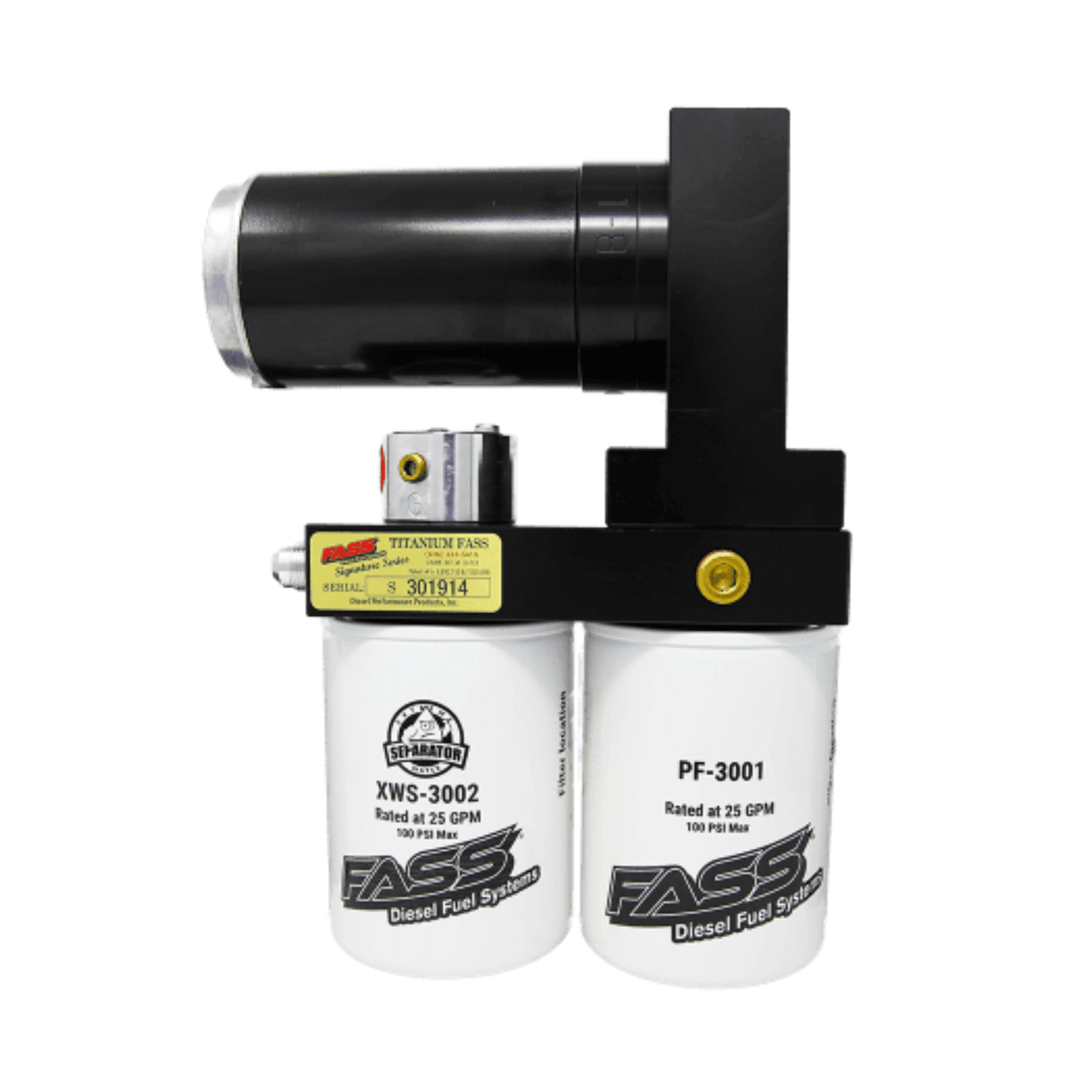

2019-2020 Cummins 6.7L Signature Series 250GPH Lift Pump (TSD12250G)

The Titanium Signature Series diesel fuel System was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration System in the diesel industry. Rated at 250 gallons per hour and backed by a limited lifetime warranty this Titanium Signature Series System is capable of supporting your RAM 6.7L Cummins diesel engine with enough fuel for multiple fueling upgrades. A Titanium Signature Series System also offers advanced filtration benefits that will help protect your injection Systems, effectively extending the life of both your Bosch Injection System and Bosch Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS Fuel Systems patented air/vapor removal process. Aftermarket Systems are important for both daily drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque.

This kit includes two FASS BHF-1005 (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum, the Bulkhead fittings function as both a suction and return tube. This new and improved version from our previous Suction Tube Kit allows the user to plumb their FASS suction and return line directly to their bulkhead fitting which are mounted directly on the fuel tank module, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated of PTFE (Teflon) which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to below 1/8 tank of fuel.

The Titanium Signature Series diesel fuel Systems are the superior fuel System and filtration System, in the diesel industry. This is because here at FASS Fuel Systems we focus on perfecting our Systems and how they are engineered, taking the extra steps that our competitors ignore while they rush to get the product out the door. By doing this we have less than a 2% failure rating with our motor and a design that implements unique design features you can only get with FASS Fuel Systems.
