2019-2023 Chevy GMC Silverado / Sierra 1500 Lifted Front Upper Control Arms 2 Inch-4 Inch
2019-2023 Chevy GMC Silverado / Sierra 1500 Lifted Front Upper Control Arms 2 Inch-4 Inch is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
2019-2023 Chevy GMC Silverado / Sierra 1500 Lifted Front Upper Cont...
2019-2023 Chevy GMC Silverado / Sierra 1500 Lifted Front Upper Control Arms 2 Inch-4 Inch is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description

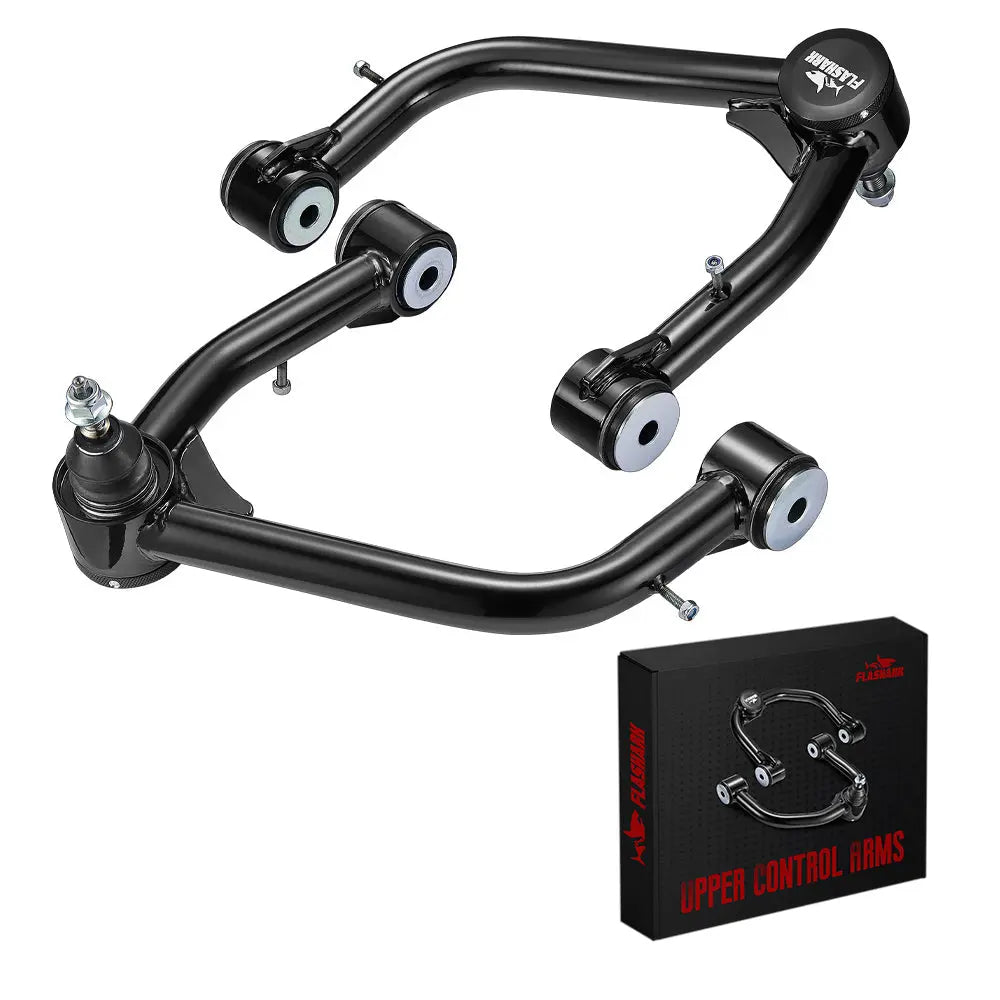

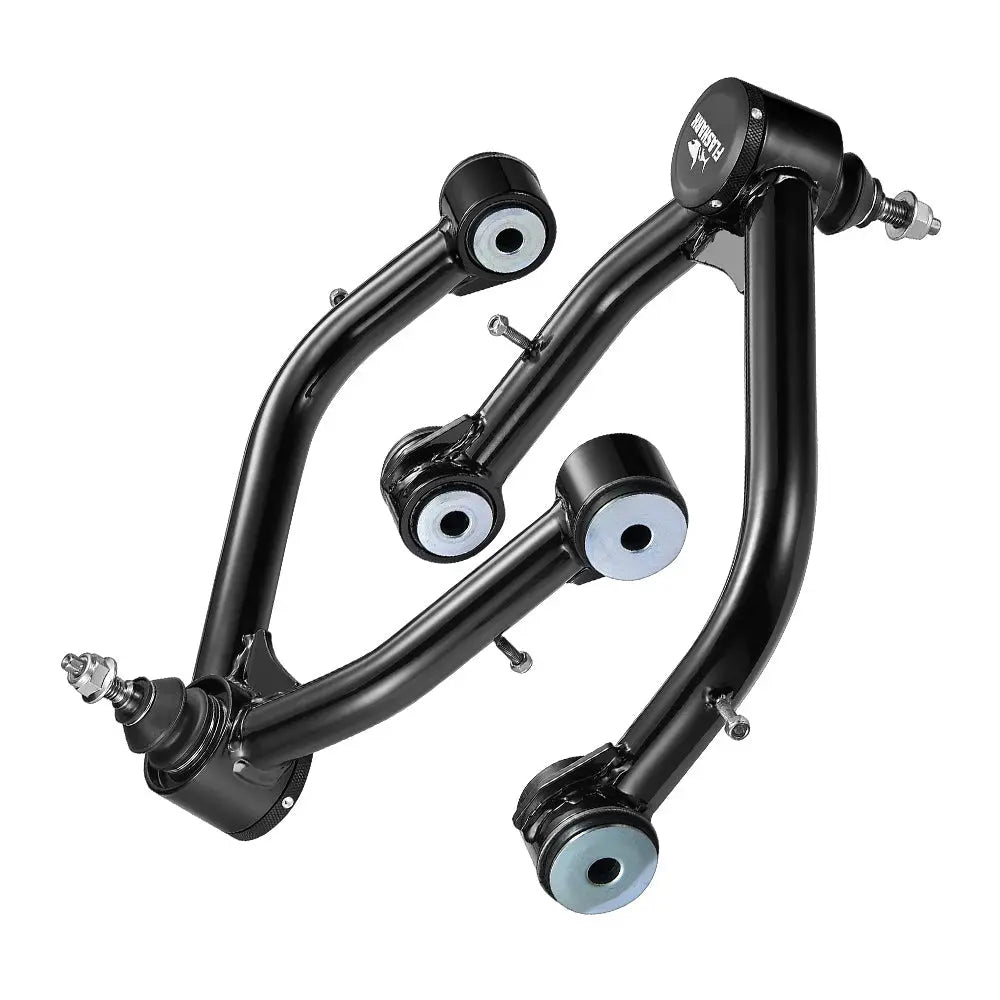

Flashark Upper Control Arms are constructed from 1.25" DOM Tubing and TIG Welded, bringing improved driving dynamics, handling characteristics, and suspension articulation. The Forged Upper Control Arms from Flashark feature POM ball joints, allowing for a greater range of motion and increased wheel articulation compared to standard or OE replacements.
Fitment:
- 2019-2023 Chevrolet Silverado 2WD/4WD (New Body style)
- 2019-2023 GMC Sierra 2WD/4WD (New Body style)
*NOTE: For Non-Adaptive Ride Control Suspension
Package Includes:
1 X Pair of Front Upper Control Arms (Left & Right)

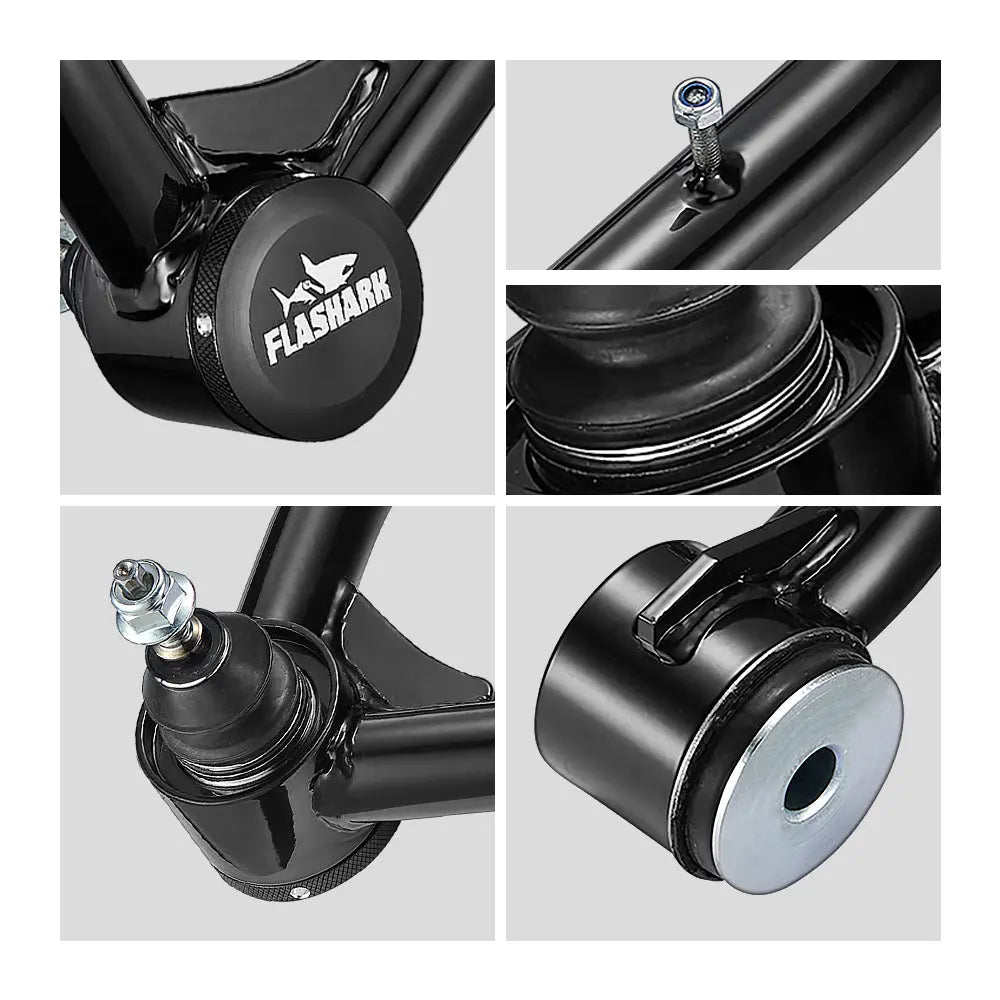

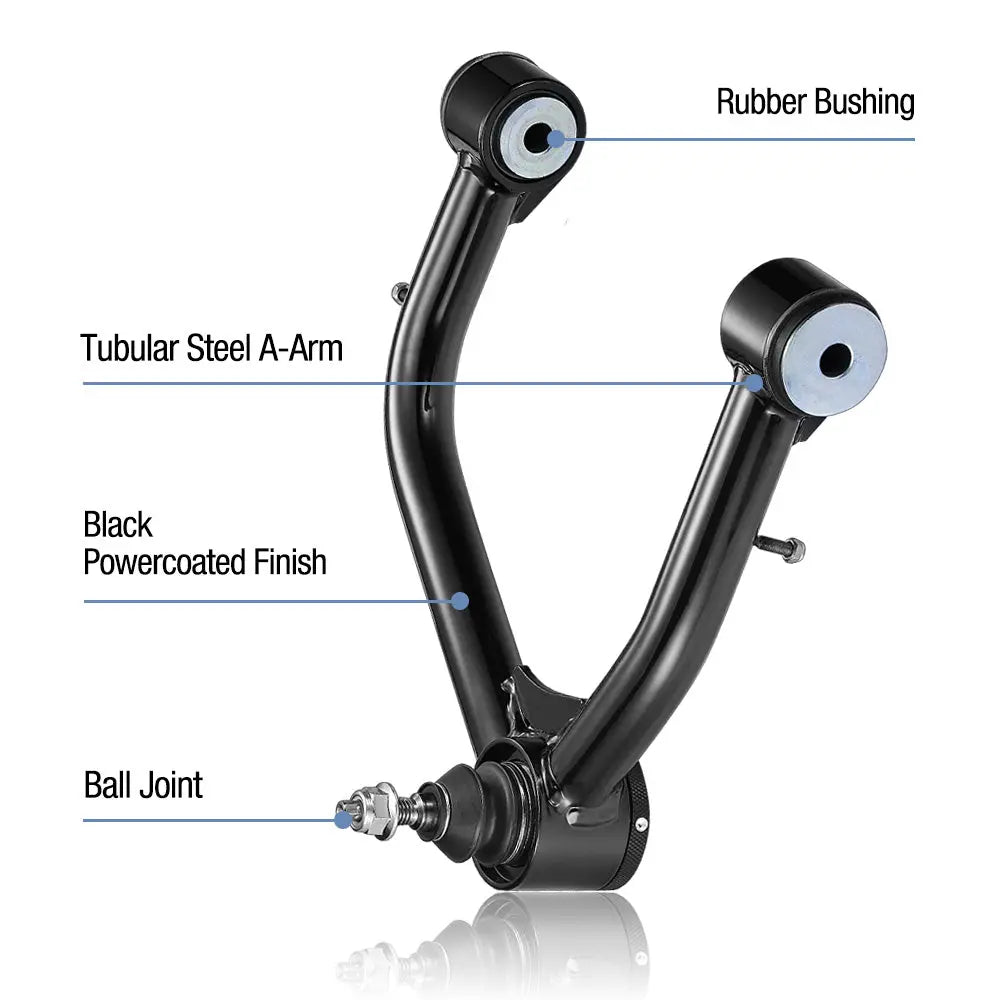

Features:
- Improves Front Suspension, Handling, Predictable Response and even Prevents Premature Tire Wearing.
- Ensure Even or Desired Contact with the Ground; i.e. Tires Wear more
- Constructed from 1.25" DOM tubing for superior strength and durability
- Evenly and Increase Traction and Handling.
- Direct Bolt-On Installation or Replacement.
- Corrected Angle Balljoint for 2-4" Lifted Trucks.
- Come with rubber bushings, which can be replaced with polyurethane bushings
- TIG welding provides better strength than regular MIG welding
- Nut design to prevent loosening, so there is no cotter pin
Specification:
Inner diameter: 26mm
Outer diameter: 32mm
Installation Torque:
The side bolts that press into the control arm's rubber bushing are 70nm (52 ft-lbs) + 1/4 turn
The large bolt going straight up into the frame to catch the nut is 100 Nm (74 ft-lbs) + 1/4 turn lbs) + 1/4 turn
Ball joint bolts are 20Nm (15 ft-lbs) + 1/4 turn.
What are Aftermarket Upper Control Arms and When Do I Need Them?
Flashark Front Upper Control Arms are designed to provide the ultimate strength, stability, and appearance. They are TIG-welded and arrive fully assembled and ready to install, with ball joints, bushings, and hardware included. Greasable fittings allow easy maintenance of the ball joints.
Upper control arms are found on independent front suspension (IFS) vehicles and generally connect the top of the spindle to the frame. The UCA is generally not a load-bearing piece of an IFS suspension; rather, its purpose is to guide your spindle in a pre-determined motion when your suspension cycles up or down. Load is usually handled by the lower control arm, which connects to the lower portion of the spindle.
🎥Installation Video
