SKU: APHF-500.4D-H2

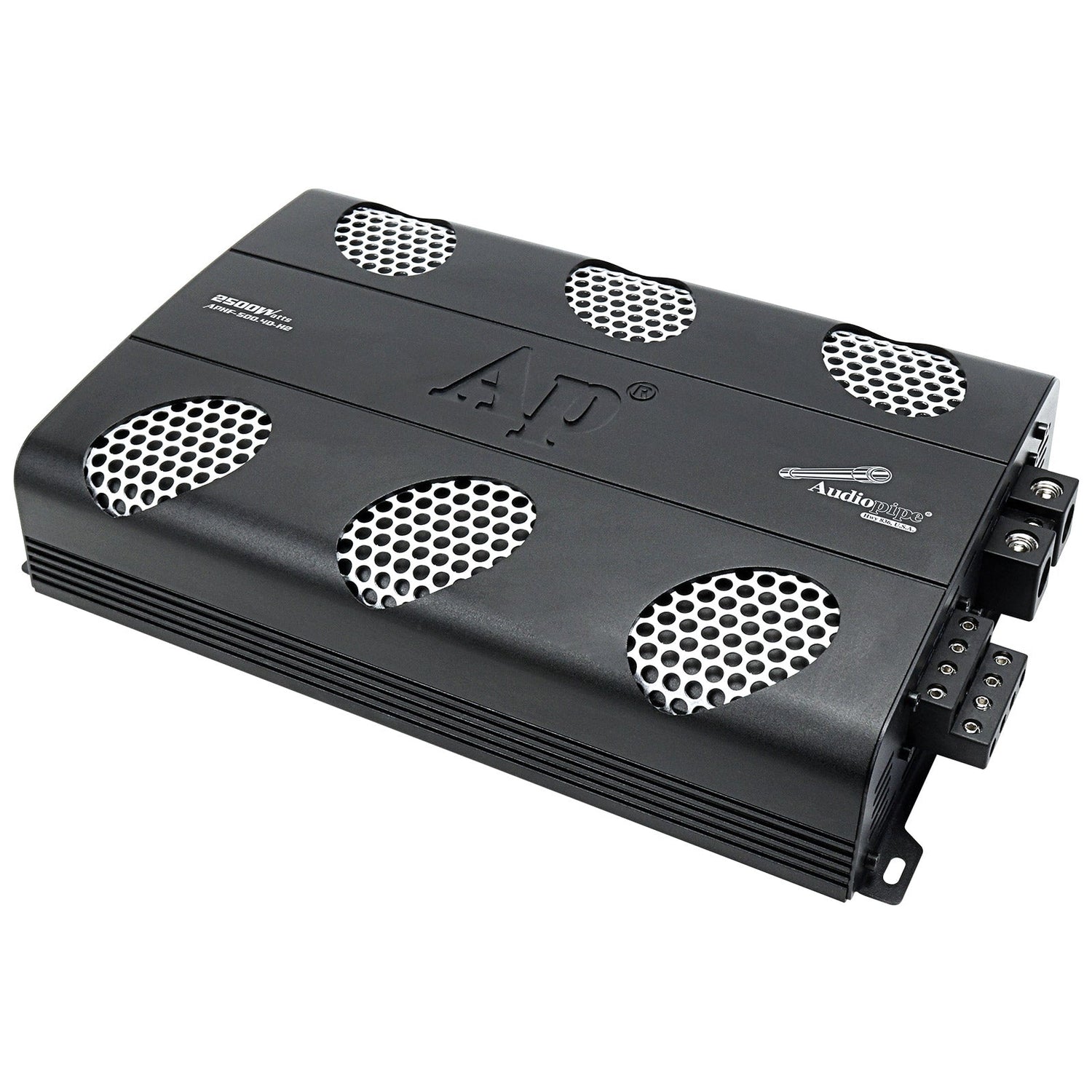

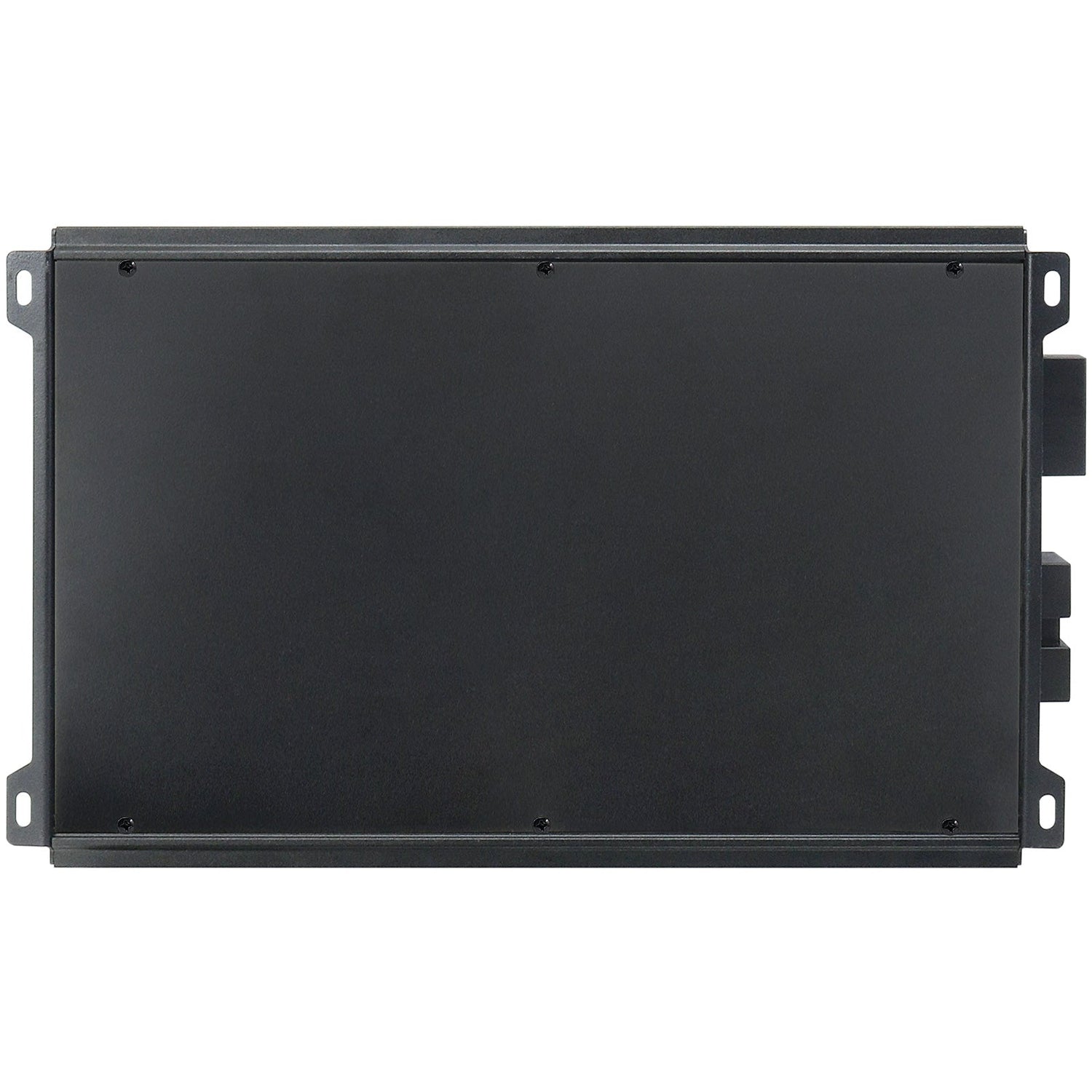

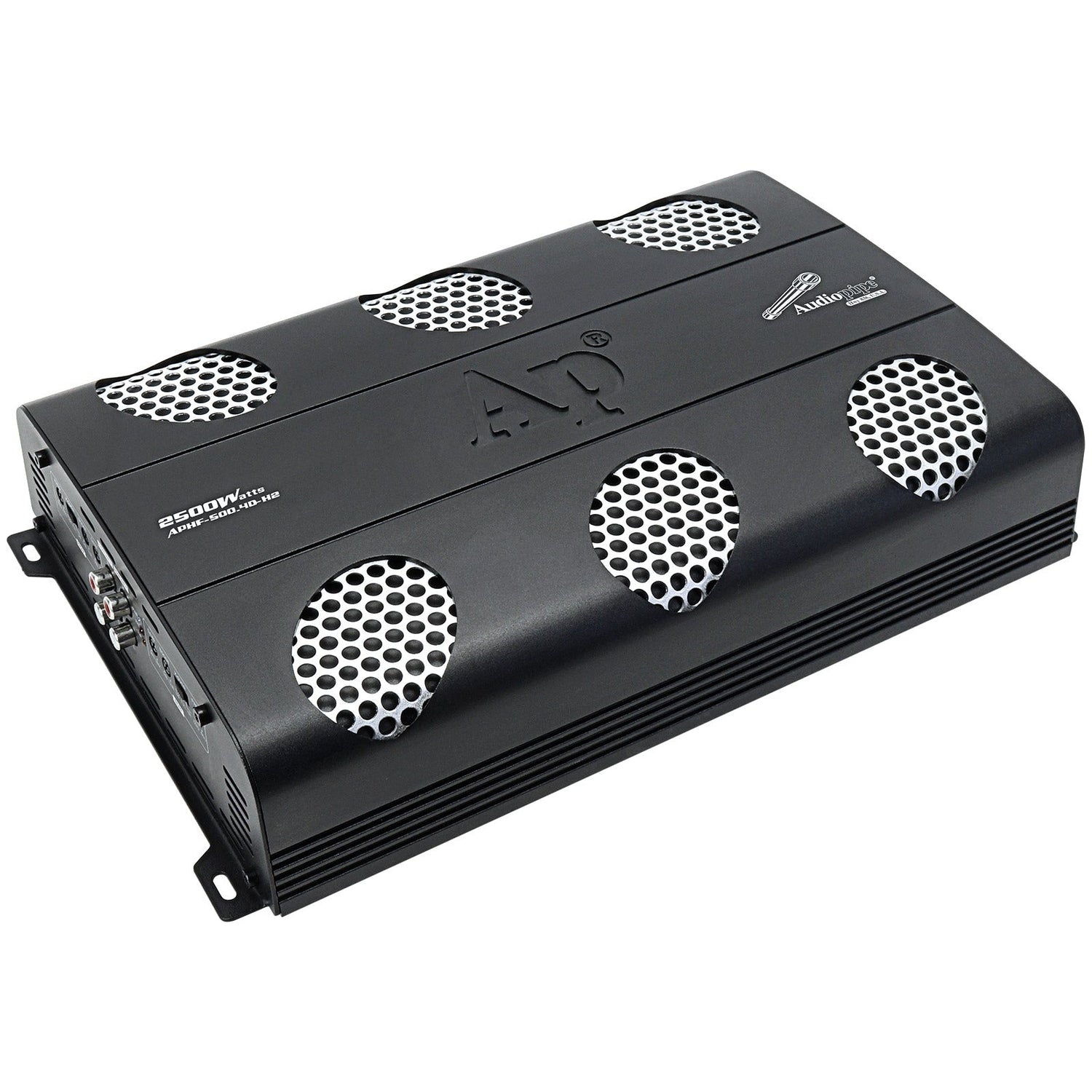

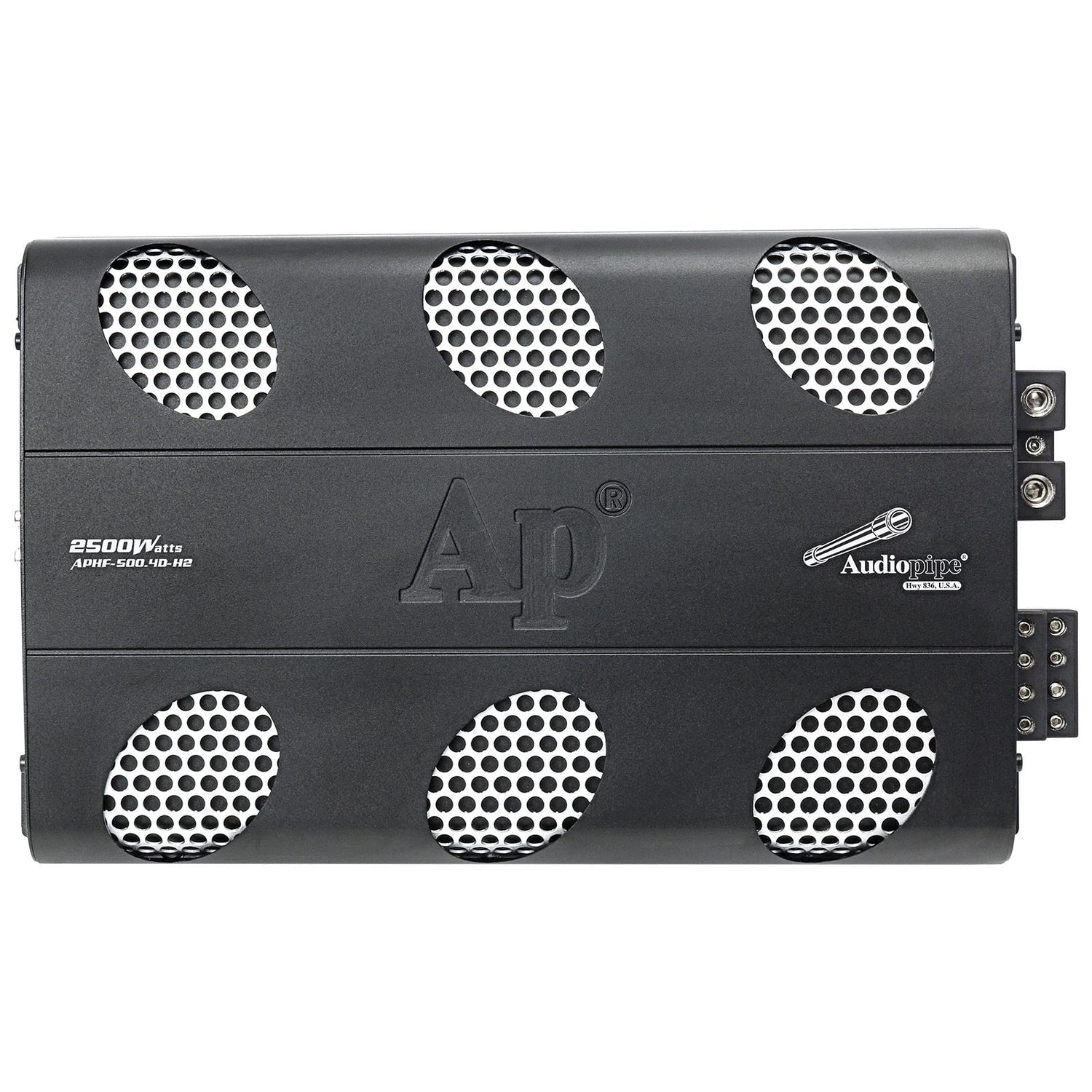

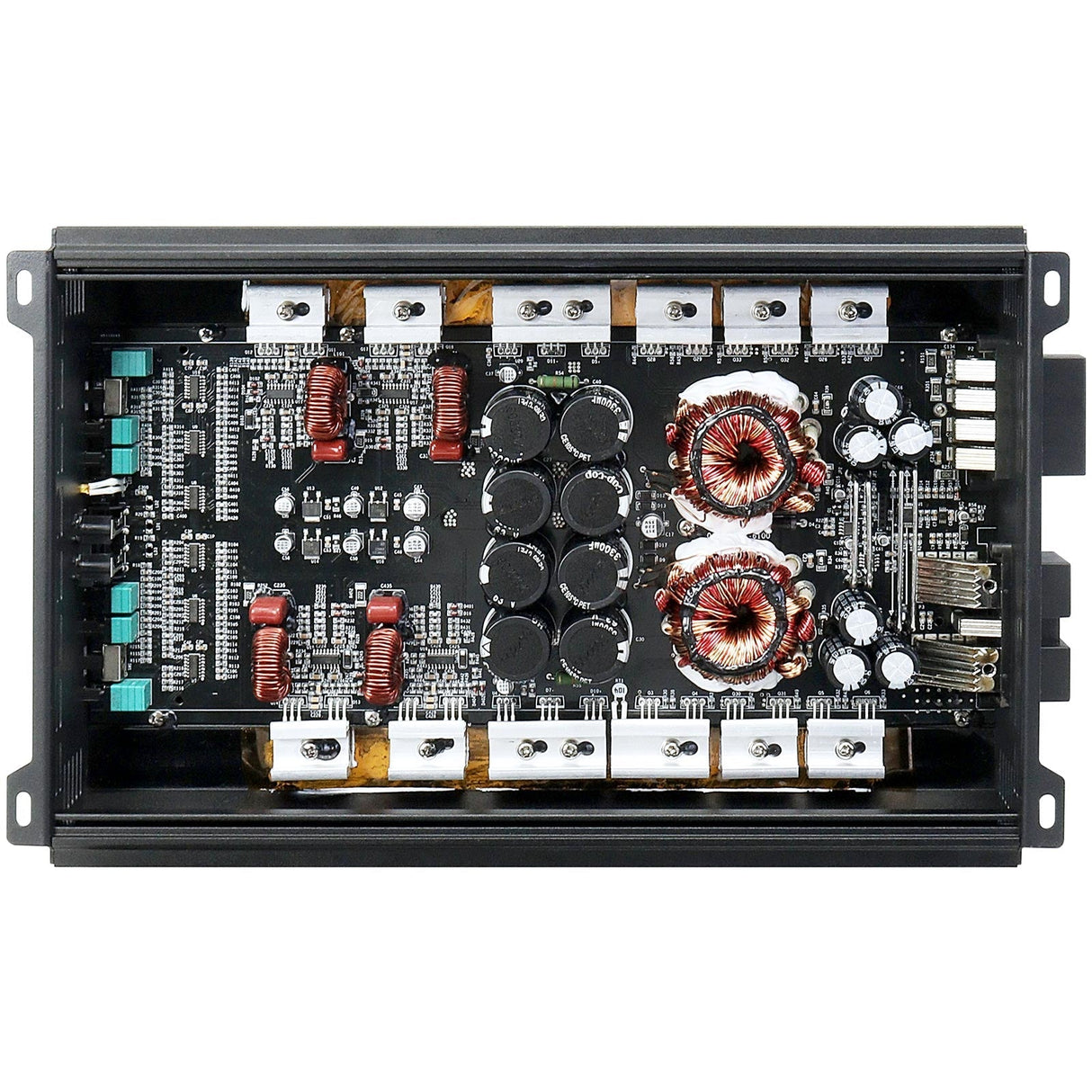

APHF-500.4D-H2 2500 Watts Full Range Class D Mosfet Amplifier 2 Ohms

No reviews yet. Bought this? Write the first review
Regular price $344.99
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

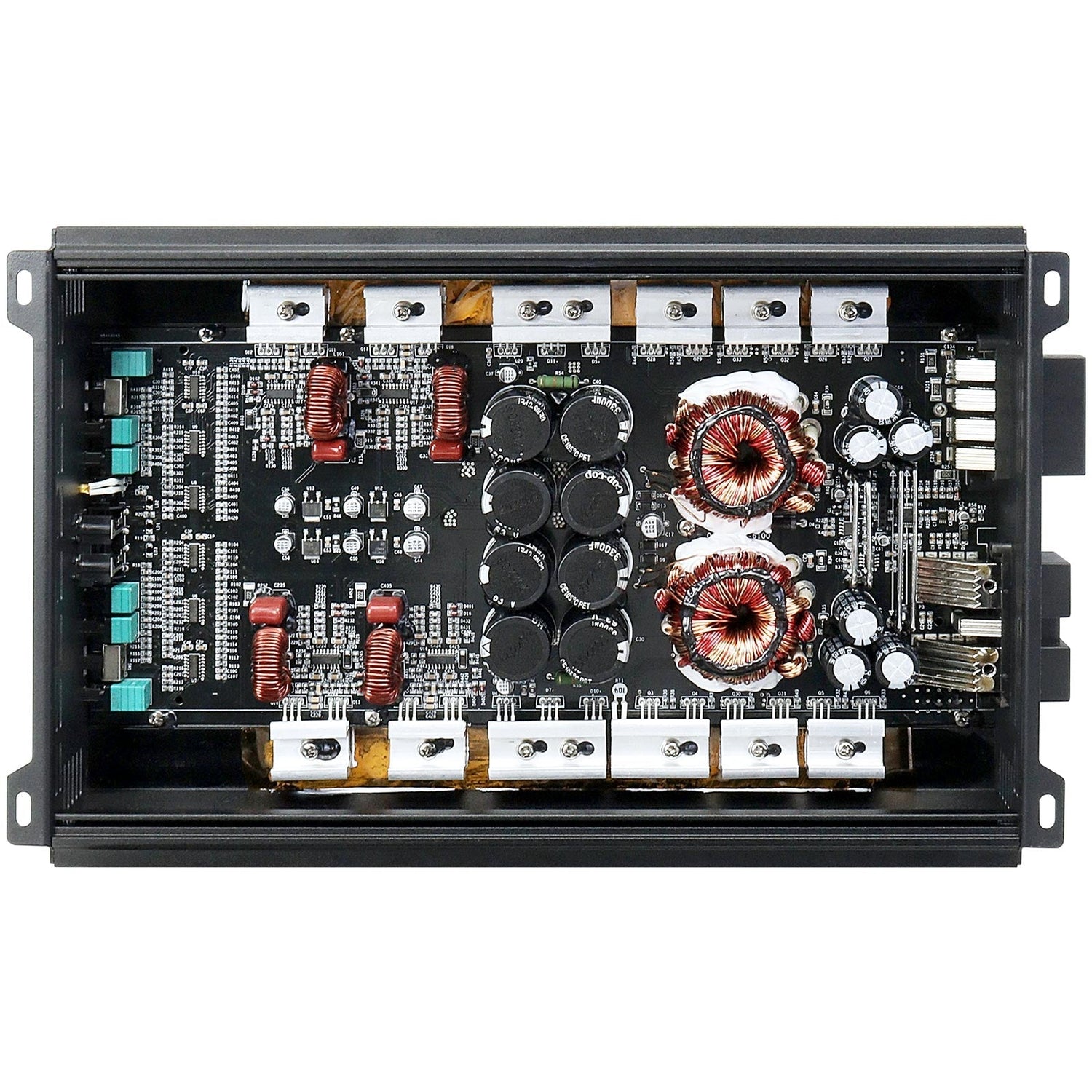

  • FULL RANGE CLASS D MOSFET AMPLIFIER: Our Full Range Class D Amplifier utilizes a high-efficiency full-bridge topology, delivering maximum power output with minimal heat dissipation, making it ideal for high-power applications
  • DESIGNED FOR MAXIMUM POWER DELIVERY: Our Full Range Class D Amplifier is optimized for high-output performance, ensuring robust and distortion-free sound, especially in demanding environments
  • MAXIMUM POWER OUTPUT: Engineered to handle heavy loads, this amplifier delivers up to 2500 watts at 2 Ohms, ensuring powerful and dynamic audio performance
  • UNMATCHED PERFORMANCE: Our amplifiers are the premier choice for "Brazilian Style" amplification with a track record of proven performance, ensuring an exceptional car audio experience
  • FREQUENCY RESPONSE -3dB: 20Hz-20KHz
  • CONTINUOUS POWER OUTPUT @ 1% 1KHz: 14.4V
    MONO @ 4 Ohms: 4 x 300 WATTS (104A)
    MONO @ 2 Ohms: 4 x 500 WATTS (190A)
    MONO @ 4 Ohms: 2 x 1000 WATTS (192A)
  • SIGNAL TO NOISE RATIO: ≥80dB
  • INPUT SENSITIVITY: 0.2 - 7V
  • OVERLOAD PROTECTION: This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience
  • OVERHEAT PROTECTION: This amplifier features an advanced heatsink, designed to provide superior overheat protection
  • OVER-VOLTAGE PROTECTION: 16V
  • UNDER-VOLTAGE PROTECTION: 9V

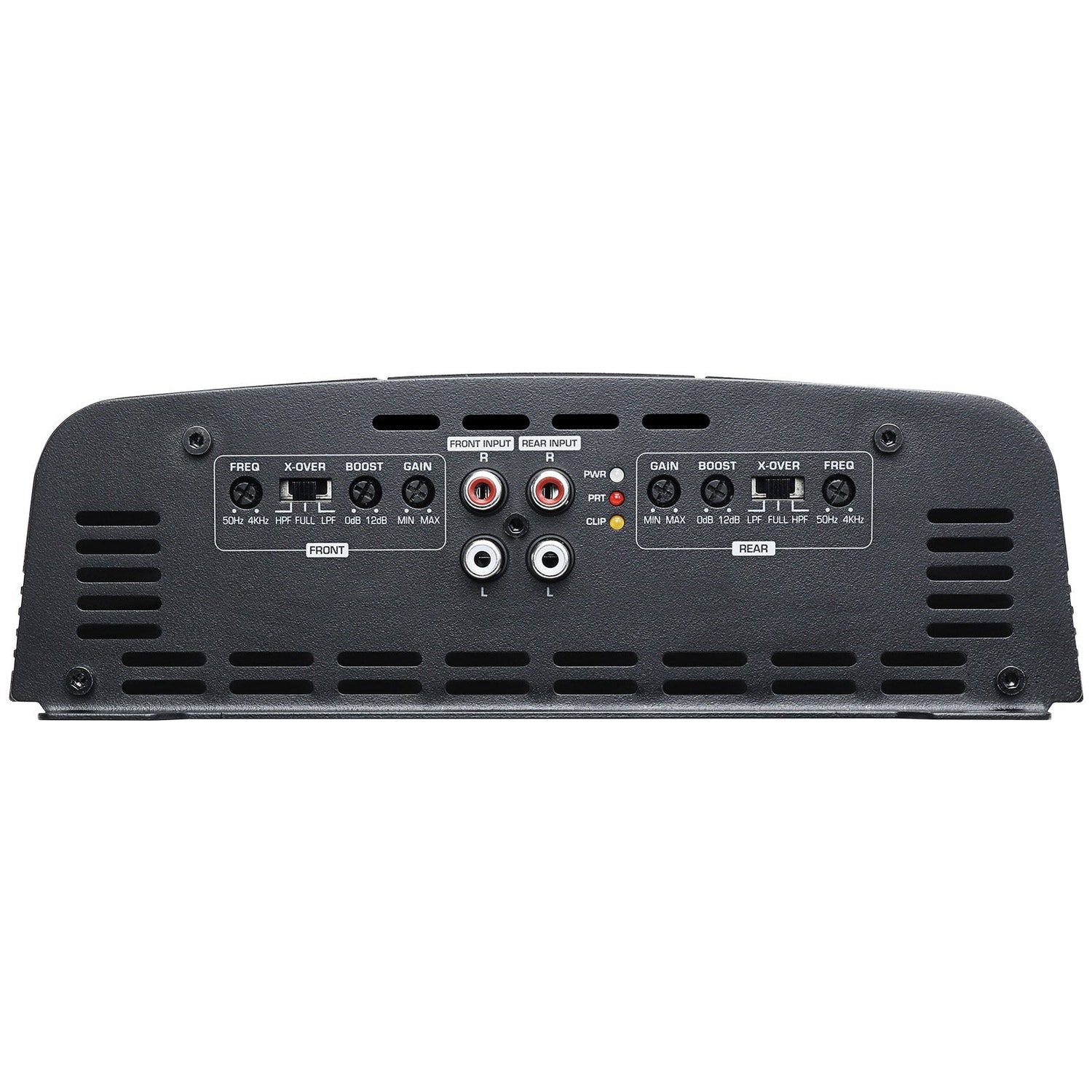

  • HIGH PASS: 50Hz-4KHz 12dB/Octave
  • LOW PASS: 50Hz-4KHz 12dB/Octave
  • BASS BOOST: 0-12 dB @ 35Hz-90Hz
  • DIMENSIONS (L x W x H): 13" x 9" x 2.9" (332 x 229 x 73 mm)



Description:

Our APHF-500.4-H2 Full Range Class D MOSFET Amplifier delivers an impressive 2500 watts of clear and powerful professional audio. By harnessing Full Bridge Class D technology, this amplifier can provide more power to the load compared to a single-ended amplifier. Full bridge amplifiers are inherently more efficient, utilizing the entire power supply voltage. Additionally, the APHF-500.4-H2 features a comprehensive four-point protection system, guarding against electrical shortages, overheating, low voltage, and overvoltage. Boost your audio experience with our Full Range Class D MOSFET Power Amplifier!

APHF-500.4D-H2-English/Spanish Product Manual
