SKU: AC-275

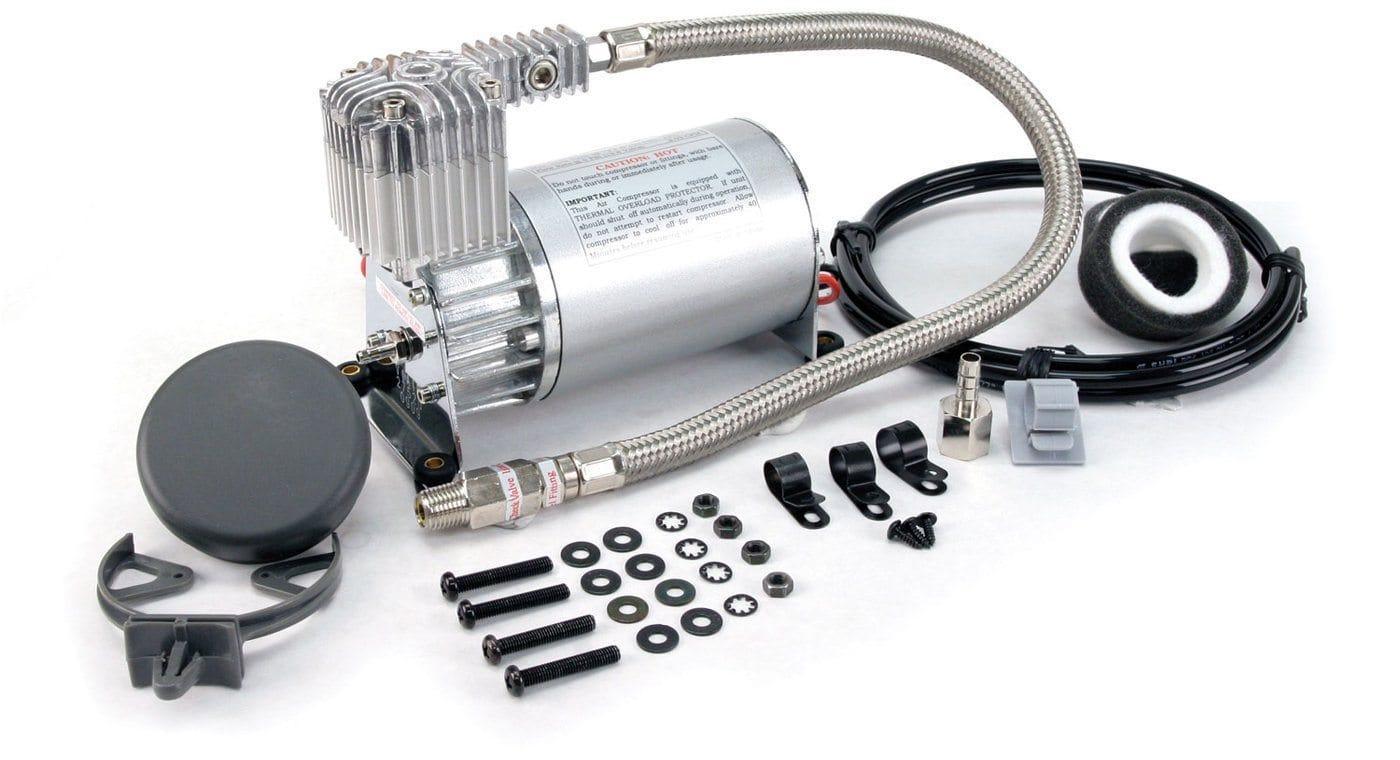

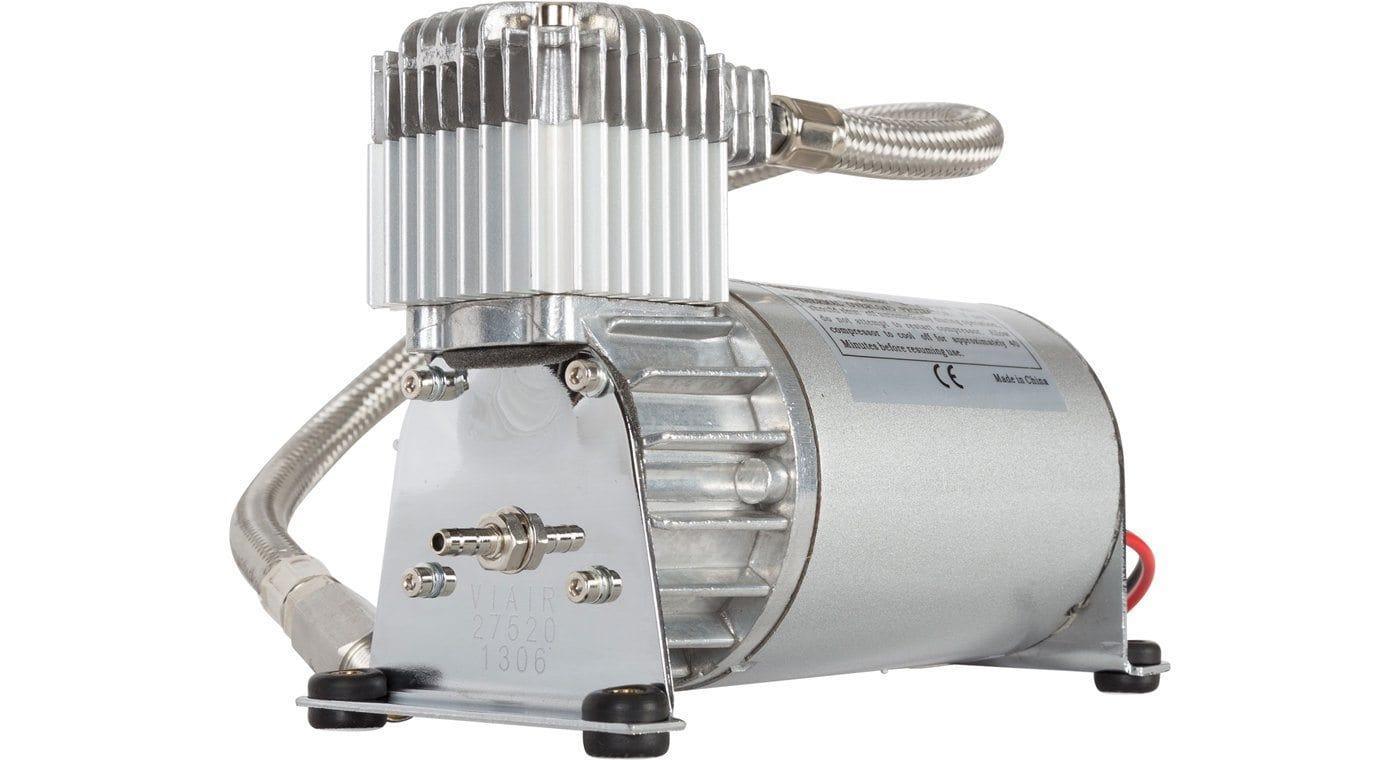

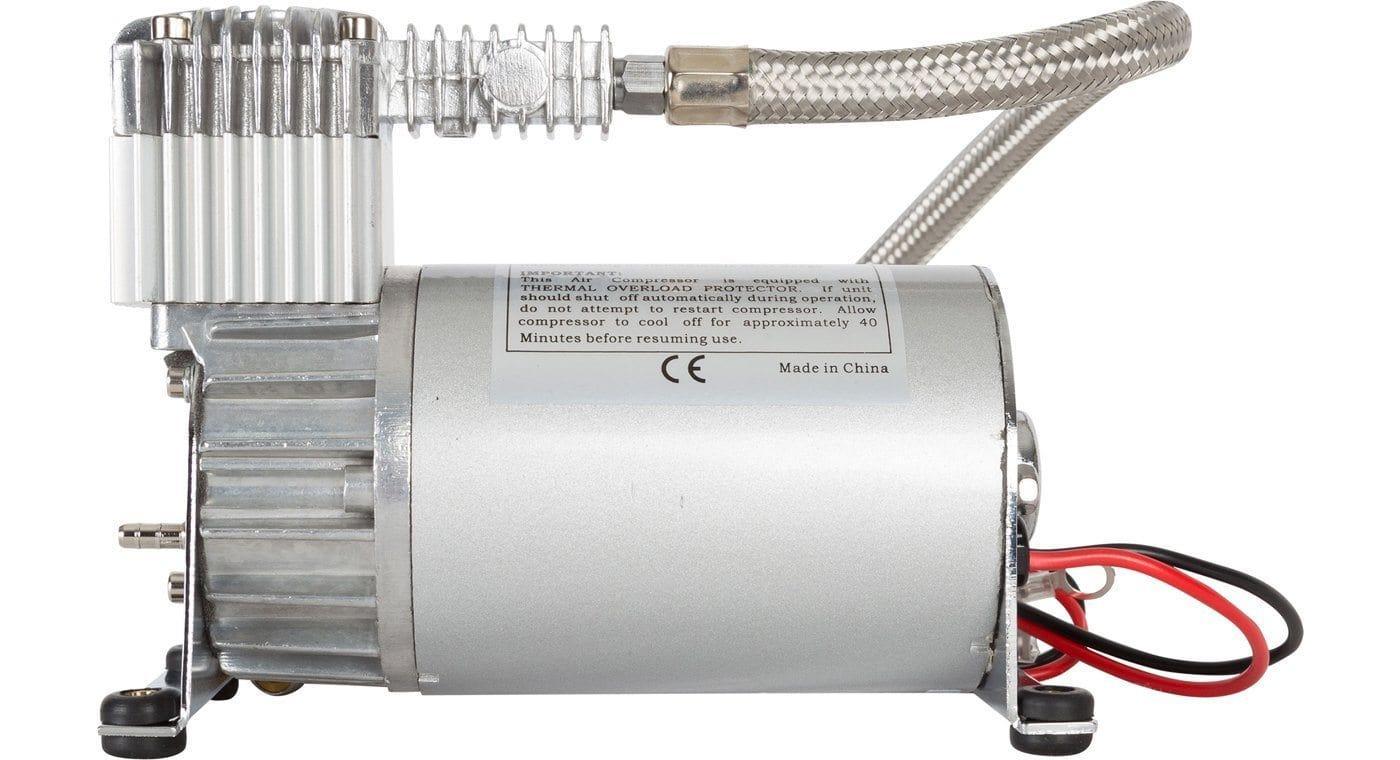

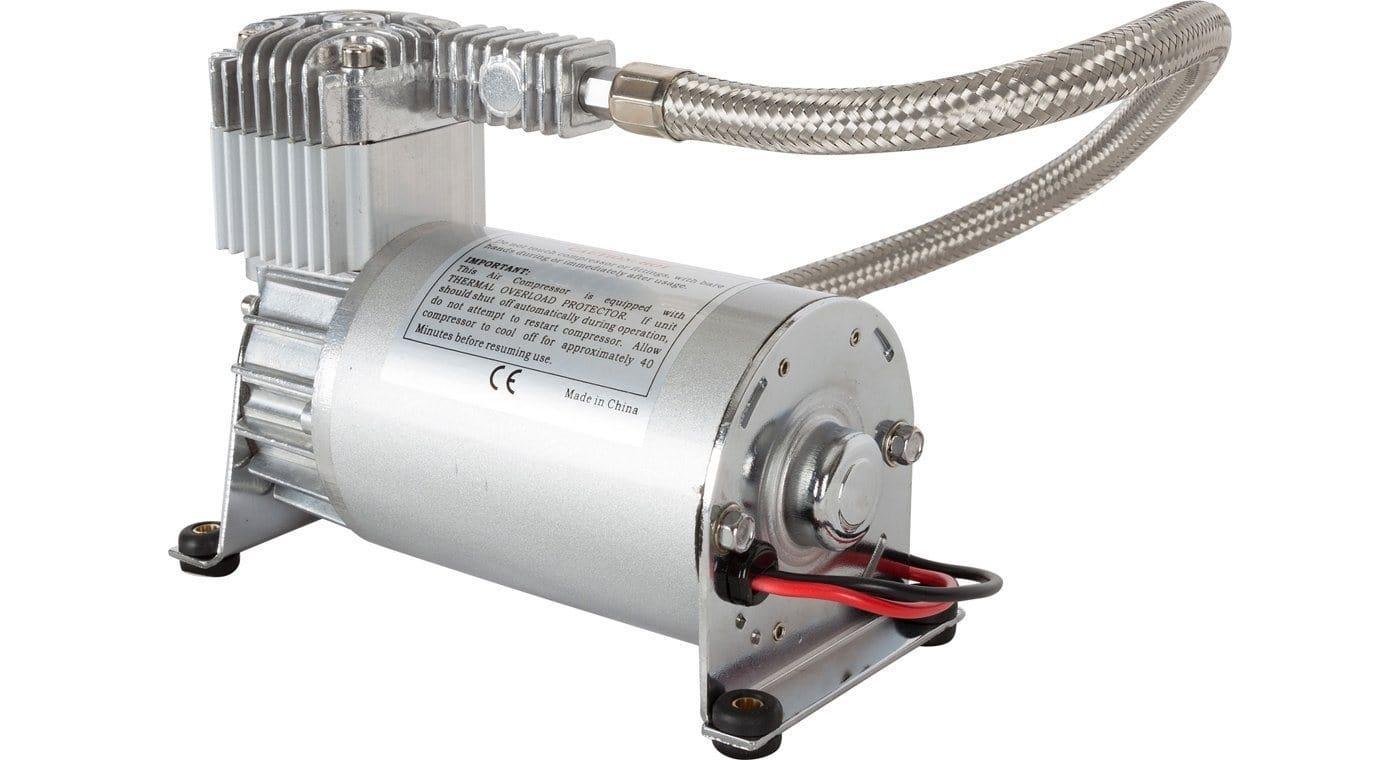

Viair 275C Silver Air Compressor

No reviews yet. Bought this? Write the first review
Regular price $267.95
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

LITTLE. SHINY. EFFECTIVE.

Turn up the volume on your ride with the Viair 275C Silver Air Compressor! This pocket-sized powerhouse packs a punch, delivering 2.03 CFM of fast-fill power in a compact design. Perfect for light pneumatic use, like powering air lockers, motorcycle suspension, and even air horns, this quarter-duty compressor recharges a 2.5-gallon tank from 110-150 PSI in just 90 seconds while only sipping 18 amps. Upgrade your onboard air system without breaking the bank.

  • Permanent Magnetic Motor
  • Oil-Less Design
  • High-Performance PTFE Piston Ring
  • Stainless Steel Valves
  • Gearless Direct Drive Motor
  • Anodized Aluminum Alloy Cylinder
  • Automatic Reset Thermal Overload Protector
  • Mounting Plates with Vibration Isolators
  • Stainless Steel 1/4" Braided Leader Hose
  • Remote Mountable Intake Filter Assembly
  • Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

PSI CFM A BAR LPM A
0 2.03 10 0 57.5 10
10 1.17 12 1.0 32.0 13
20 1.11 13 2.0 30.0 14
30 1.04 15 3.0 28.5 16
40 1.01 15 4.0 26.5 16
50 0.97 16 5.0 24.5 17
60 0.92 16 6.0 22.5 17
70 0.88 17 7.0 21.5 18
80 0.83 17 8.0 20.0 18
90 0.79 17 9.0 18.5 18
100 0.76 18 10.0 17.0 17
110 0.72 18
120 0.69 18
130 0.65 18
140 0.62 17
150 0.57 17

 * Supply Voltage: 13.8 Volts

1.0 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 05 sec. (± 05 sec.)
85 to 105 PSI 14 sec. (± 03 sec.)
0 to 145 PSI 1 min. 45 sec. (± 05 sec.)
110 to 145 PSI 30 sec. (± 03 sec.)
2.5 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 45 sec. (± 10 sec.)
85 to 105 PSI 40 sec. (± 05 sec.)
0 to 145 PSI 4 min. 30 sec. (± 10 sec.)
110 to 145 PSI 1 min. 35 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

SPECIFICATIONS
Part Number AC-275
Manufacturers Part Number 27520
Voltage 12 Volts DC
Max Amperage 18 Amps
Maximum Duty Cycle 25% @ 100 PSI
Maximum Pressure 150 PSI
Max Tank Size 2.5 Gallons
CFM @ 0 PSI 2.03 CFM
Length 6.5″ (165.1 mm)
Width 3.5" (88.9 mm)
Height 4.5″ (114.3 mm)
Weight 5.1 lb (2.31 Kg)
