3 INCH LIFT KIT FORD SUPER DUTY 4WD (17-22)
3 INCH LIFT KIT FORD SUPER DUTY 4WD (17-22)
OVERVIEW

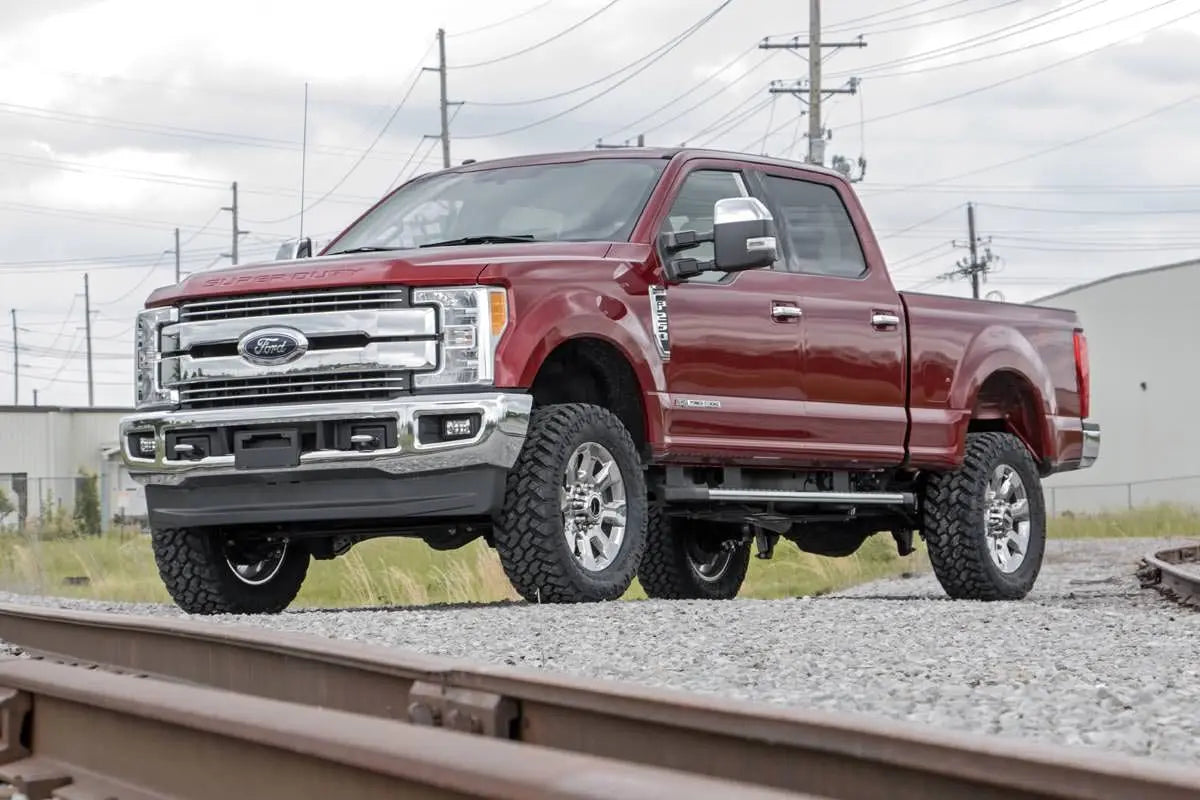

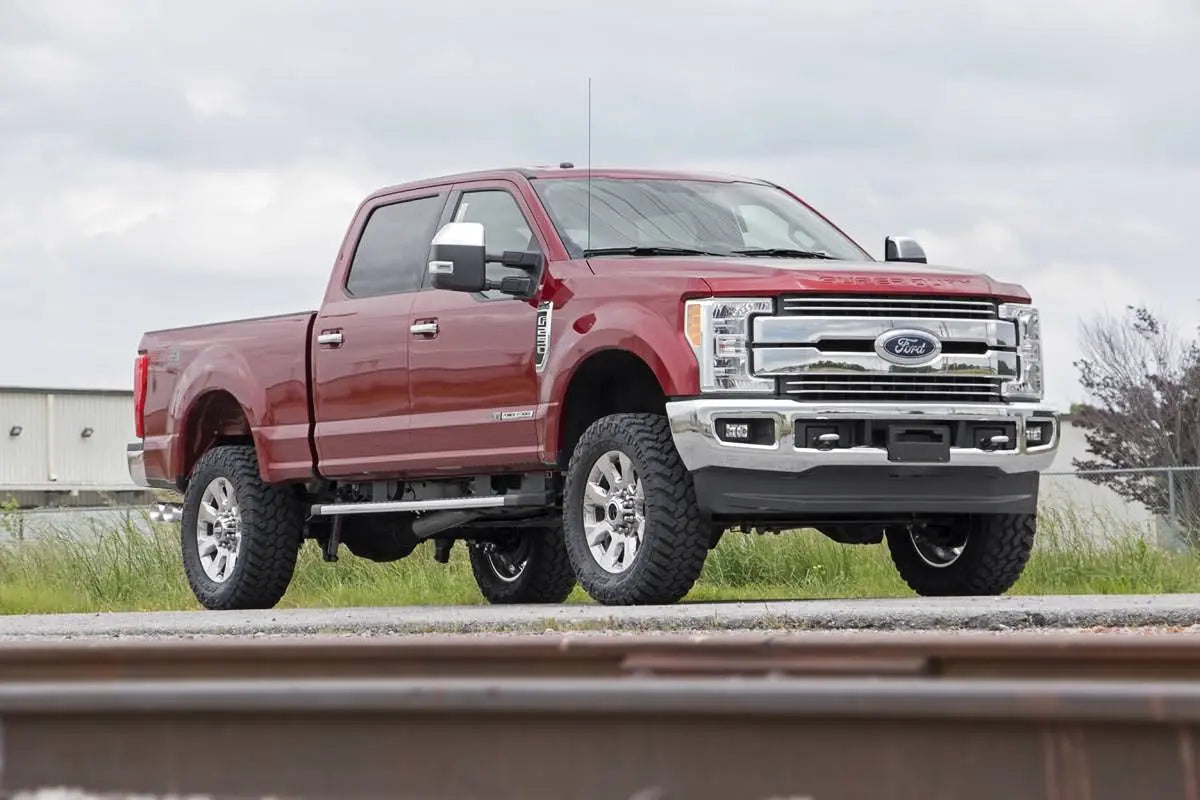

Superior Looks. Give your fourth generation Ford Super Duty an impressive upgrade, front to back with Rough Country’s 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

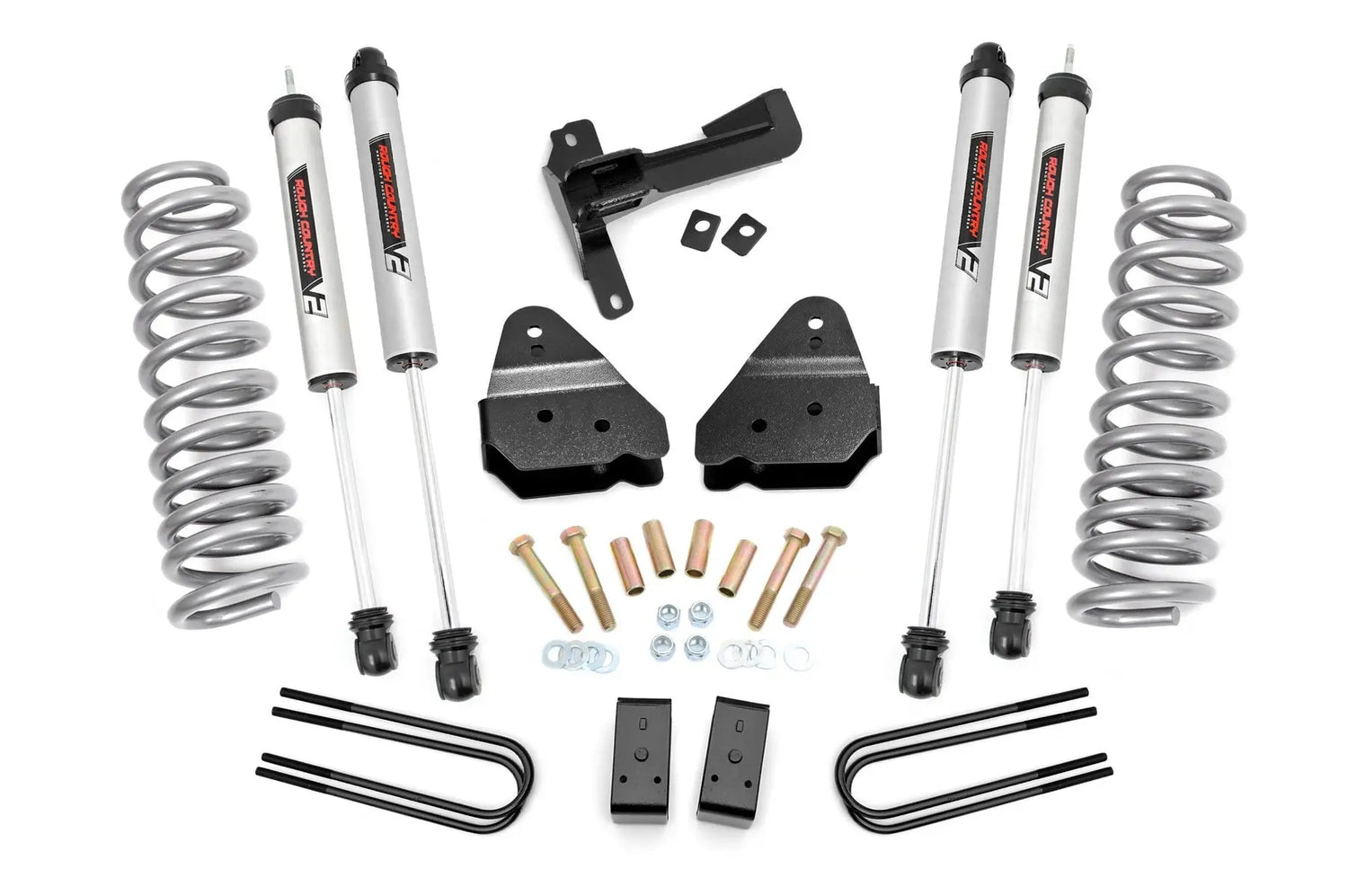

Durable Components. This kit features a set of front, lifted coil springs allowing you to gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket is provided to keep everything at optimum angles for a factory-like ride, even after lifting. Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Installation. Requiring minor trimming to install, an estimated timeframe of 3-4 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!
Limited Lifetime Replacement Warranty. Rough Country’s 3" Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
FEATURES
- Easy bolt-on installation.
- Maintains factory ride quality.
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
NOTES - IMPORTANT
- Does NOT F-350 models.
- Does NOT fit dually models.
- Does NOT fit 4" rear axle tubes.
- Does NOT work on models equipped with Tremor Package.
- If equipped with factory top mount overload spring it will need to be removed.
SPECS
Est. Install Time | 3-4 hours |
---|
IN THE BOX
INSTRUCTIONS
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
2017-2022 | 4WD | Ford | F-250 Super Duty |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
35x12.50R20 | Factory 20 | 8x170 | - | - |
35x12.50R18 | Factory 18 | 8x170 | - | - |
35x12.50R17 | Factory 17 | 8x170 | - | - |
35x12.50R17 | 17x9 | 8x170 | +0 | Minor Trimming |
35x12.50R17 | 17x9 | 8x170 | +1 | Minor Trimming |
35x12.50R17 | 17x9 | 8x170 | +18 | Minor Trimming |
35x12.50R17 | 17x9 | 8x170 | +20 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +0 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +1 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +18 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +20 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +0 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +1 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +18 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +20 | Minor Trimming |
