SKU: BDS1807FS

4 Inch Lift Kit | Chevy Trail Boss or GMC AT4 1500 (20-26) 4WD | Diesel

No reviews yet. Bought this? Write the first review
Regular price $2,490.72
Shipping calculated at checkout.

Rear Shock Option

Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

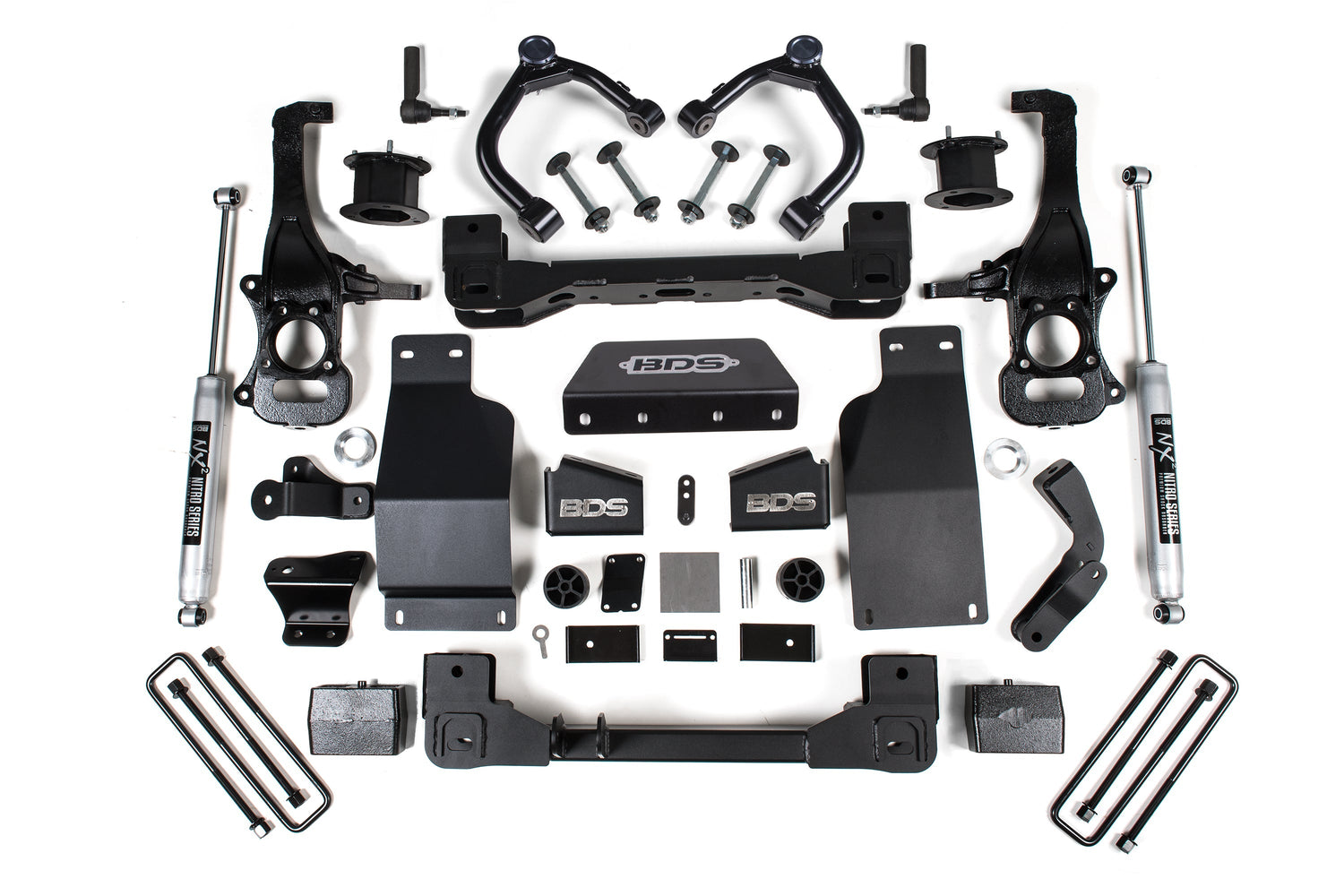

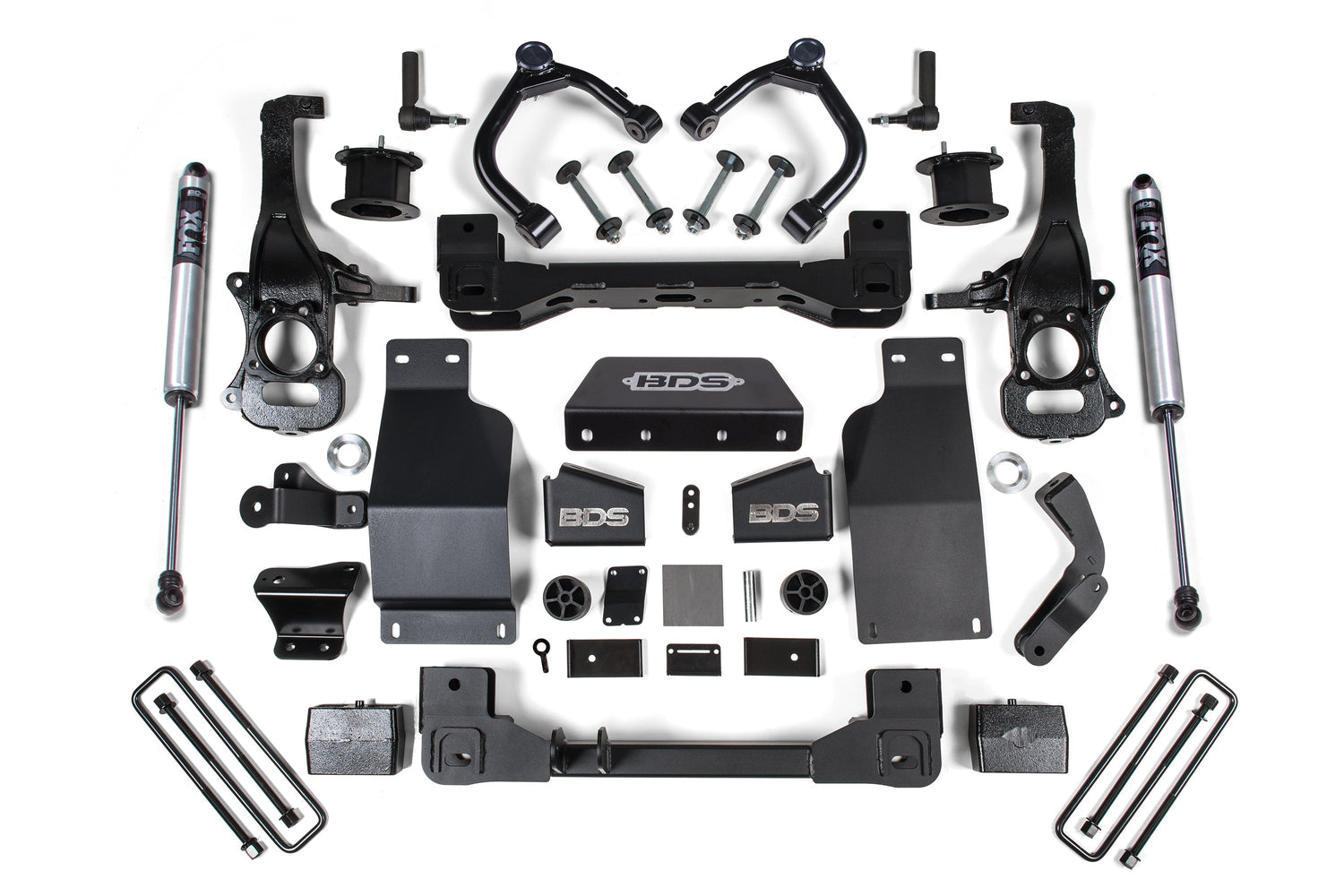

Take your Chevy Trail Boss and GMC AT4 1500 truck to the next level with 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

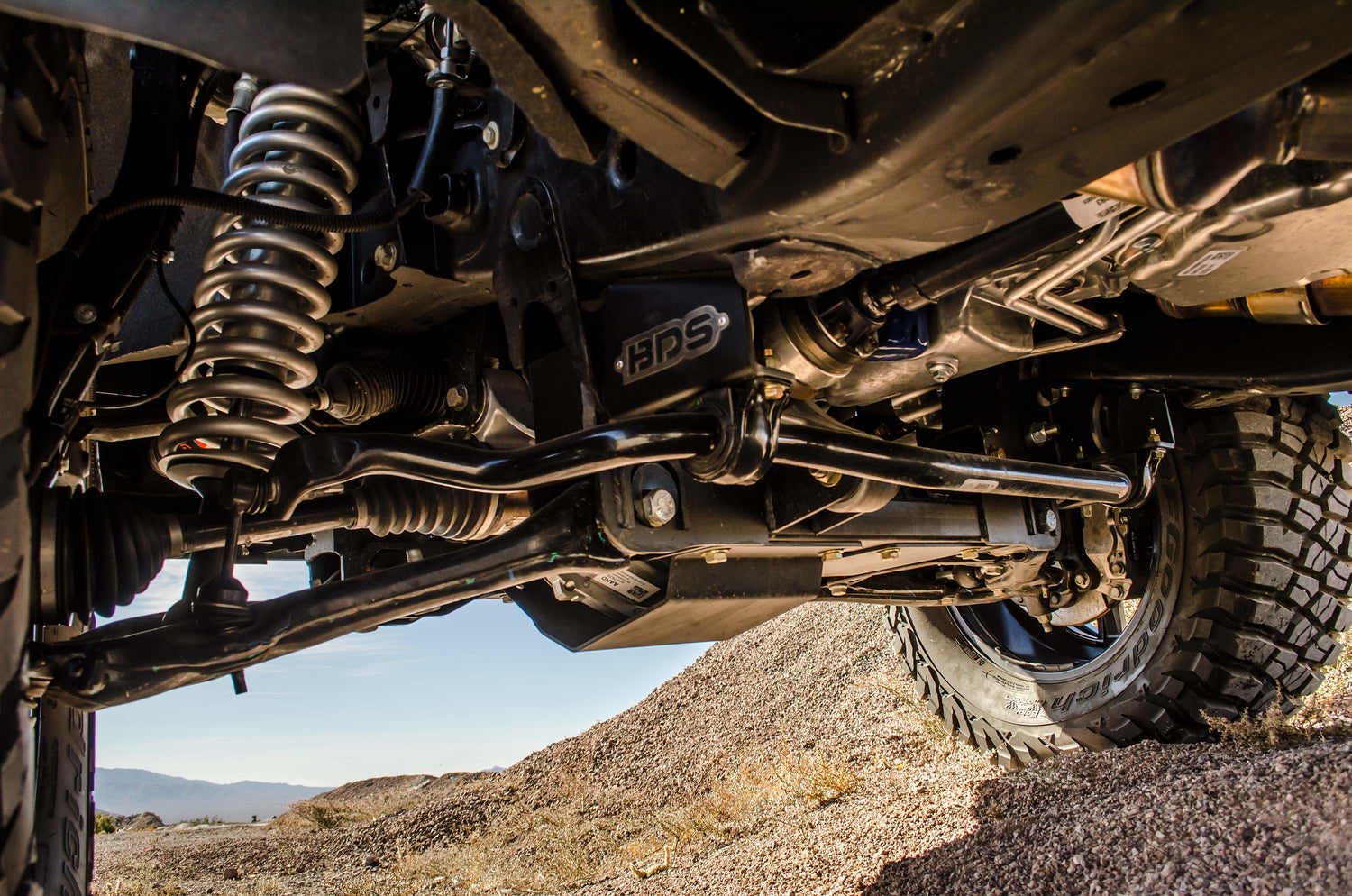

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Fitment & installation

Check the selected part against your vehicle. Need help? Call (561) 207-7988.

Selected part: BDS1807FS

Loading vehicle fitment…

Choose another option · Contact our shop
