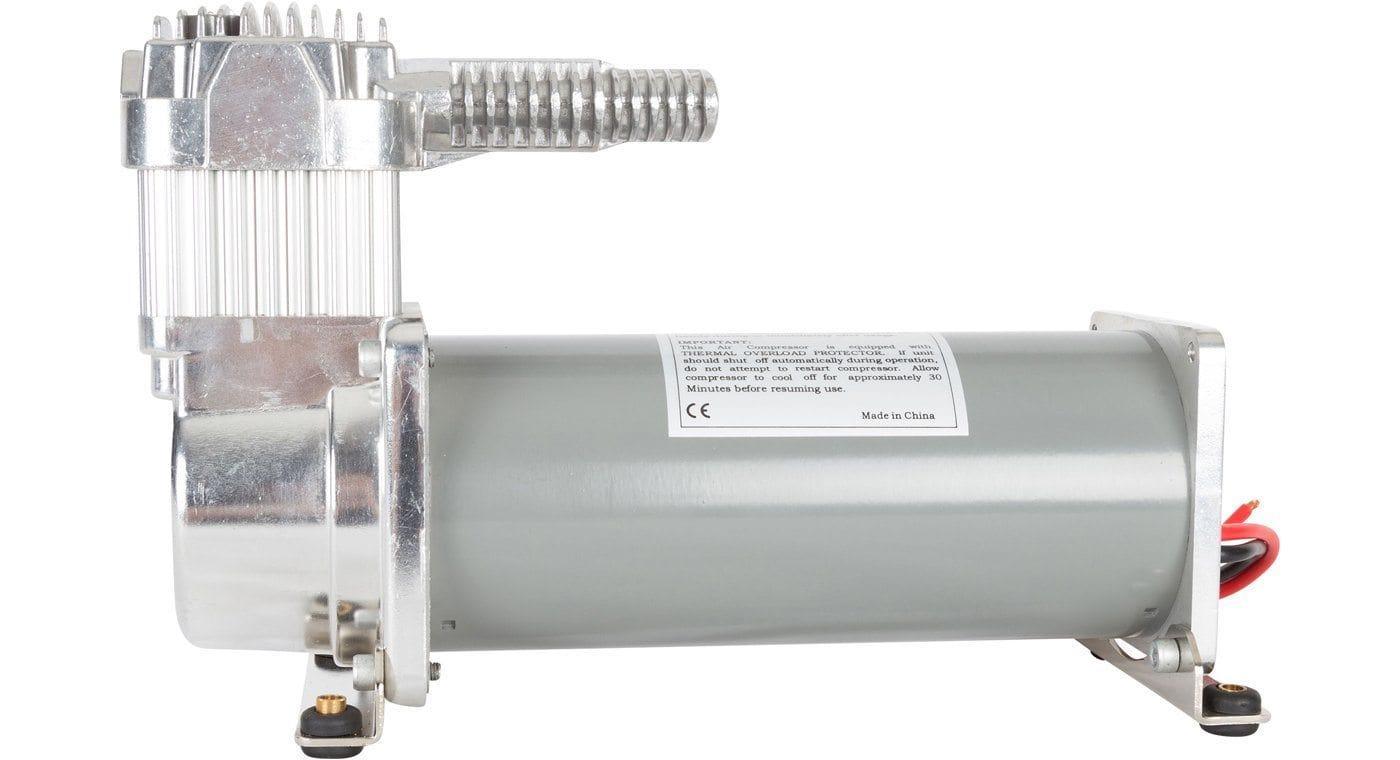

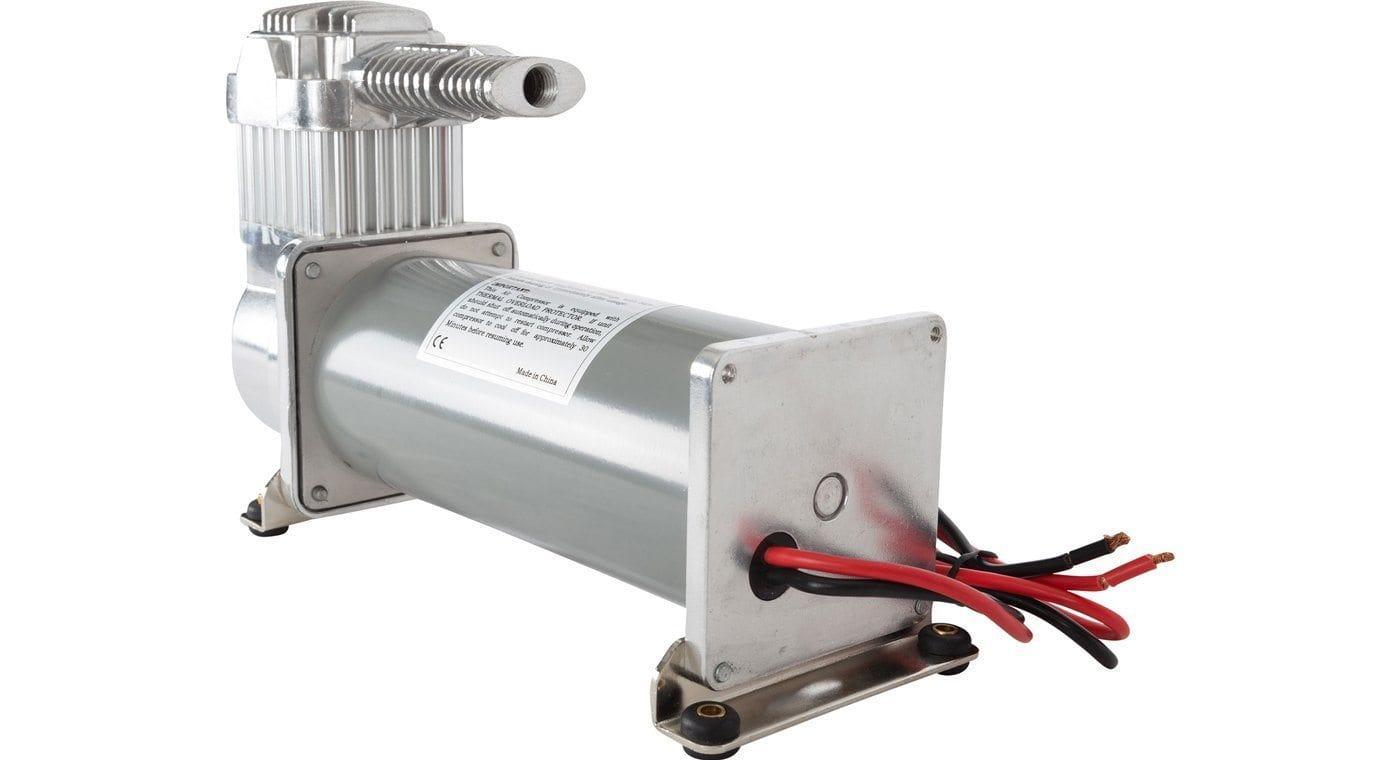

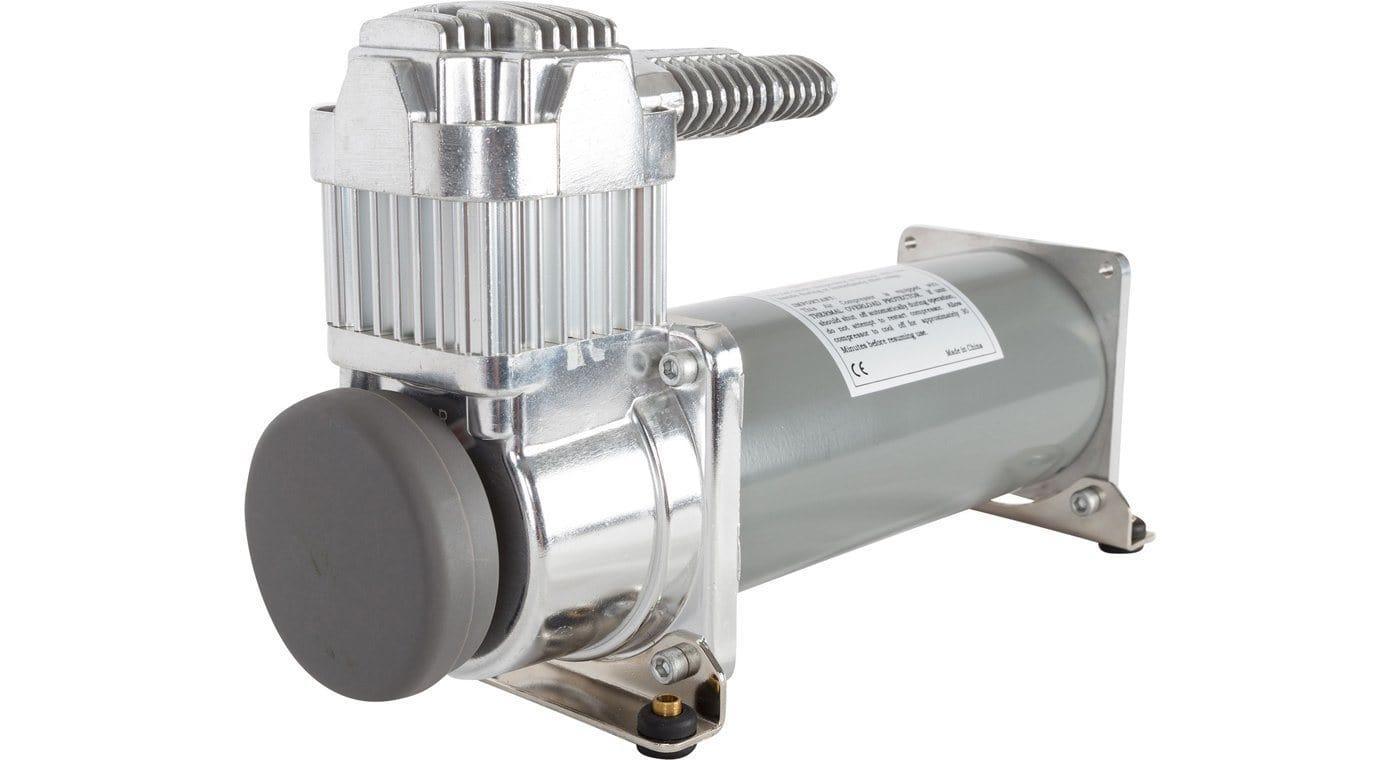

Viair 450C IG Industrial 24 Volt Air Compressor

A 24V INDUSTRIAL WORKHORSE.

If you are looking for a beast of a 24-volt compressor that can handle anything you throw at it, look no further than the Viair 450C IG Industrial 24-Volt Air Compressor. This bad boy is built to last and can work with any 24-volt system. It pumps out 2.20 CFM while using only 13 amps, so you don't have to worry about draining your battery. Whether you need air for your train horns, air suspension, air tools or anything else, this compressor can deliver it non-stop. And when you need more air, it won't keep you waiting. It can fill up a 2.5-gallon tank from 110-145 PSI in just 50 seconds and a 5-gallon tank in less than two minutes.

This compressor is not only powerful but also smart. It has a new and improved head design that keeps it cool and prevents overheating. It also has a separate leader hose and check valve assembly that protects it from high amperage restarts.

• Revolutionary Heat Dissipation Head Design
• 24 Volt
• Industrial Grade & CE Spec.
• Permanent Magnetic Motor
• Oil-less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Moisture & Dirt Resistant
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• Stainless Steel 1/4" Braided Leader Hose
• Remote Mountable Intake Filter Assembly
• Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

**24-volt compressors should always be wired to a 24-volt electrical system. Failure to do so can cause serious damage and void your warranty.**

This item can also be used as a replacement alternative part for John Deere part number AA72119.

* Supply Voltage: 28.0 Volts

 * Supply Voltage: 28.0 Volts

• Viair 450C Industrial Grade Air Compressor Manual
• Viair 450C Industrial Grade Air Compressor Wiring Diagram
• Viair 450C Industrial Grade Air Compressor Dimensional Drawing

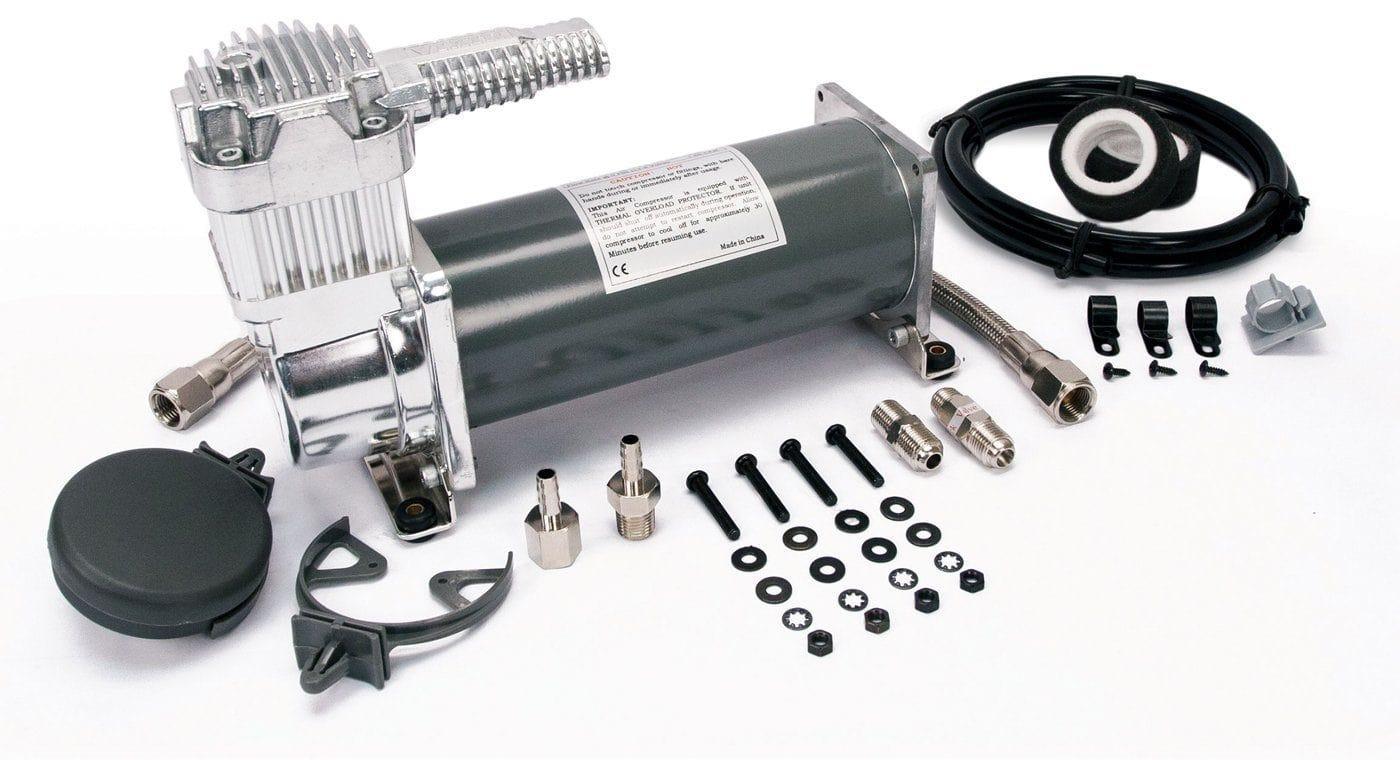

• Viair 450-IG 24 Volt Air Compressor
• 1/4" NPT Braided Leader Hose & Check Valve
• Two-Stage Air Filter
• Replacement Filter Elements
• 1-Year Manufacturer's Defect Warranty
• Mounting Hardware
