GM Marine Big Block Compatible 540 c.i. Pro Series Engine - 670 Horsepower - Base Dressed - Carbureted
GM Marine Big Block Compatible 540 c.i. Pro Series Engine - 670 Horsepower - Base Dressed - Carbureted is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
GM Marine Big Block Compatible 540 c.i. Pro Series Engine - 670 Hor...
GM Marine Big Block Compatible 540 c.i. Pro Series Engine - 670 Horsepower - Base Dressed - Carbureted is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Description:

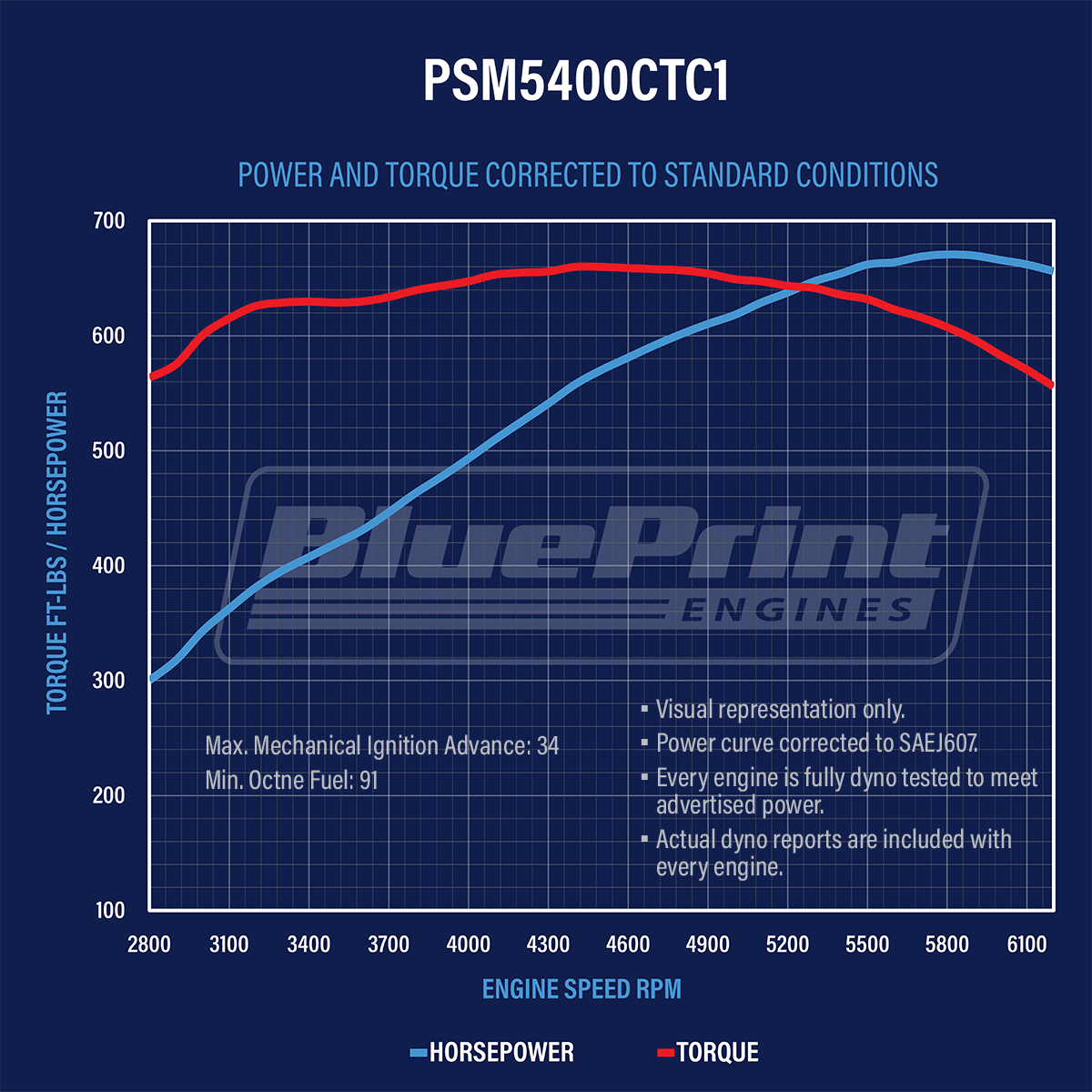

- Horsepower & Torque: 670 Horsepower / 660 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Forged Crank
- Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.500"
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Standard Deck
Rotating Assembly:
- New BluePrint Forged Crankshaft
- 4.250" Stroke
- Forged H-beam 6.385" Connecting Rods
- Forged Pistons
- Internal Engine Balance
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8013
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @.050-112 Degree Lobe Separation
Also Includes:
- 850cfm Carburetor
- Edelbrock Aluminum Intake Manifold
- Distributor
- Valve Covers
- Oil Pan
- Timing Cover
- Spark Plugs
- MSD Spark Plug Wires
- Harmonic Balancer
Notes:
- For boats being used in salt water, BluePrint Engines recommends a closed cooling system be used as the aluminum cylinder heads and intake manifolds do not have brass lined water passages.
- Replaces Standard Rotation engines only. Not available as reverse rotation.
- BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
