6MR400-4 BULLET PRV 6.5" MIDRANGE BULLET LOUDSPEAKER
6MR400-4 BULLET PRV 6.5" MIDRANGE BULLET LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Description
Description
Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional midrange loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels®!! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient midrange that is able to give high levels of output for your custom door.
- Built to Perform at Wide Frequency Range: 145 – 12,500 Hz
- High efficiency: 95 dB guarantees High Output Levels
- Handles 400 Watts – Endurance at Loudest Volumes
- Vented Air pole piece for heat dissipation
- Center phase plug for even sound distribution
- 4 Ohm Impedance
GENERAL SPECIFICATIONS
| Nominal Diameter | 6.5″ (152 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 200 Watts |
| Continuous Program Power (RMS)** | 400 Watts |
| Max Peak Power*** | 800 Watts |
| Sensitivity 2.83V at 1m | 95 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 145 Hz 12db Per Octave Crossover |
| Frequency Response | 145 – 12,500 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 9.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 4.40 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 144.1 Hz |
| Mechanical Factor | Qms | 11.98 |
| Electrical Factor | Qes | 0.64 |
| Total Factor | Qts | 0.60 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 7.94 g |
| Bl Factor | Bl | 6.37 Tm |
| Dc Resistance | Re | 3.6 Ohm |
| Inductance | Le | 0.136 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 6.97 g |
| Mechanical Compliance | Cms | 0.154 mm/N |
EXTRA INFO

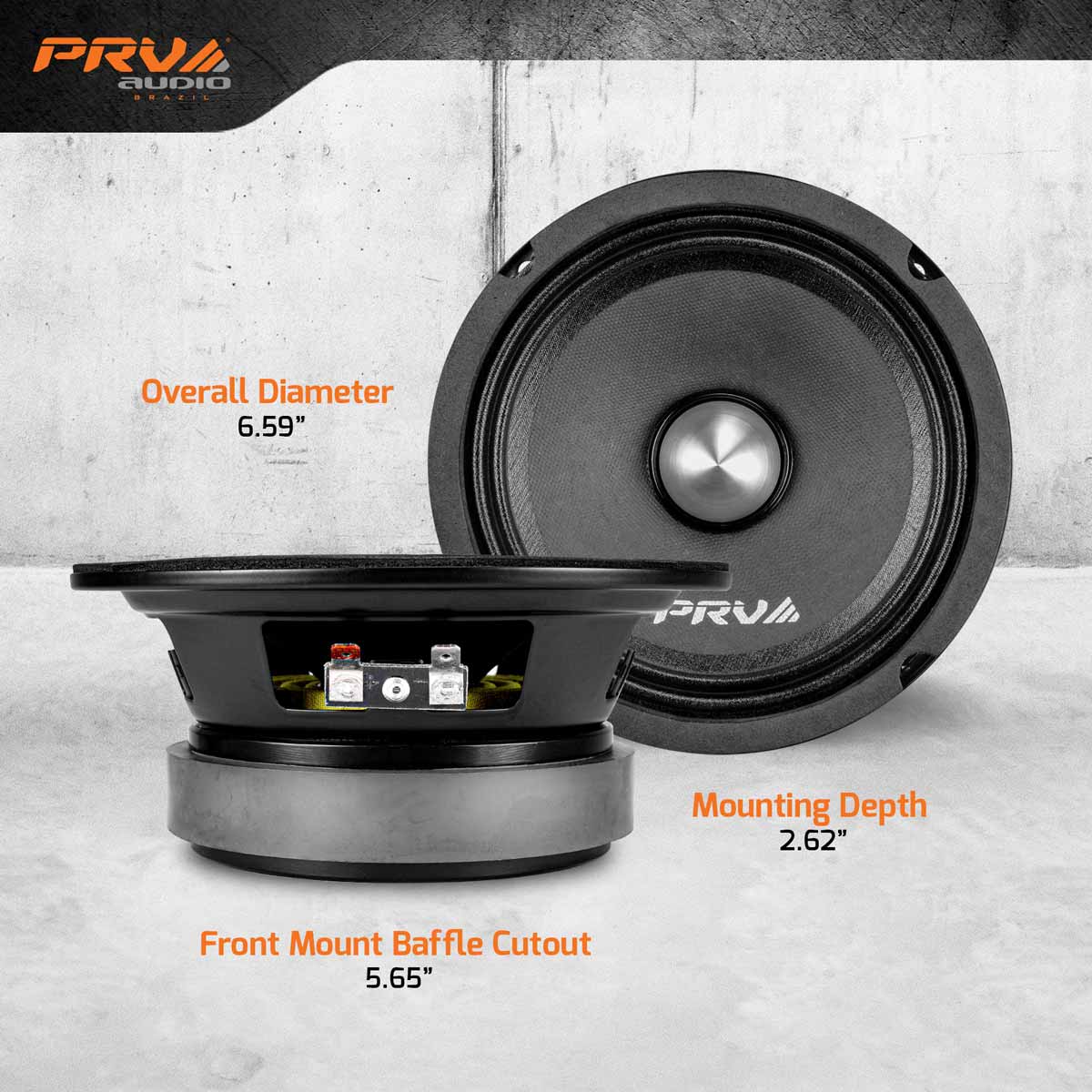

| Overall Diameter | 6.59” (167.5 mm) |
| Front Mount Baffle Cutout | 5.65” (143.5 mm) |
| Mounting Depth | 2.62”(66.5 mm) |
| Overall Depth | 2.99”(73.5 mm) |
| Net Weight | 4.81 Lbs (2.18 kg) |
| Shipping Weight | 5.18 Lbs (2.35 kg) |
| Carton Dimensions W x L x H | 8.50”x 8.50” x 3.35” (175 x 175 x 85 mm) |
