THE CURE FOR TINY TANK SYNDROME

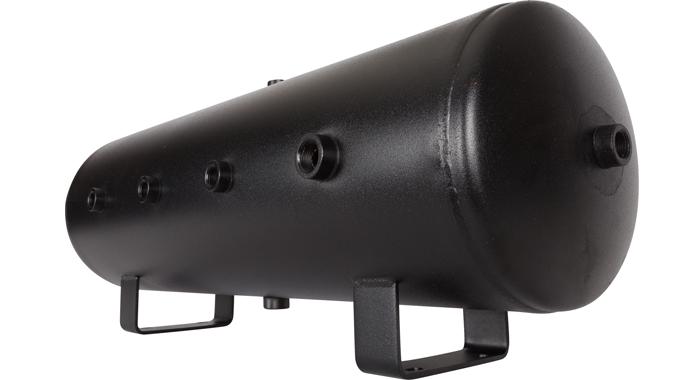

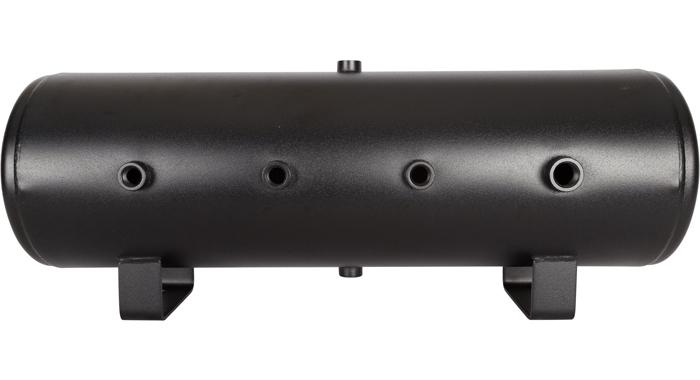

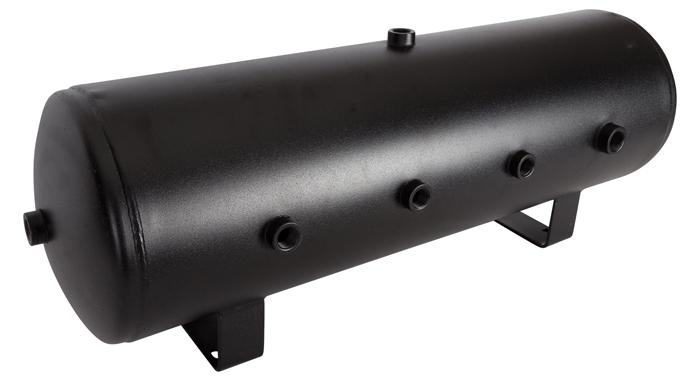

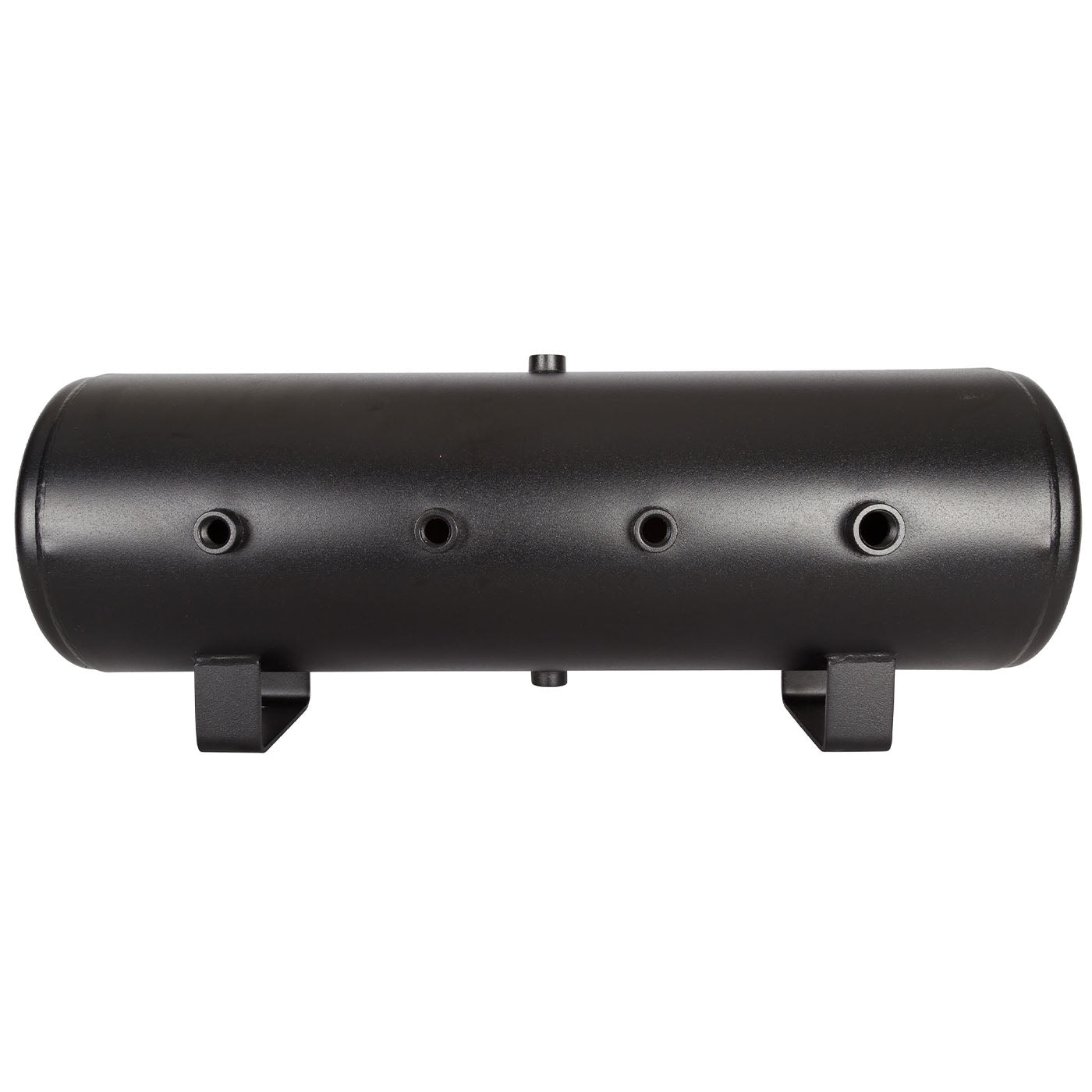

This meticulously engineered steel air tank is a pivotal asset for your air horns, air suspension, or onboard air systems. Coated with a sleek black powder finish, not only does it exude a refined aesthetic appeal, but it also offers an additional shield against corrosion and rust, promising longevity and enduring service.
The tank features an intuitive port configuration comprising seven 1/2" NPT ports and one 3/4" NPT port, facilitating seamless connectivity and versatility to meet the diversified needs of your pneumatic applications. With a robust maximum working pressure of 150 PSI, this tank is adept at handling a myriad of pneumatic tasks efficiently. The internal rust inhibitor coating further amplifies its resistance against corrosion, making it a reliable choice for demanding environments. Meeting the stringent SAE J10 & FMVSS 121 standards, the HornBlasters 8 Gallon 8 Port Steel Air Tank is a testament to quality and reliability.
- Generous Capacity: The 8-gallon reservoir ensures ample air supply, whether it's for emergencies, inflation, or delivering up to 16 seconds of thunderous honk with our renowned air and train horns.
- Optimal Airflow: Engineered for peak performance, it boasts seven 1/2" ports and a single 3/4" port.
- Enduring Excellence & Compliance: Coated with a black powder coat and an interior rust inhibitor, longevity and corrosion resistance are assured. Proudly crafted in the U.S.A., it aligns with the rigorous SAE J10 & FMVSS 121 standards.
- Quality Assured: Each tank is backed by a 2-year manufacturer's defect warranty.
As an important safety precaution, a safety blow-off valve should be installed with any air system. A safety blow-off valve is designed to keep the system from over-pressurizing and to prevent damage to other components. It is suggested to use a safety blow-off valve with a PSI rating between 25-35 PSI higher than the maximum pressure of the pressure switch.
For example, 150 PSI systems require a 175 PSI safety blowoff and 120 PSI systems require a 150 PSI safety blowoff.
- HornAir 8-gallon 8 port air tank
- Mounting hardware
| Part Number | TA-808H |
| Volume | 8.5 gals (32.18 L) |
| 1/2" NPT Ports | 7 |
| 3/4" NPT Ports | 1 |
| Mounting Hole Dimensions | 20" x 3.5" |
| Burst Pressure | 350 PSI |

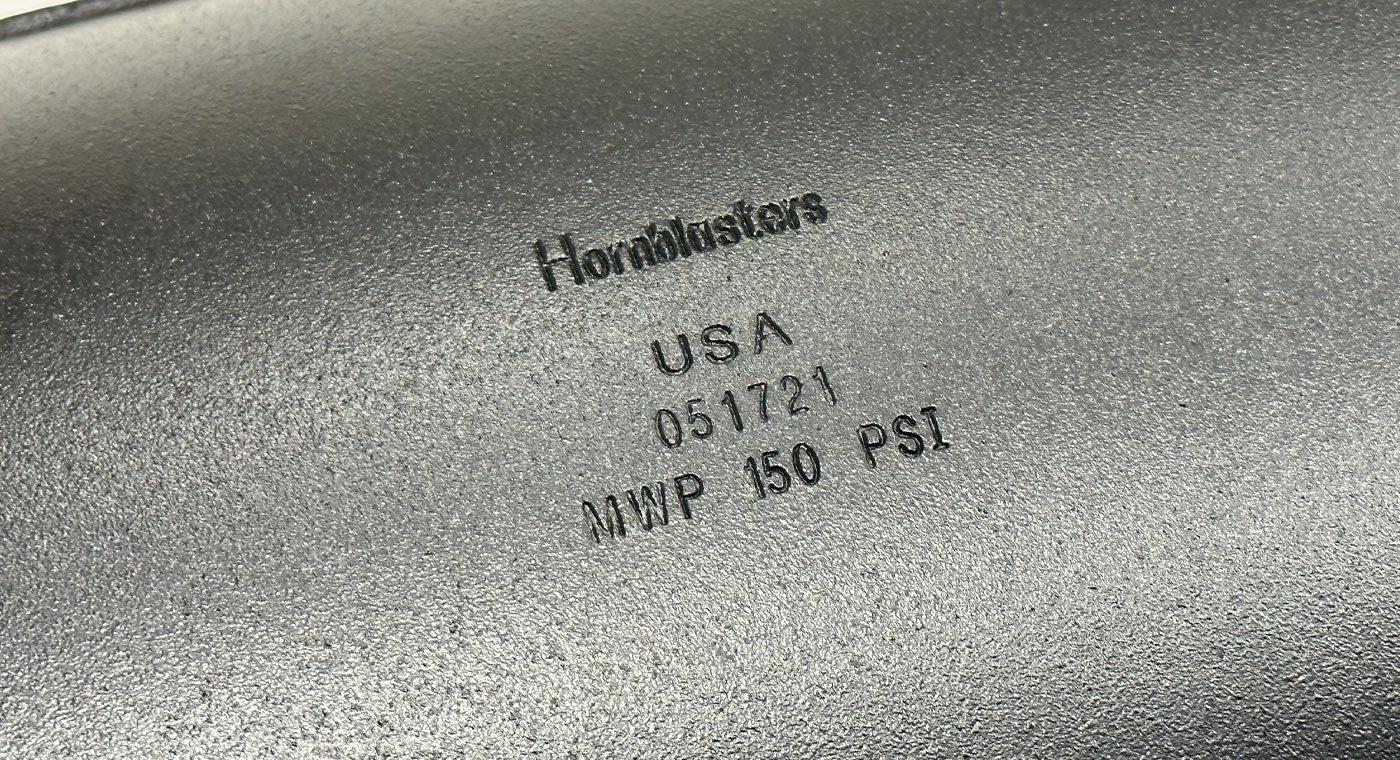

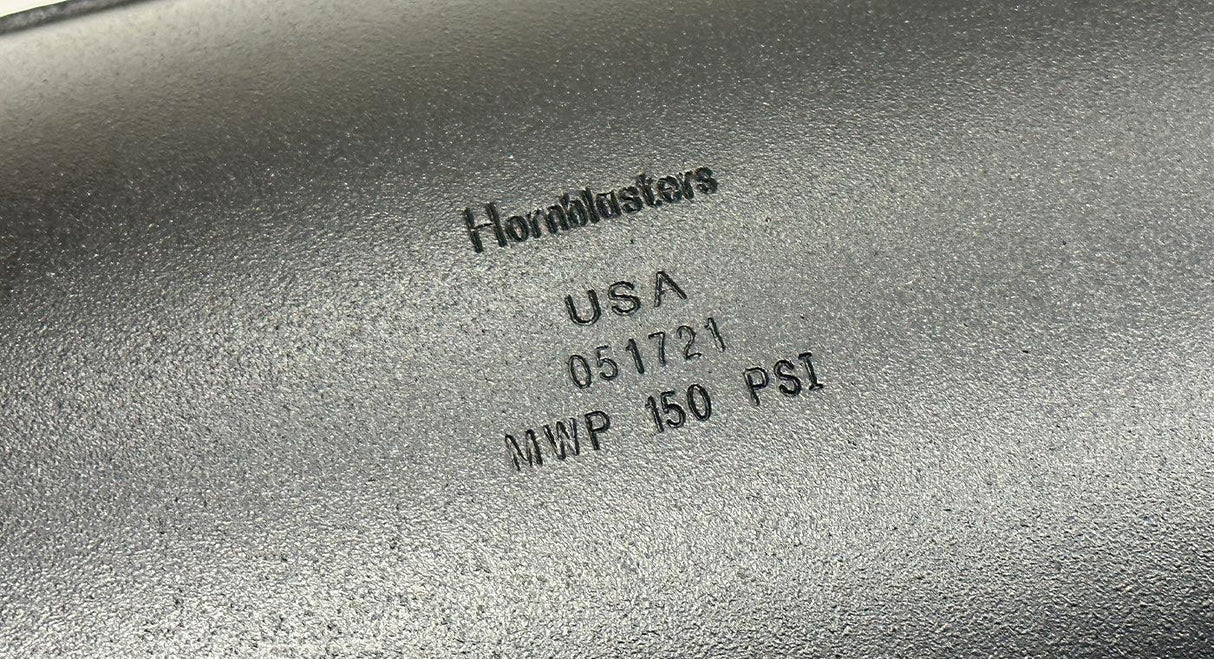

| Working Pressure | 150 PSI |
| Tank Length | 32.5″ (825.5 mm) |
| Tank Diameter | 10″ (254 mm) |
| Tank Height | 12.5″ (317.5 mm) (With Legs) |
| Tank Weight | 32 lb (14.51 Kg) |
8-Gallon Air Tank Dimensional Drawing
-
