8MB450 v2 PRV 8" MIDBASS LOUDSPEAKER
8MB450 v2 PRV 8" MIDBASS LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description

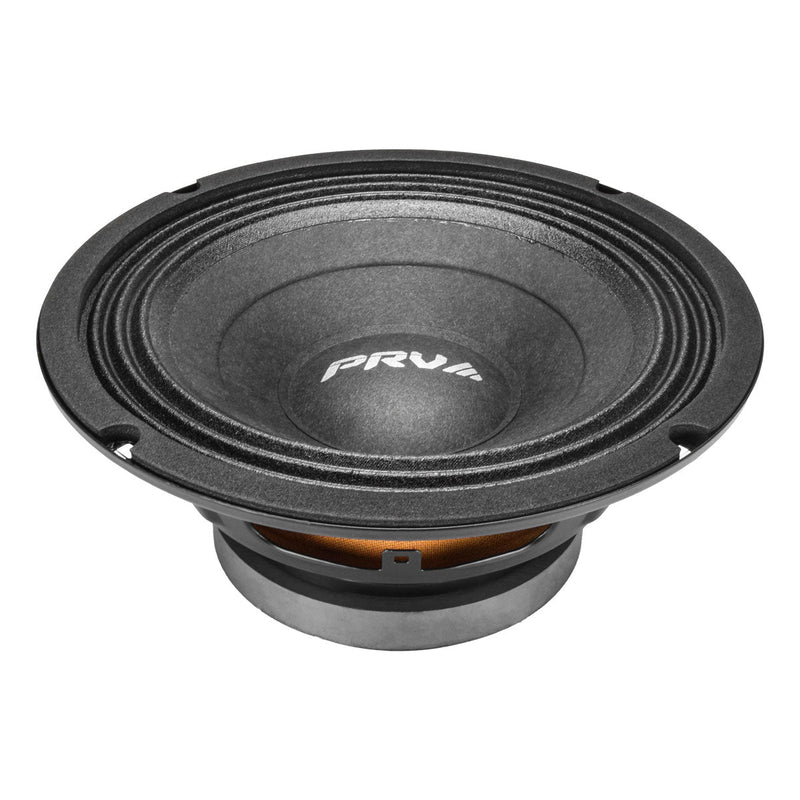

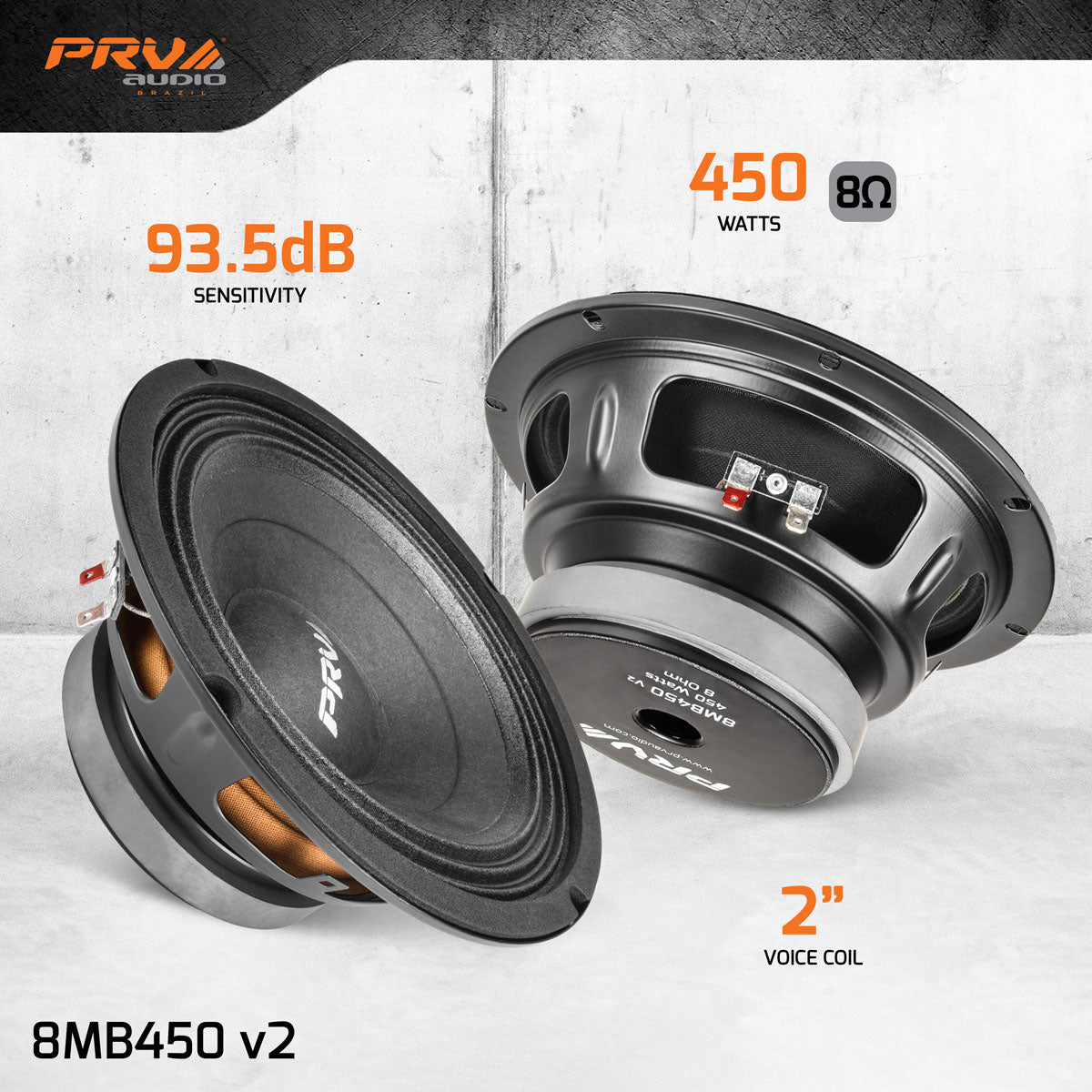

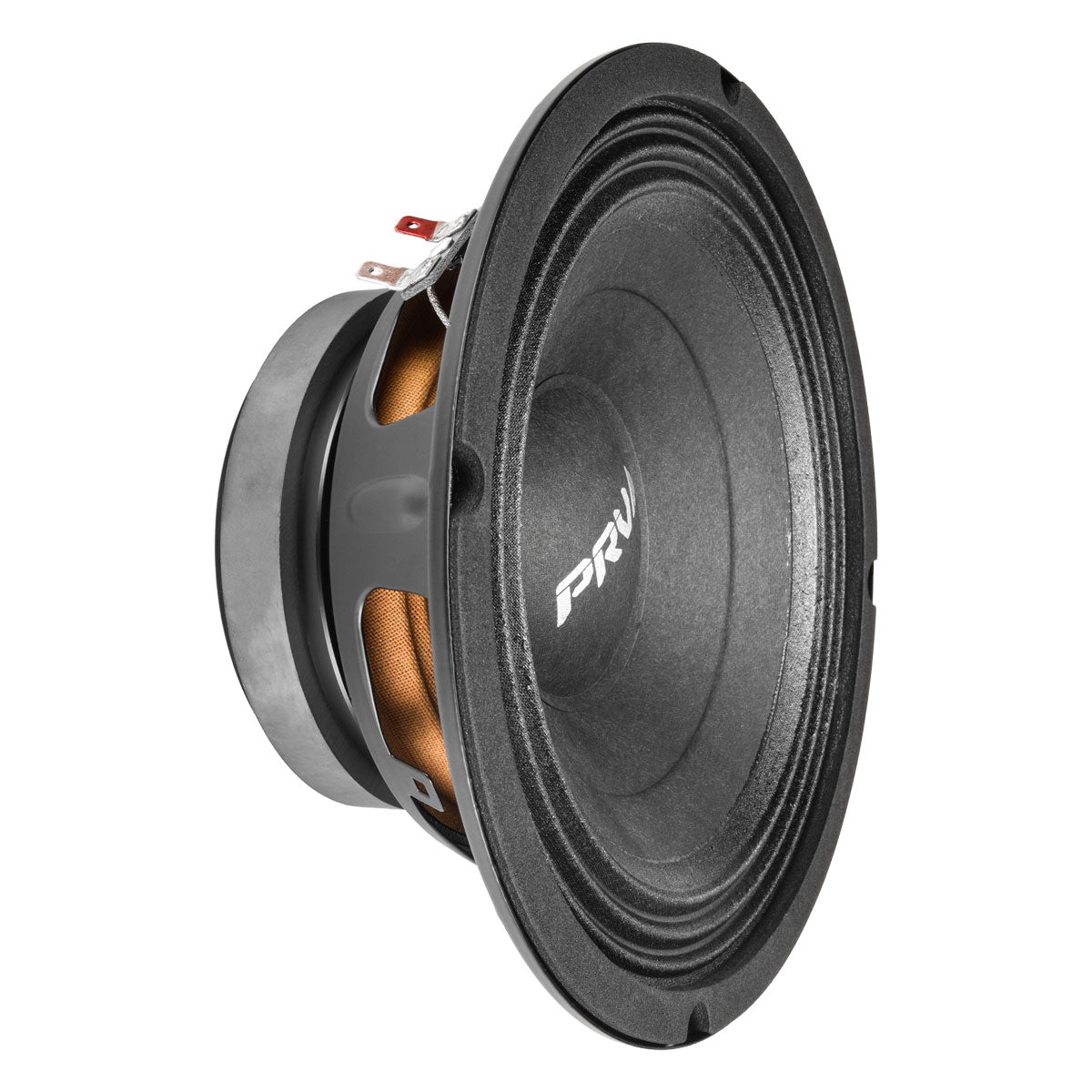

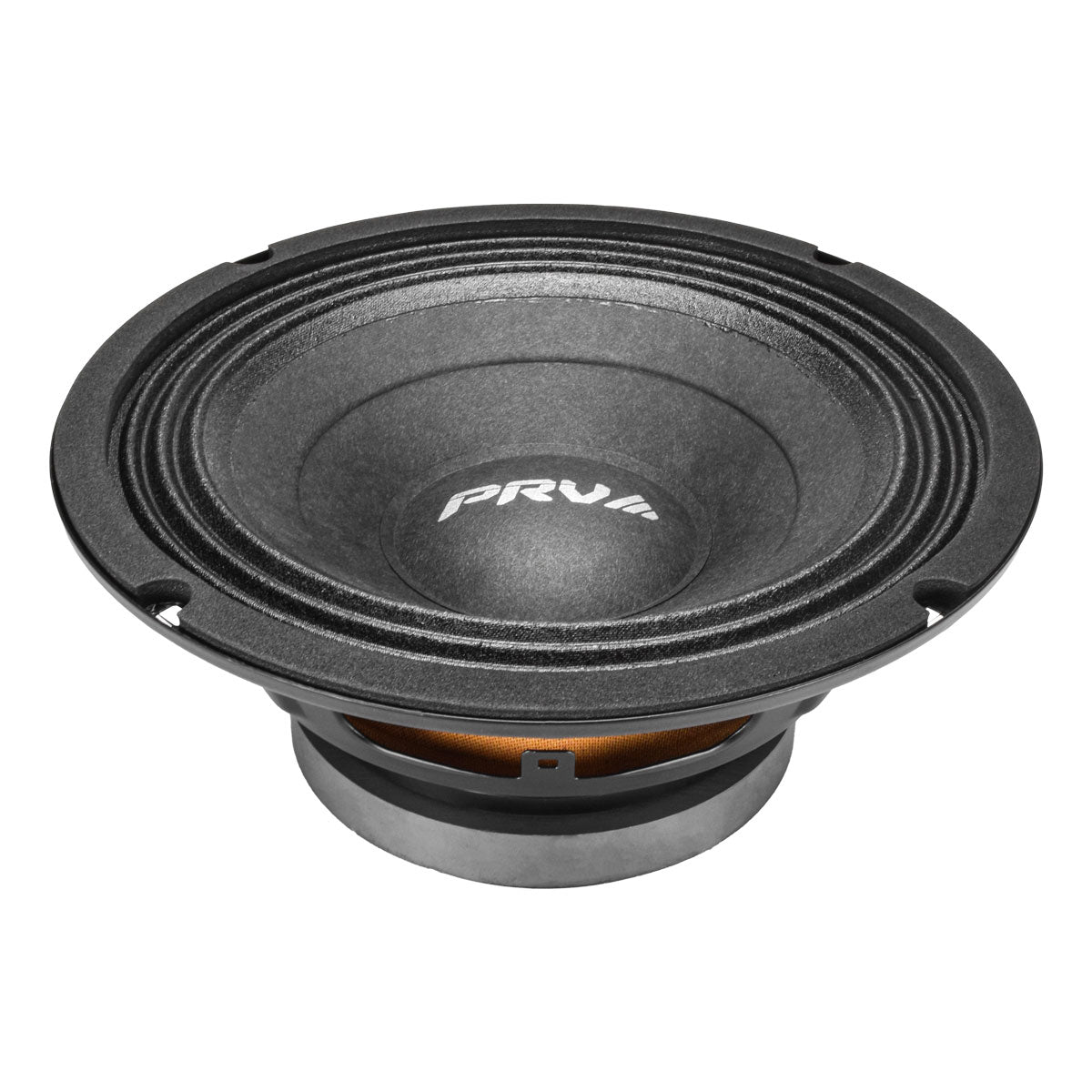

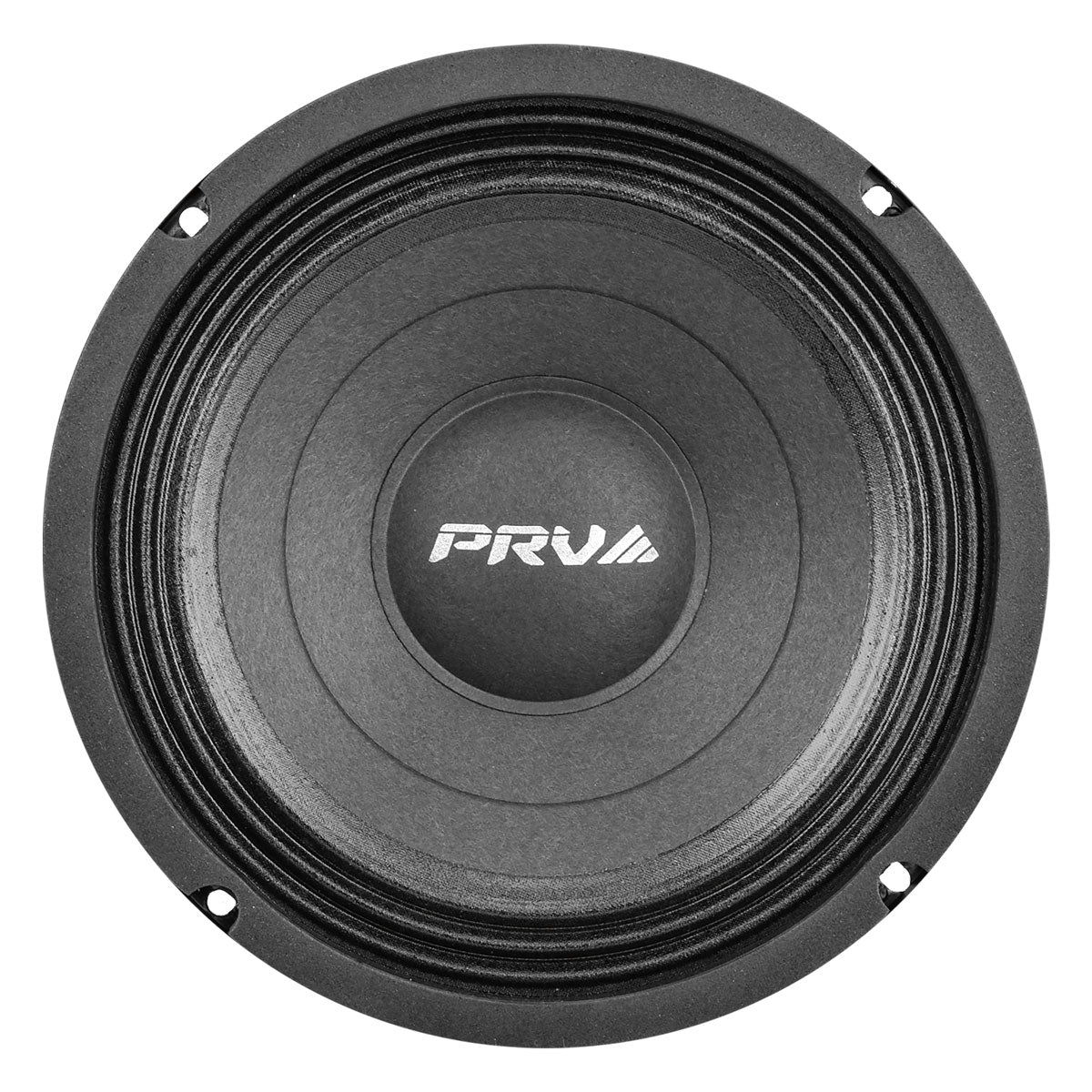

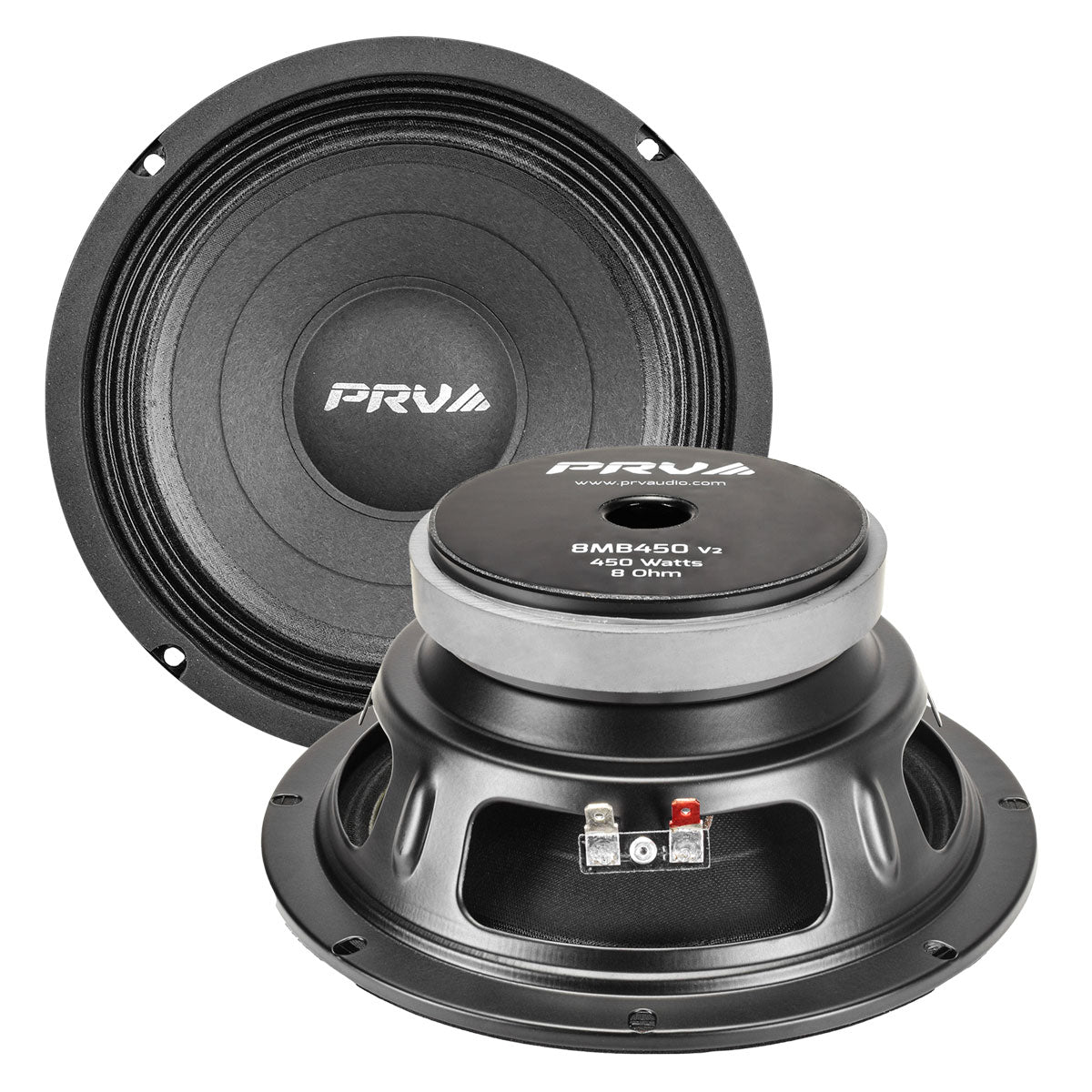

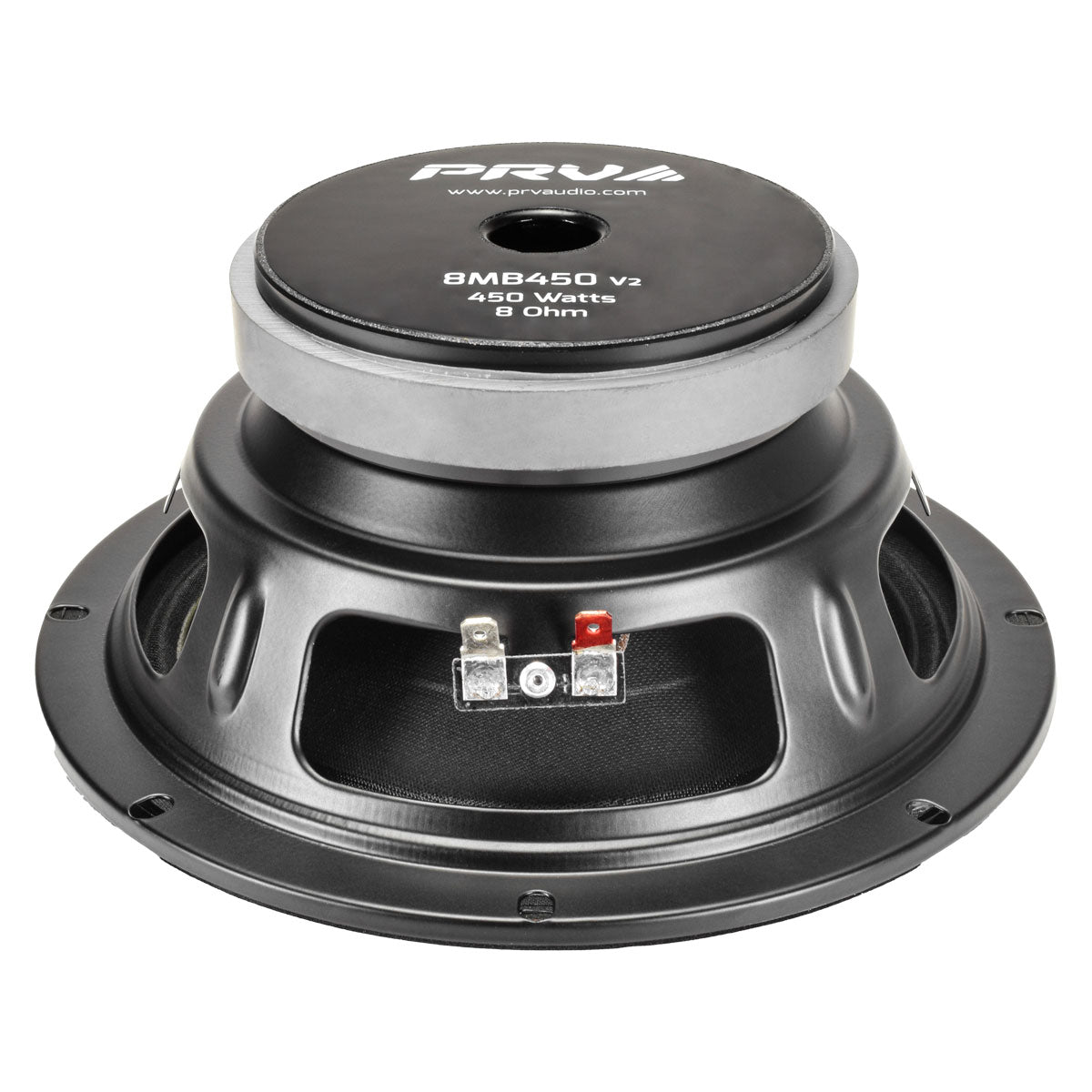

PRV 8″ Midbass Speaker 8MB450 v2 PRO Audio 450 Watts / 8 Ohm Loudspeaker
The 8MB450 v2, 8″ PRV Audio Pro Audio Midbass Woofer offers smooth lower response through a punchy mid bass range and a frequency response that takes your applications smoothly through the 7,500 Hz range.
- Smooth vocal response combined with a strong midbass punch
- Handles 450 Watts, guaranteeing endurance at loudest volumes
- Designed for small sealed cabinets
- Ideal for use as a replacement speaker for studio monitors, hi-fi cabinets, or car audio installations
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 225 Watts |
| Continuous Program Power (RMS) | 450 Watts |
| Max Peak Power | 900Watts |
| Sensitivity 2.83V at 1m | 93.5 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 120 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 75 – 7,500 Hz |
| Voice Coil Diameter | 2″ (50 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 12.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 18.18 l |
| Excursion (mathematical)*** | Xmax | 4.50 mm |
| Free Air Resonance | Fs | 74.72 Hz |
| Mechanical Factor | Qms | 26.56 |
| Electrical Factor | Qes | 1.09 |
| Total Factor | Qts | 1.05 |
| Cone Area | Sd | 241 cm² |
| Mechanical Mass | Mms | 20.14 g |
| Bl Factor | Bl | 7.37 Tm |
| Dc Resistance | Re | 6.3 Ohms |
| Inductance | Le | 0.25 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 18.03 g |
| Mechanical Compliance | Cms | 0.225 mm/N |
EXTRA INFO

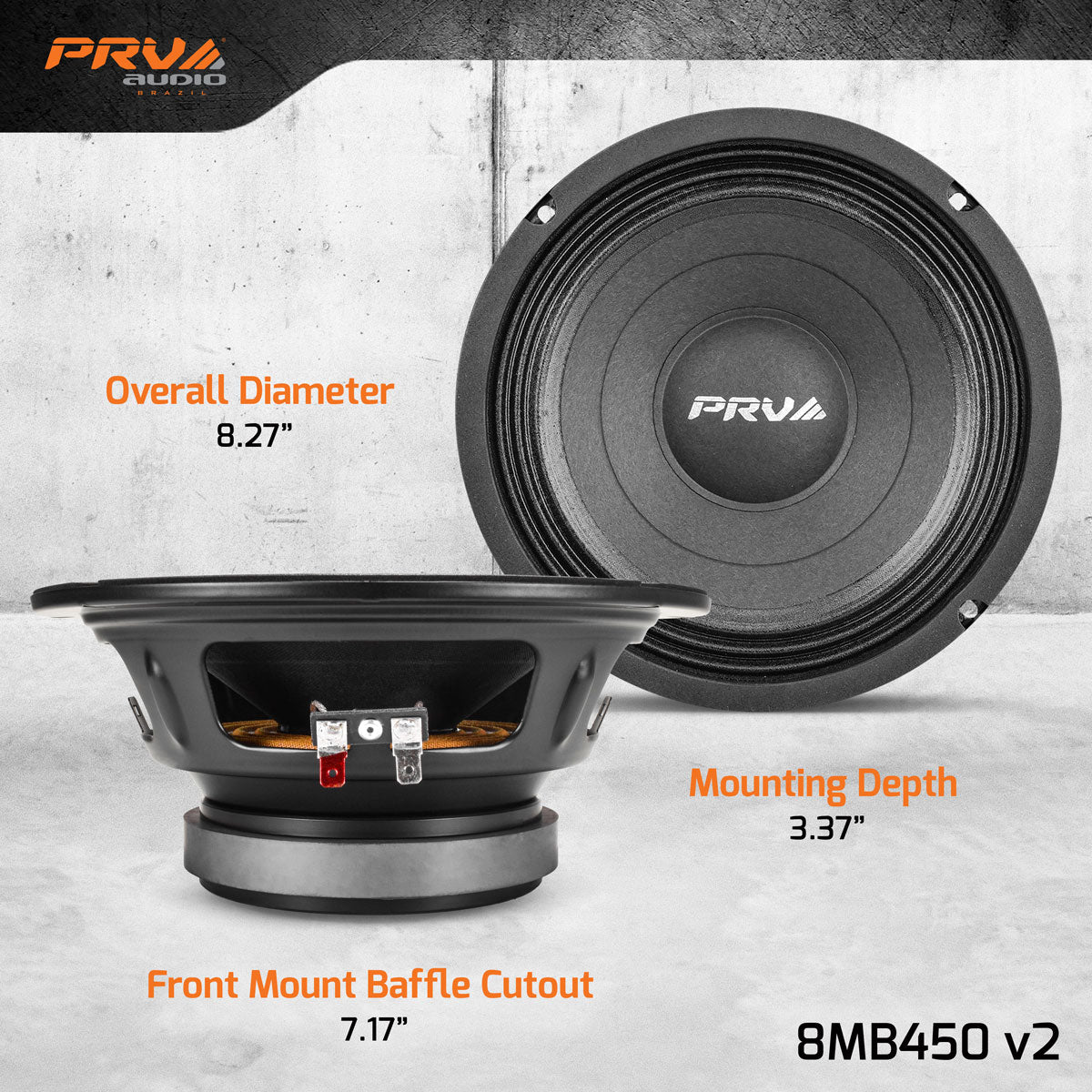

| Overall Diameter | 8.27” (210 mm) |
| Front Mount Baffle Cutout | 7.17” (182 mm) |
| Mounting Depth | 3.37” (85 mm) |
| Overall Depth | 3.62” (92 mm) |
| Net Weight | 4.10 Lbs (1.86 kg) |
| Shipping Weight | 4.54 Lbs (2.06 kg) |
| Carton Dimensions W x L x H | 9.05” x 9.05” x 4.72” (230 x 230 x 120 mm) |
