8th-9th Gen F150 Rear Disc Brake Conversion kit (17in)
8th-9th Gen F150 Rear Disc Brake Conversion kit (17in) - OE rotor is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Finally a disc brake conversion that doesn't break the bank and replaces the century old drum brake design. this Kit is for 8th-9th gen f150s with the 8.8 rear end running 17 inch wheels.
Product Information:
Country of origin: USA
color: Flat black powdercoat
material: HRS, 6061 AL
mounting type: bolt on

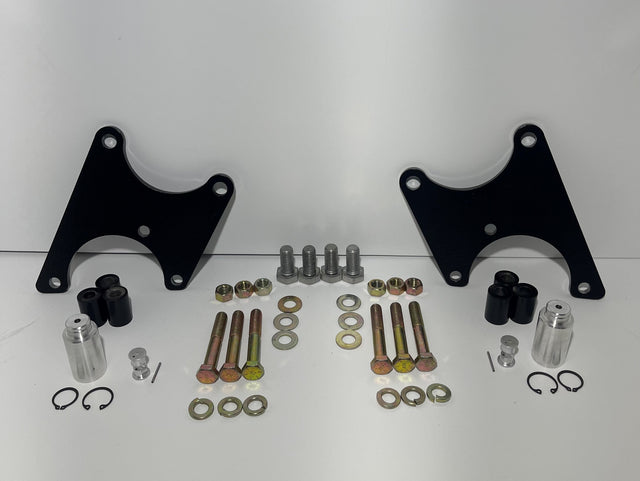

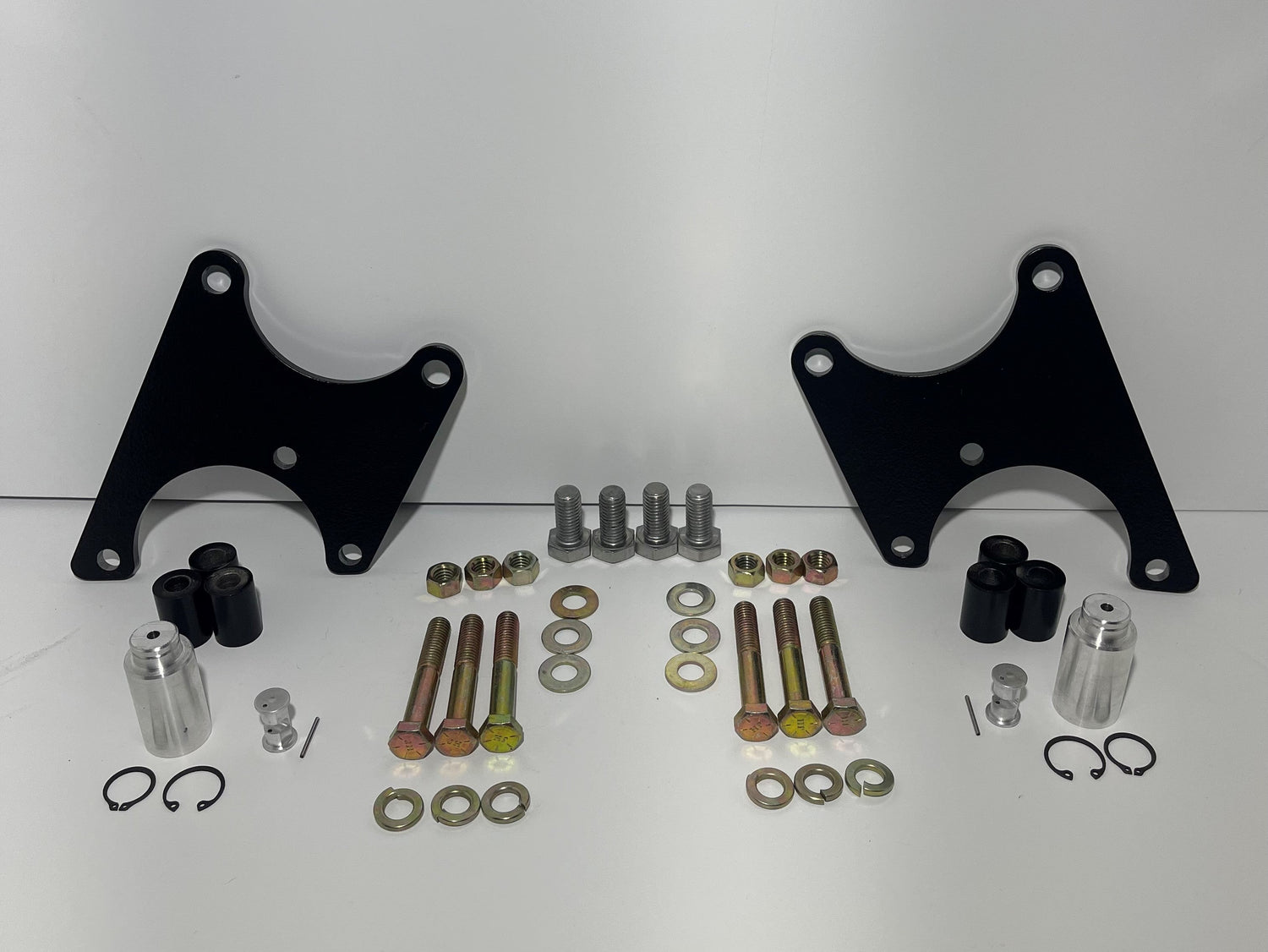

included components:
(2) brackets
(2) rotors
(2) calipers with pads
(6) spacers
(6) grade 8 bracket bolts with included nuts and washers
(4) stainless steel caliper bolts
(2) park brake sleeves with included snap rings
(2) cable end adapters with included roll pins.
(2) braided brake lines
(1) wilwood adjustable proportioning valve
(2) brake line tube nuts
WARNING!!! THIS KIT IS INTENDED FOR OFFROAD USE ONLY NOT FOR HIGHWAY USE!

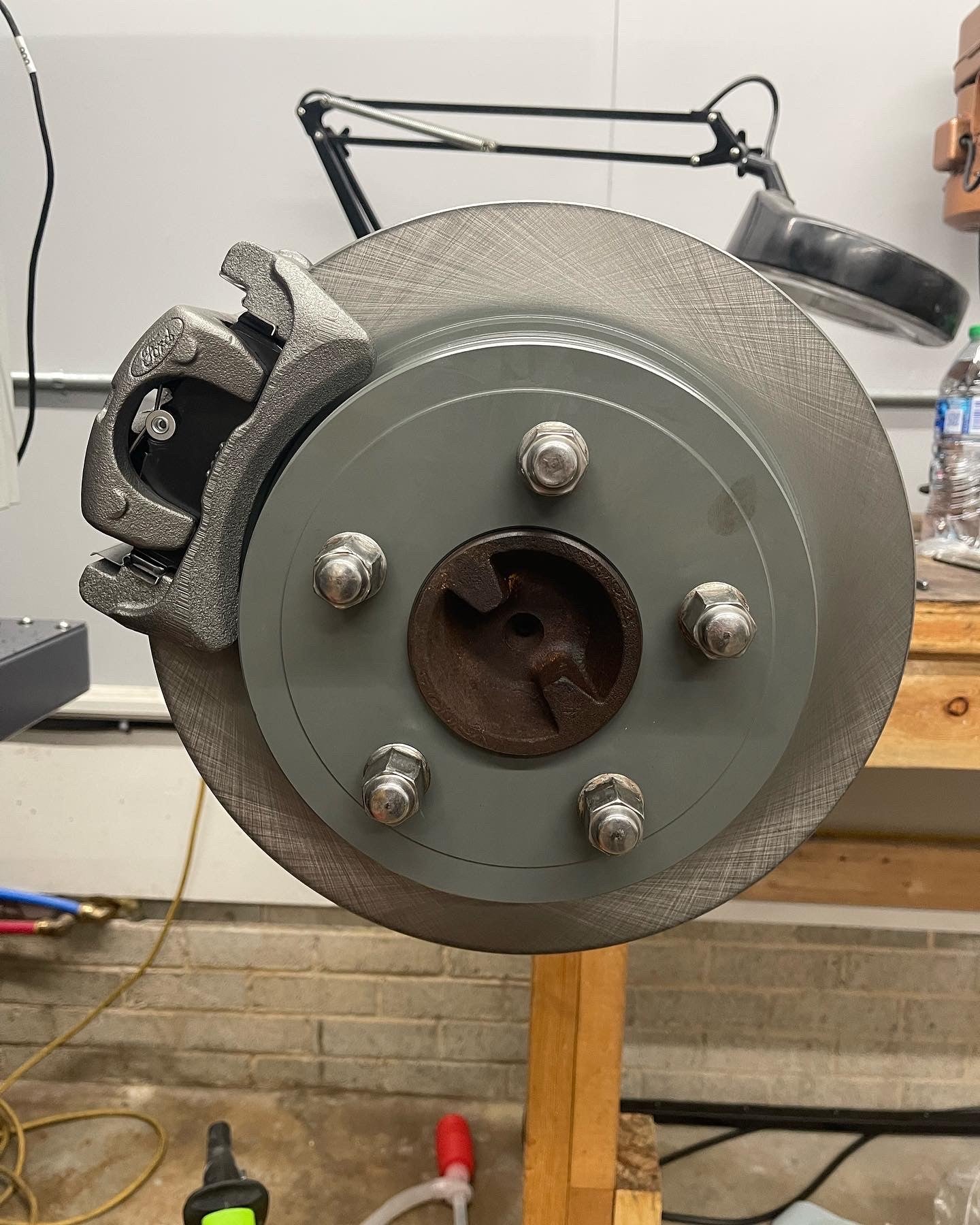

This kit is designed to utilize 2004-2006 E150 rotors (5 lug) with 2005-2010 mustang rear calipers. supplied below are some part numbers for reference that was used on the test truck and are still in operation today.
Part Number Reference

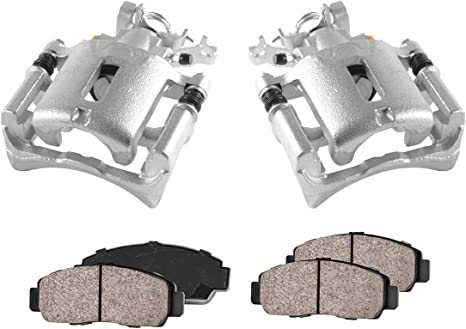

18B4927 & 18B4926 (bracketed s197 mustang brake calipers)

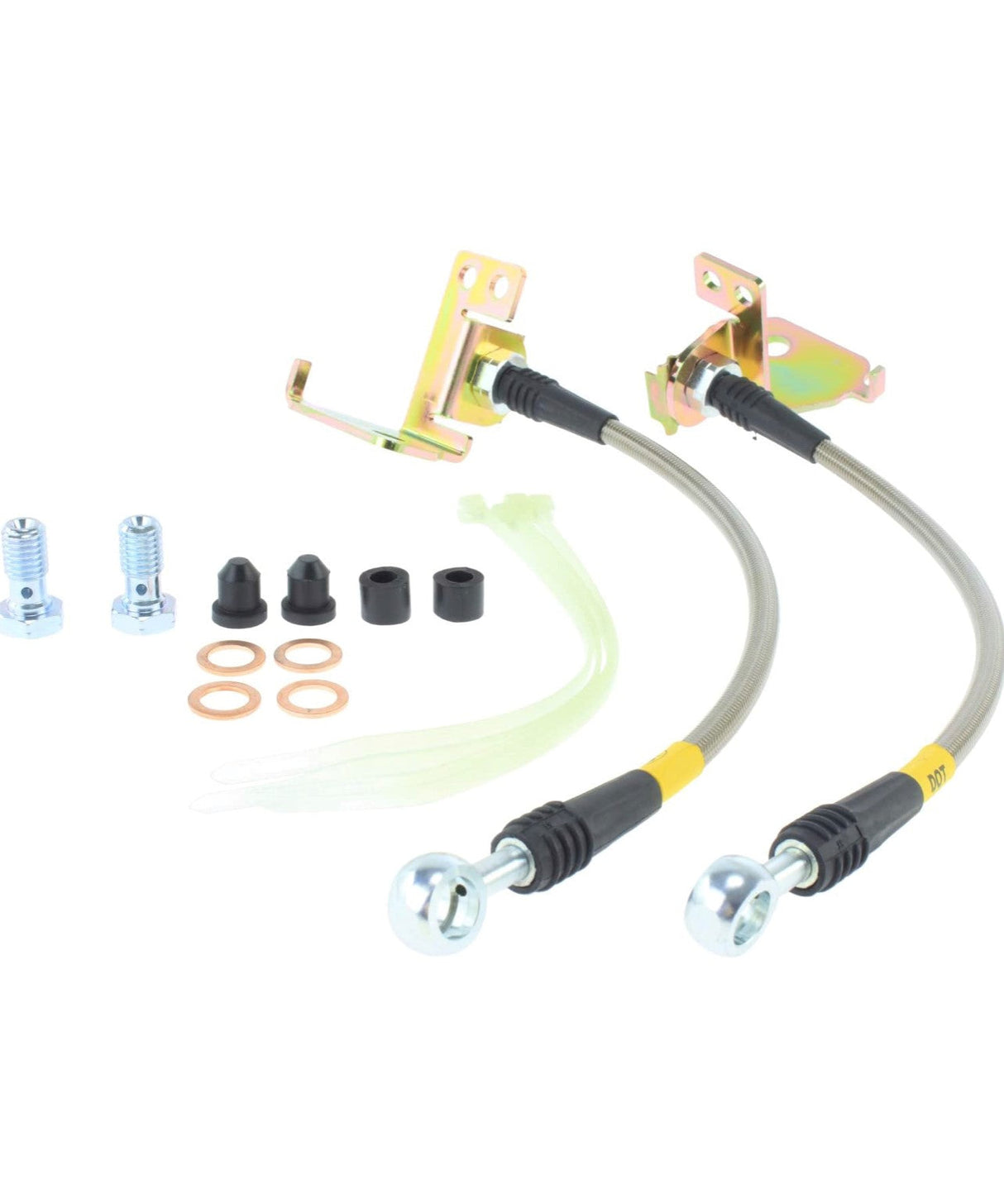

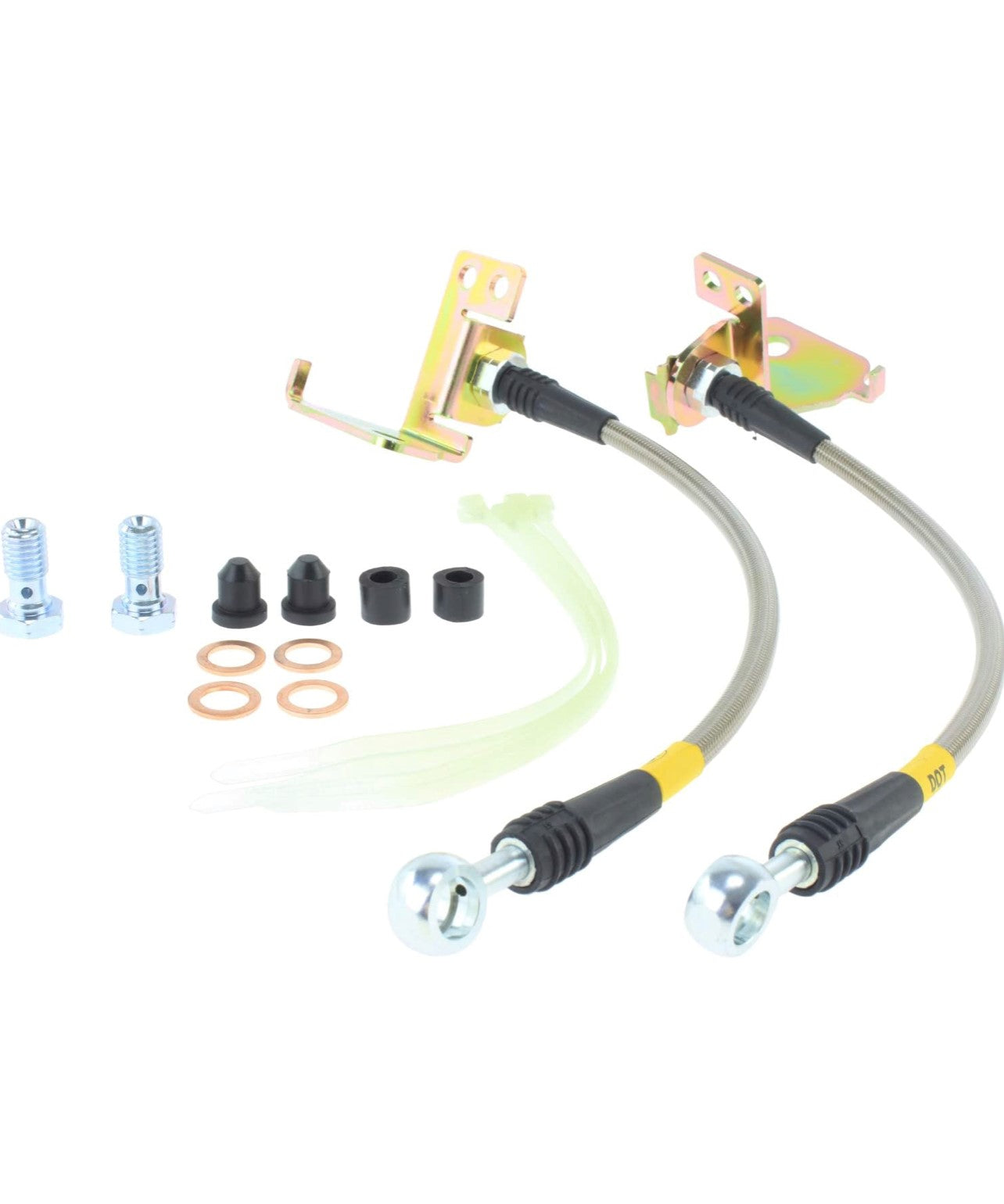

950.61501 (stop tech braided brake lines)
BLF-31B (bubble flare to inverted flare adapter)
PRT5697 (stock 2004 E150 rotors)
633-54192L & 633-54192R (drilled and slotted rotors)

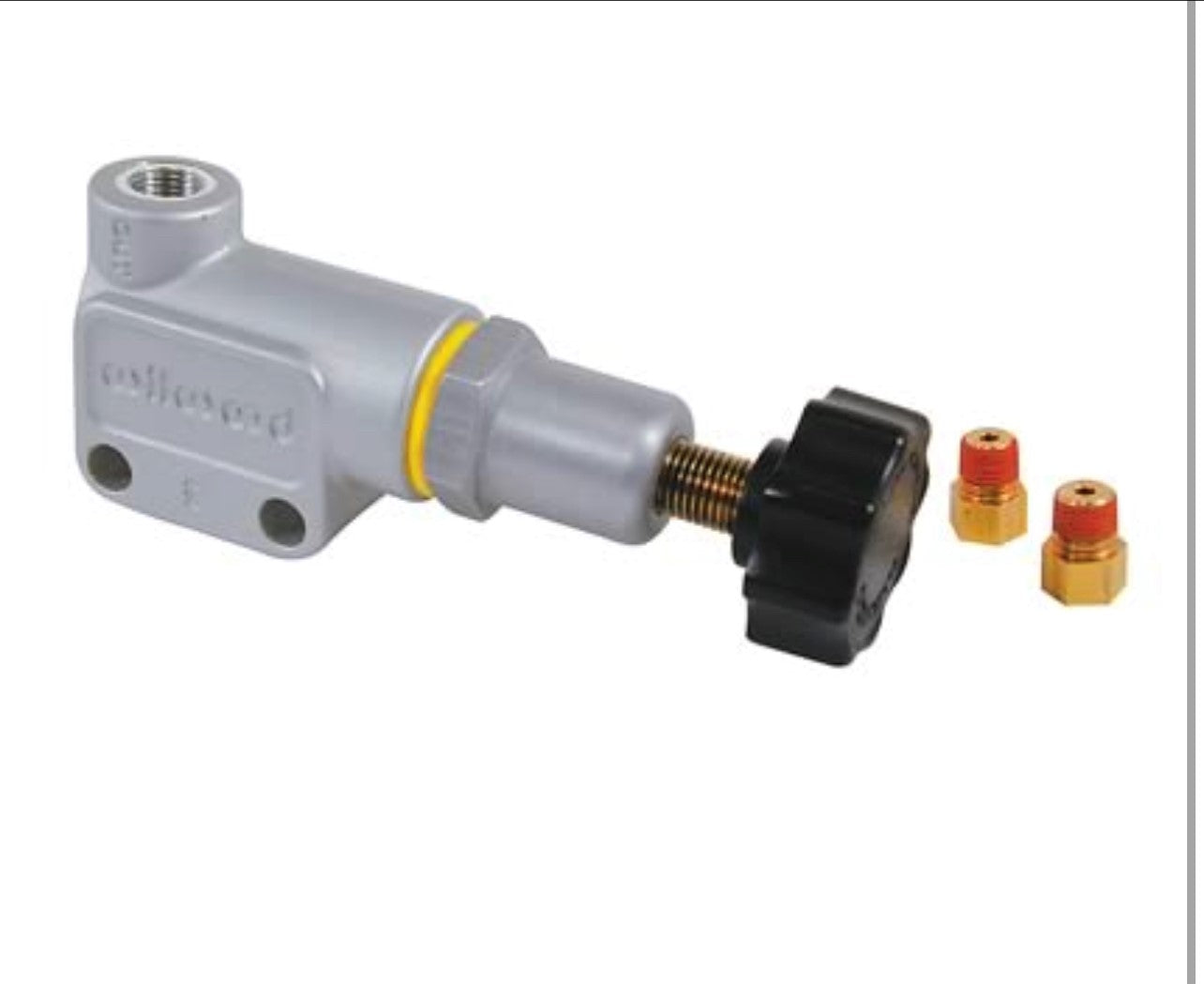

260-8419 (wilwood proportioning valve)
260-13783 (wilwood 2lb residual valve)
Install notes:
stock s197 brake hoses will not work! it puts the hose in a bind any way you try to route it, also runs into leaf spring clearance. to run the stop tech braided lines, you will need to use the bubble flare to inverted flare adapter or it will leak.
you may need to replace your 10lb residual valve with a 2lb one which is meant for rear disc brakes. not doing so may cause the brakes to drag. an adjustable proportioning valve will get your brake bias dialed in once installed.

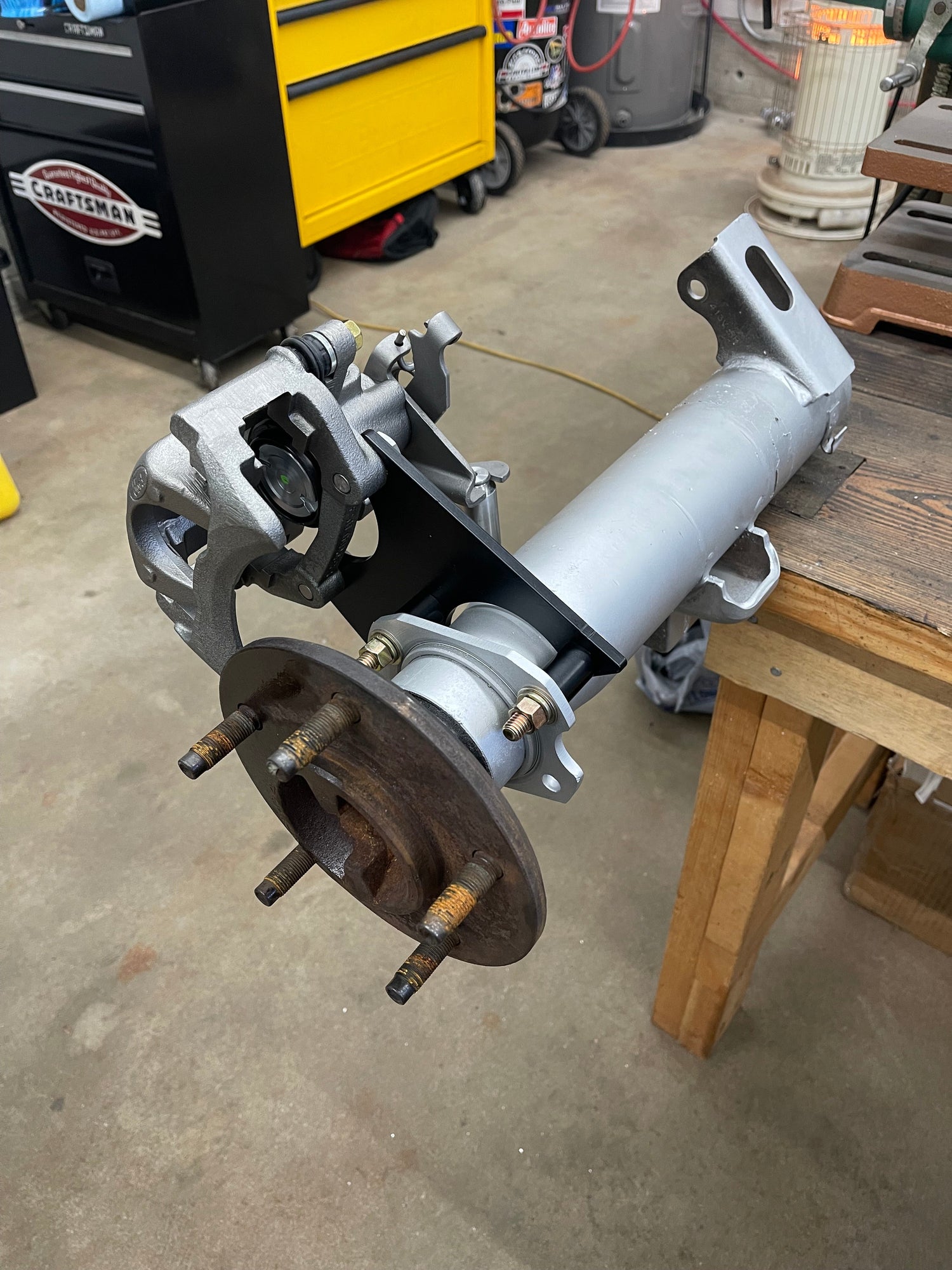

make sure when you install the calipers that the bleeder screw is facing up and not down. it will not bleed correctly causing brakes to be soft or fail completely. you may have to flip the caliper sides (driver side to passenger side and vise versa) to get the bleeder screw facing straight up. brackets were designed to point towards the rear of the truck.
Note: all orders are MTO (made to order), expect a 3-4 week lead time!
DISCLAIMER:
JFAB Machining LLC and owner Jimmy D Broom are not liable for damages to personal property, that may occur from installment, use of instruction, or use of product.
