94-02 2nd Gen Dodge Ram FFS Bolt-On Four Link / Traction Bar CRADLE Kit

94-02 2nd Gen Dodge Ram FFS Bolt-On Four Link / Traction Bar CRADLE Kit

This FFS front 4 link for your 99-02  2500 or 3500 4x4 replaces your short 4 control arms. Fits trucks from stock / lowered  to 10” or more.
   Available in a few configurations to suit your needs.
   This is a key component selected from our long travel air suspension systems. So in that application the upper bar has two bends for low height clearance, same as if you installed these on a stock to 3” lifted truck.
   If installing on a lifted truck of 4” or more without adjustable air suspension, the bends  can be removed for better appearance.
   Cradle to traction bar / rear link available also (CLICK HERE)
Choose available below.
   At a whopping 50+” long, these not only locate your front axle very well with great control, but the plentiful length also minimizes any drawback of higher lift heights too.
   Stock or extended wheelbase adjustable by means of the monster 1-1/4 heim type rod ends. Helps move the tires away from the rear of the fender opening where rub is the most common. Comes with our caster eliminator insert set to get rid of the original slotted cam style caster adjustment, as this will now be handled by the adjustable upper control arm rod ends.

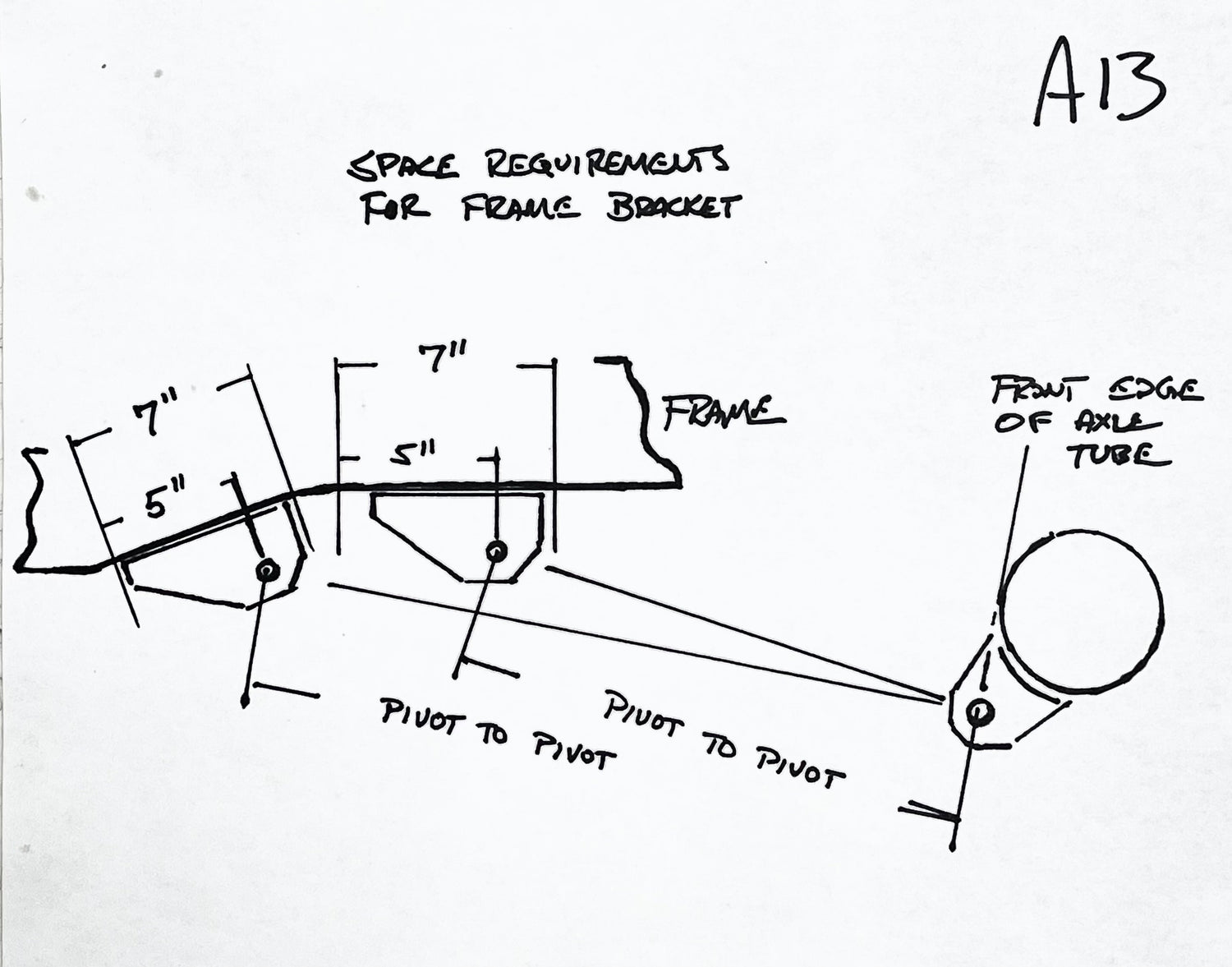

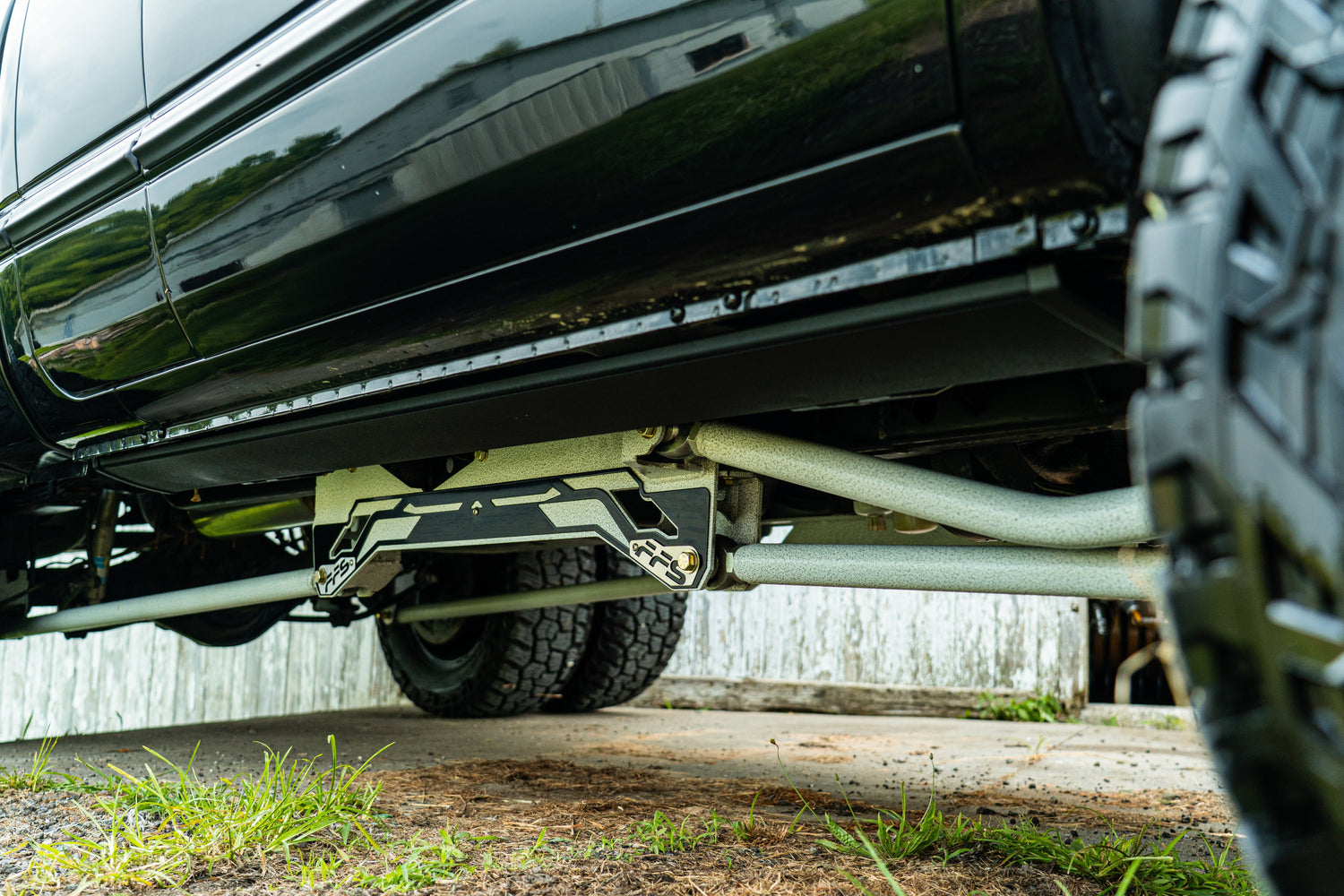

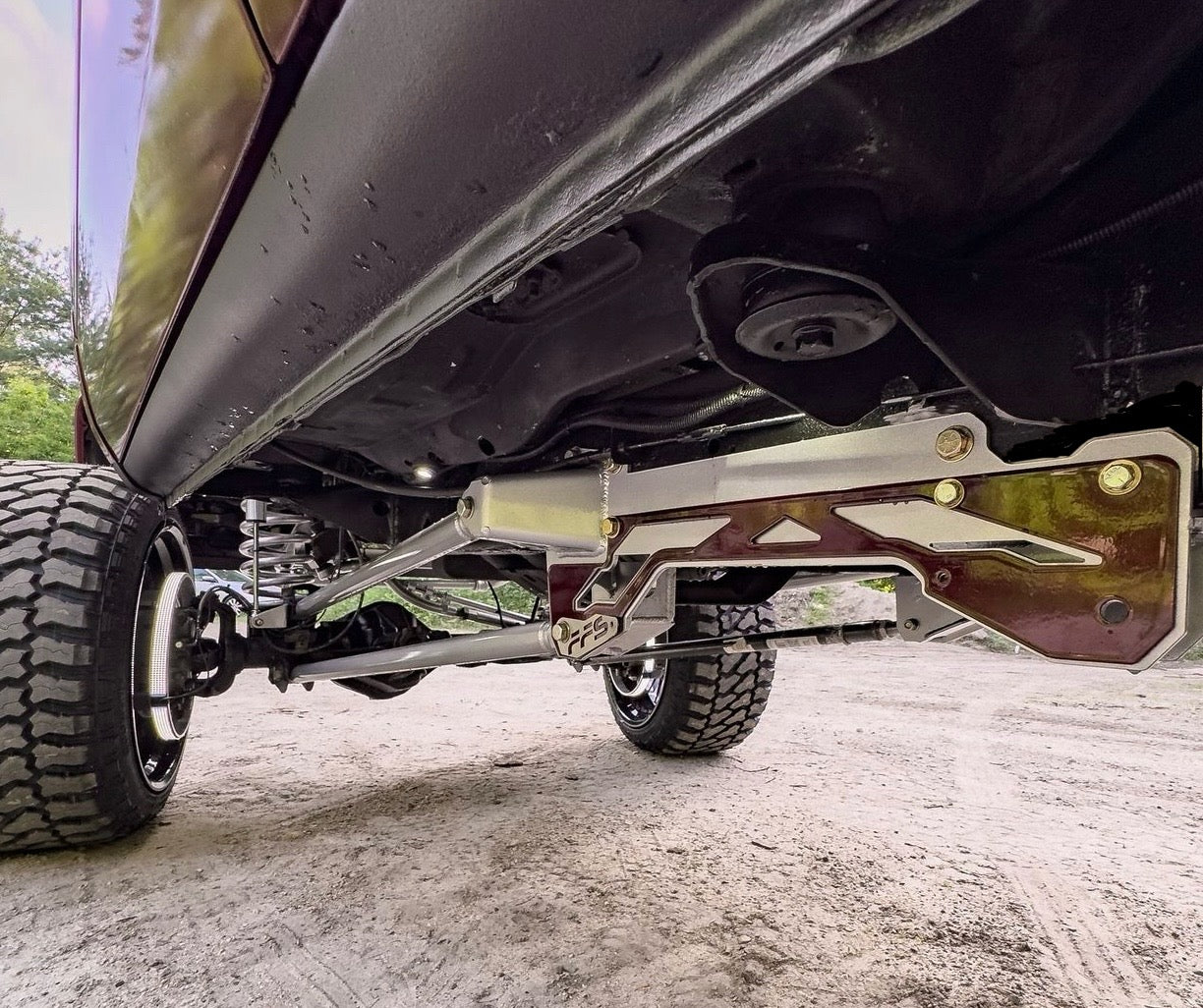

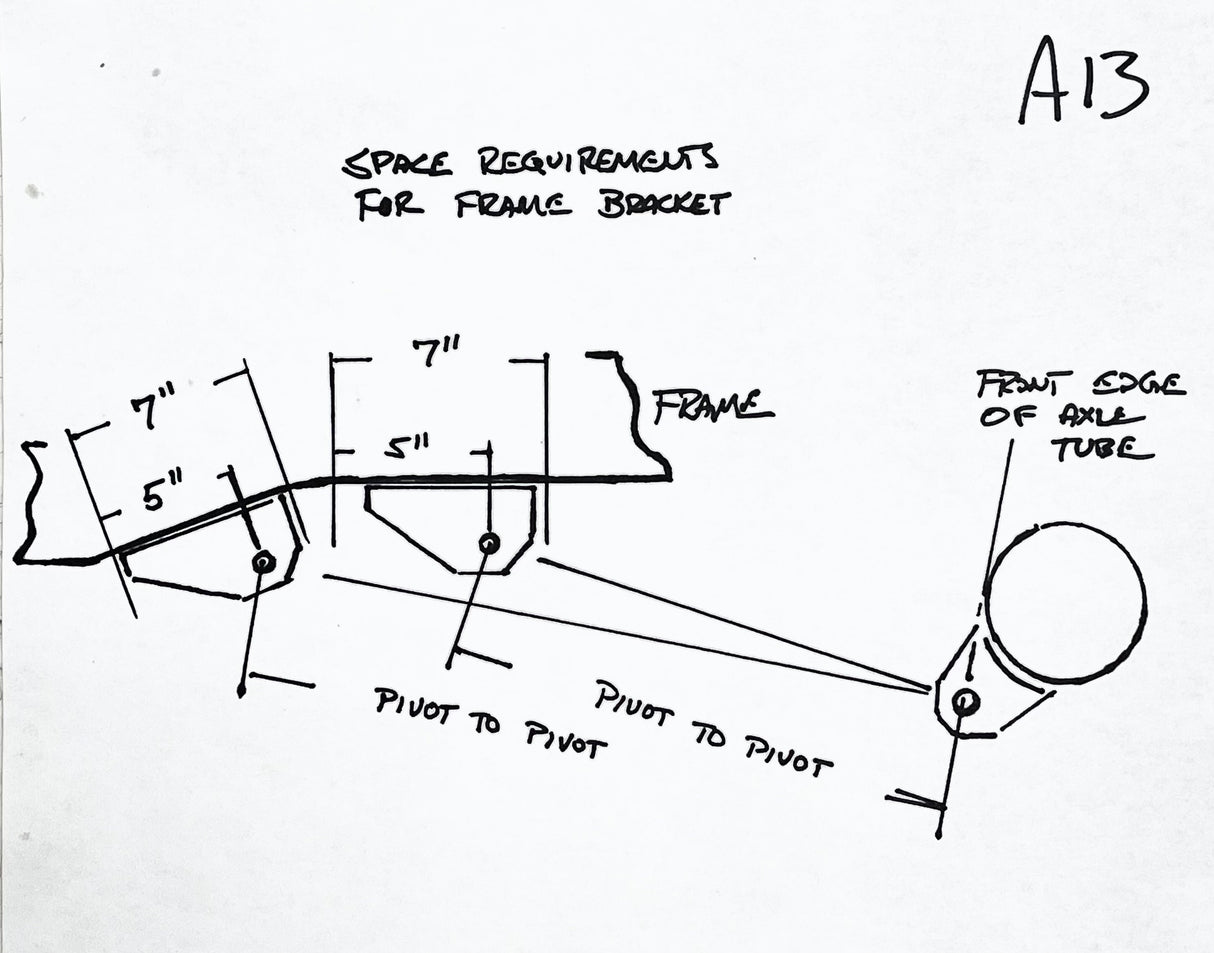

   Chassis bracket locates on your frame and requires drilling for each frame bracket. Requires removal of your old link brackets on the frame. Easily done. You can see the fresh marks on the frame in the pictures where they were cleaned up.
   Matching bolt on rear traction bar frame bracket or complete kit available for a clean symmetrical look.

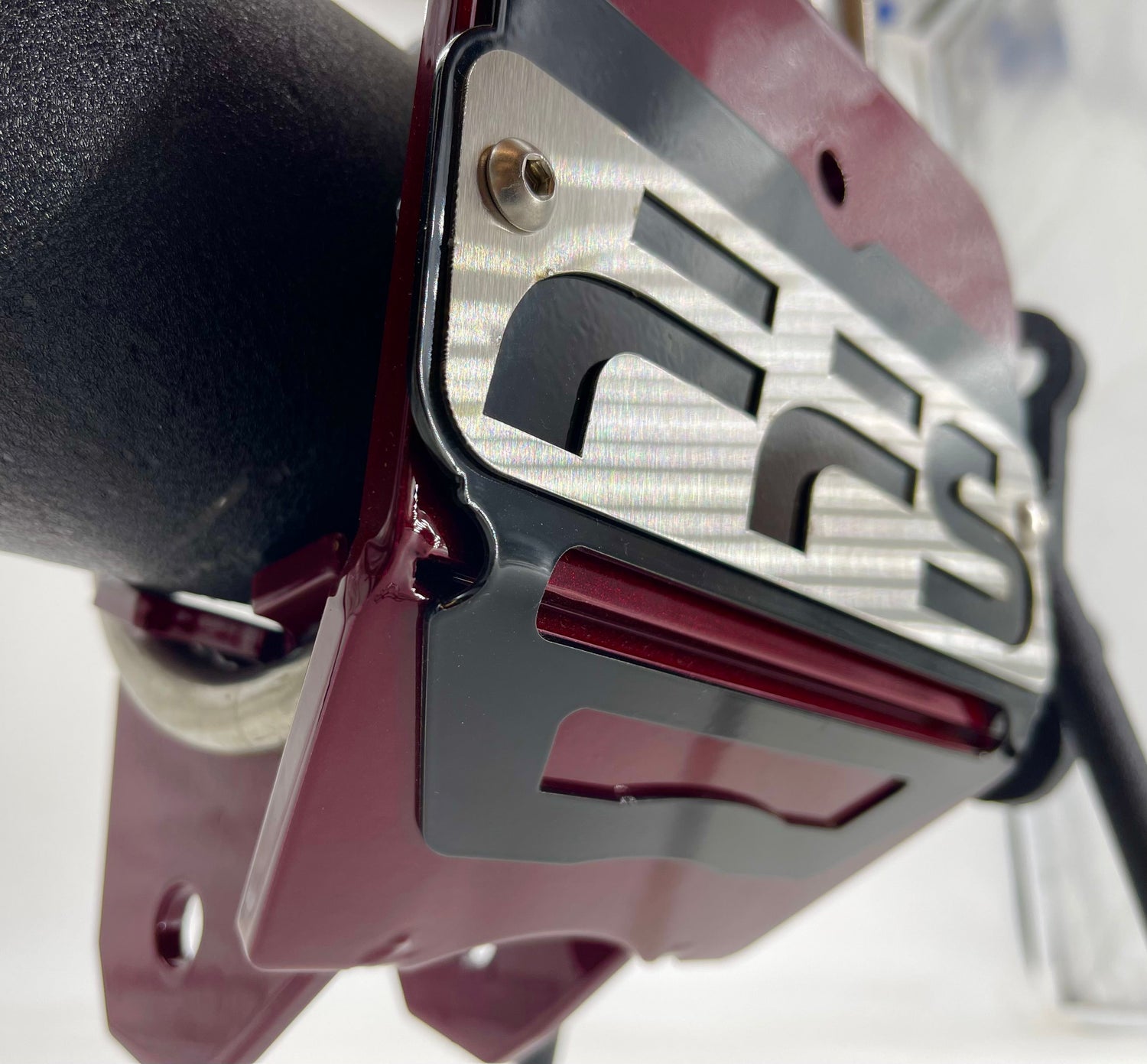

   Powder wrinkle black, raw available on request, custom powder available. FFS removable overlay on the chassis bracket to custom match to your truck.
   A great compliment to this would be our steering kit, easily covers lift height range.

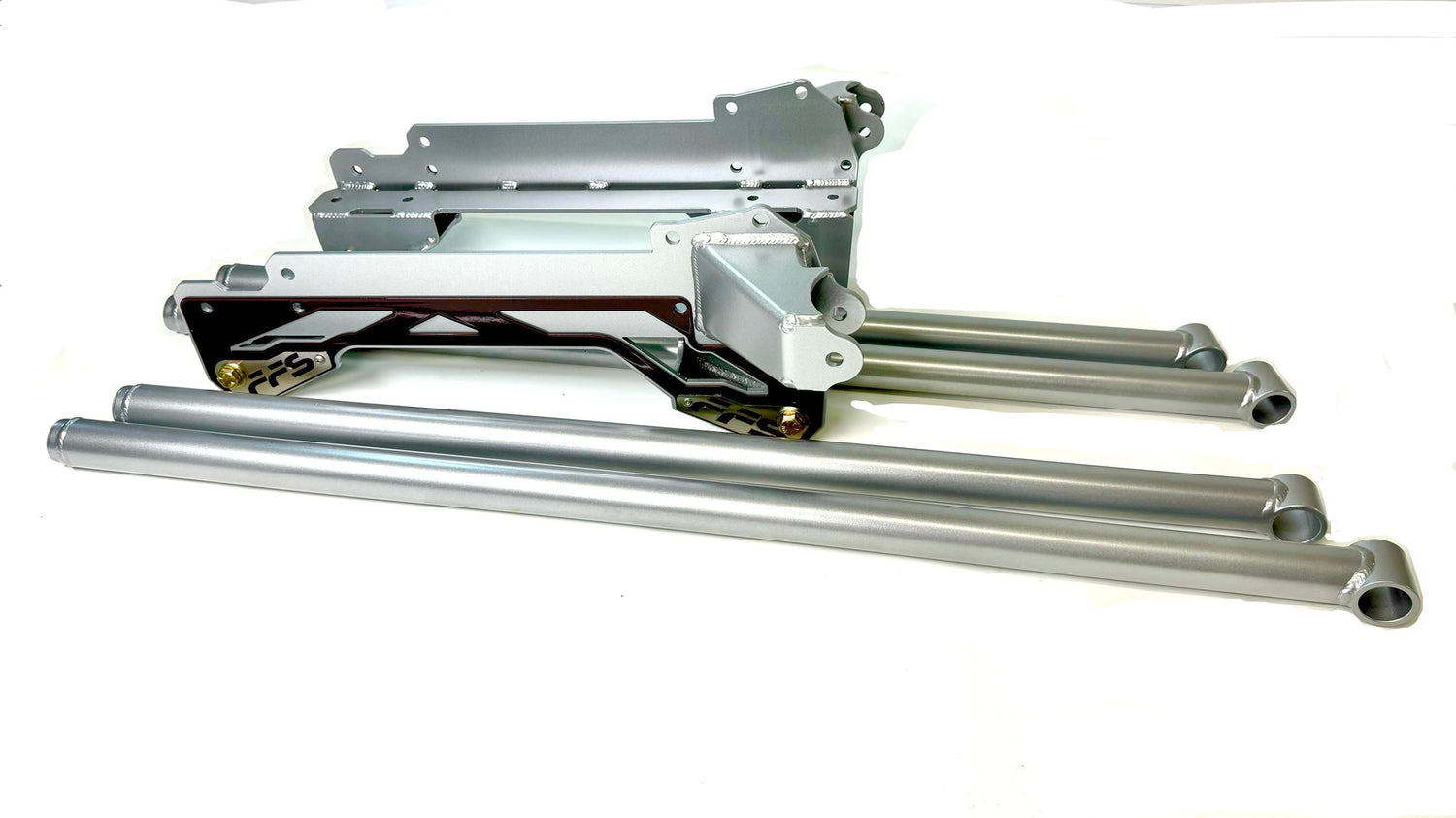

Includes,

X2 Front Lower Long Links,

X2 Front Upper Long Links,

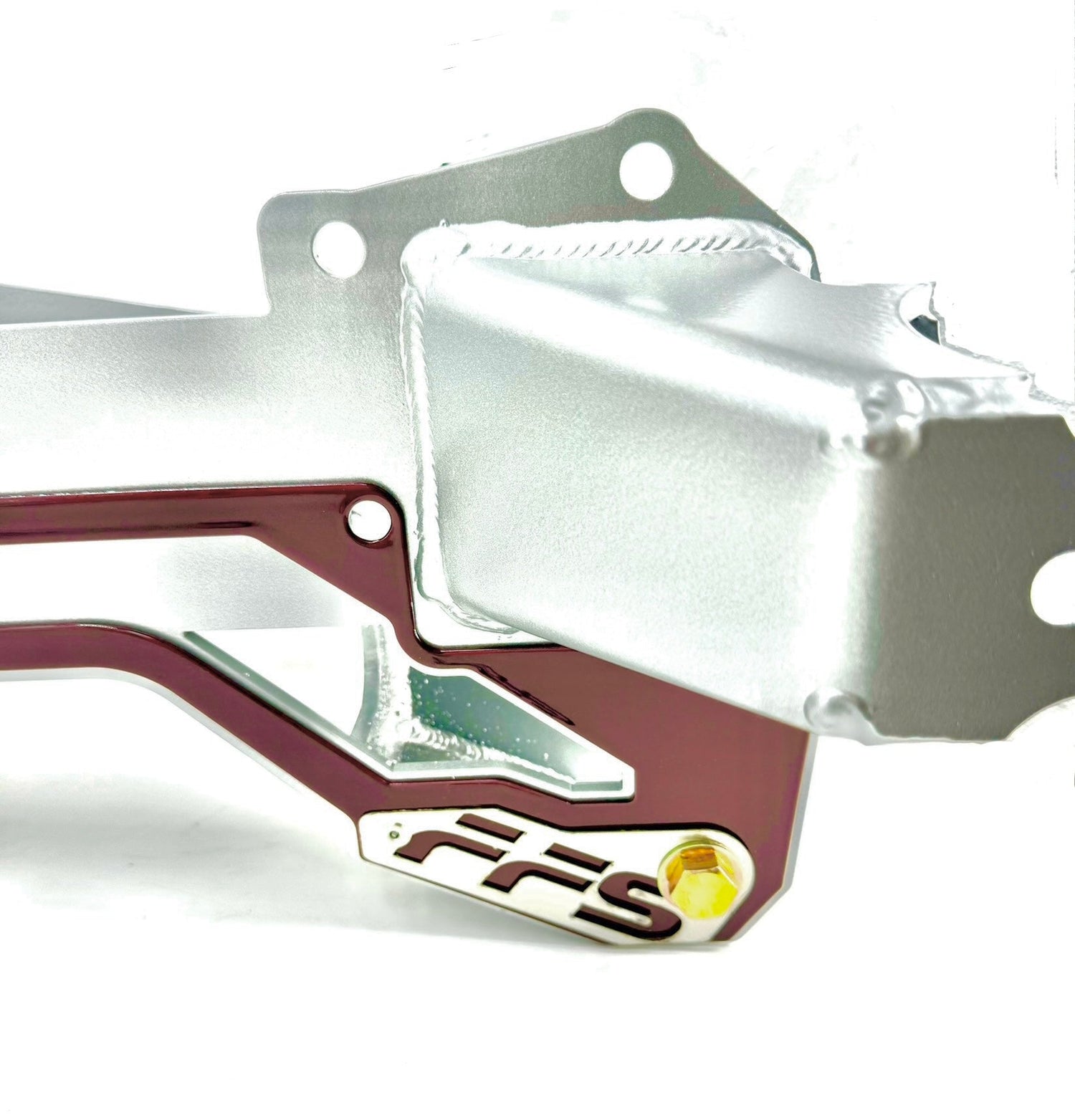

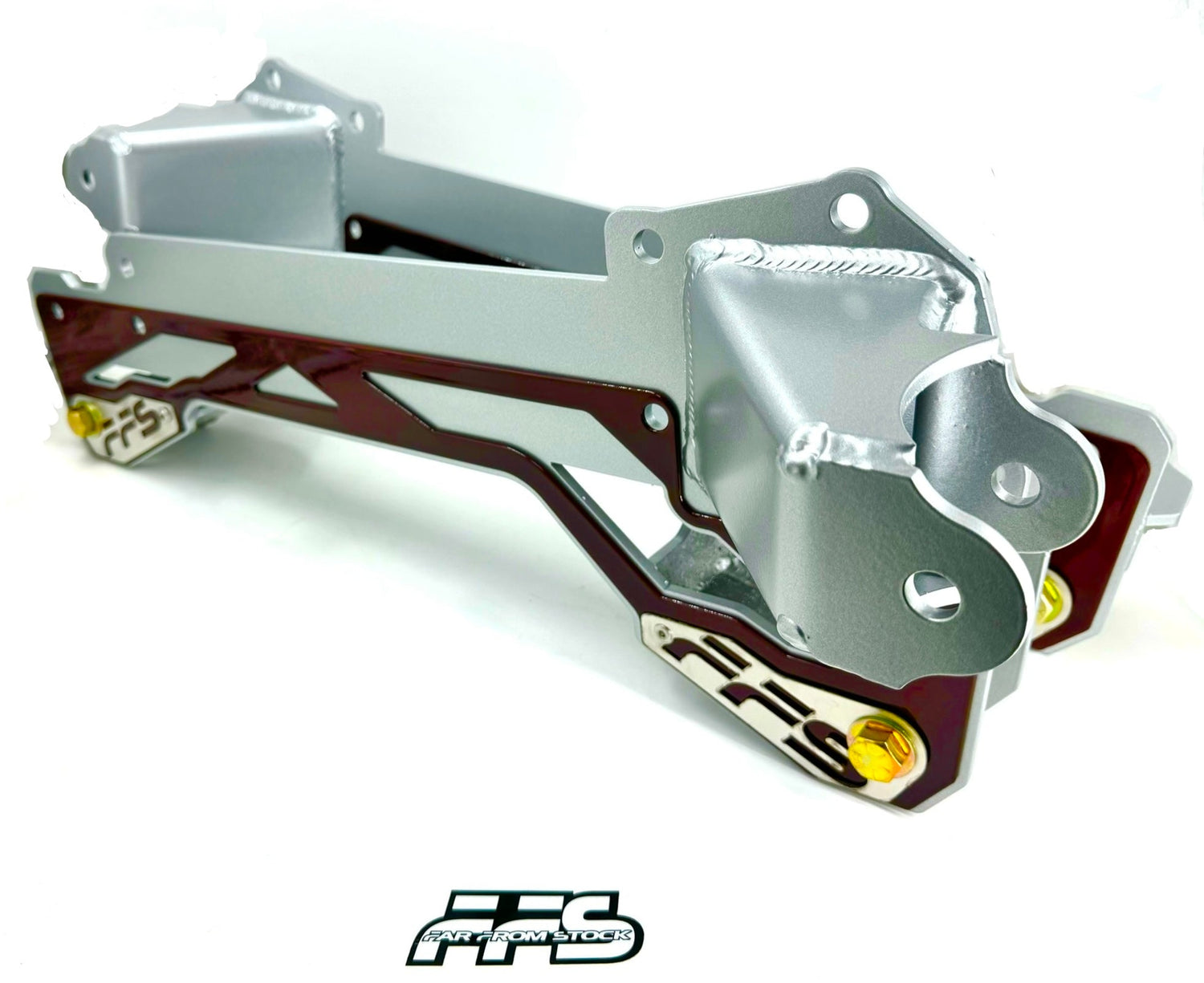

X2 Frame Mount 4 Link Brackets including Cradle and Overlay,

X4 caster eliminator plates ( Year Dependent),

X6 1.25 chromoly hardened rod ends w jamb nut and misalignment spacers,

X6 bushing sets,

X4 FFS overlay badge plates,

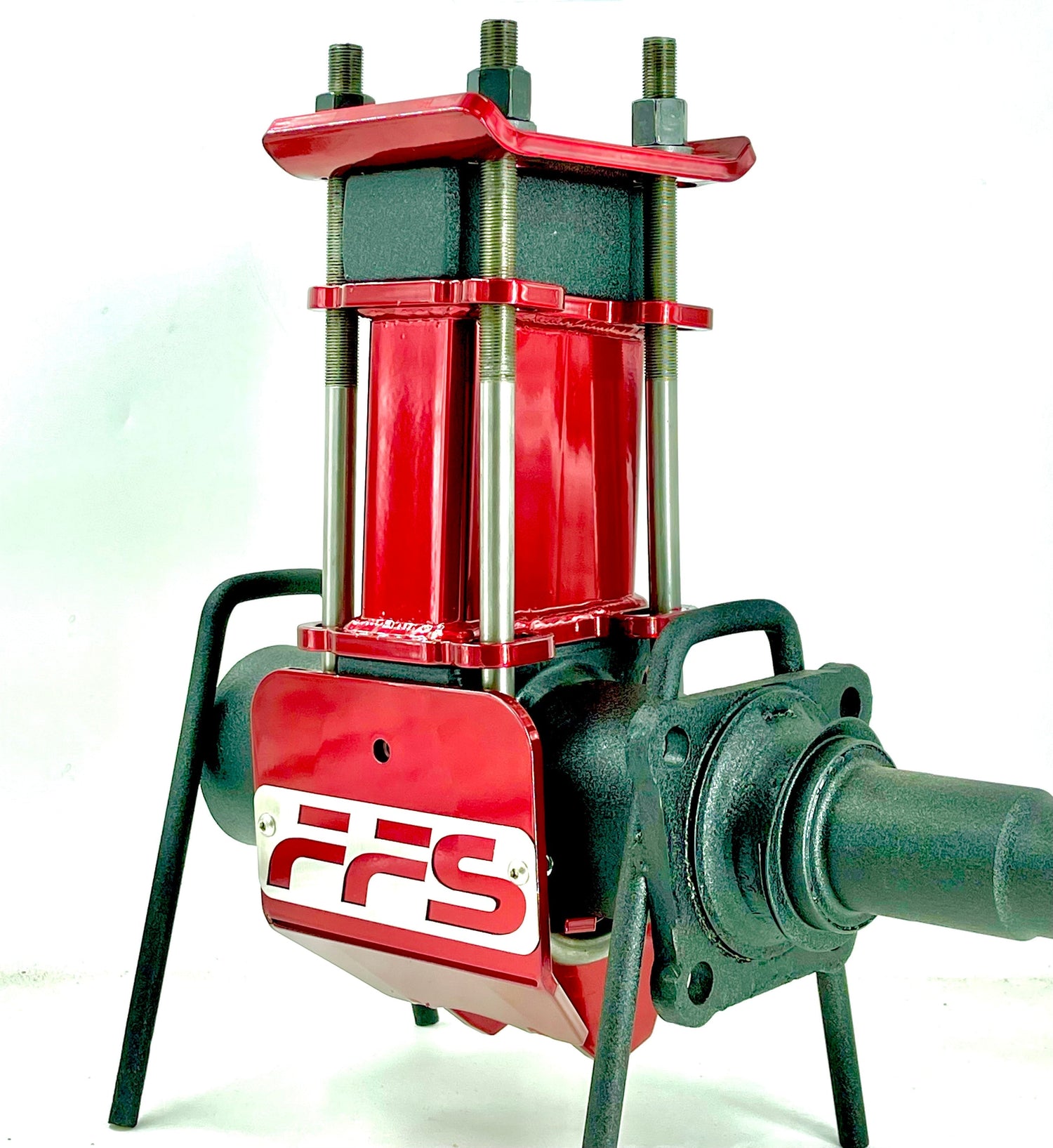

X2 Bolt On Axle Traction Bar Brackets (Dana 70 or Dana 80),

X2 Traction Bar Overlay and Badge,

X2 U-Bolt Top Plates,

X4 U-Bolts (Length Info Required)

X8 9/16 grade 8 pivot fasteners,

1/2” and 7/16 grade 8 frame bracket fasteners,

1/2” thread forming frame bracket bolts.

In the notes at checkout please include the following: NEED TO KNOW YOUR YEAR MAKE MODEL, REAR AXLE, & LEAF PACK LIFT BLOCK THICKNESS.

Powder wrinkle black, raw available on request, custom powder available. FFS removable overlay on the chassis brackets to custom match your truck.

A great compliment to this would be our steering kit. Steering Not Included(Click Here)
