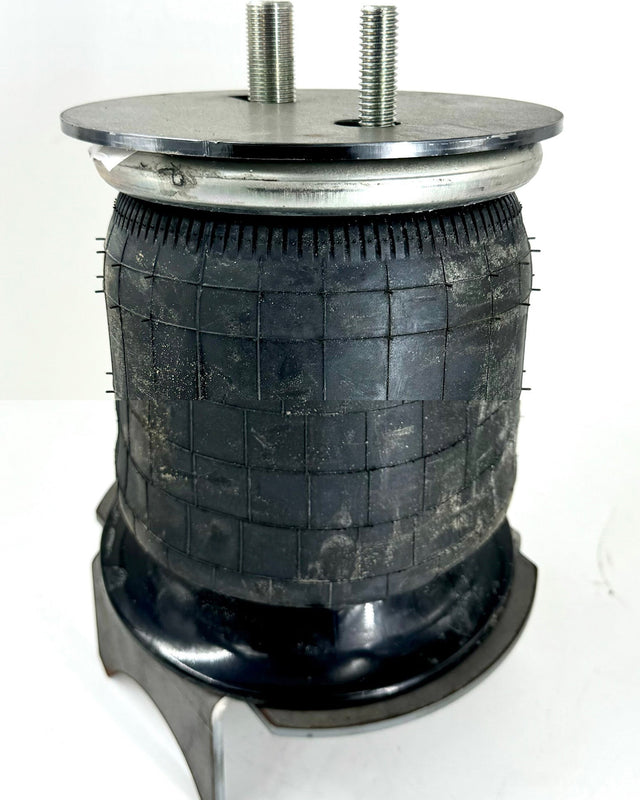

Big Air Bag / DIY Mount Kit

If you are building your own heavy duty suspension this is a great start. “Big” and “bigger” bag options, ready to carry big heavy duty 1 ton truck loads and more. The larger diameter bags will do slightly more work, but at a lower psi for a softer ride. All can work well, depends a lot on space available  internal bump stops on all bags for safe compression stop.
(If for some reason you end up being really tight on space, we have a substitute lower bracket that can save 1” of installed height over the axle tube)

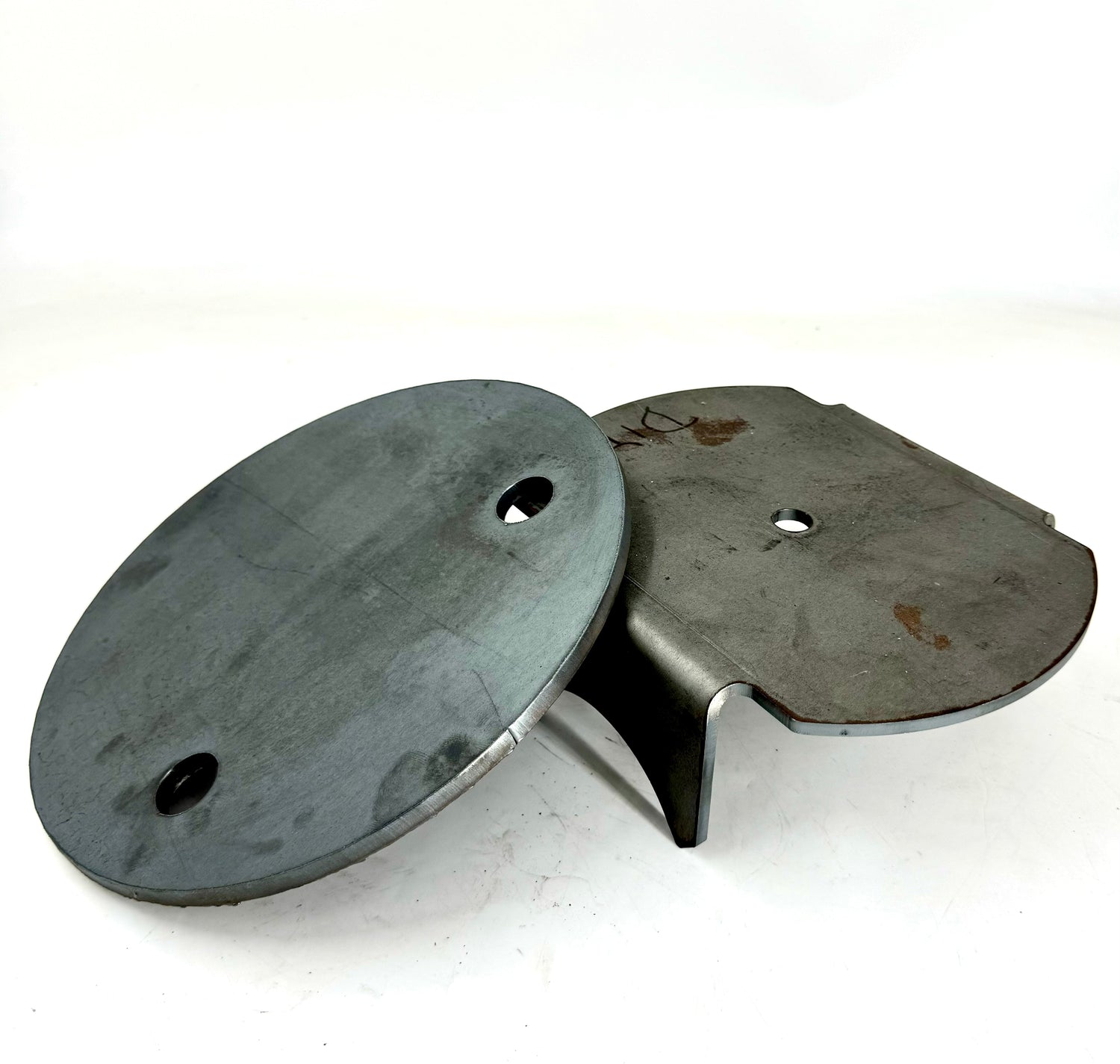

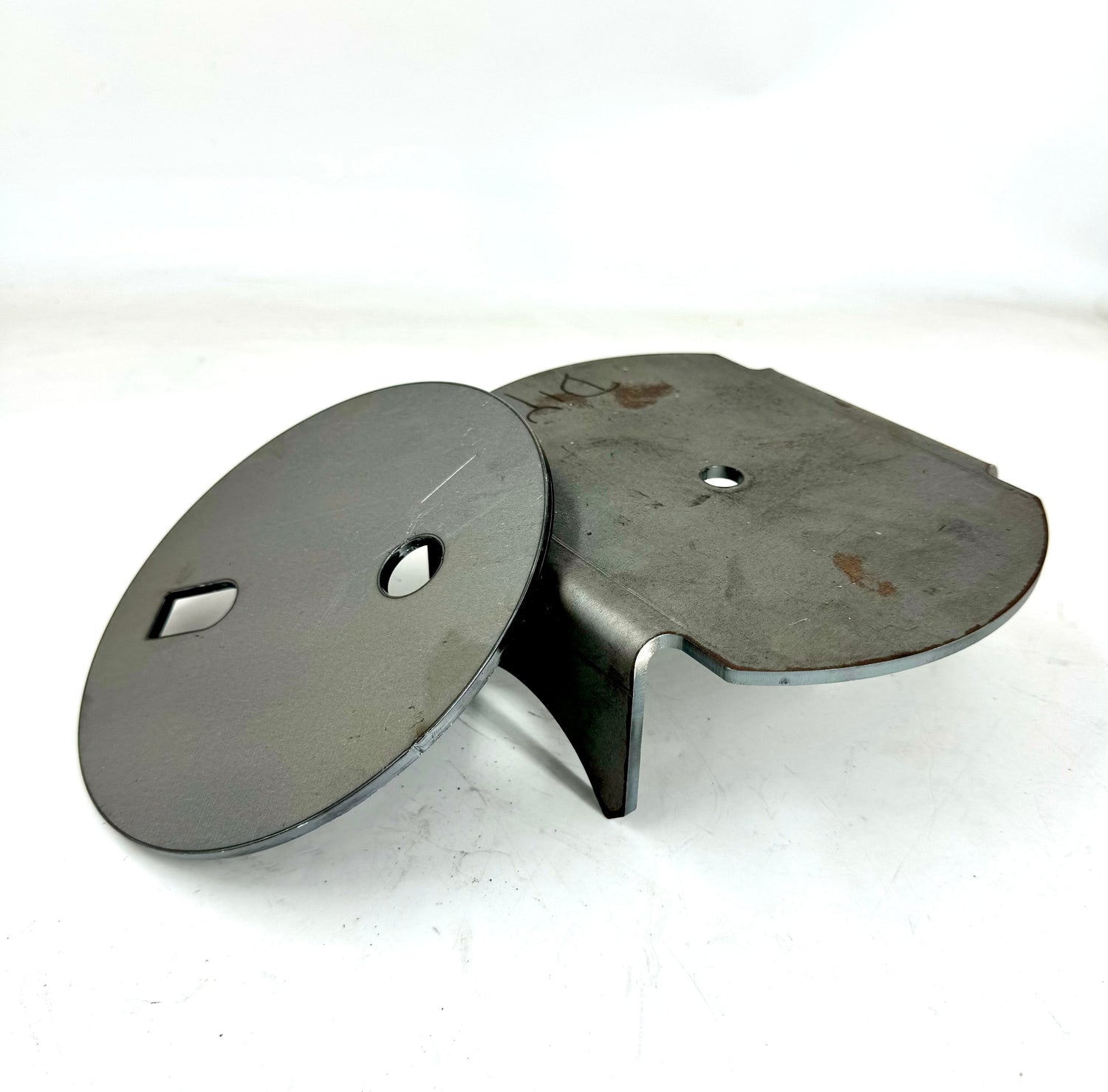

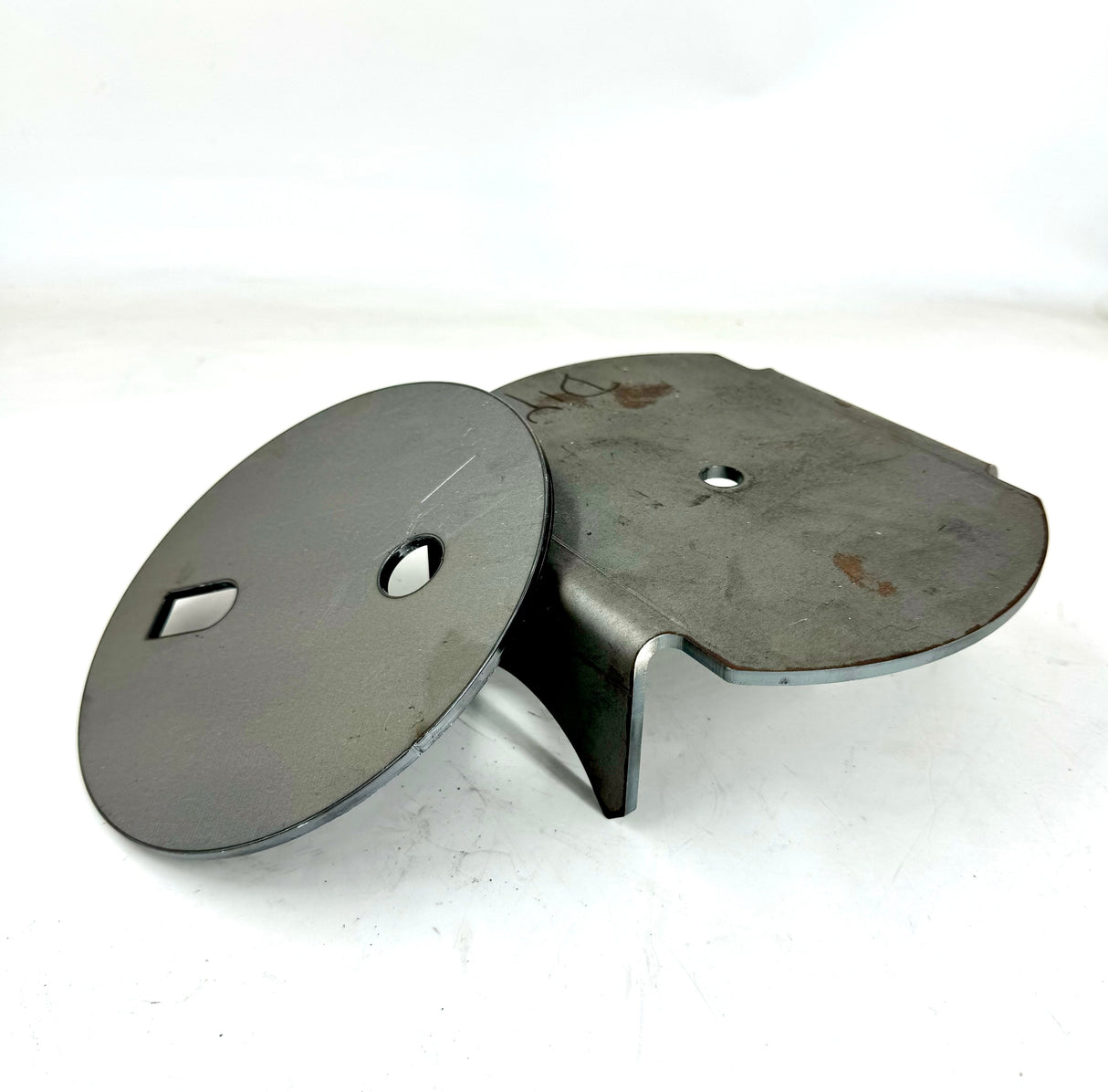

Option (1) Kit Includes

plates only

2- Top Mounting Brackets (for approx  7” od bag)

2- Bottom mounts

for big heavy duty bags, but not our biggest

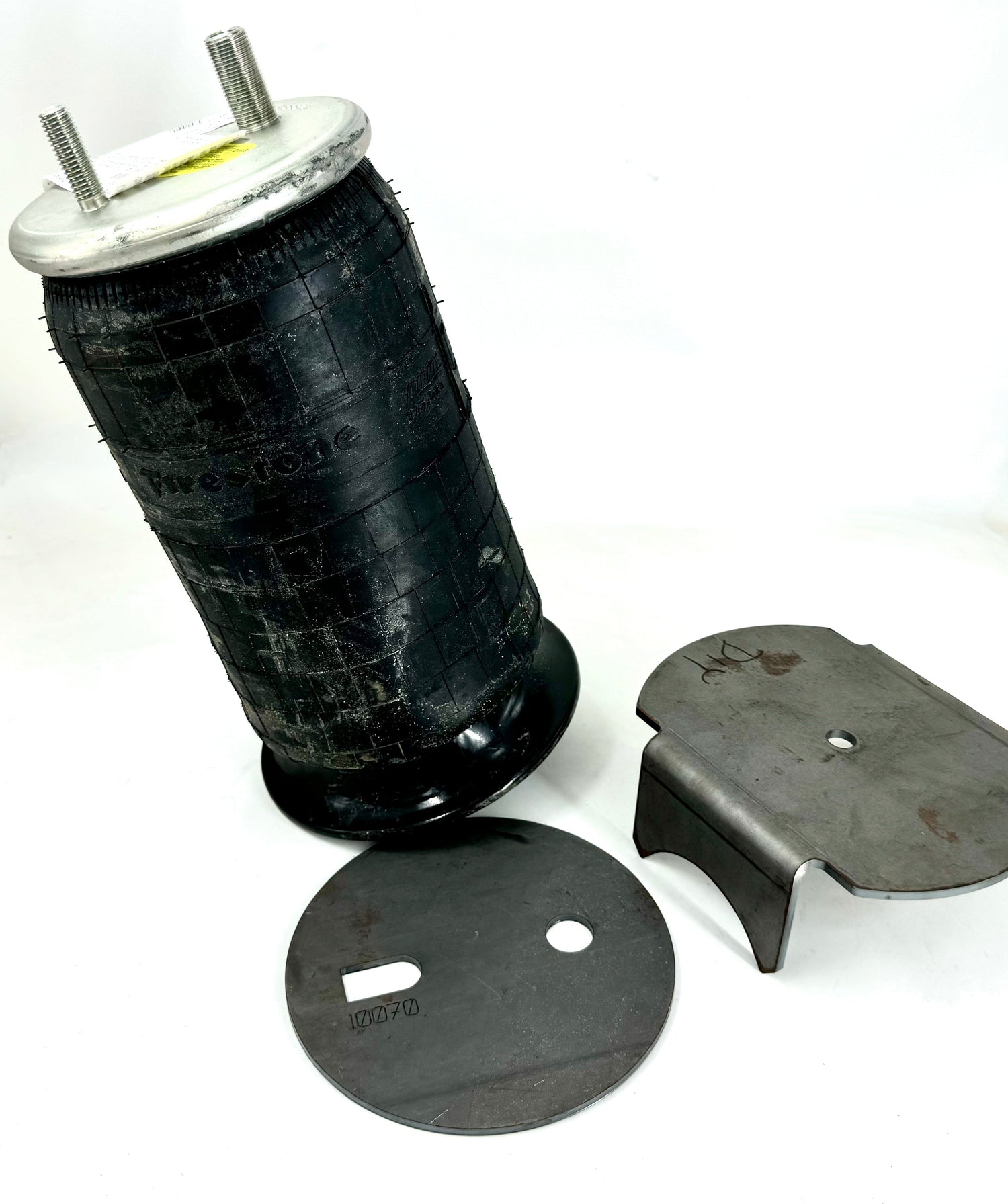

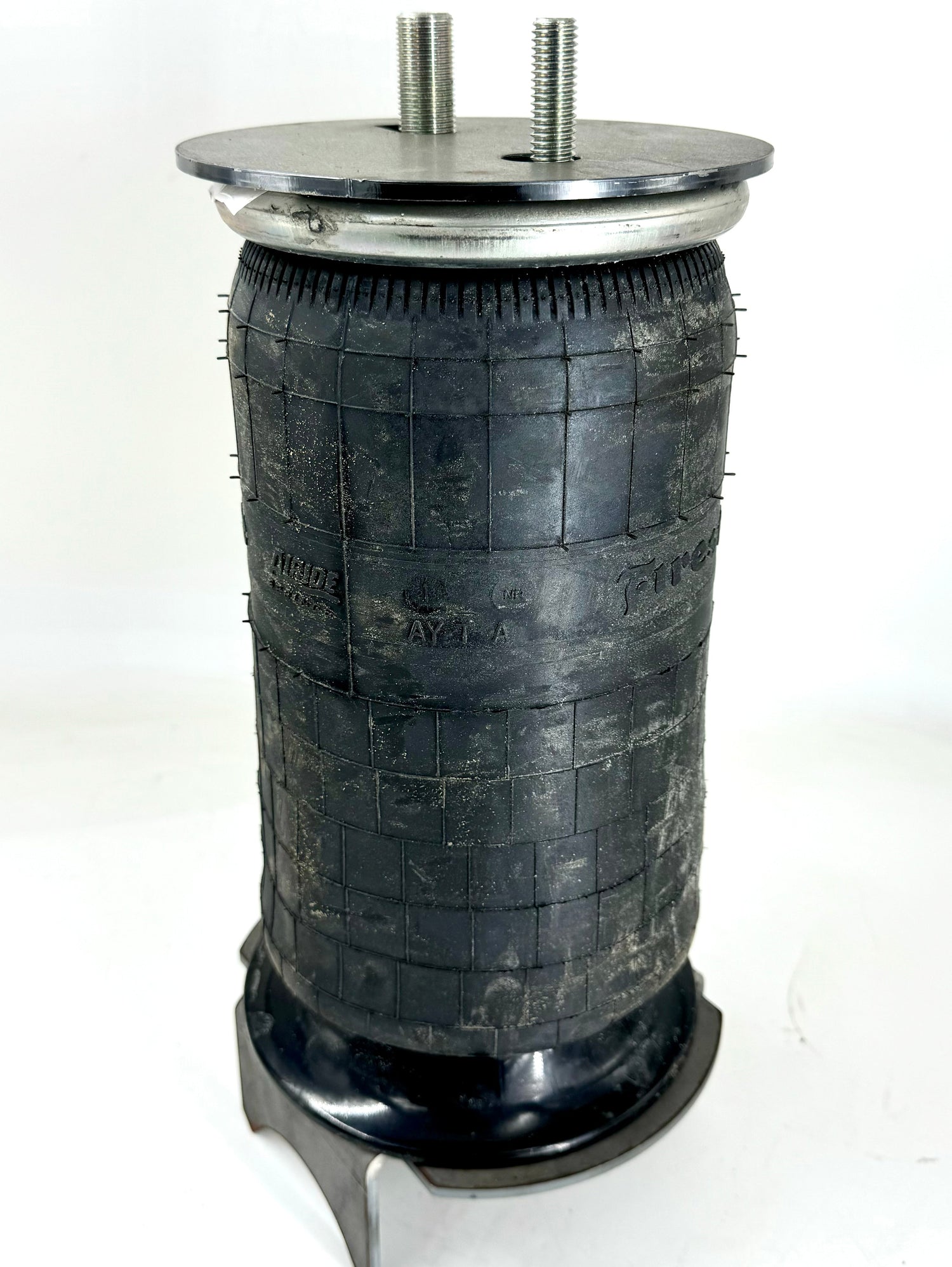

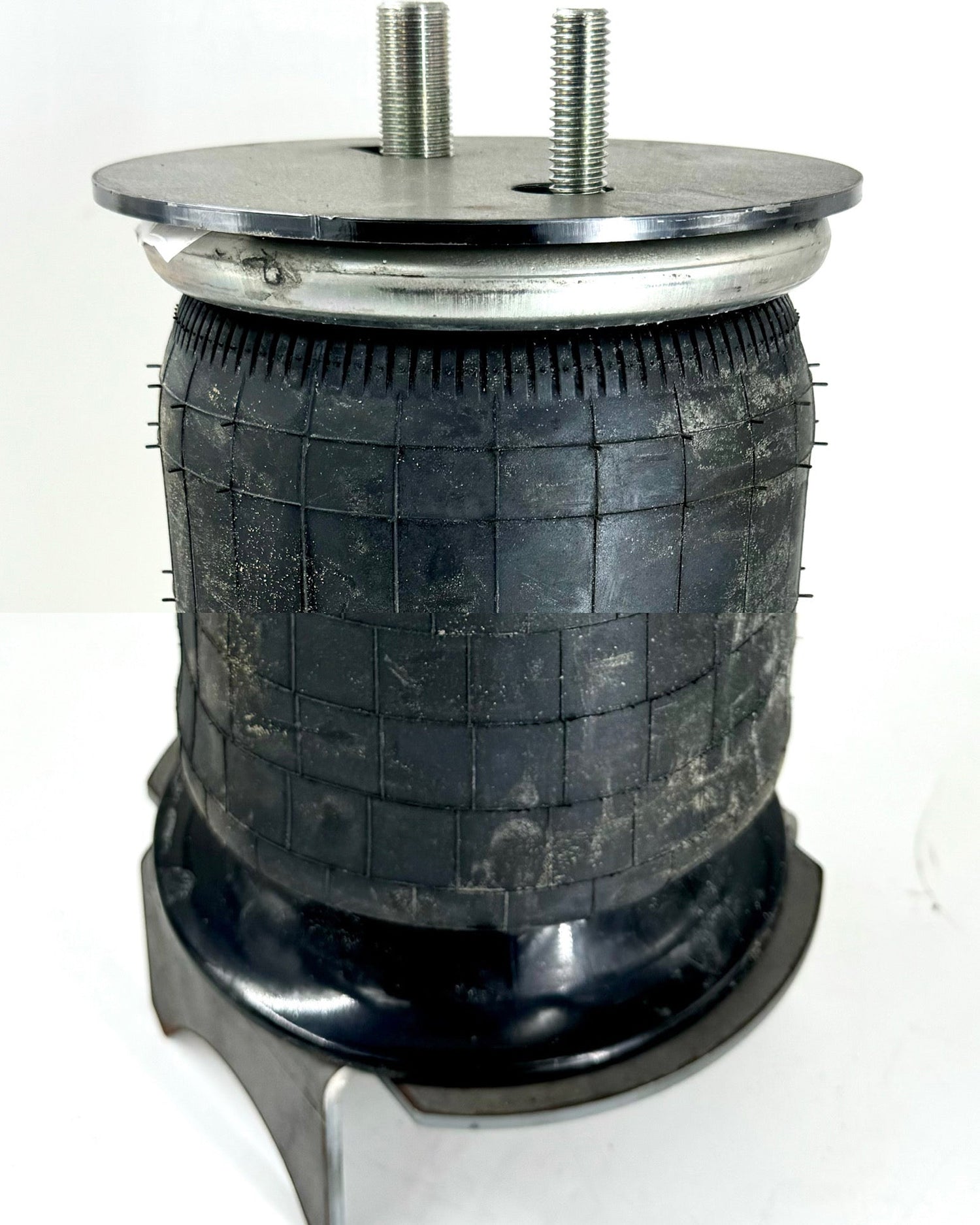

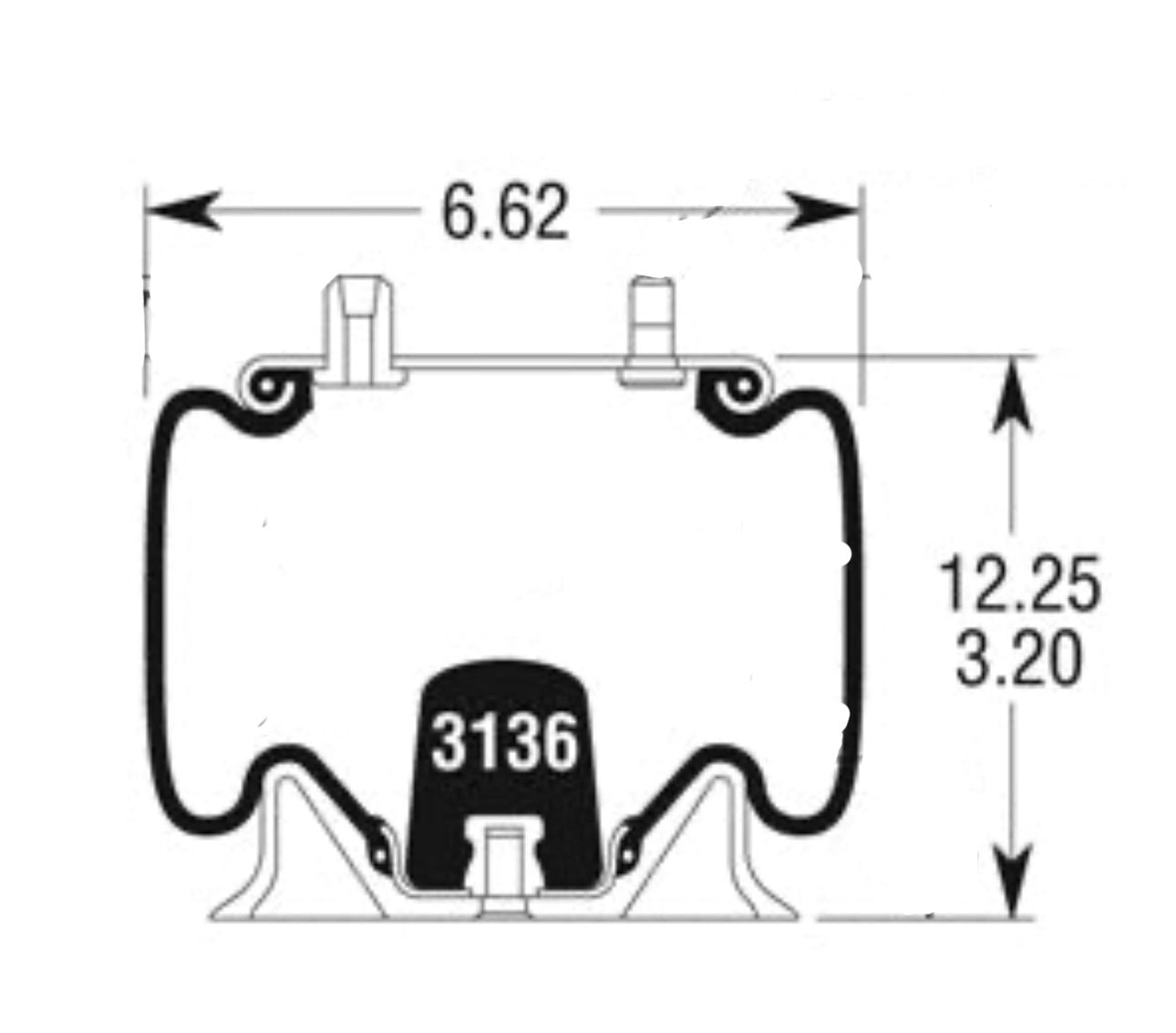

Option (2) Kit includes

2-Firestone Air bags  (8” Travel, approx  7” od bag)

2-Top mounting bracket (for approx  7” od bag)

2-Lower mounting bracket

big heavy duty bags, but not our biggest, 3.2 collapsed height bag.

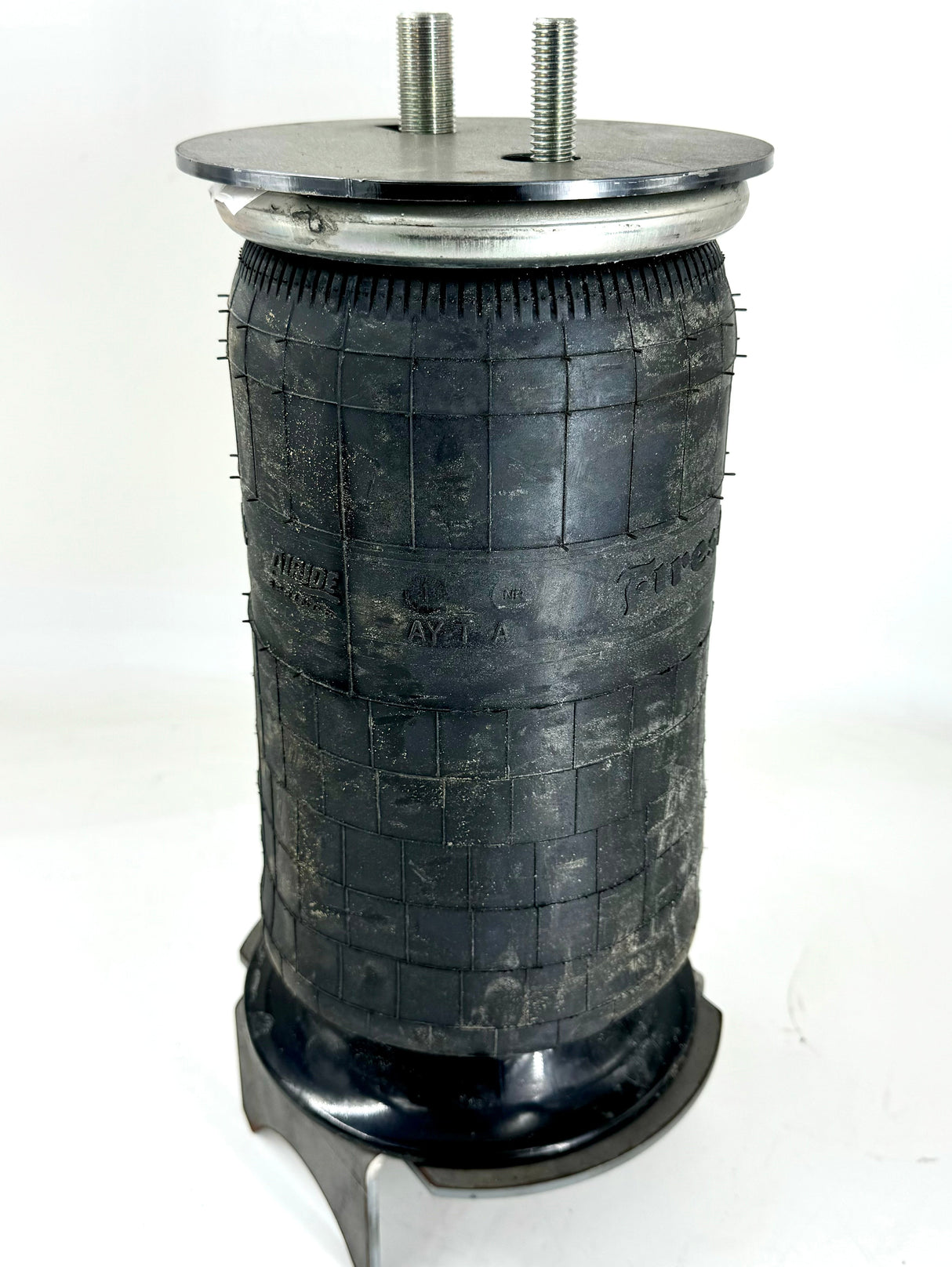

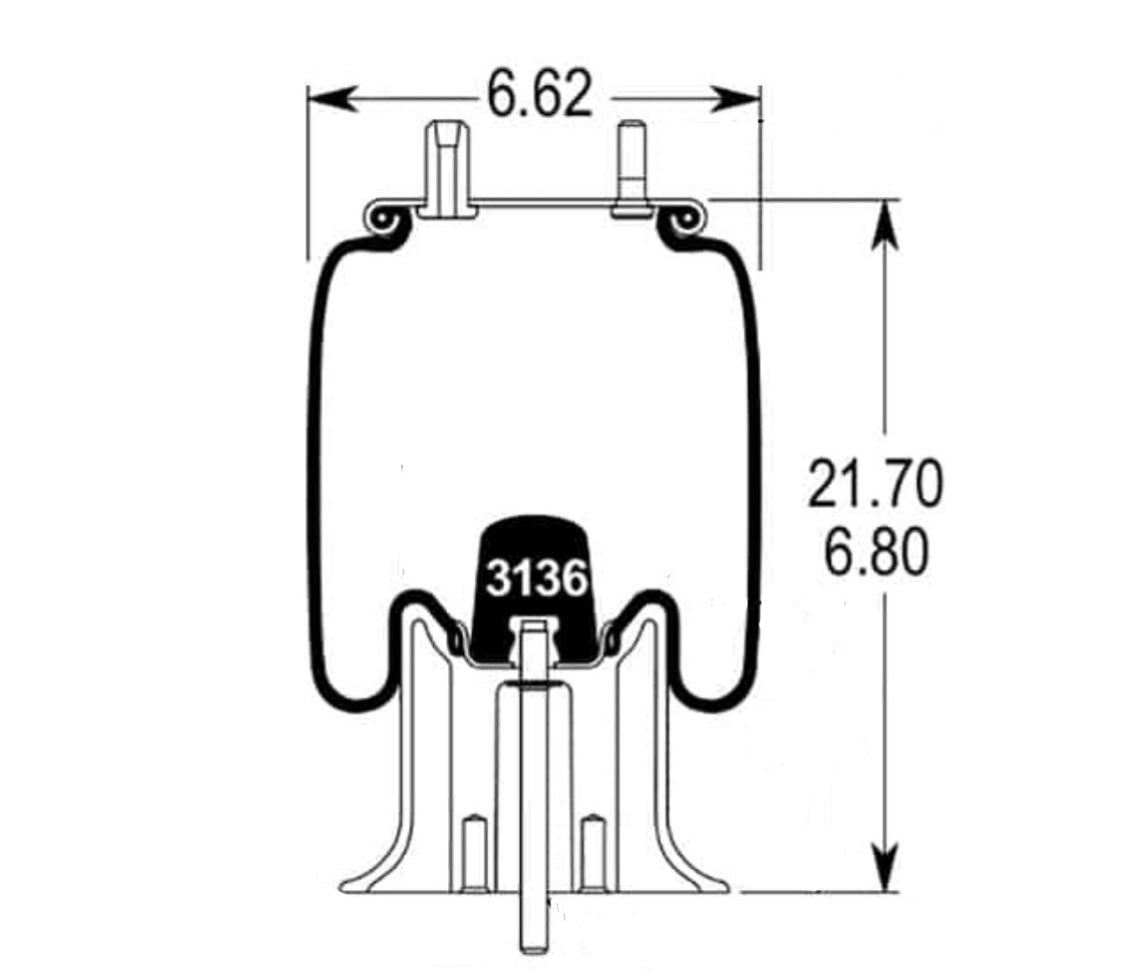

 Option (3) Kit Includes

2-Firestone Air bags (12” Plus Travel, approx  7” od bag)

2-Top mounting bracket  (for approx  7” od bag)

2-Lower mounting bracket

big heavy duty bags, but not our biggest, 6.8 collapsed height bag.

Option (4) kit includes

plates only

2- Top Mounting Brackets (for approx  9” od bag)

2- Bottom mounts

for our biggest heavy duty bags

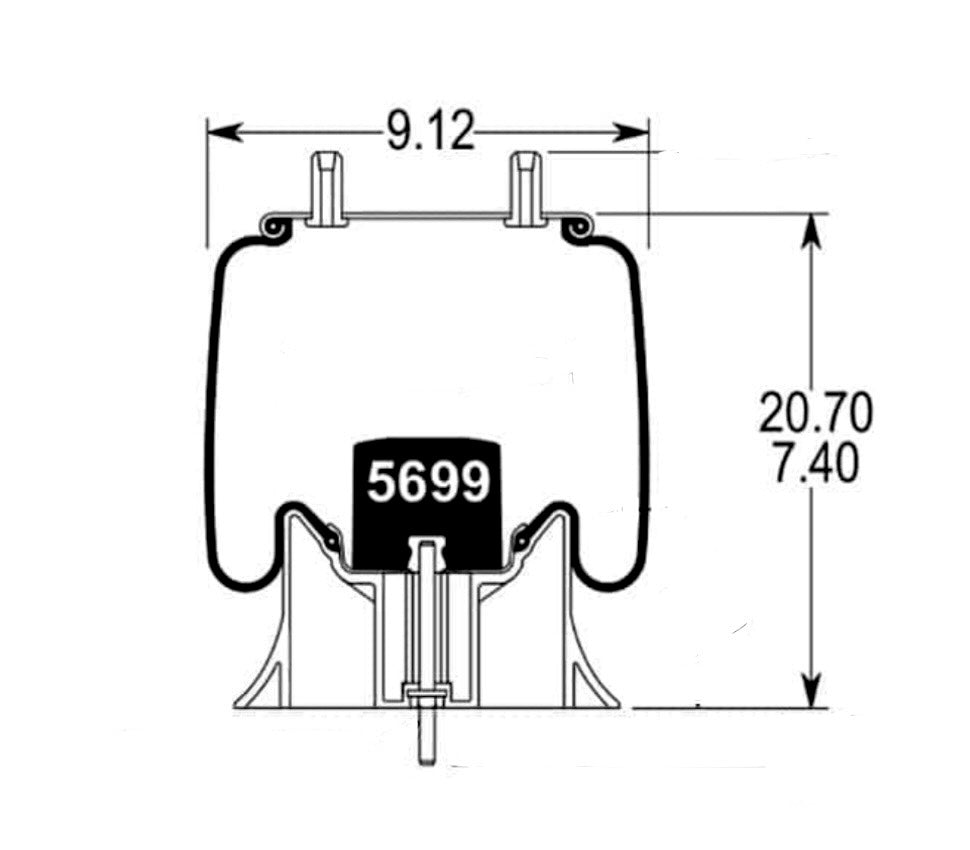

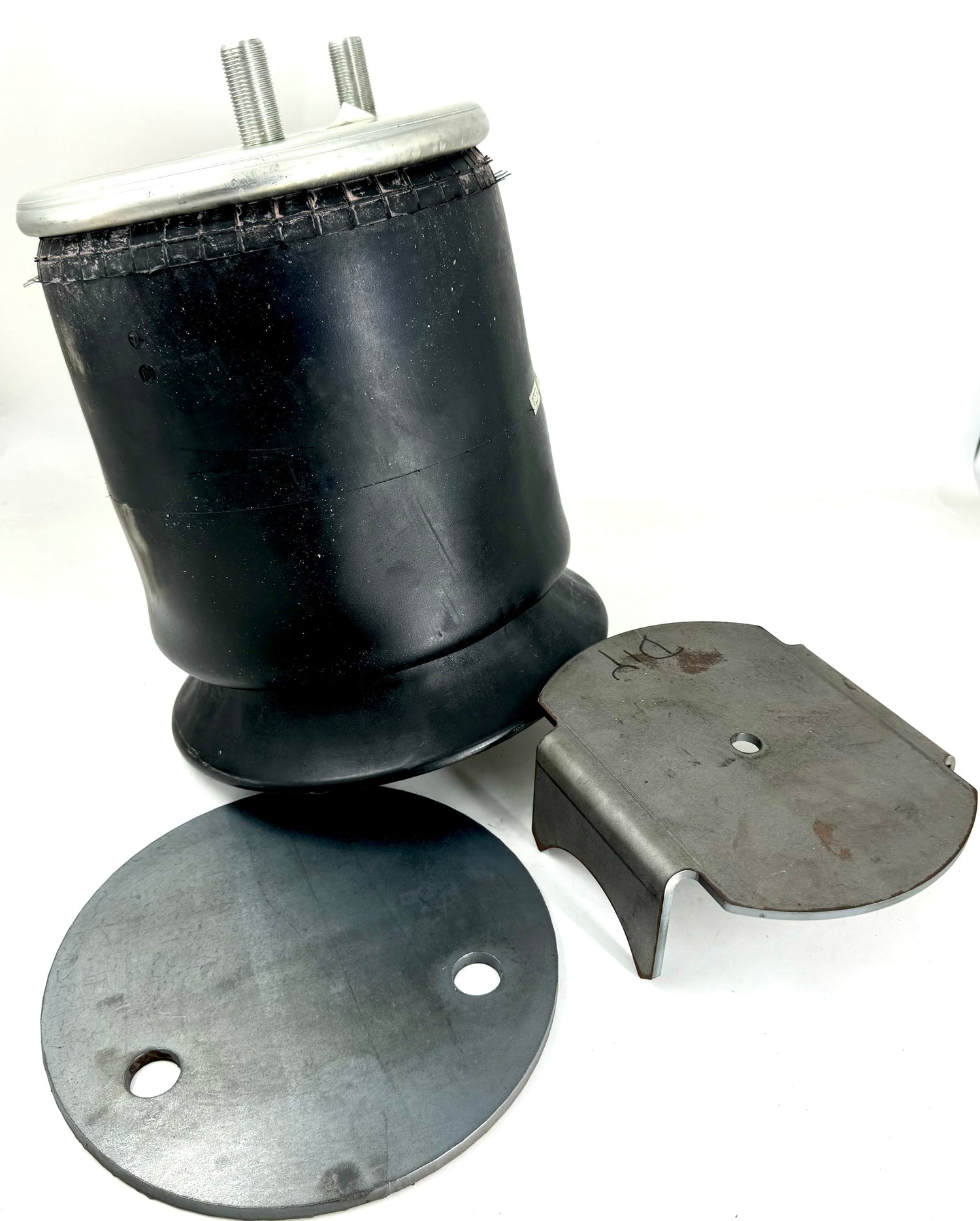

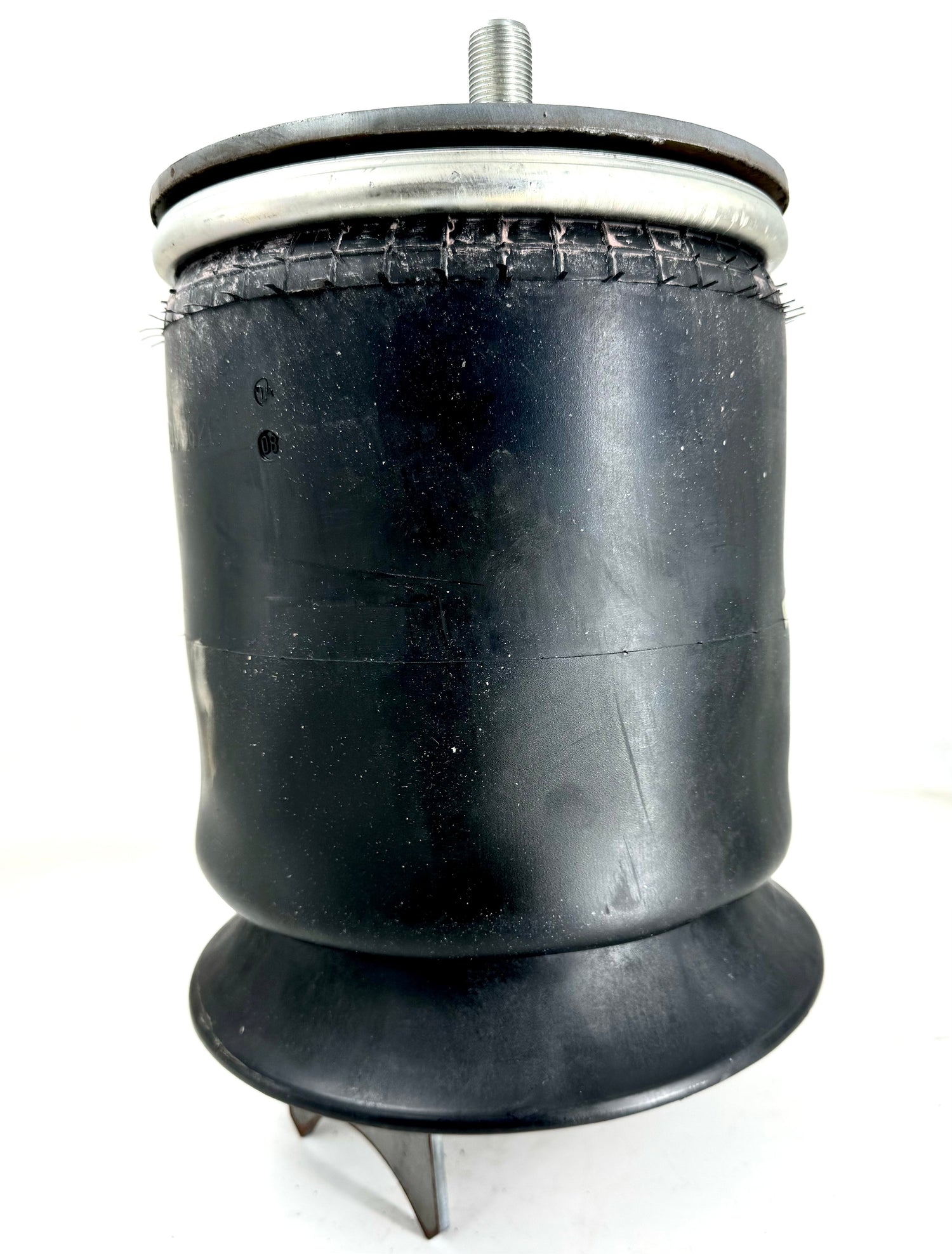

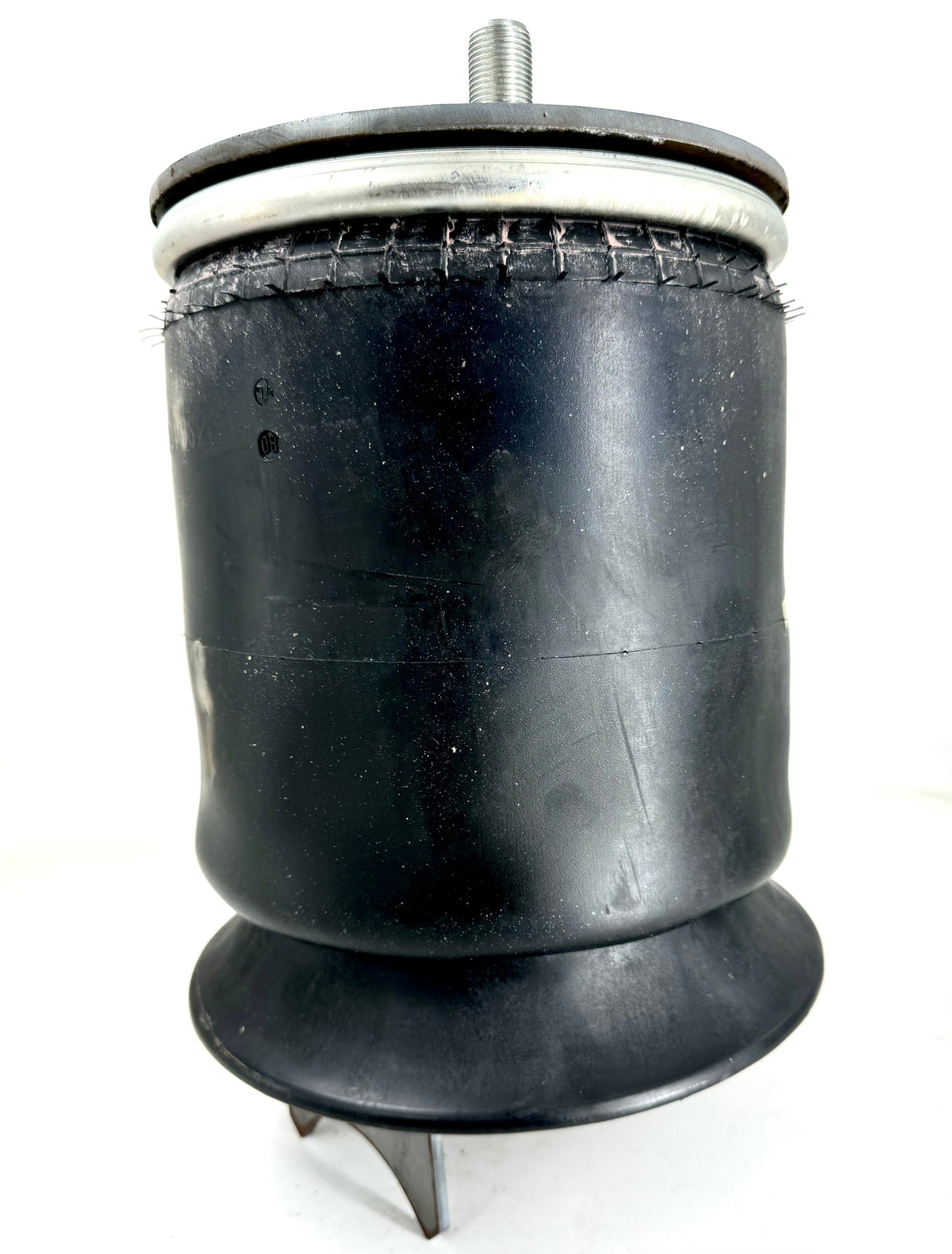

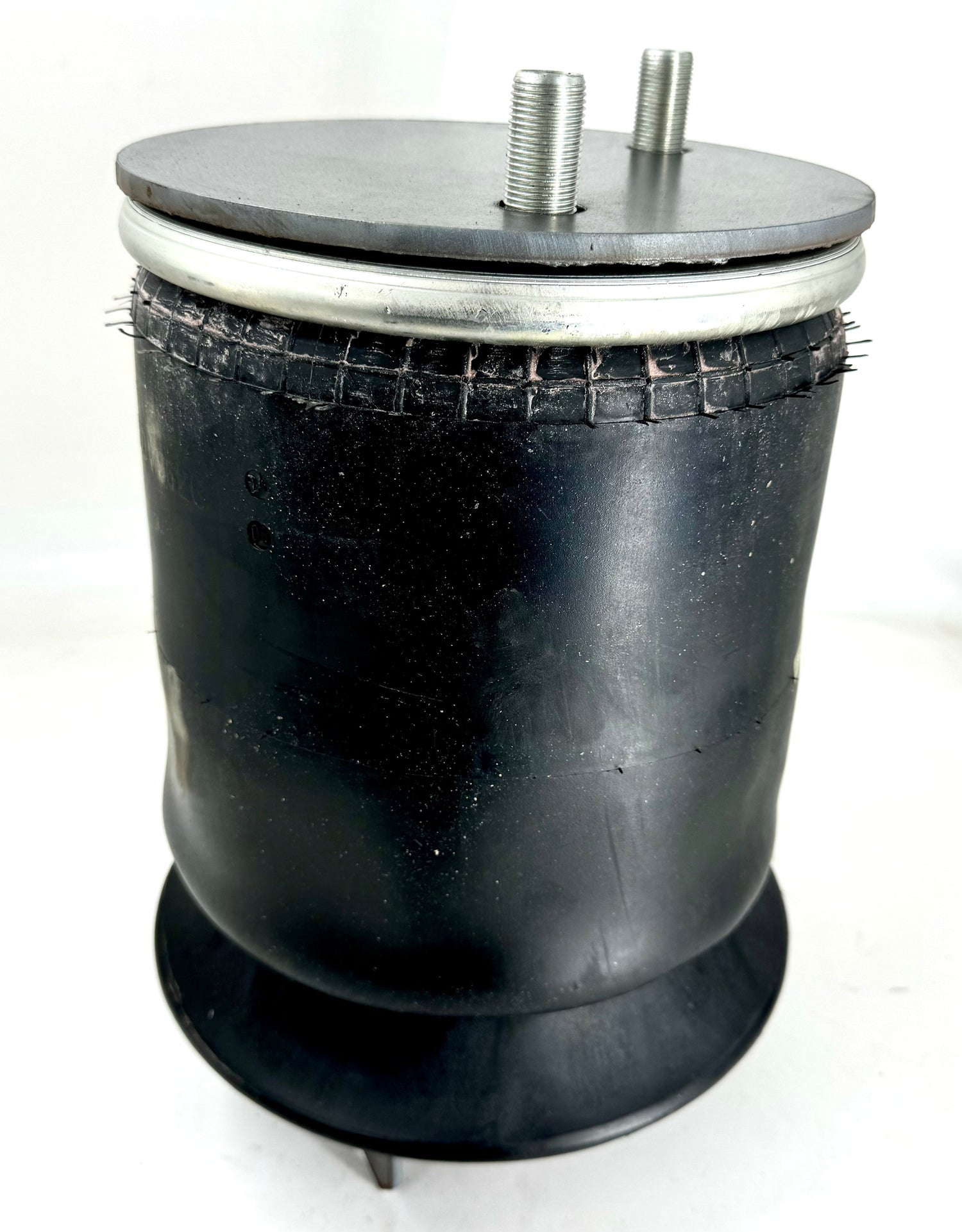

Option (5) kit includes

2-Firestone Air bags (13” Plus Travel, approx  10” od bag)

2-Top mounting bracket  (for approx  7” od bag)

2-Lower mounting bracket

our biggest heavy duty bags, 7.4 collapsed height bag.

Option (6) kit includes

2-Firestone Air bags (17” Plus Travel, approx  10” od bag)

2-Top mounting bracket  (for approx  10” od bag)

2-Lower mounting bracket

our biggest heavy duty bags, 7.4 collapsed height bag.
