Nathan AirChime K3 540 Train Horn Kit
Nathan AirChime K3 540 Train Horn Kit is backordered and will ship as soon as it is back in stock.
Description
Description
This model has been discontinued. You can find similar models here!
KING OF BLASTS.

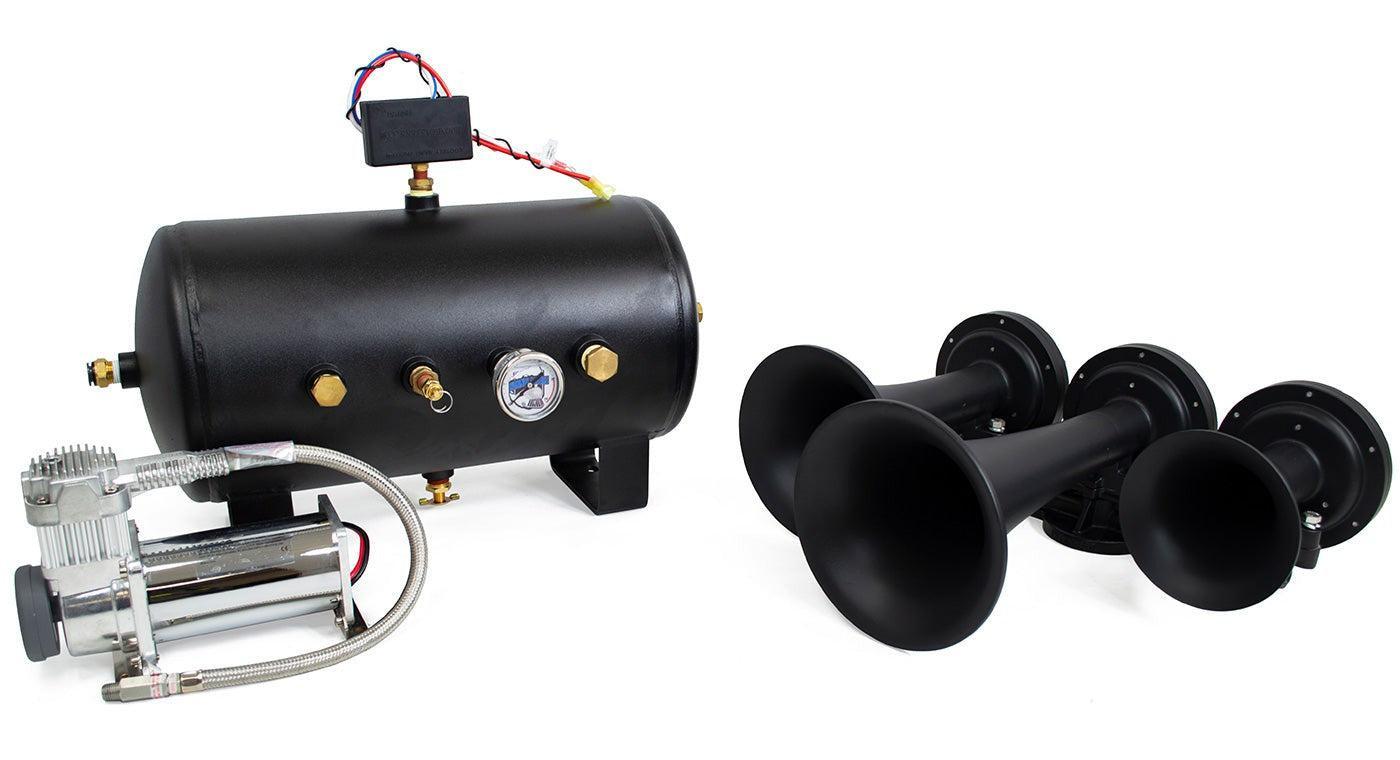

Craving that genuine train horn experience? Grab our Nathan AirChime K3 540 kit, featuring the real McCoy pulled from a retired locomotive and powered by a top-notch onboard air system. This 3-chime die-cast horn isn't for the timid, but it sure is perfect for those who love that iconic sound.
Our K3 540 kit's got your back with the legendary Nathan Airchime K3 train horn, built tough to handle anything and still sound fantastic. It's the go-to choice for show trucks and daily drivers, and it's one of the loudest horns you can find. Coupled with our 5-gallon 8-port air tank and speedy Viair 400C compressor, you'll have enough air for a solid 5-second blast to let 'em know you're coming. The kit includes all the hardware and instructions you need, so what're you waiting for?
- Railroad-use train horn!
- Heavy-duty 400C air compressor
- Extra-large 5-gallon air tank
- Max honk time: 5-7 seconds

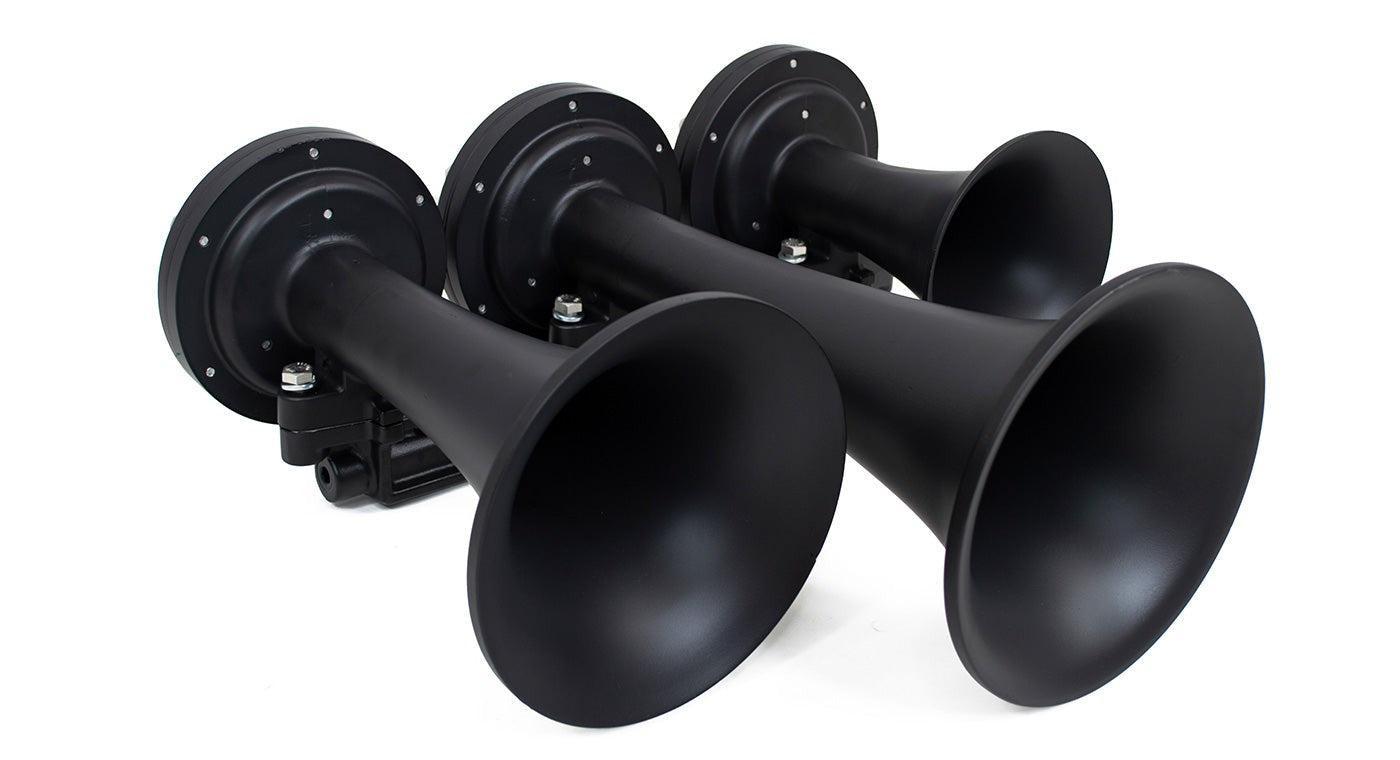

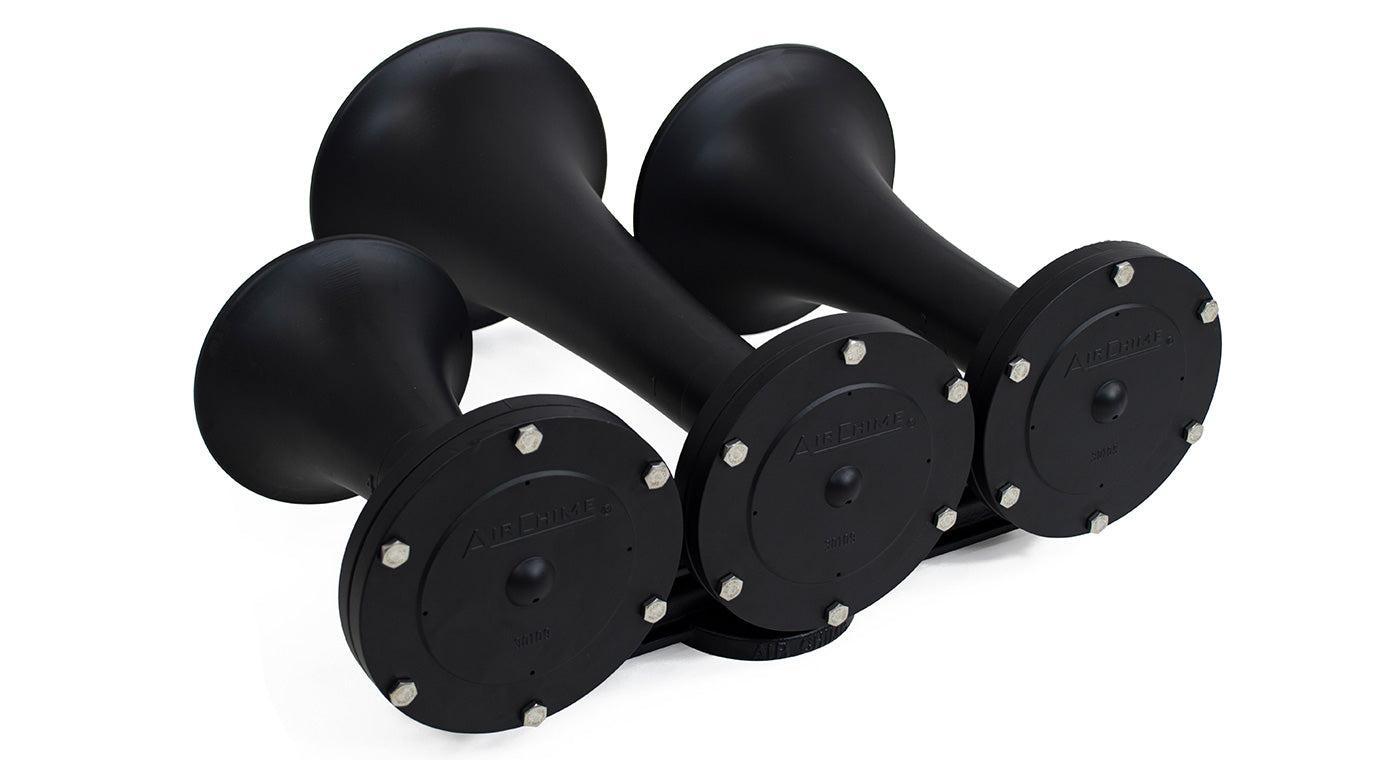

- Nathan AirChime K3LA
- 5-gallon 8 port air tank
- Viair 400C air compressor
-
110/150 PSI pressure switch w/ 40 amp relay
- Spare air filter elements
- 17' of 1/2" D.O.T. approved air line

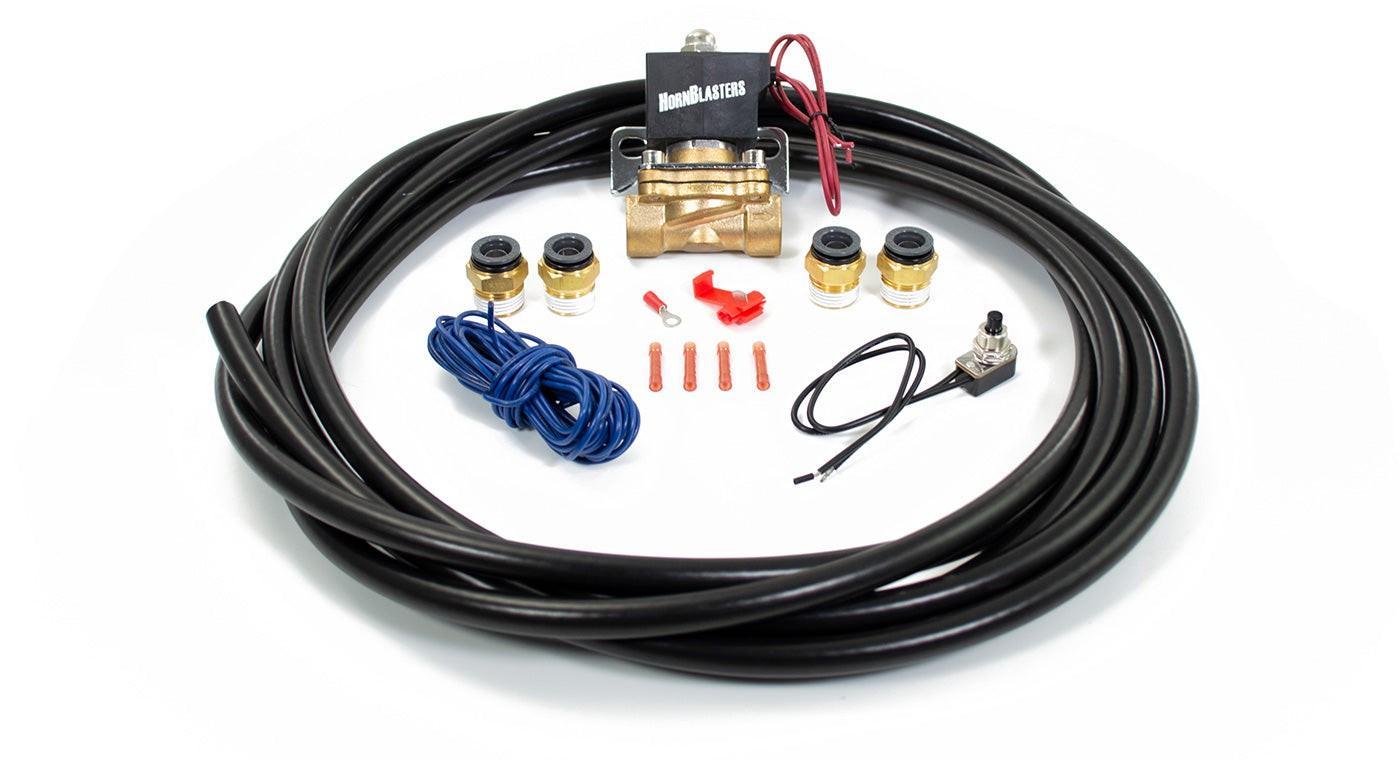

- 1/2" Black Widow electric air valve kit
- 22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire

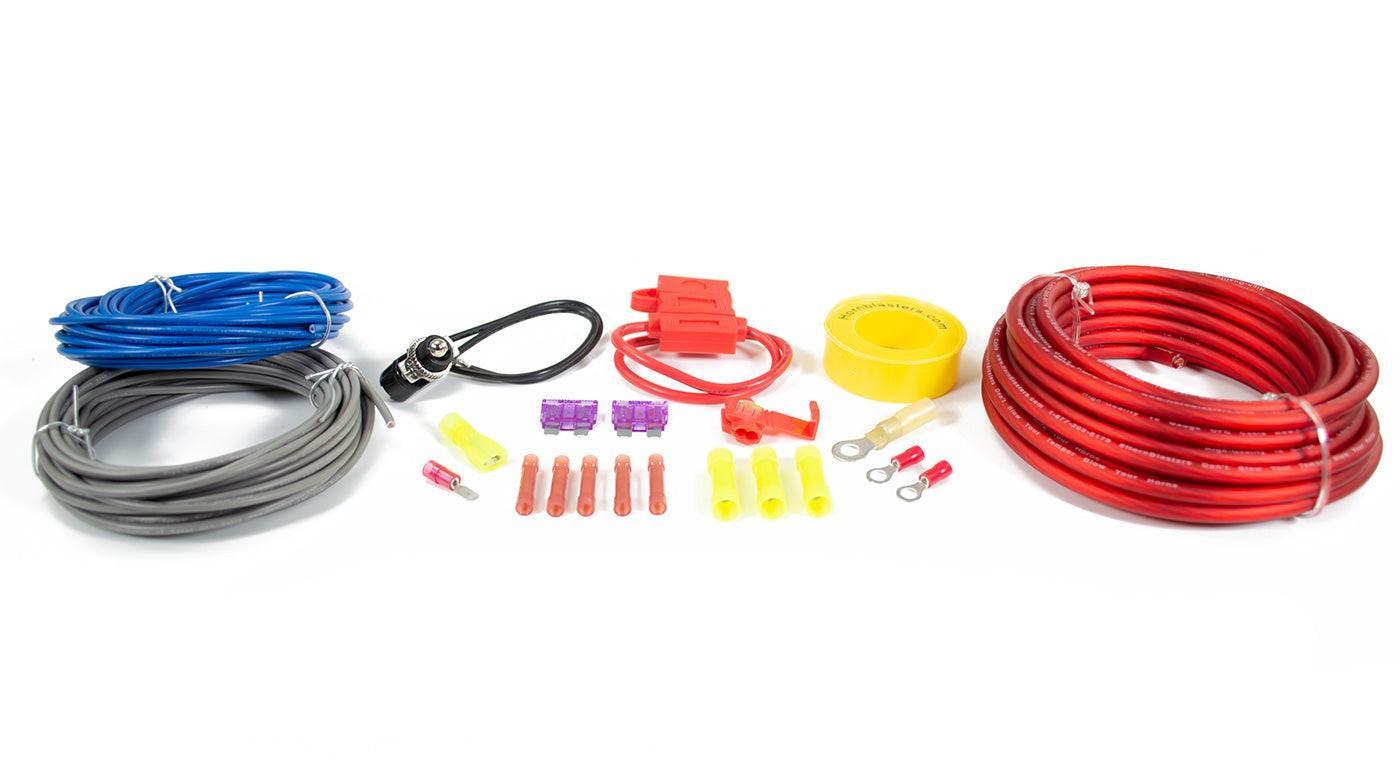

- Complete wiring kit with fuse holder & fuses
- All necessary fittings
- Detailed installation instructions
- Mounting hardware
- Earplugs
| Part Number | HK-K3-540 |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | Nathan AirChime K3 |
| Horn Length | 18.25″ (463.55 mm) |
| Horn Width | 16.25″ (412.75 mm) |
| Horn Height | 9.75″ (247.65 mm) |
| Horn Weight | 32 lb (14.51 Kg) |
| Horn Air Inlet | ½″ Female NPT |
| Tank | HornAir 5-gallon air tank |
| Tank Length | 20.5″ (520.7 mm) |
| Tank Diameter | 9.5″ (241.3 mm) |
| Tank Height | 11.5″ (292.1 mm) (With Legs) |
| Tank Weight | 20 lb (9.07 Kg) |
| Tank Ports | x7 1/2", x1 3/4" |
| Air Compressor | Viair 400C air compressor |
| Average Fill Time | 1 Min 30 Sec |
| Voltage | 12 volts DC |
| Air Flow | 2.54 CFM at Free Flow |
| Max Amperage | 26 amps |
| Maximum Duty Cycle | 33% @ 100 PSI |
| Compressor Length | 9.0″ (228.6 mm) |
| Compressor Width | 4.0″ (101.6 mm) |
| Compressor Height | 7.05″ (179.07 mm) |
| Compressor Weight | 8.00 lb (3.63 Kg) |
5-Gallon Air Tank Dimensional Drawing
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 2 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 45 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
-
