Nathan AirChime K5LA 544 Train Horn Kit
Nathan AirChime K5LA 544 Train Horn Kit - Stealth Black is backordered and will ship as soon as it is back in stock.
Description
Description
YOU'RE DOING SOMETHING RIGHT WHEN YOU HAVE IMPOSTERS

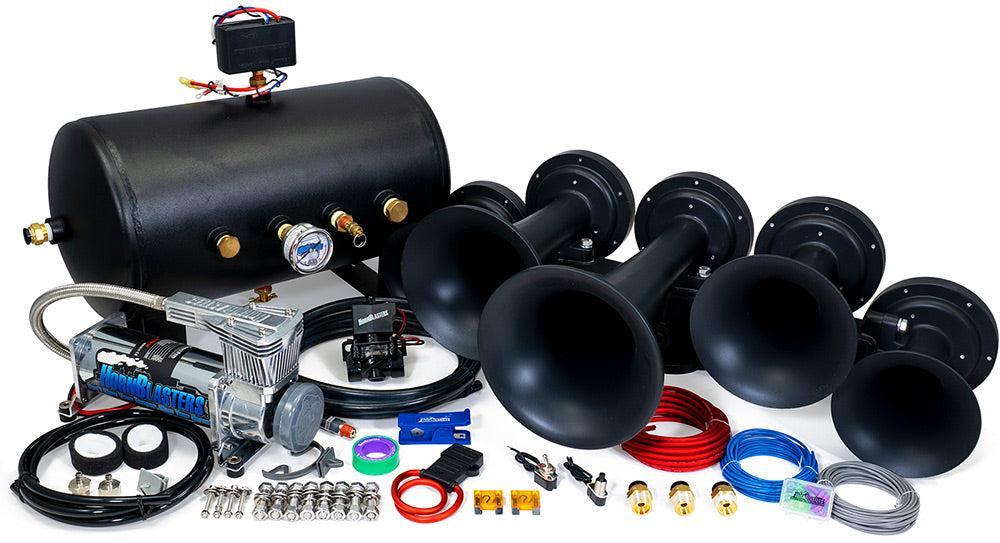

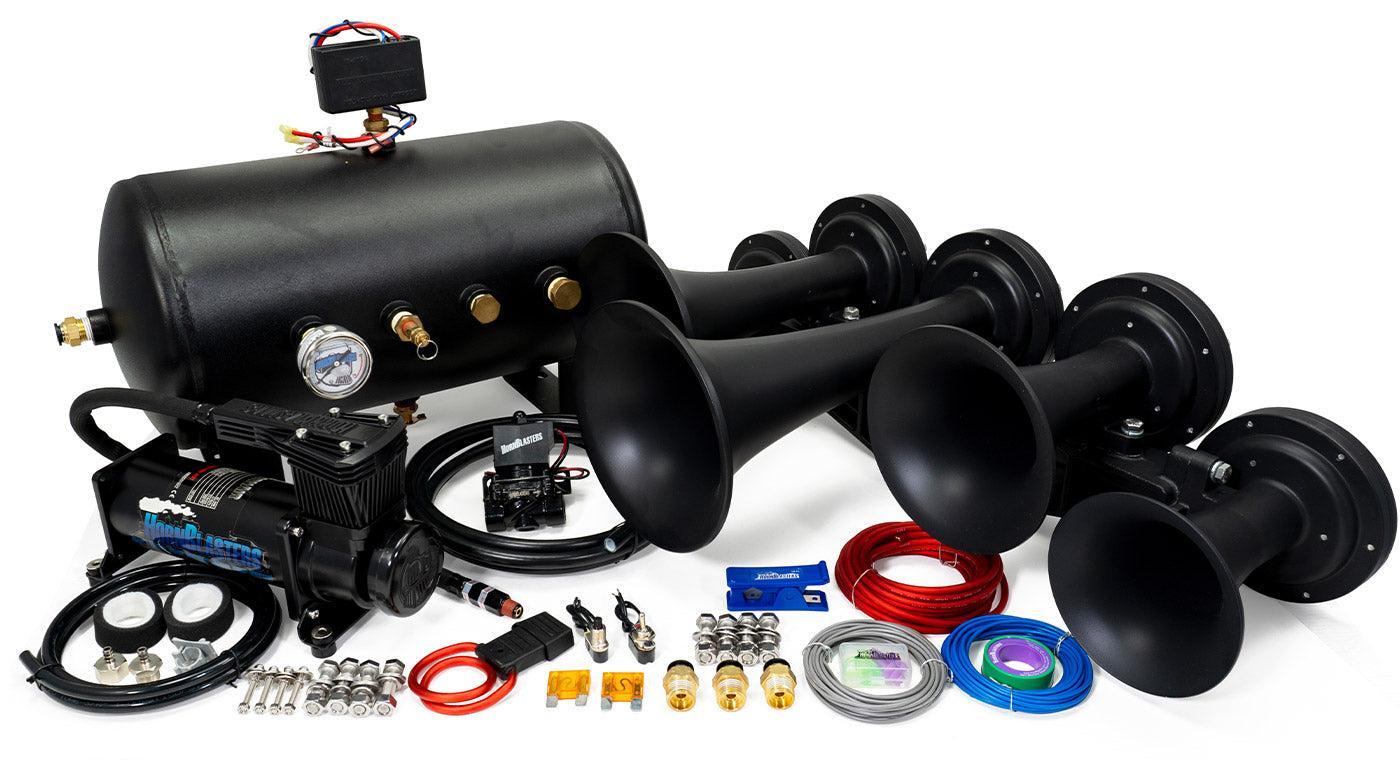

Upgrade your ride with the top-of-the-line Nathan AirChime K5 544K train horn kit. Experience the unmatched loudness and quality of the legendary Nathan AirChime K5LA train horn, the gold standard in train horns. With decades of proven durability and reliability, this 5-chime die-cast horn is still the most widely used train horn today on the railroads. Paired with our heavy-duty 544K onboard air system, this kit gives you the best train horn experience possible.
-
Legendary Sound: Experience the gold standard with the Nathan Airchime K5LA, boasting unmatched loudness and unparalleled quality in the world of train horns.
- Railroad Authenticity: A genuine railroad-use train horn, the K5LA has decades of proven durability, making it the most popular choice for modern railroads.
- Superior Power System: Equipped with a heavy-duty 1NM air compressor and an expansive 5-gallon air tank, ensuring consistent and powerful honks every time.
- Extended Blast Duration: Enjoy a maximum honk time of 5-7 seconds, giving you ample time to make your presence felt.
- Don't Compromise: With the perfect blend of tradition and modernity, this kit offers the apex of train horn experiences. Accept nothing less than the best.
IMPORTANT: Our Nathan AirChime train horns are sourced from retired locomotives and undergo extensive reconditioning. This process includes sandblasting, a new black powder coat finish, and replacing all internal components such as diffuser rings, diaphragms, and cushion rings. This ensures each horn performs like new and retains its authentic locomotive sound.

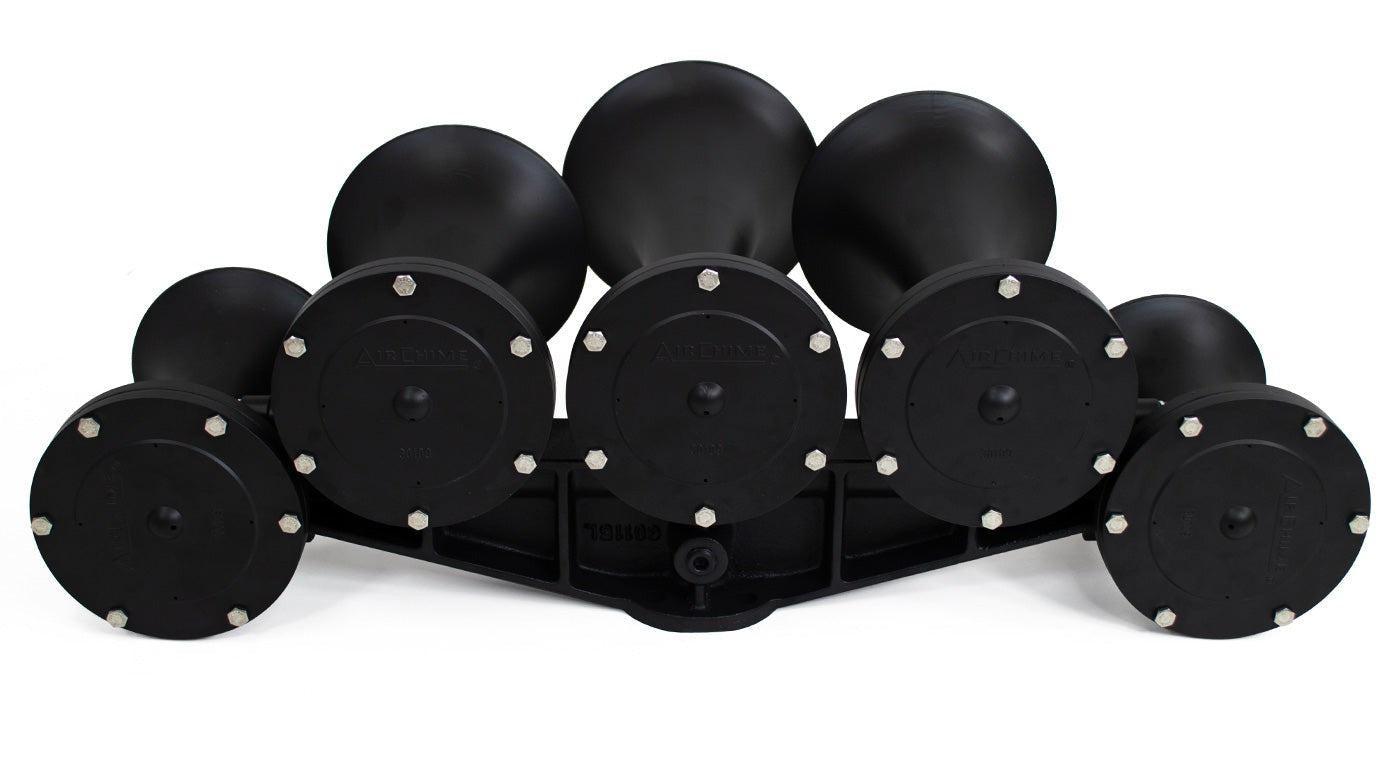

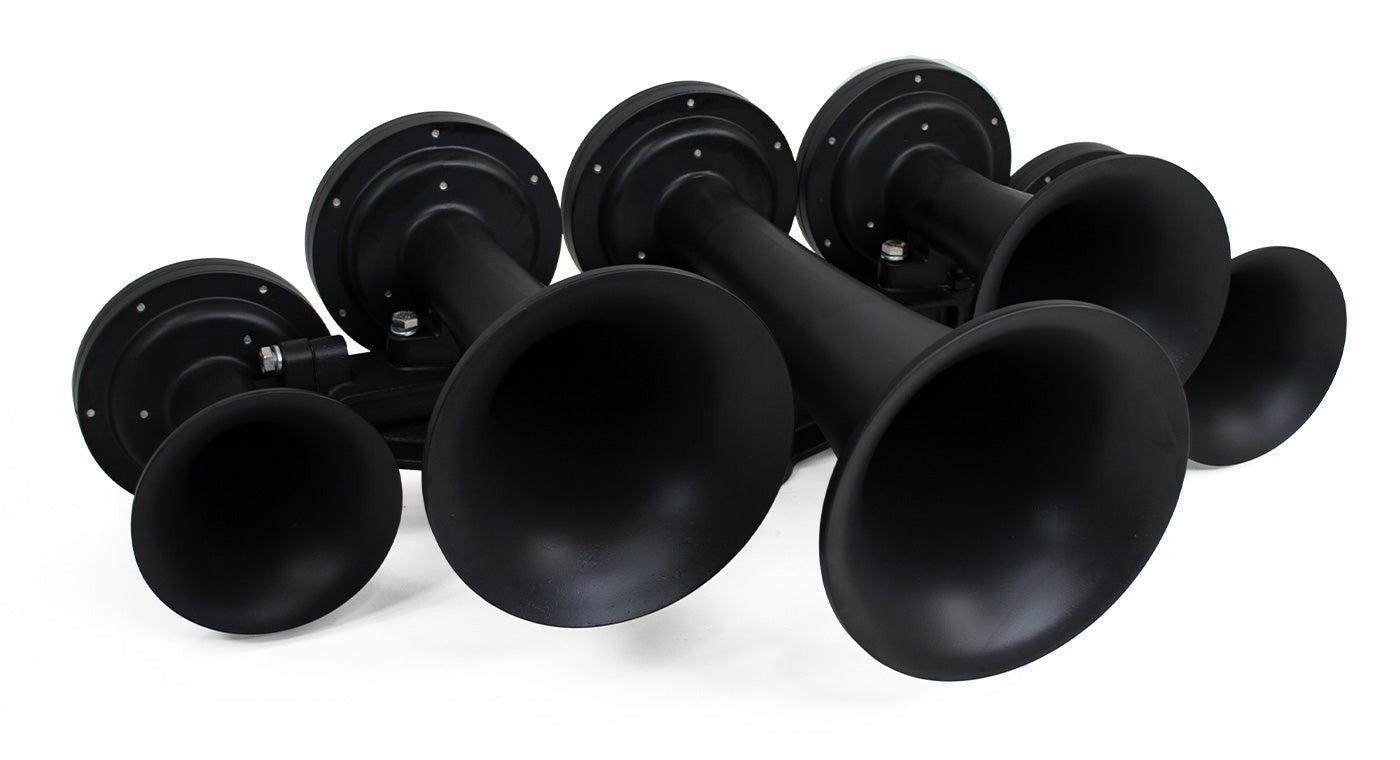

- Nathan K5LA train horn
-

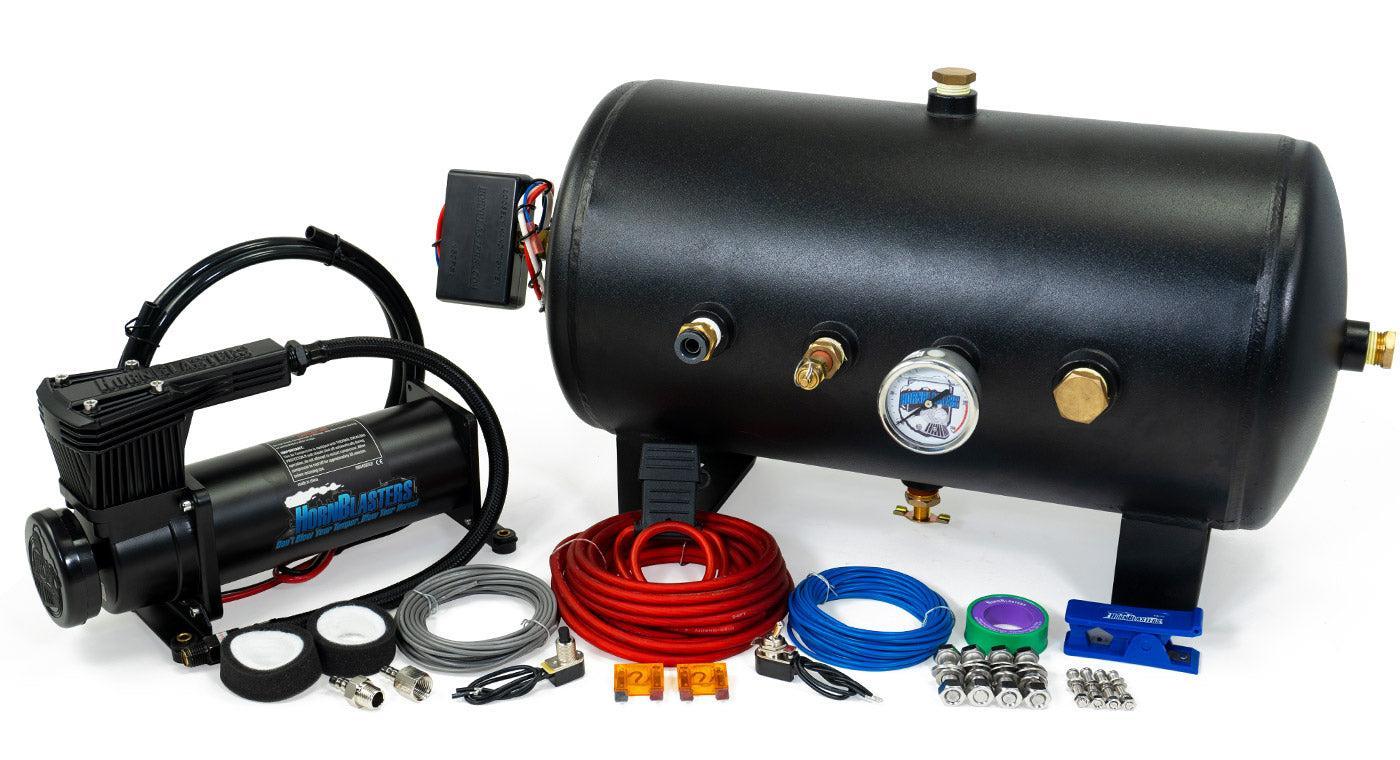

5-GALLON 8 PORT AIR TANK
-
HORNBLASTERS 1NM STEALTH BLACK AIR COMPRESSOR
-
110/150 PSI PRESSURE SWITCH W/ 40 AMP RELAY
- SPARE AIR FILTER ELEMENTS
- 17' OF 1/2" D.O.T. APPROVED AIR LINE

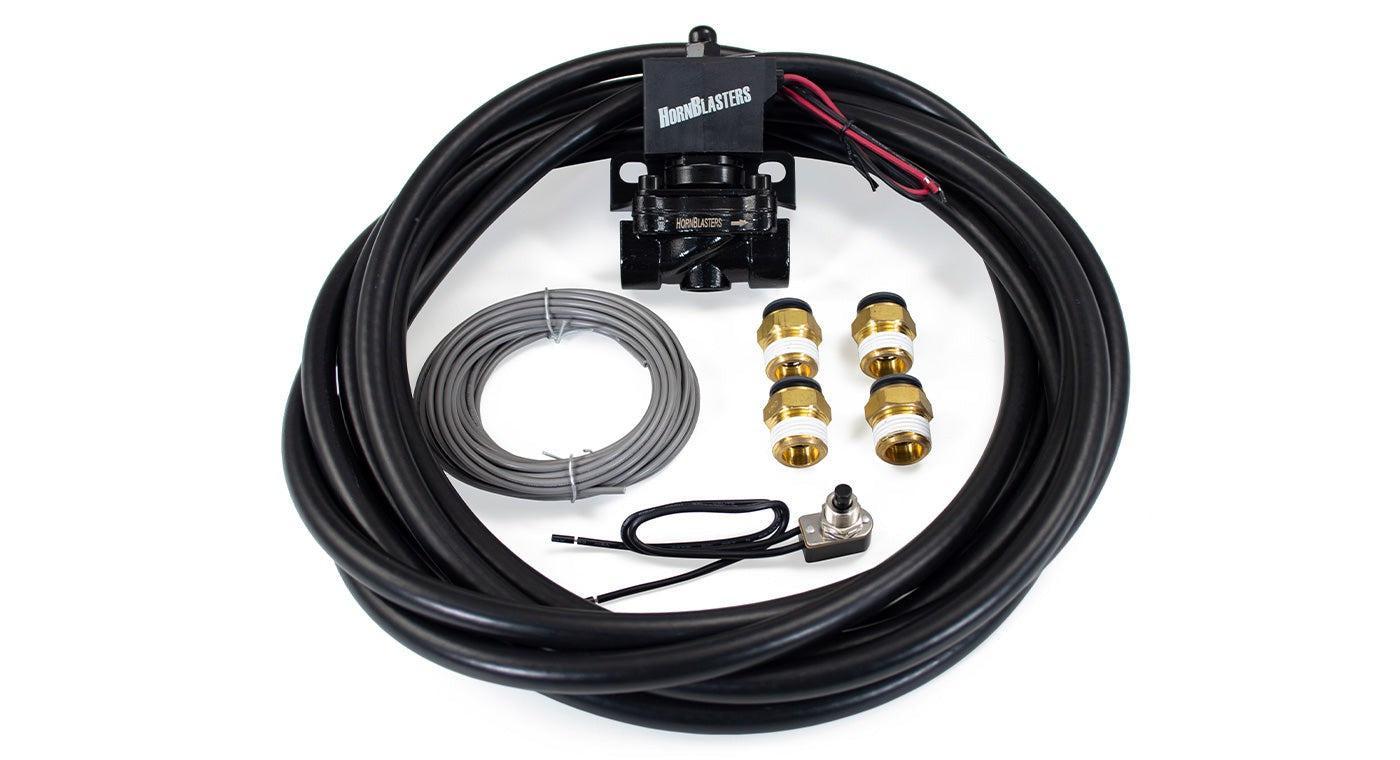

- 1/2" BLACK WIDOW ELECTRIC AIR VALVE KIT
- 22FT OF 8-GAUGE RED WIRE
- 22FT OF 18-GAUGE BLUE WIRE
- 22FT OF 18-GAUGE GREY WIRE

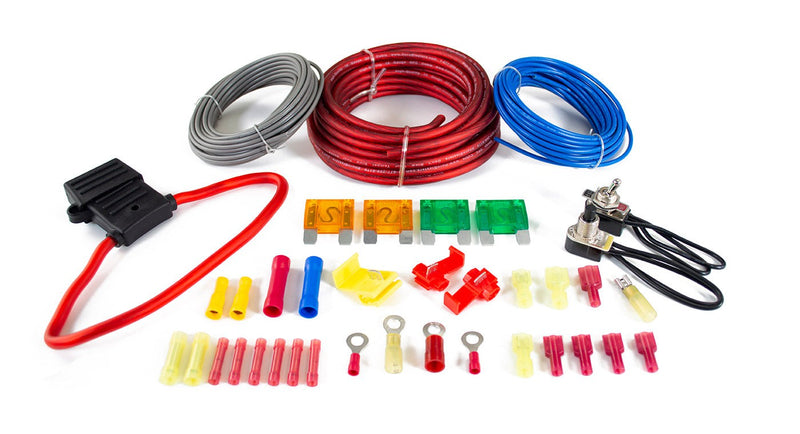

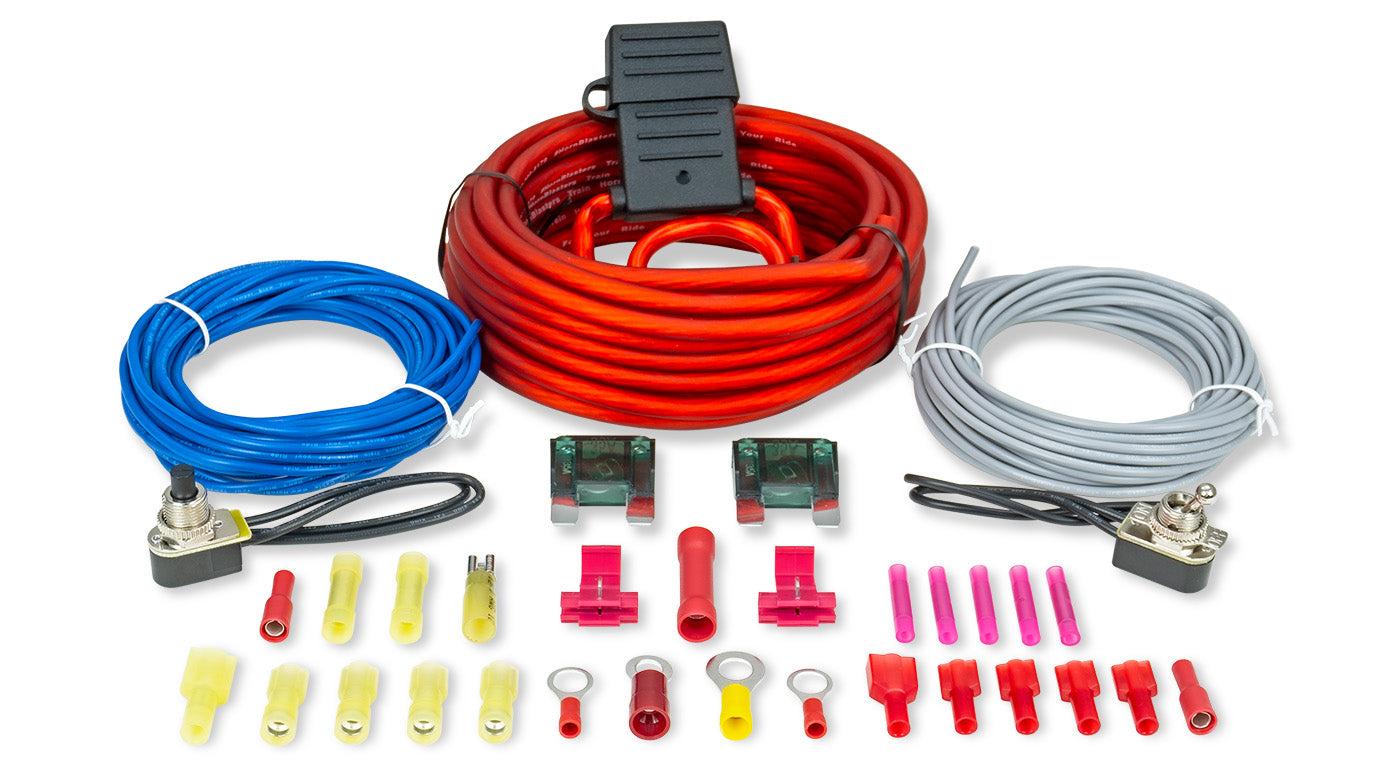

- COMPLETE WIRING KIT WITH FUSE HOLDER & FUSES
- ALL NECESSARY FITTINGS
- DETAILED INSTALLATION INSTRUCTIONS
- MOUNTING HARDWARE
- EARPLUGS
| Part Number | HK-K5-544K |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | Nathan AirChime K5LA (K5 low mount American tune) |
| Horn Material | Cast Aluminum |
| Horn Length | 19″ (482.6 mm) |
| Horn Width | 29.75″ (755.65 mm) |
| Horn Height | 9.25″ (234.95 mm) |
| Horn Weight | 37 lb (16.78 Kg) |
| Horn Port | ½″ NPT |
| Tank | HornAir 5-gallon 8 port air tank |
| Tank Length | 20.5″ (520.7 mm) |
| Tank Diameter | 9.5″ (241.3 mm) |
| Tank Height | 11.5″ (292.1 mm) (With Legs) |
| Tank Weight | 20 lb (9.07 Kg) |
| Tank Ports | x7 1/2" NPT, x1 3/4" NPT |
| Max Amperage | 26 amps |
| Maximum Duty Cycle | 33% @ 100 PSI |
| Compressor Length | 9.0″ (228.6 mm) |
| Compressor Width | 4.0″ (101.6 mm) |
| Compressor Height | 7.05″ (179.07) |
| Compressor Weight | 8.00 lb (3.63 Kg) |
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
| 110 to 150 PSI | 2 min. (± 05 sec.) |
5-Gallon Air Tank Dimensional Drawing
-
