Description
Description
The CT Sounds ATv2-1400.1d monoblock car amplifier delivers the power you need to destroy the competition in the SPL lanes. While most manufacturers rate their amps at 14.4v, we designed an amp that produces 1500 watts in the low 13v as most users do not achieve 14.4v from their electrical system. If you want to send 1500-watt power to your sub(s); this amp will provide more bump than the competition's 1500-watt amp rated at 14.4v.
| Quick Facts: | |
| RMS Power @ 1Ω (14.4v): | 1800 Watts x 1-Ch |
| RMS Power @ 1Ω (13.2v): | 1400 Watts x 1-Ch |
| Power & Ground Input Size: | 0 Gauge |
| Bass Knob Included? | Yes |

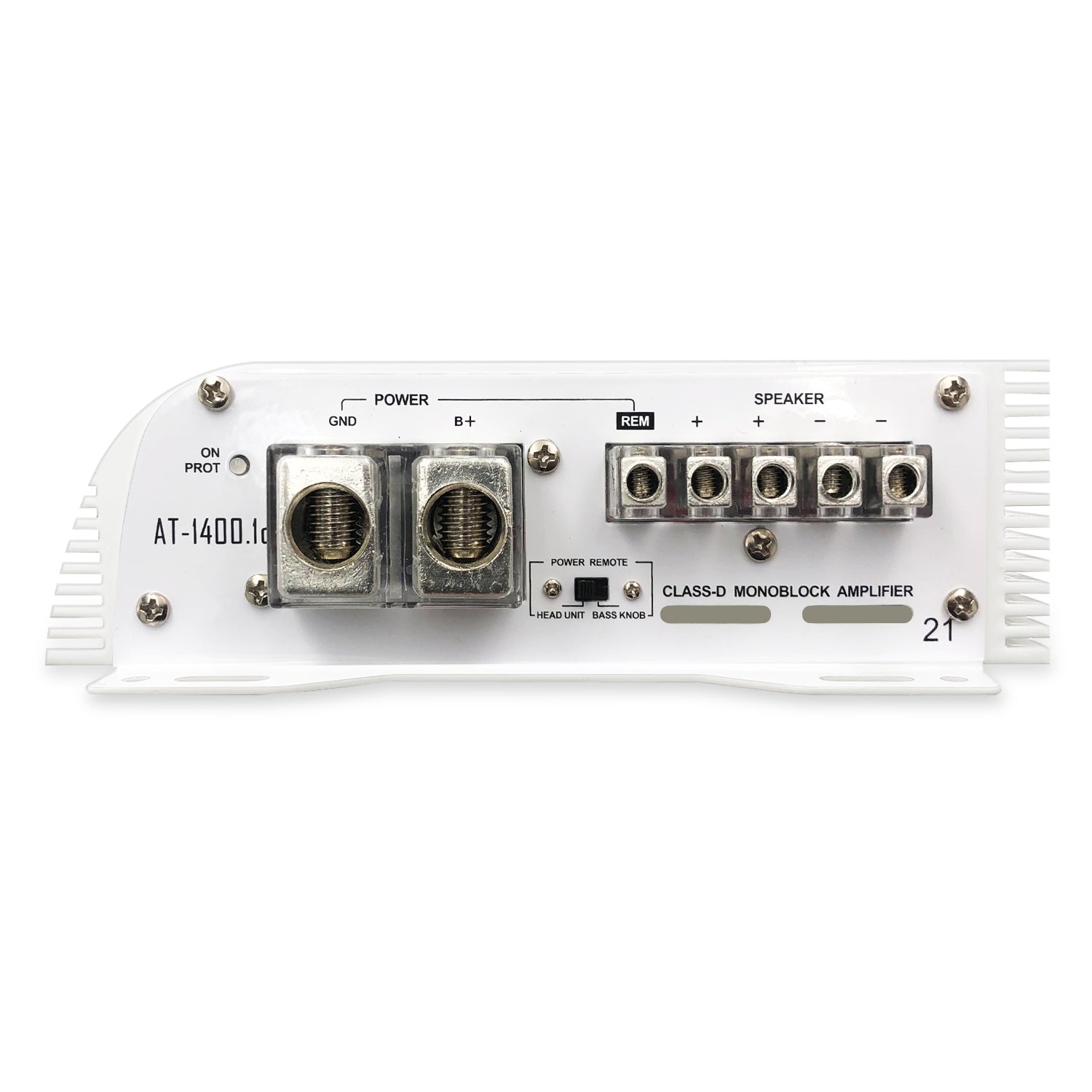

The amplifier’s most unique feature is the “head unit/bass knob” switch. When it’s set to “head unit” - the head unit turns the amplifier ON/OFF. When it’s set to “bass knob” - the bass knob turns the amplifier ON/OFF. Feeling under the weather with a headache? Want to listen to a podcast? You probably don’t want your sub(s) booming away in the background - set the switch to “bass knob” and turn off your bass amplifier at any point while driving. By default, the amplifier will turn OFF with your vehicle in both “head unit” or “bass knob” mode.

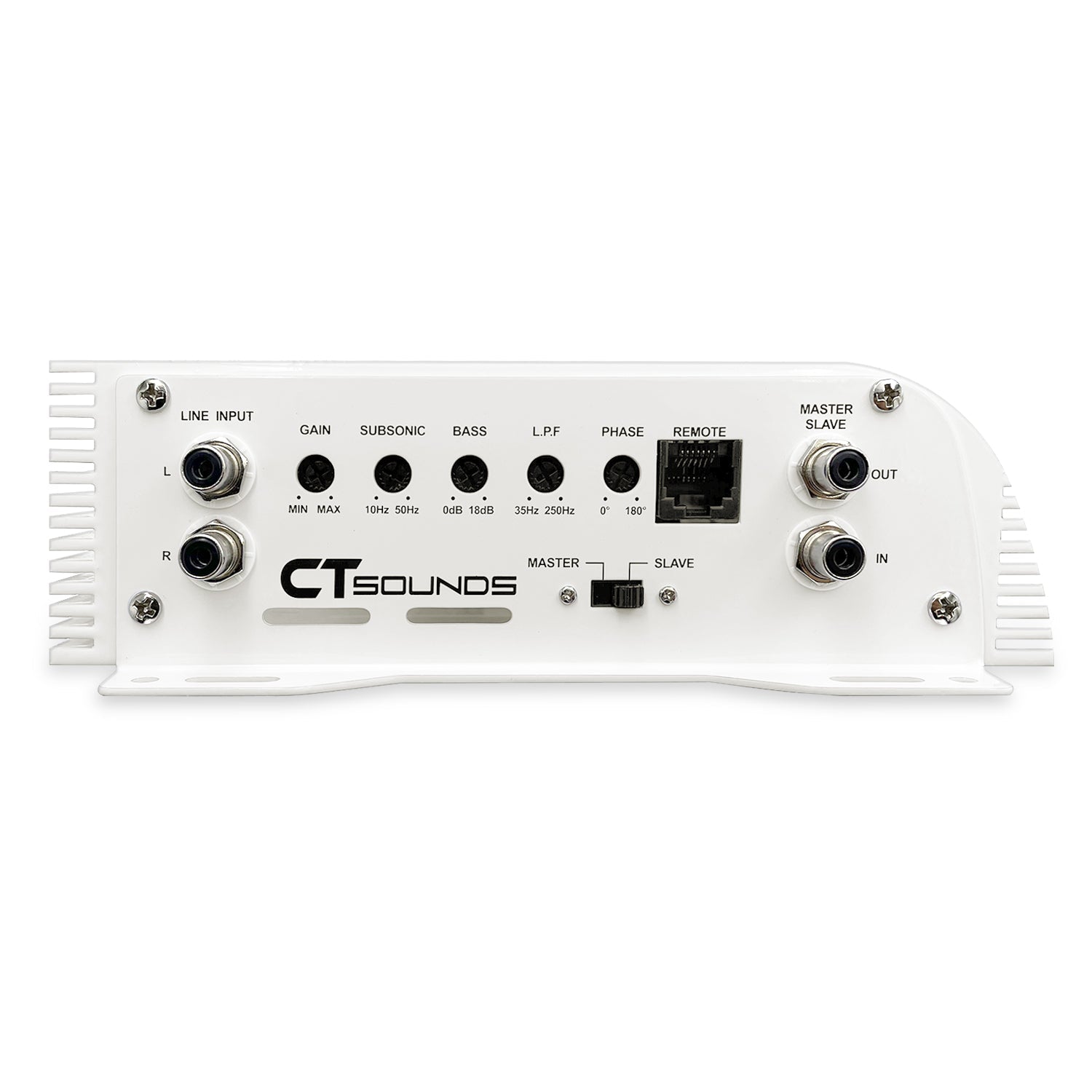

In addition to the many variable adjustment controls (gain, subsonic filter, bass boost, low pass filter, phase) the amplifier features a slave/master switch if you wish to strap (2) amplifiers to achieve double the power at 2 ohms. Finally, the one-of-a-kind amplifier has a plexiglass backing, illuminated blue LED logo, and white chassis; you’ll have the amp that all your friends wished they had!
FEATURES| Features: | |

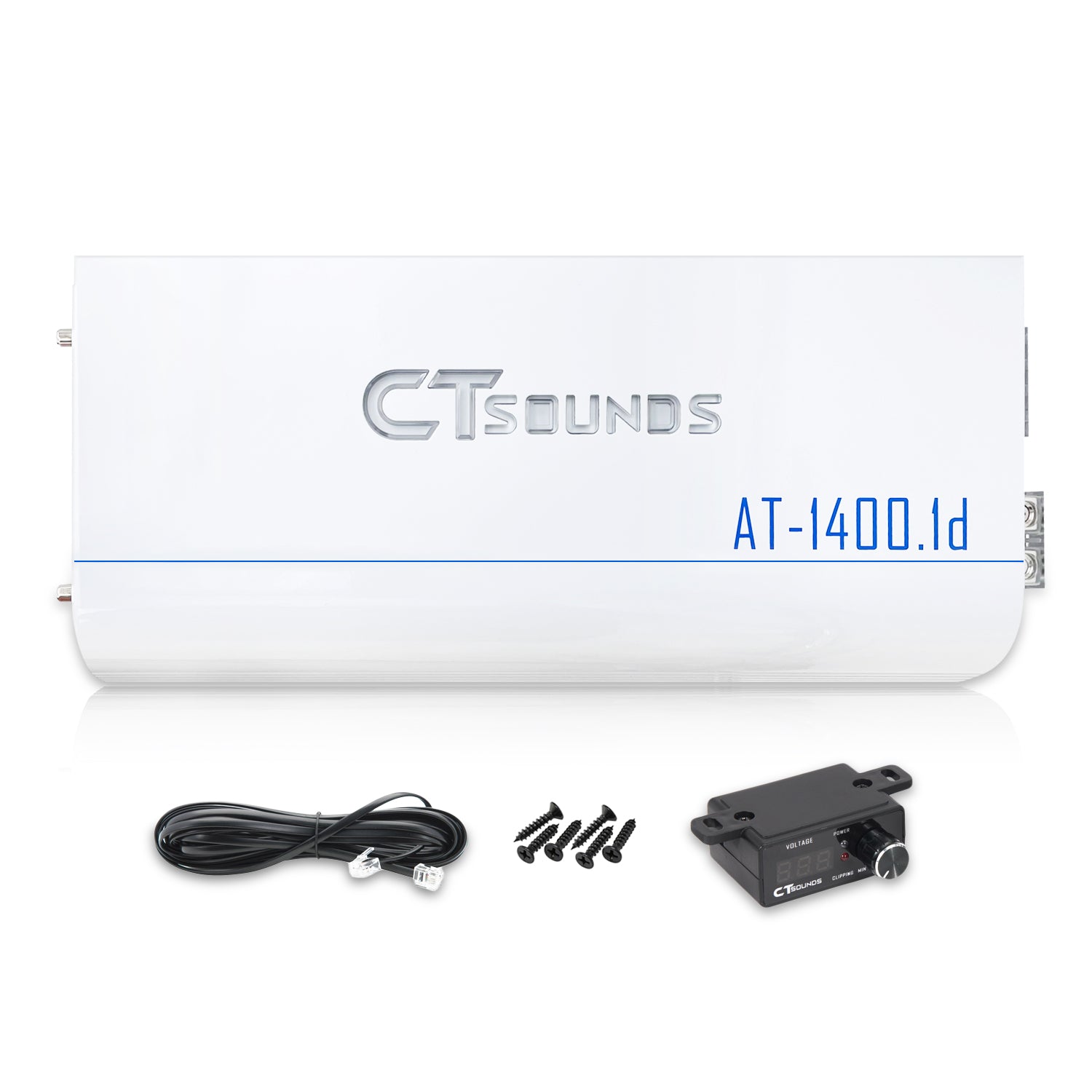

| AT Series Bass Knob Included: |
✔️ |
| Continuously-Variable Input Gain Control |
✔️ |
| Remote Turn-On / Turn-Off Circuit | ✔️ |
| MOSFET Pulse Width Modulated Power Supply | ✔️ |
| Soft Turn-On Circuit | ✔️ |
| High Voltage / Low Voltage Protection Circuit |
✔️ |
| Thermal and Speaker Short Protection Circuit | ✔️ |
| LED Power and Protection Indicators |
✔️ |
| Nickle Plated Tiffany Style RCAs |
✔️ |
| Bass Knob Features: | |
| AT Series Bass Knob: | 1. Remote Gain Control 2. Clip Light Indicator 3. Built-In Voltmeter 4. Pushable On/Off Switch |
| Technical Specifications: | |
| Amplifier Type: |
Monoblock Amplifier |
| Amplifier Circuitry: | Class D |
| Strappable? | Yes; Master/Slave Switch |
| RMS Power @ 1 Ohm: |
1400 Watts x 1-Channel (13.2v) |
| RMS Power @ 2 Ohm: |
850 Watts x 1-Channel (13.2v) |
| RMS Power @ 4 Ohm (Bridged): |
450 Watts x 1-Channel (13.2v) |
| Recommended Fuse: |
180A |
| Power & Ground Input Size: |
0 Gauge |
| Speaker Input Size: |
8 Gauge |
| Gain Adjustment: |
0.19v - 5v |
| Low Pass Filter (LPF): |
35 Hz - 250 Hz |
| Subsonic Filter (HPF): |
10 Hz - 50 Hz |
| Bass Boost: |
0 dB - 18 dB |
| Bass Boost Frequency: |
50 Hz |
| Phase Adjustment: |
0° - 180° |
| Frequency Response: |
10 Hz - 250 Hz |
| Signal-To-Noise Ratio (S/N): |
90 dB |
| Damping Factor: |
200 |
| Input Impedance: |
30 Kohms |
| Input Sensitivity: |
190 mV |
| Operating Voltage: |
9v - 16v |
| Minimum Impedance: |
1 ohm |
| Dimensions: | |
| Length: |
17.99" |
| Width: |
7.59" |
| Height: |
2.28" |
