ATv2-3000.1d // 3500 Watts RMS Monoblock Car Amplifier

Save 25% Save 25%
Original price $799.99
Original price $799.99 - Original price $799.99
Original price $799.99
Current price $599.99
$599.99 - $599.99
Current price $599.99

The CT Sounds ATv2-3000.1d monoblock class d car amplifier will deliver the power you need to destroy the competition in the SPL lanes. Rated at 13.2v, this monoblock amplifier will deliver over 3500 watts rms power at 1 ohm. The car monoblock amplifier is strappable (slave/master switch) so that you can get more power output should your system require it.

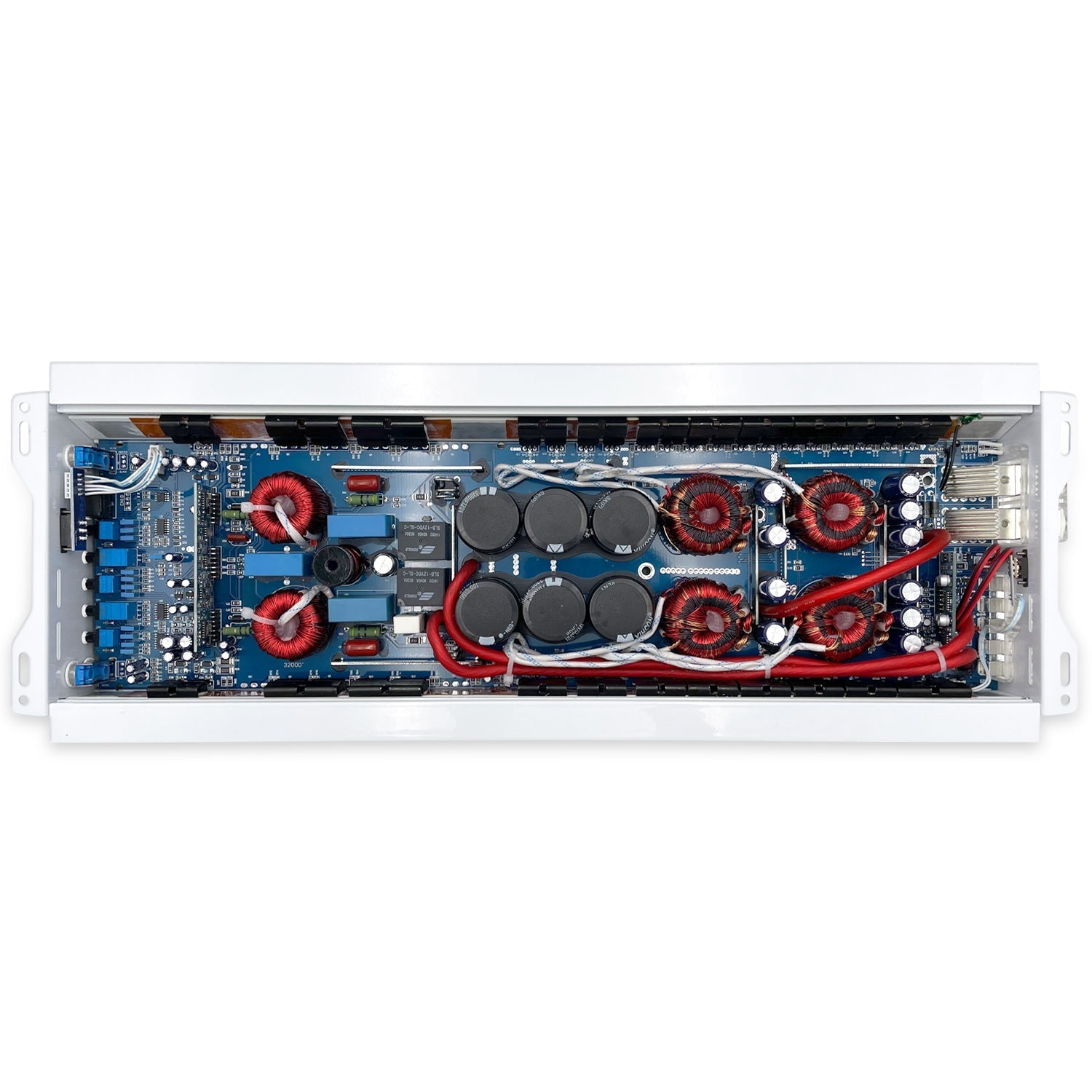

Engineered to be the best in its class, the amplifier uses an advanced PCB board featuring industry-leading capacitors, MOSFET pulse width modulated power supply, high-quality transformers, and cutting-edge inductors. The amplifier comes equipped with a 4-way protection circuitry along with reverse polarity protection.

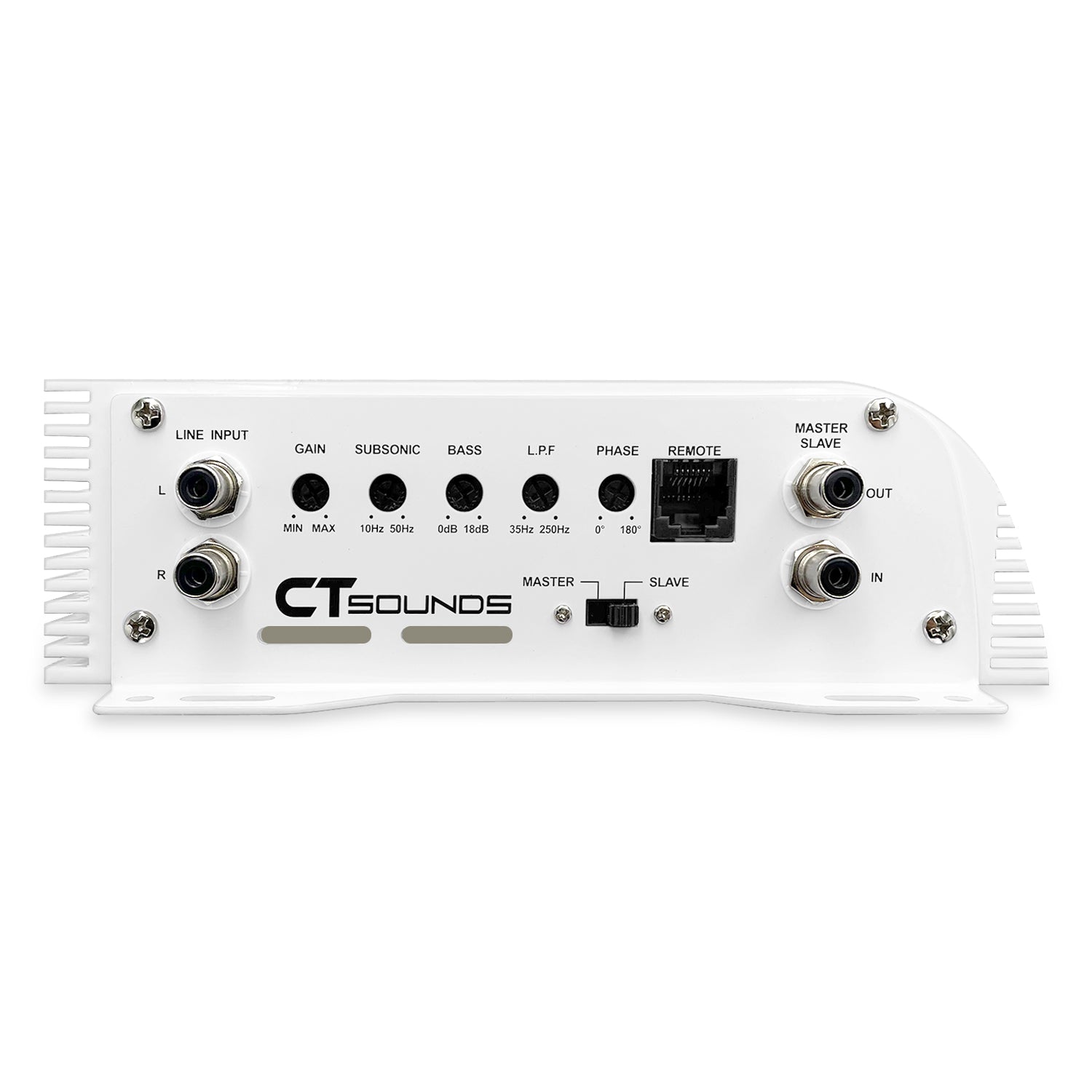

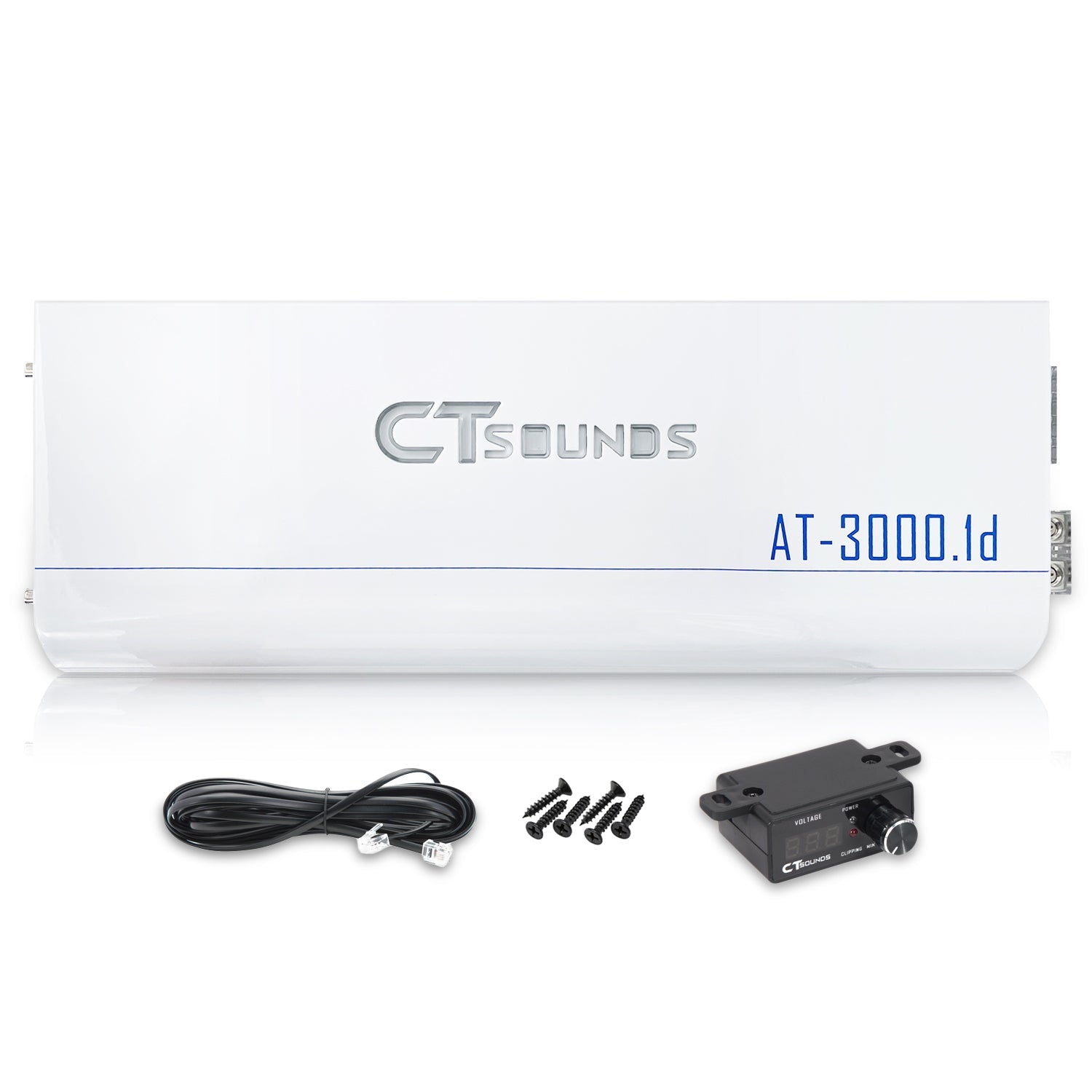

The plexiglass backing, illuminated LED CT Sounds logo, and white chassis give this amplifier an unbeatable appearance. Variable adjustment controls feature gains, subsonic, bass boost, low pass filter, and phase settings so you can get the exact sound you are looking for out of your amplifier. Included with the amplifier is the highly demanded AT Series On/Off Bass Knob which not only lets you adjust the bass boost but also displays your system voltage.

Quick Facts:
RMS Power: 1Ω @ 13.2v 3000 Watts x 1-Channel
RMS Power: 2Ω @ 13.2v 1600 Watts x 1-Channel
RMS Power: 4Ω @ 13.2v 800 Watts x 1-Channel
Power & Ground Input Size: 0 Gauge
Speaker Input Size: 8 Gauge
FEATURES
Features:
AT Series Bass Knob Included: ✔️
Continuously-Variable Input Gain Control ✔️
Remote Turn-On / Turn-Off Circuit ✔️
MOSFET Pulse Width Modulated Power Supply ✔️
Soft Turn-On Circuit ✔️
High Voltage / Low Voltage Protection Circuit ✔️
Thermal and Speaker Short Protection Circuit ✔️
LED Power and Protection Indicators ✔️
Nickle Plated Tiffany Style RCAs ✔️
Bass Knob Features:
AT Series Bass Knob: 1. Remote Gain Control
2. Clip Light Indicator
3. Built-In Voltmeter
4. Pushable On/Off Switch
SPECS
Technical Specifications:
Amplifier Type: Monoblock Amplifier
Amplifier Circuitry: Class D
Strappable? Yes; Master/Slave Switch
RMS Power @ 1 Ohm: 3000 Watts x 1-Channel (13.2v)
RMS Power @ 2 Ohm: 1600 Watts x 1-Channel (13.2v)
RMS Power @ 4 Ohm (Bridged): 800 Watts x 1-Channel (13.2v)
Recommended Fuse: 350A
Power & Ground Input Size: 0 Gauge
Speaker Input Size: 8 Gauge
Gain Adjustment: 0.23v - 5.6v
Low Pass Filter (LPF): 35 Hz - 250 Hz
Subsonic Filter (HPF): 10 Hz - 50 Hz
Bass Boost: 0 dB - 18 dB
Bass Boost Frequency: 50 Hz
Phase Adjustment: 0° - 180°
Frequency Response: 10 Hz - 250 Hz
Signal-To-Noise Ratio (S/N): 91 dB
Damping Factor: 200
Input Impedance: 30 Kohms
Input Sensitivity: 230 mV
Operating Voltage: 9v - 16v
Minimum Impedance: 1 ohm
Dimensions:
Length: 21.14"
Width: 7.59"
Height: 2.28"
