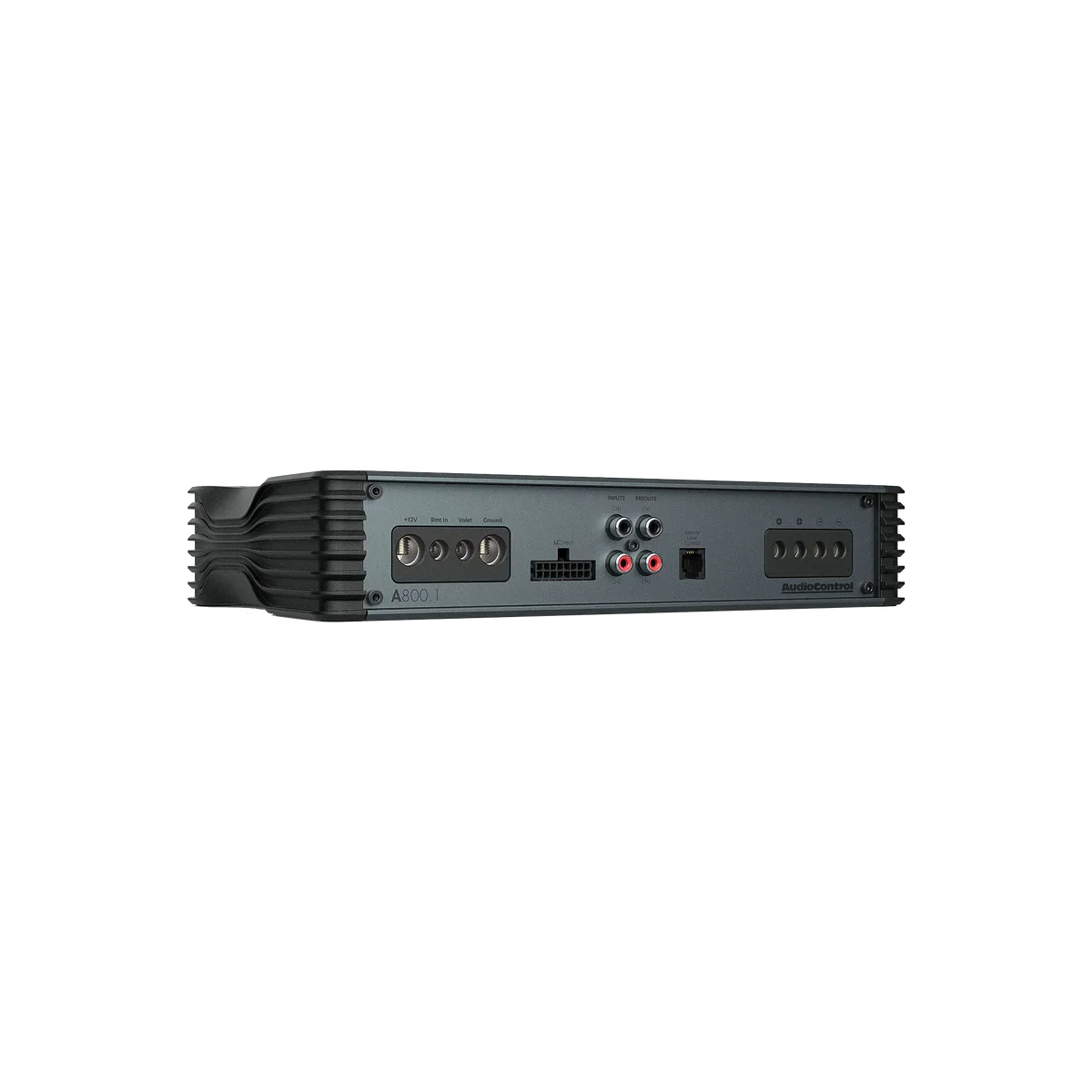

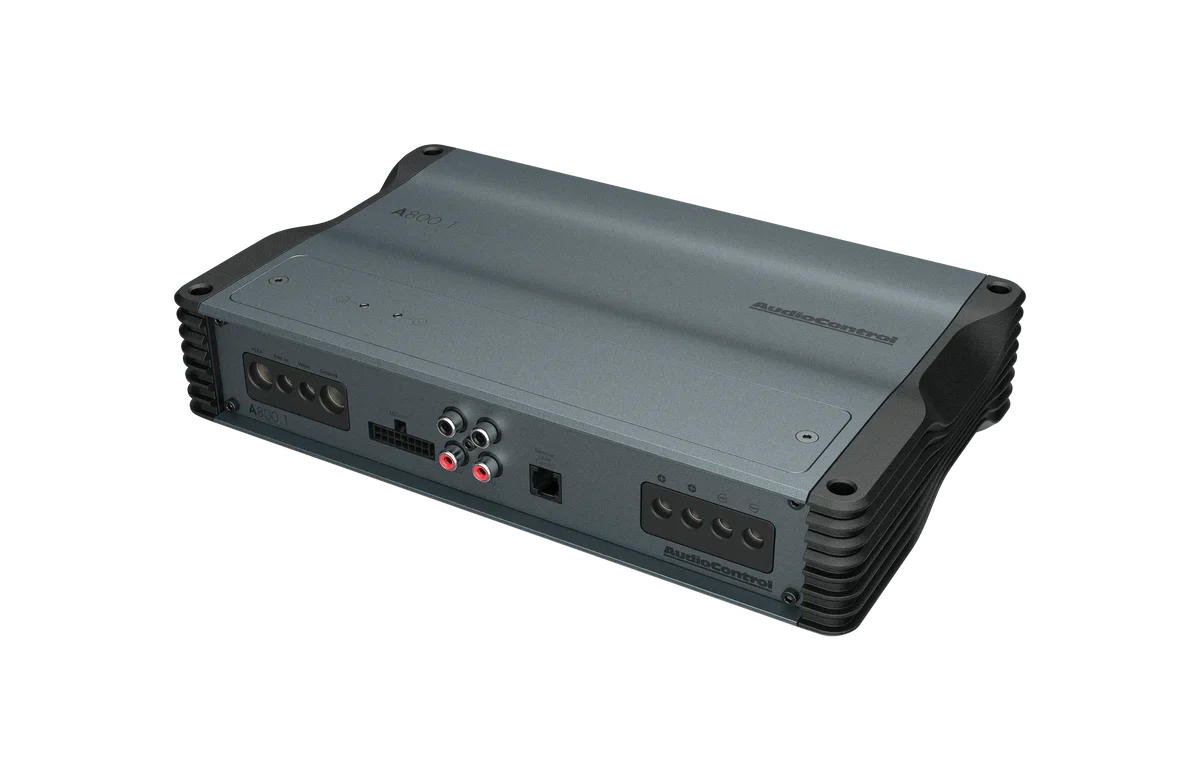

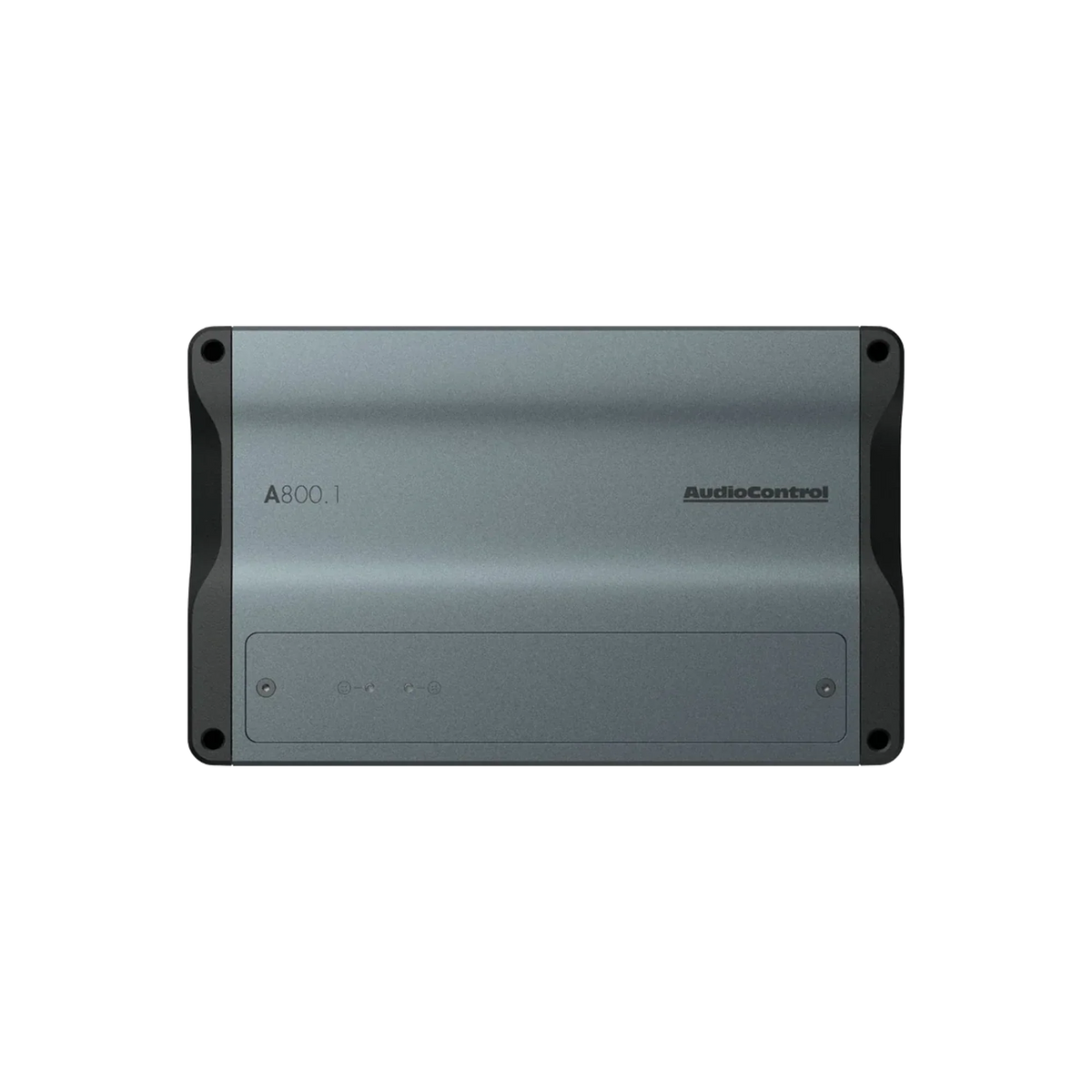

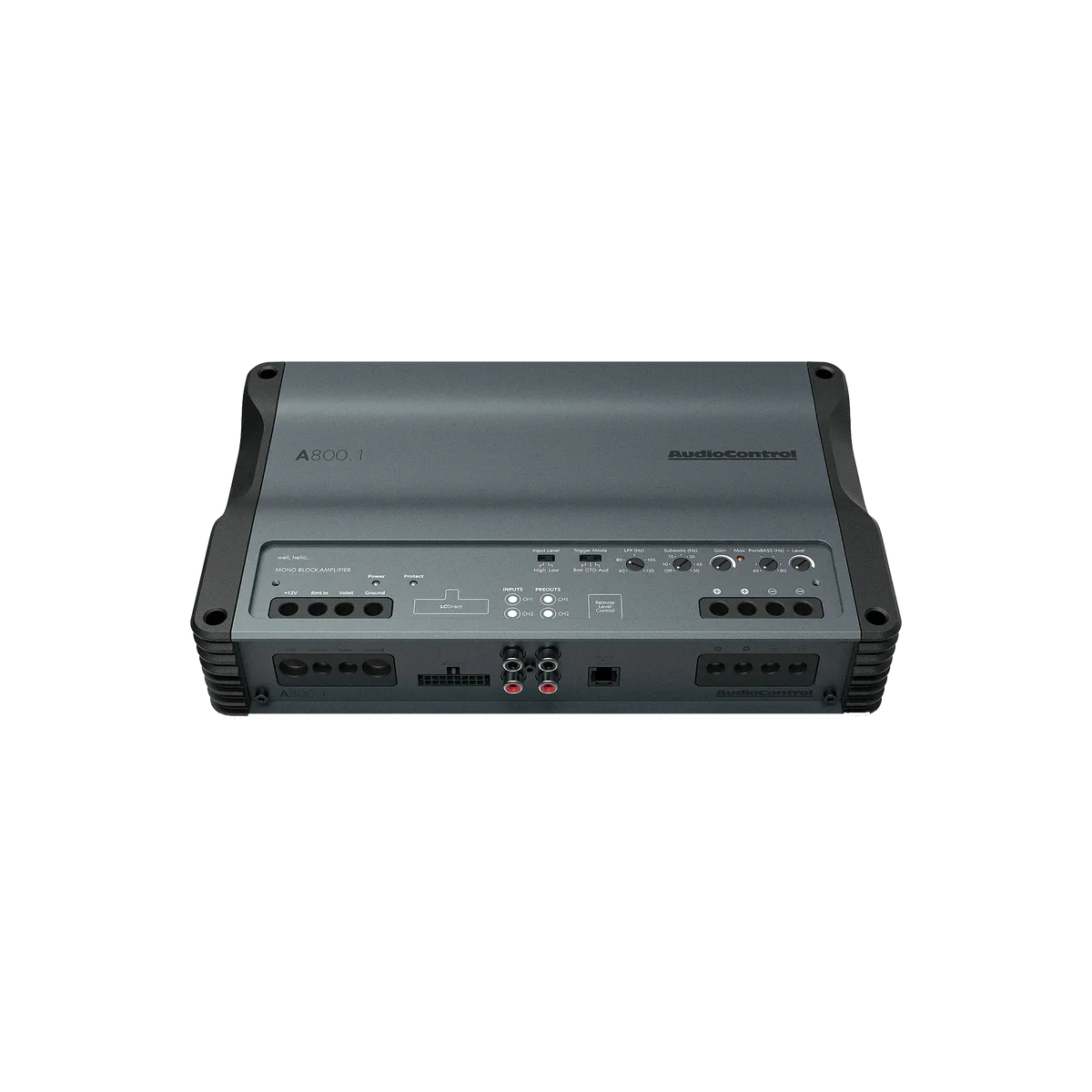

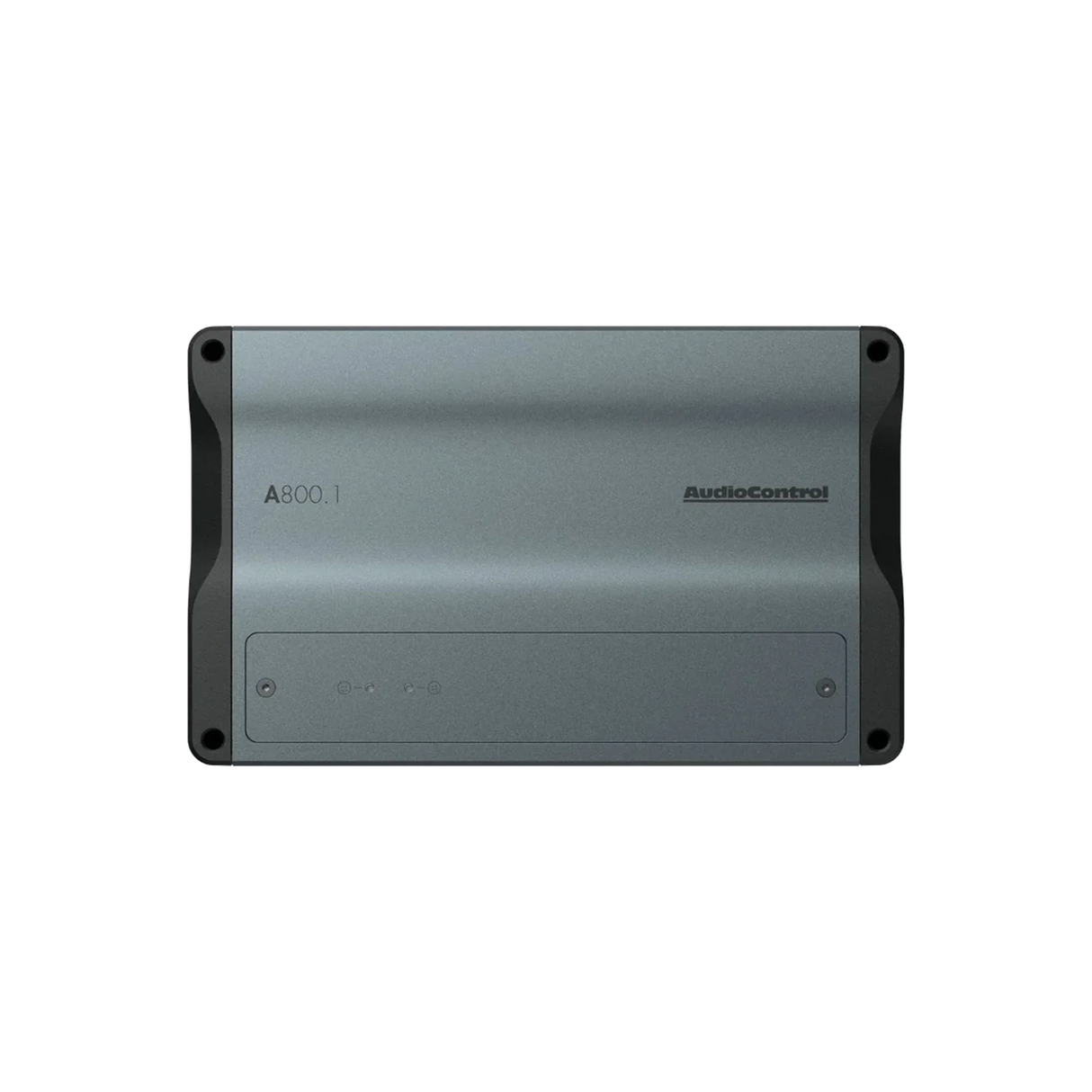

AudioControl Altitude A800.1 | 800W RMS Monoblock Amplifier
AudioControl Altitude A800.1 | 800W RMS Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Elevate your audio experience with AudioControl’s Altitude Amplifier Series, designed from the ground up to be sleek and modern with a minimalist aesthetic. The anodized matte grey aluminum chassis provides superior thermal dissipation. Performing at the top of their class, these amplifiers offer robust power and exceptional quality.
Altitude amplifiers feature Valet Mode, which safeguards your system from unintended damage by limiting the maximum volume to 25% when activated. They are also compatible with start-stop systems and electric vehicles, ensuring outstanding performance in any vehicle.
Pair Altitude amplifiers with AudioControl’s PNW speakers and Space or Spike subwoofers. This combination creates a
soundscape engineered to deliver the pure, uninterrupted power that AudioControl is known for.
Spike Mode allows you to connect three 4Ω subwoofers at 1.33Ω, unleashing even more power from your Altitude Series amplifier, designed to run cool at maximum output for extended periods of time.
With the ParaBASS control knobs you can fine-tune your bass for the ultimate audio experience. Customize your sound and feel the difference. Your bass, your way.
- The power supply circuitry adopts advanced pulse width modulator integrated circuits that are designed to offer improved performance and efficiency.
- Designed with Advanced HEXFET® Power MOSFETs from International Rectifier that utilize advanced processing techniques to achieve extremely low on-resistance and reliable fast switching speed.
- Premium Toroidal Transformer for optimal electrical efficiency and minimal signal distortion.
- Premium Low ESR capacitors for minimal power loss and reduced internal heating.
- Precision metal potentiometers for precise tuning and sturdy construction
- Features 500V Class X2 capacitors with self-healing properties for high-frequency, high-current protection, ensuring low-loss AC peak surge and MOSFET protection.
- High-efficiency Ferrite Core Inductor power output filters provide low current eddy losses over frequencies with high permeability.
- High-performance class D intelligent driver IC with PWM modulator and protection with HEXFET Power MOSFET for abundant power and high efficiency.
FEATURES
-
High/Low Input Modes
-
GTO™ Signal Sense
-
Linkwitz-Riley Crossovers
-
Start-Stop Compliant
-
High Power Output in a Sleek Chassis
-
ParaBASS® Low Frequency Contouring
-
Valet Mode Option
-
Optional Remote Level Control (ACR-1)
- EV Compliant up to 17V
- Spike Mode Enabled
SPECIFICATIONS
INPUTS
- Preamp Inputs: 2
- Line-Level Inputs: 6 V max
- Speaker-Level Inputs: 20 V max
OUTPUTS
- Rated Continuous (RMS) Power at 14.4V:
-
400W x 1 @ 4Ω
-
600W X 1 @ 2Ω
- 800W x 1 @ 1.33Ω
-
400W x 1 @ 4Ω
