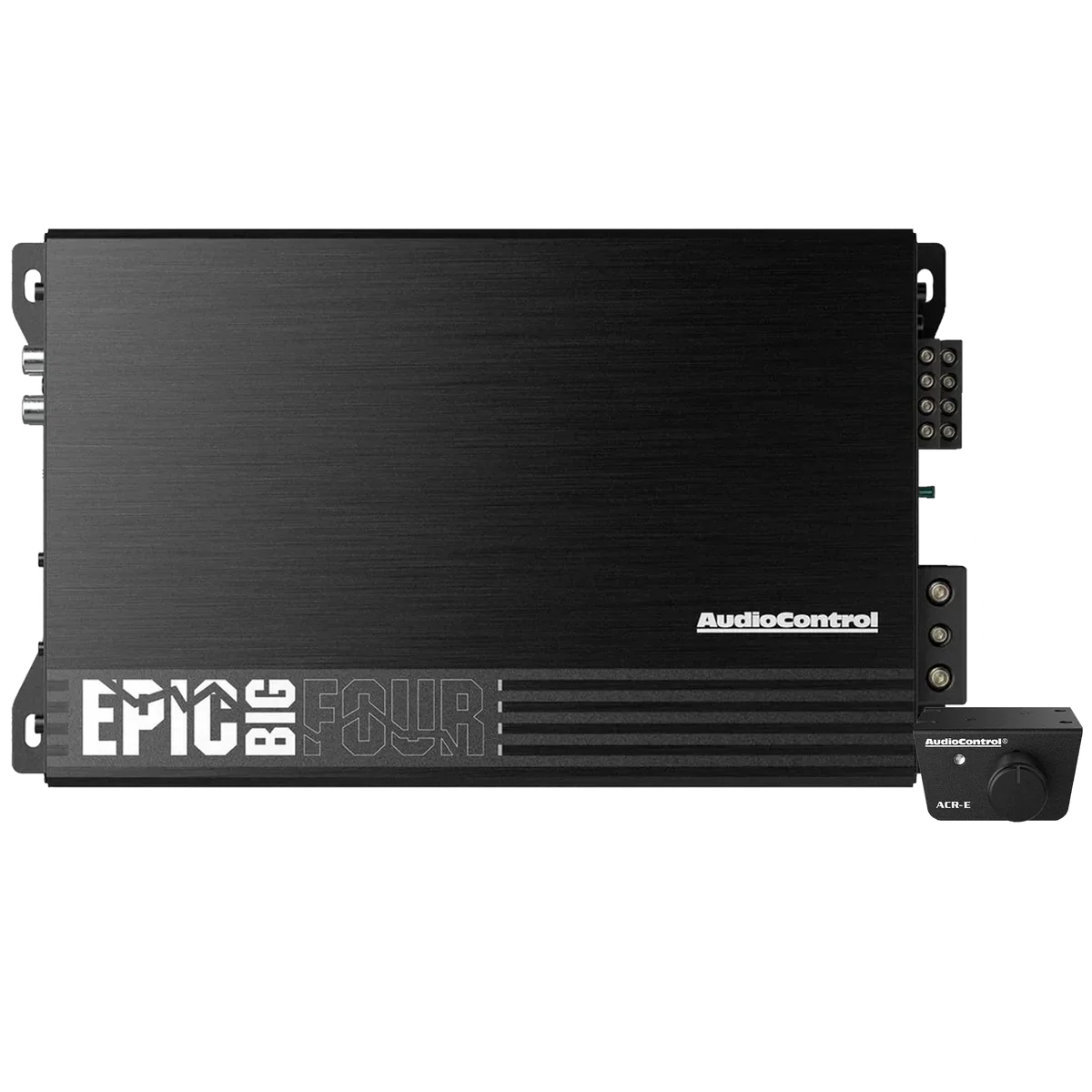

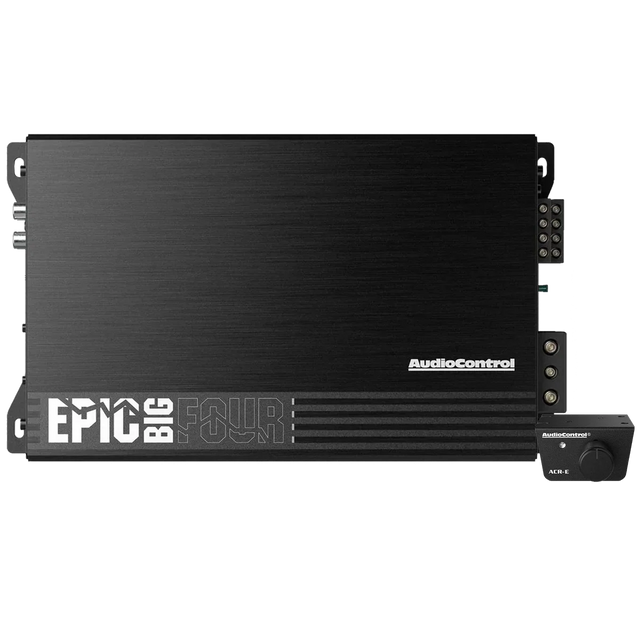

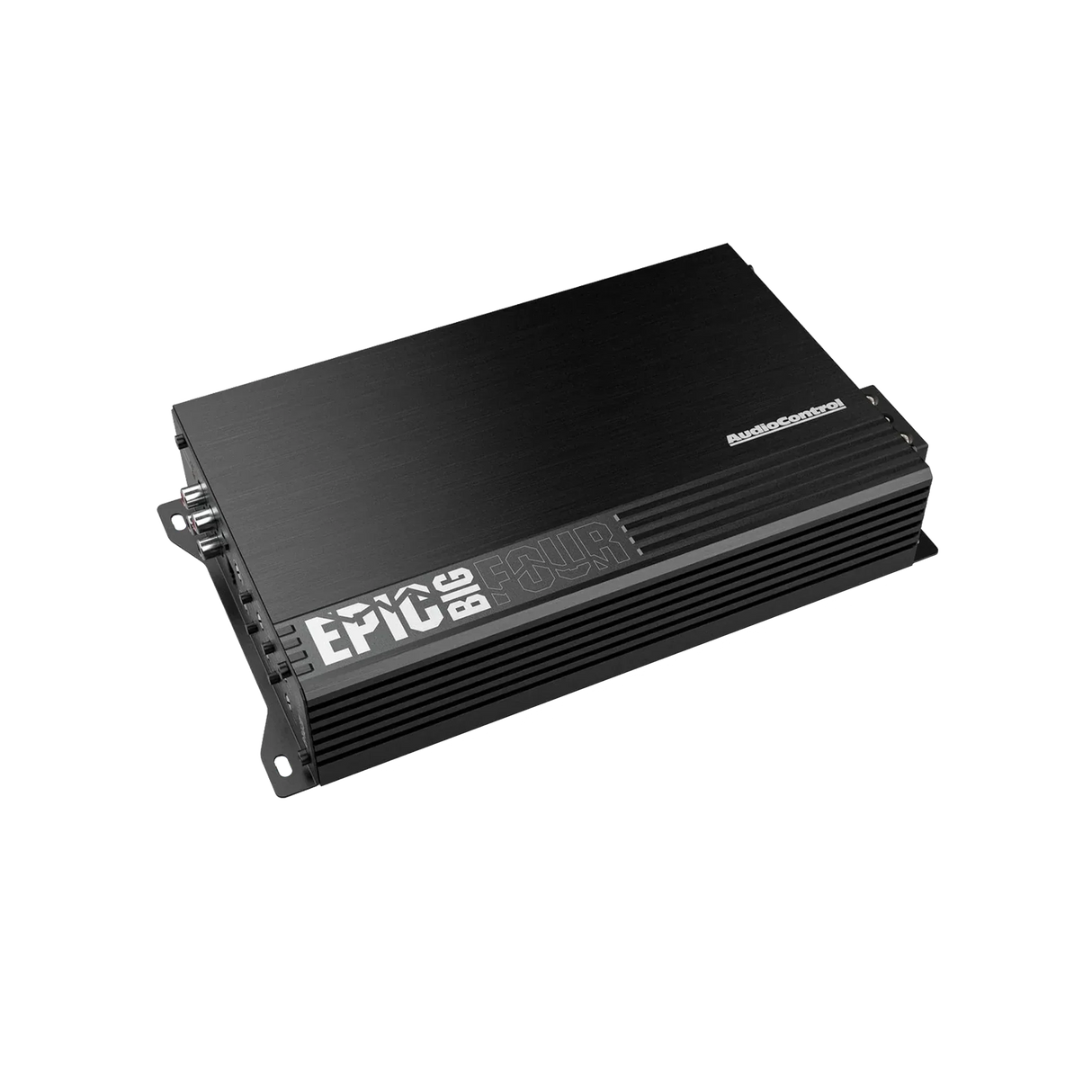

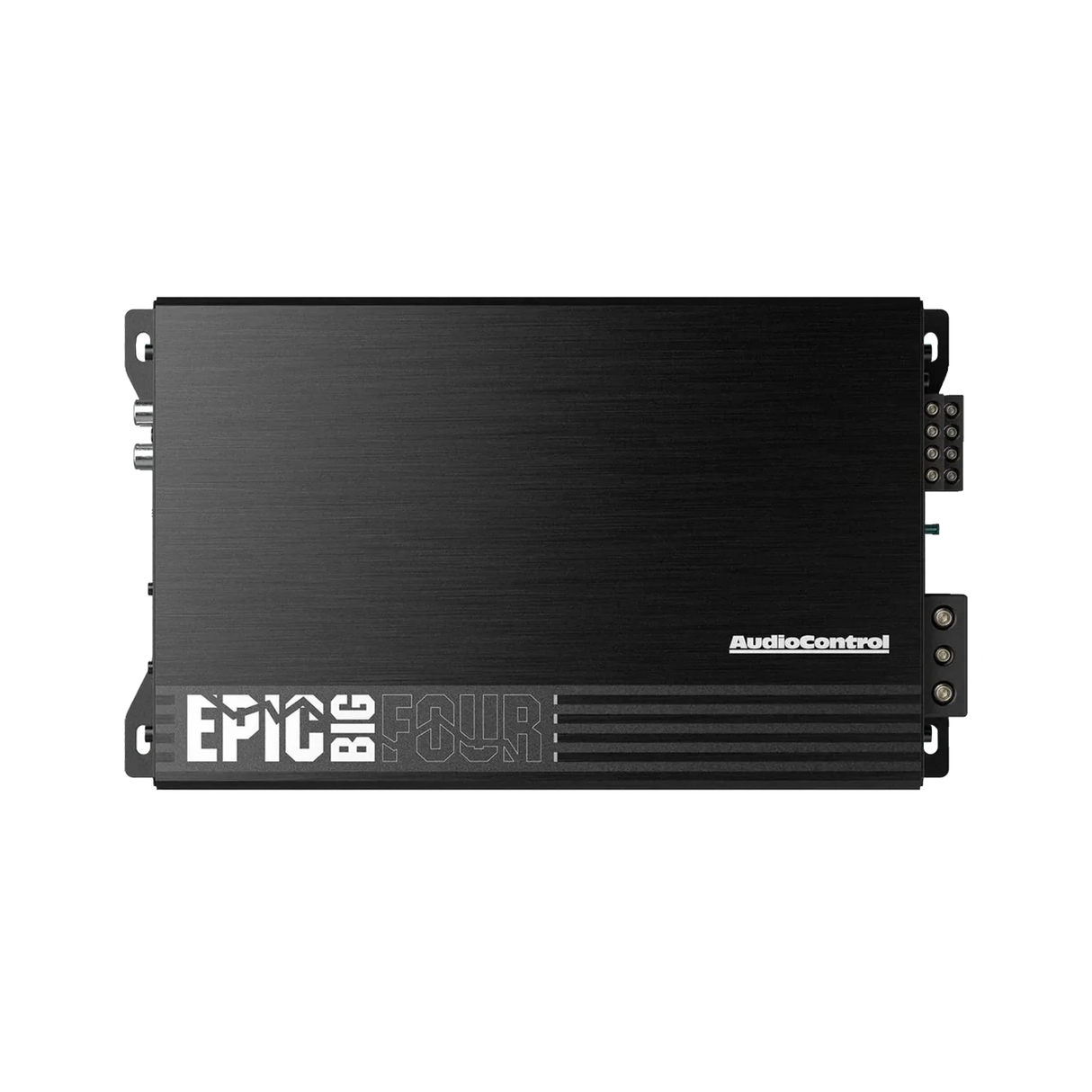

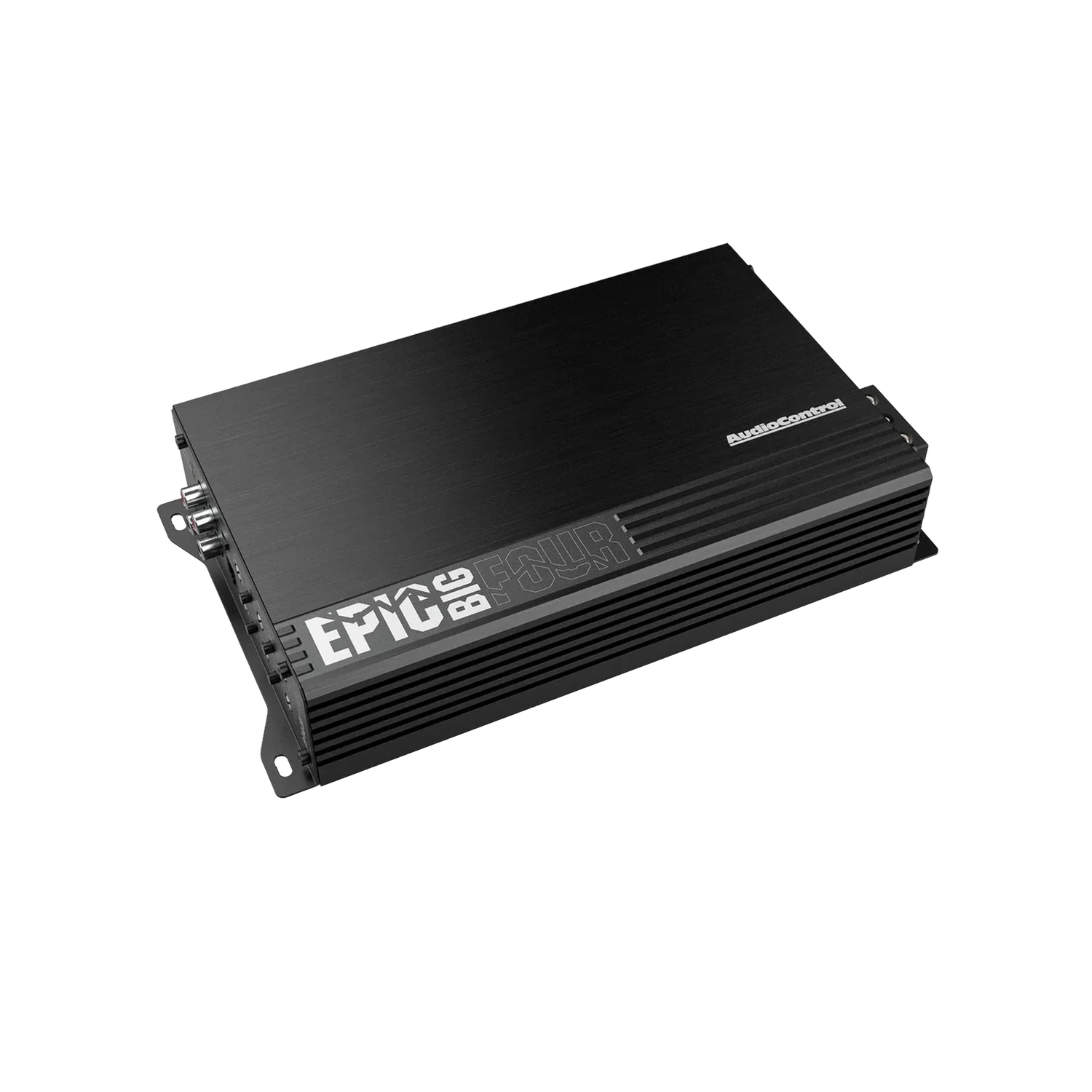

AudioControl EPICBIGFOUR 1400W RMS 4-Channel Amplifier
AudioControl EPICBIGFOUR 1400W RMS 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
AudioControl EPICBIGFOUR 1400W RMS 4-Channel Amplifier
AudioControl EPICBIGFOUR 1400W RMS 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package. The EPICBIGFOUR is designed to deliver massive power at 1400W RMS.
- Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
- Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
- 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
- 89dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
-
Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
- Output Over-Current Protection (OCP)
- Input Over-Voltage Protection (OVP)
- Input Under-Voltage Protection (UVP)
- Output DC-Offset Protection (DCP)
- Over-Temperature Protection (OTP)
- Output Over-Current Protection (OCP)
- EPICENTER Link: Compatible with The EPICENTER bass restoration processor.
FEATURES
• Compact High-Power Class D Amplifier
• High-Current Design – 2Ω Stable
• 4 x 200 Watts @ 4 ohms
• 4 x 350 Watts @ 2 ohms
• 2 x 650 Watts @ 4 ohms Bridged
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable High Pass & Low Pass Filters

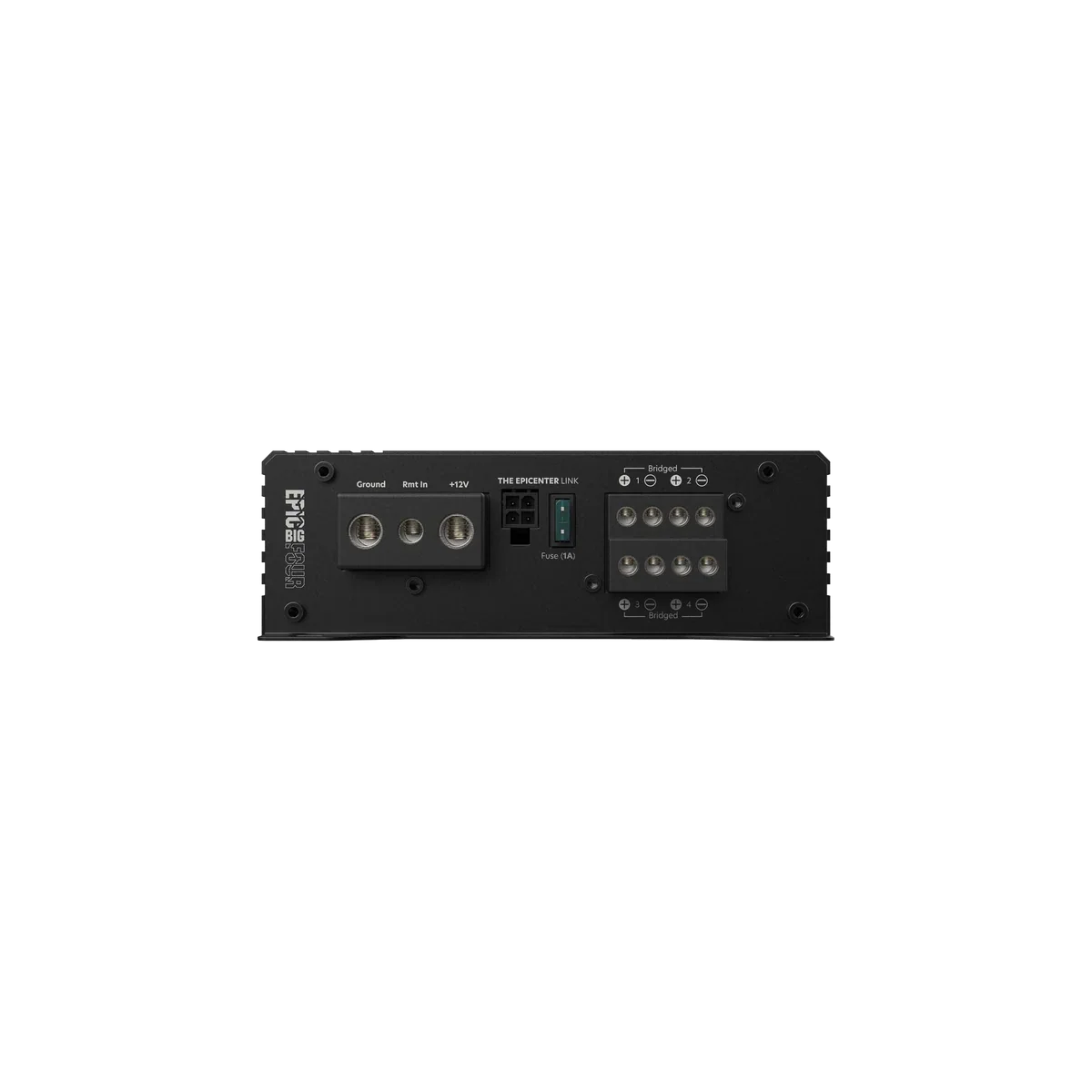

• Solid Power/Speaker Terminals with Hex Screws
• ACR-E Remote Bass Knob Included
SPECIFICATIONS

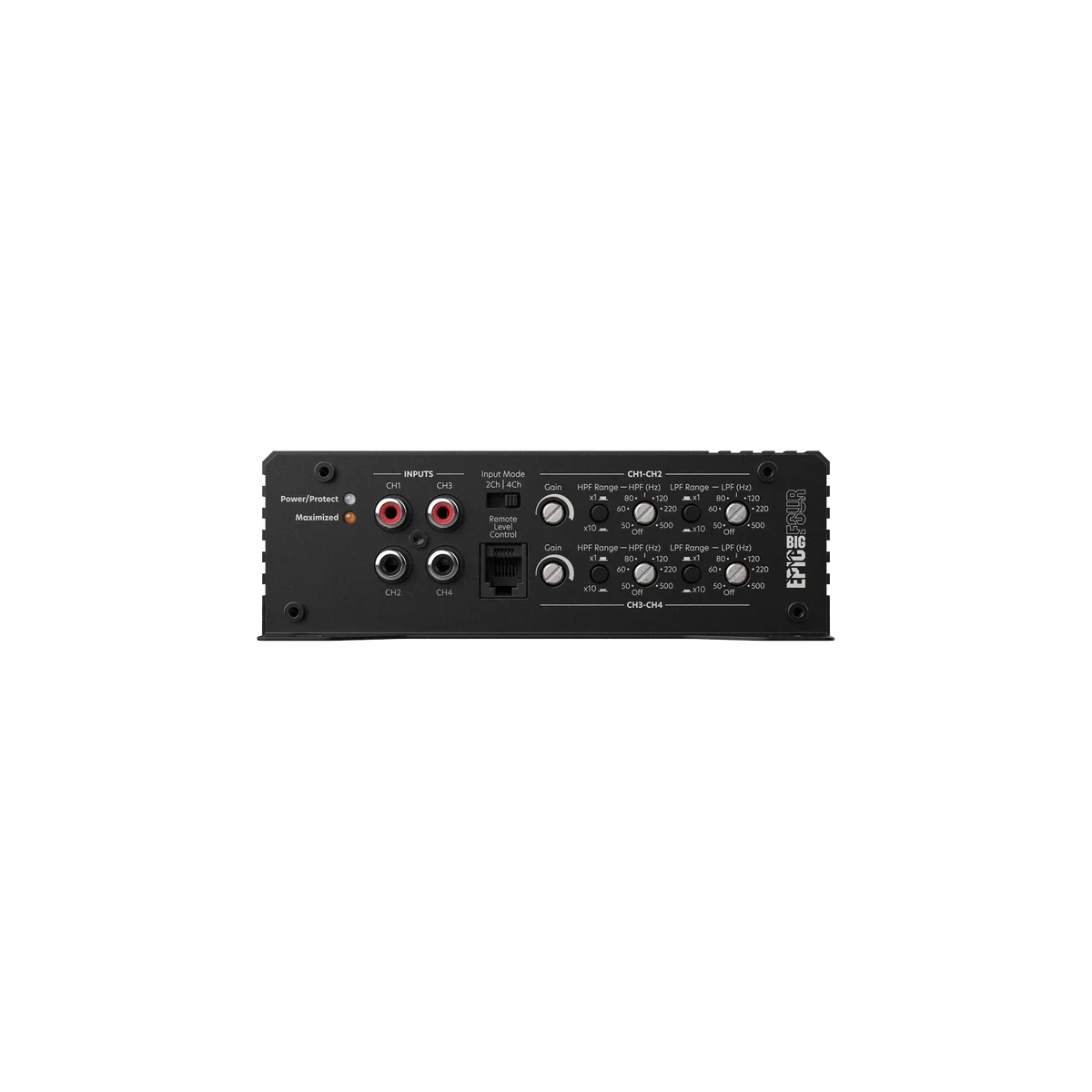

INPUTS
- Line-Level Inputs: 500mV – 12V RMS
OUTPUTS
-
Continuous Power (RMS) @ 14.4V
-
4 x 200 Watts @ 4 ohms
-
4 x 350 Watts @ 2 ohms
-
2 x 650 Watts @ 4 ohms Bridged
-
WEIGHTS & DIMENSIONS
- DIMENSIONS: 6.1″ W x 10.56″ L x 2.01″ H
PERFORMANCE
- Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
- S/N Ratio: 89 dBa, Ref 200 Watts @ 4 ohms
- Power / Ground Wire Gauge: 4 AWG
- Recommended Fuse Rating: 150 Amps
- High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz
- Low Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz
- Speaker Terminal Wire Gauge: 8 AWG
IN THE BOX: EPICBIGFOUR, Wrench, Screws, ACR-E Remote Level Control & Cable, Manual, Warranty
