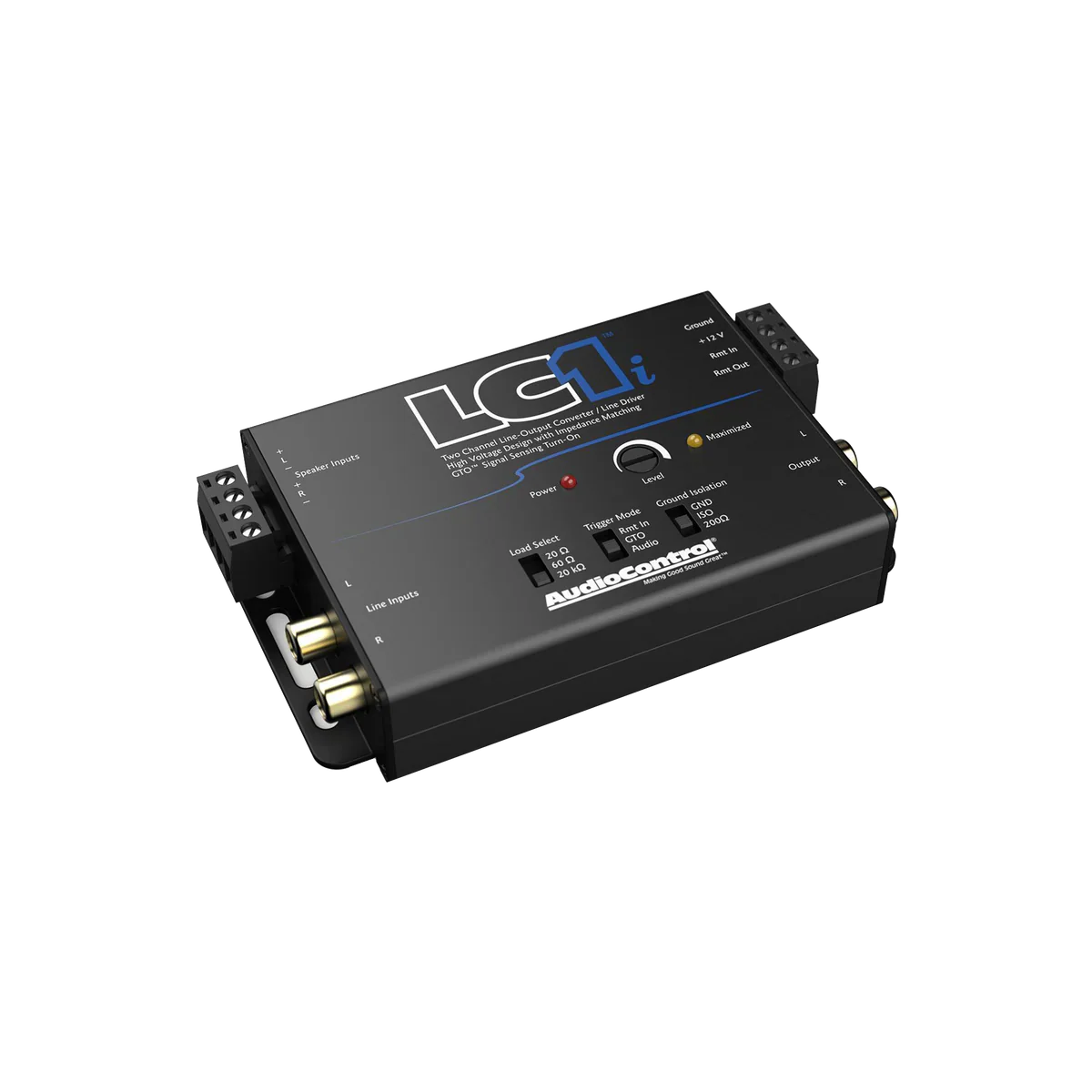

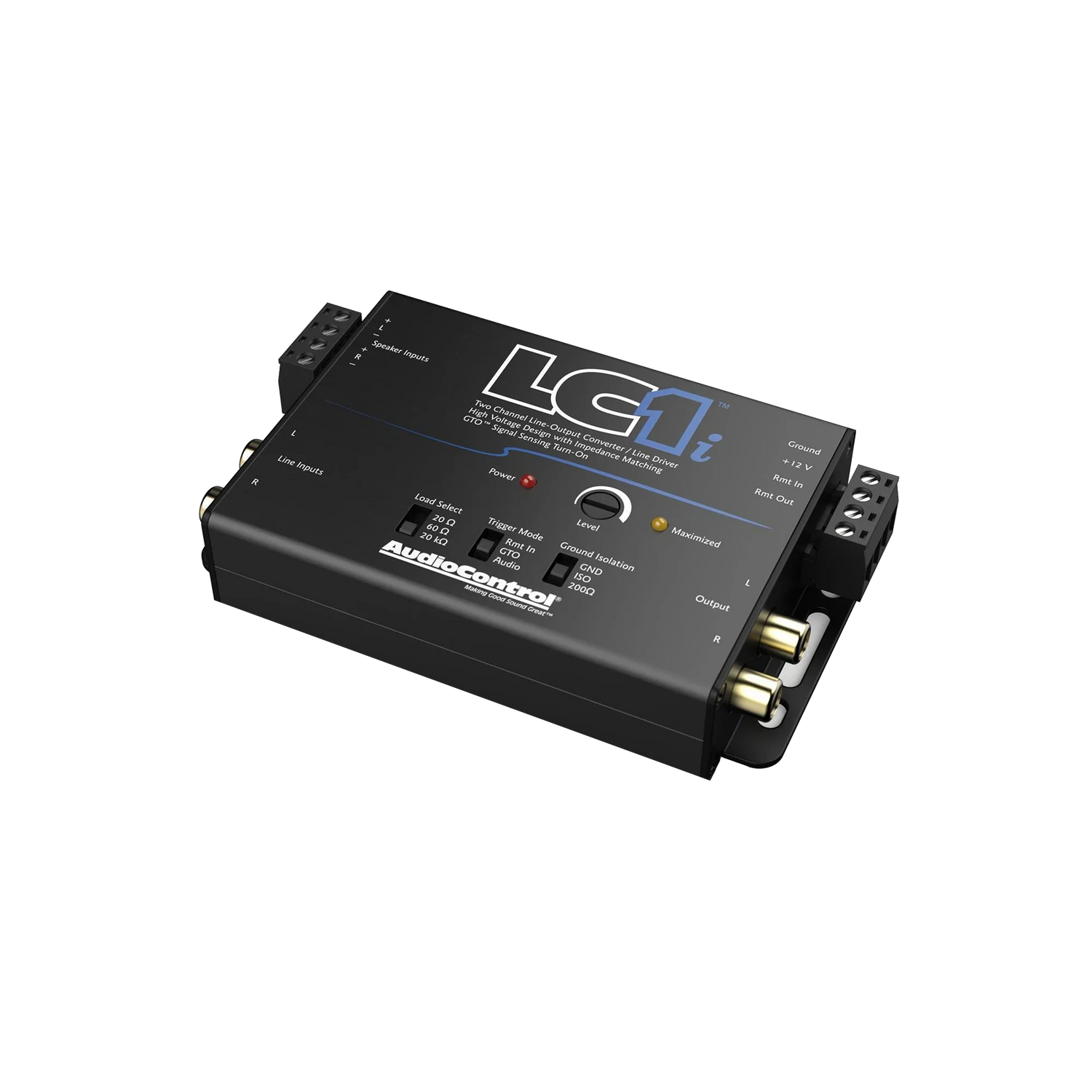

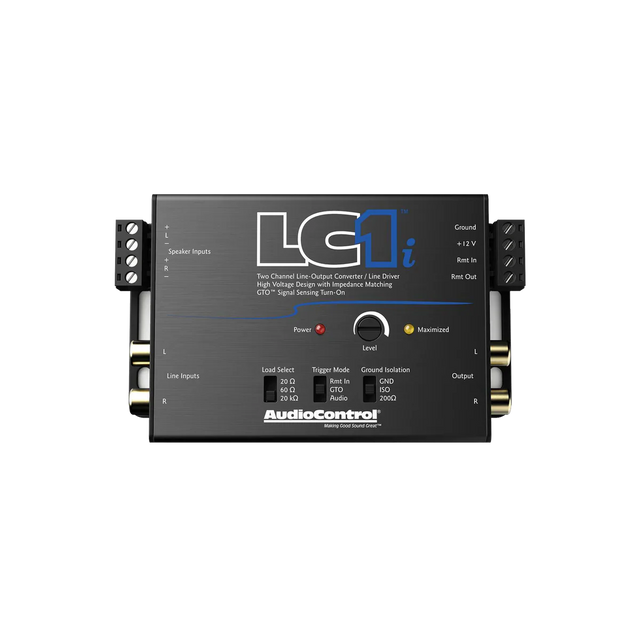

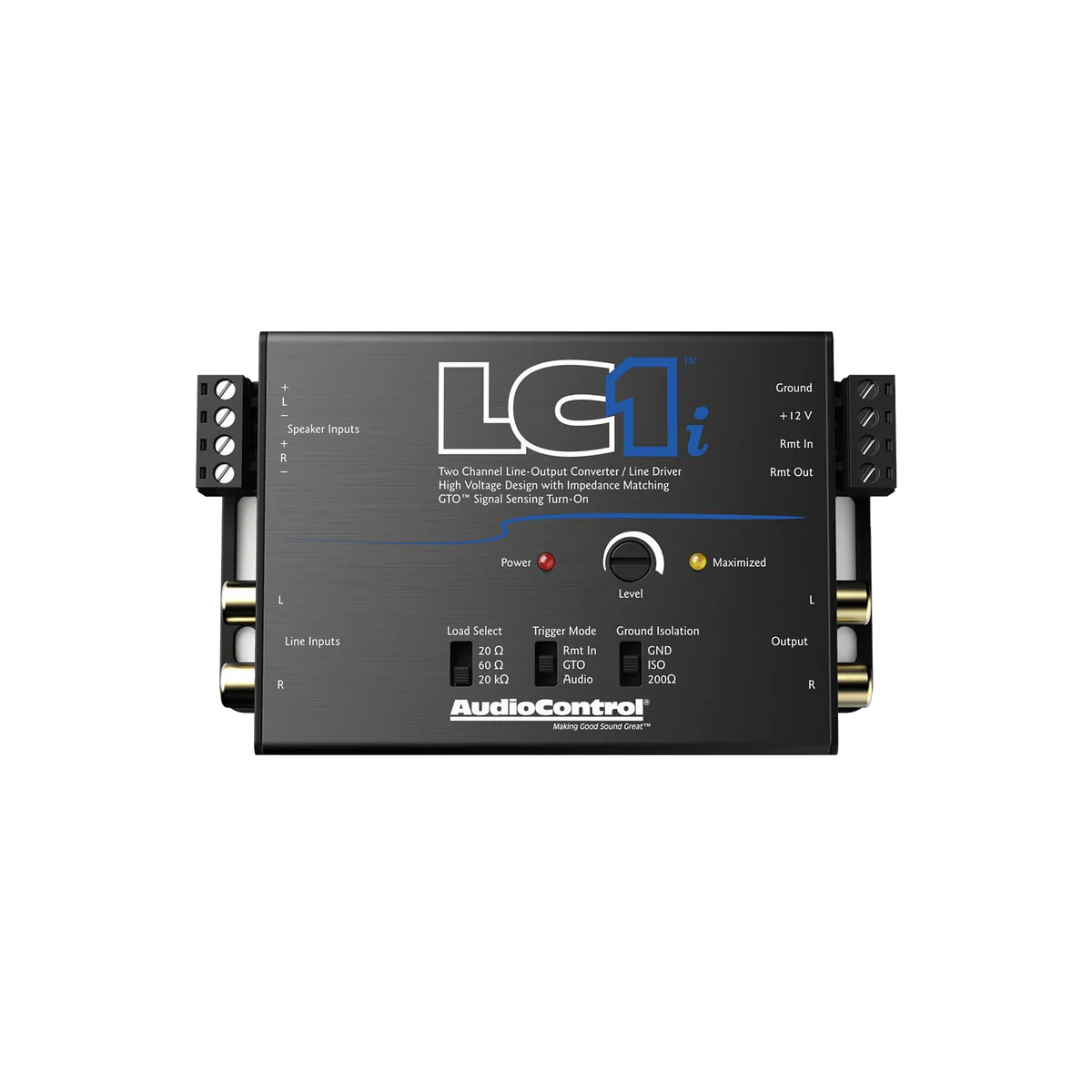

AudioControl LC1i 2-Channel Line Output Converter & Line Driver
AudioControl LC1i 2-Channel Line Output Converter & Line Driver is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
AudioControl LC1i 2-Channel Line Output Converter & Line Driver
AudioControl LC1i 2-Channel Line Output Converter & Line Driver is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
SPECIFICATIONS
- Two channels of active speaker level inputs (up to 40V input handling)
- Two channels of line level inputs
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- Compact design
INPUTS
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
- Line Level Input: 1 (2 channels)
- Line Level Input Impedance: 7kΩ
OUTPUTS
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 12 dB
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110 dB
- Frequency Response: 20 Hz – 50 kHz ±1 dB
CONTROL
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
GENERAL
- Current Draw: 120 mA
- Recommended Fuse Rating: 1 A
WEIGHTS & DIMENSIONS
- Dimensions: 4.8″L x 3″D x 1″H (including speaker connectors)
- Weight: 0.55 lbs. (0.25 kg)
