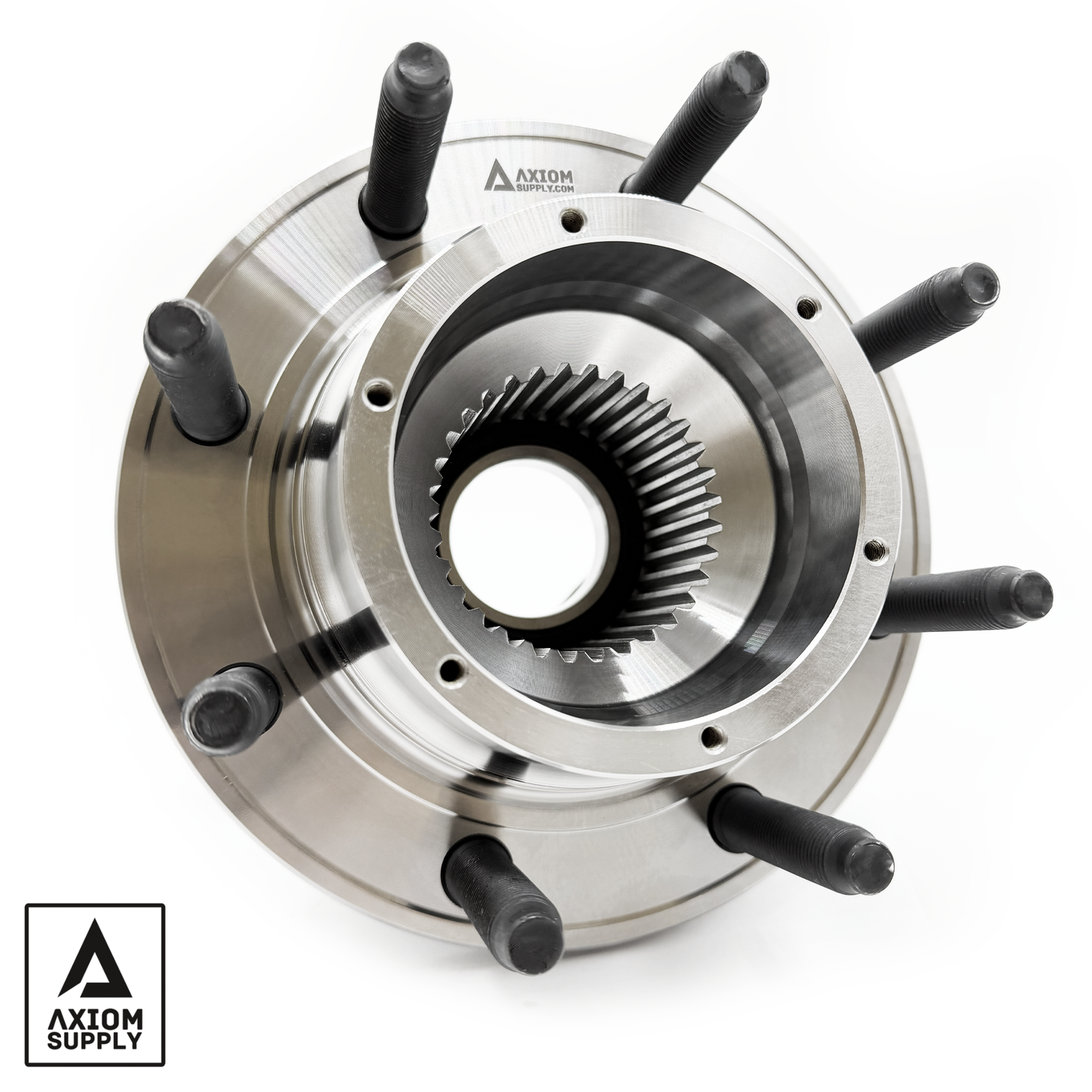

Axiom Supply Front Wheel Bearing & Hub Assembly – 2005–2010 Ford Super Duty F250/F350 (SRW 4WD)
When a front hub starts to fail on a Super Duty, you feel it—loose steering, noise, and reduced braking stability. The Axiom Supply Wheel Bearing & Hub Assembly is built to eliminate those issues with a stronger, more precise design made for real truck use.
Engineered for 2005–2010 F250/F350 SRW 4WD, this complete bolt-in assembly improves durability, reduces deflection under load, and keeps your front end tight—even with towing, larger tires, or lifted setups.
🔥 Key Features
-
Fits 2005–2010 Ford F250/F350 4WD (SRW Only)
-
Precision Tapered Roller Bearings
Pre-loaded with high-performance grease for smooth, maintenance-free operation -
Heavy-Duty Hub Design
Reduces hub-face deflection under load for tighter steering response -
Premium Grade 10.9 Wheel Studs
Cold-formed and zinc-plated for maximum strength and corrosion resistance -

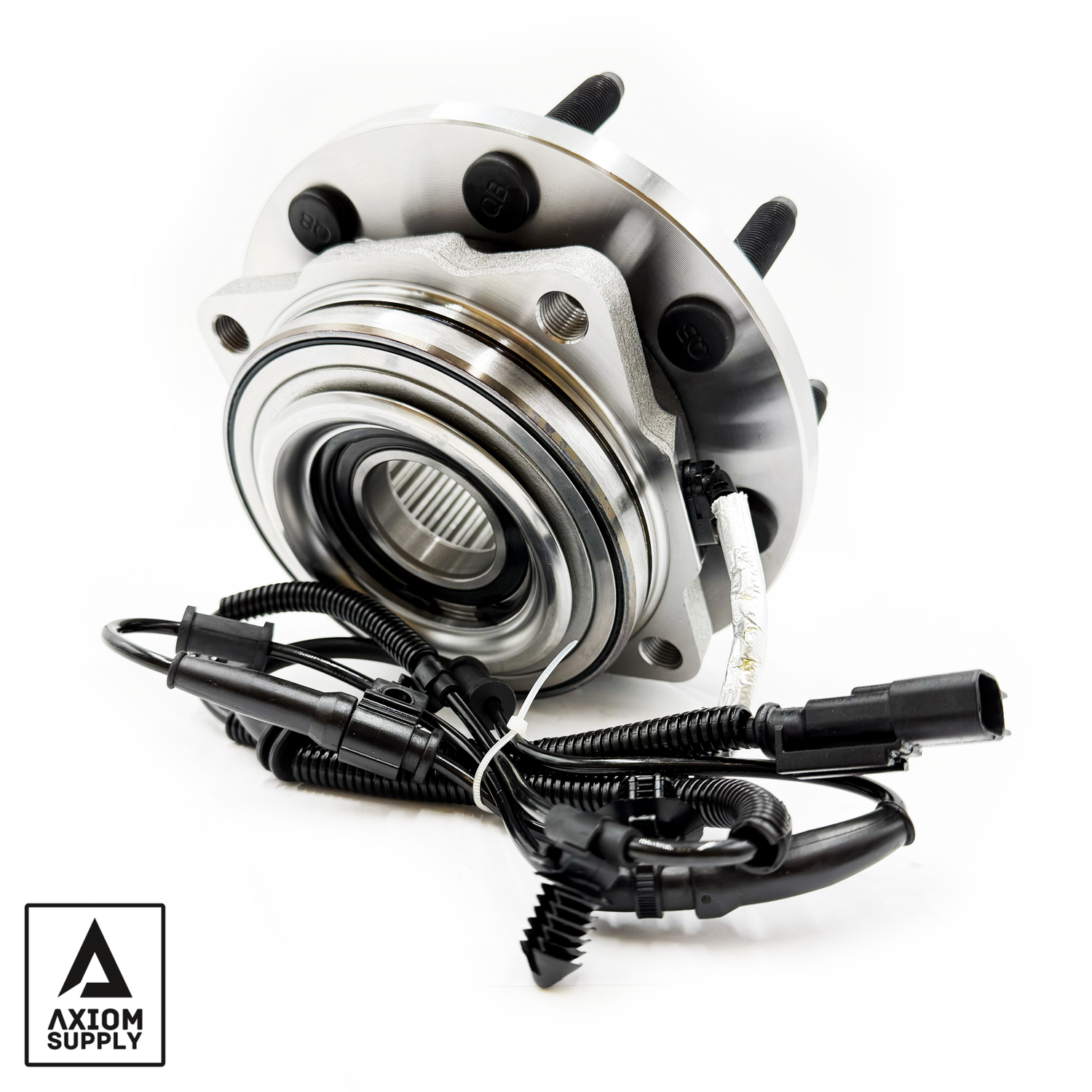

Integrated ABS Sensor
Built to maintain accurate signal in heat, mud, and moisture -
8x M14-1.5 Fine Thread Stud Configuration
-
Complete Bolt-In Assembly
Works on left or right side with no modifications required
🛠️ Why Upgrade Your Hub Assembly?
Worn or weak hubs can cause:
-
Steering play or wandering
-
Wheel noise or vibration
-
Reduced braking stability
-
Premature wear with oversized tires
This upgraded assembly is designed to handle:
-
Heavy towing loads
-
Lifted suspension setups
-
Larger wheel and tire combinations

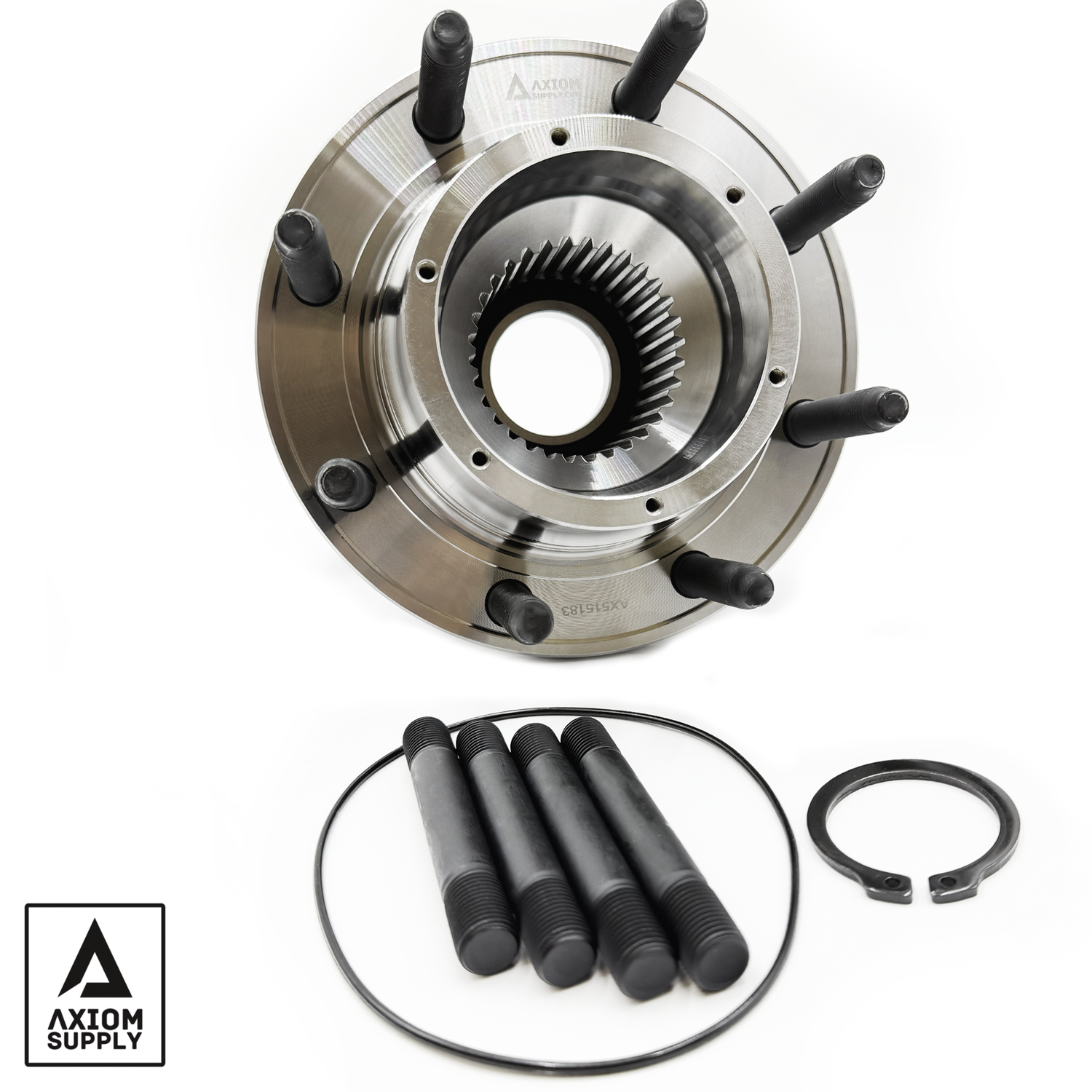

📦 What’s Included
-
(1) Wheel Bearing & Hub Assembly
-
Integrated ABS wire
-
(4) Mounting bolts
-
(1) O-ring
-
(1) Retainer ring
⏱️ Installation
-
Direct bolt-in replacement
-
Typical install time: ~2 hours
-
No special modifications required
🔧 Torque Specifications
-
Spindle Bolts (4): 133 lb-ft
-
Caliper Bolts (2): 166 lb-ft
Hub Nut Procedure:
-
While rotating hub, tighten to 30 ft-lbs (40 Nm)
-
Loosen 2 full turns
-
Retighten while rotating to 17–24 ft-lbs (22–34 Nm)
-
Back off 175°
-
Final tighten to 17 ft-lbs
🔁 Interchange Cross Reference
Compatible with:
Timken SP940200
Motorcraft HUB158 / AC3Z-1104-F
Moog 515081
SKF BR930695
FAG 102017
Dorman 951-807
NAPA PBR930695
GMB 725-0357
Mevotech H515081 / G515081
Carquest 94-256018
Centric 40265019
Durago 29515081
Autopart International 1411-256018
GSP 126081
Axiom AX515081
🛡️ Axiom No-Nonsense Lifetime Warranty
Backed by a lifetime warranty to the original purchaser against:
-
Manufacturer defects
-
Premature wear
-
Breakage
Use it hard—if it fails, they’ll make it right.
If you want a hub assembly that holds up under real-world abuse and keeps your Super Duty driving tight and predictable, the Axiom Supply Bearing Assembly is built to handle it.
