Axiom Supply SPECIAL FLANGE (8x6.5 conversion) Wheel Bearing Assembly - 2005+ Ford F-Series

No reviews yet. Bought this? Write the first review
Regular price $499.99
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

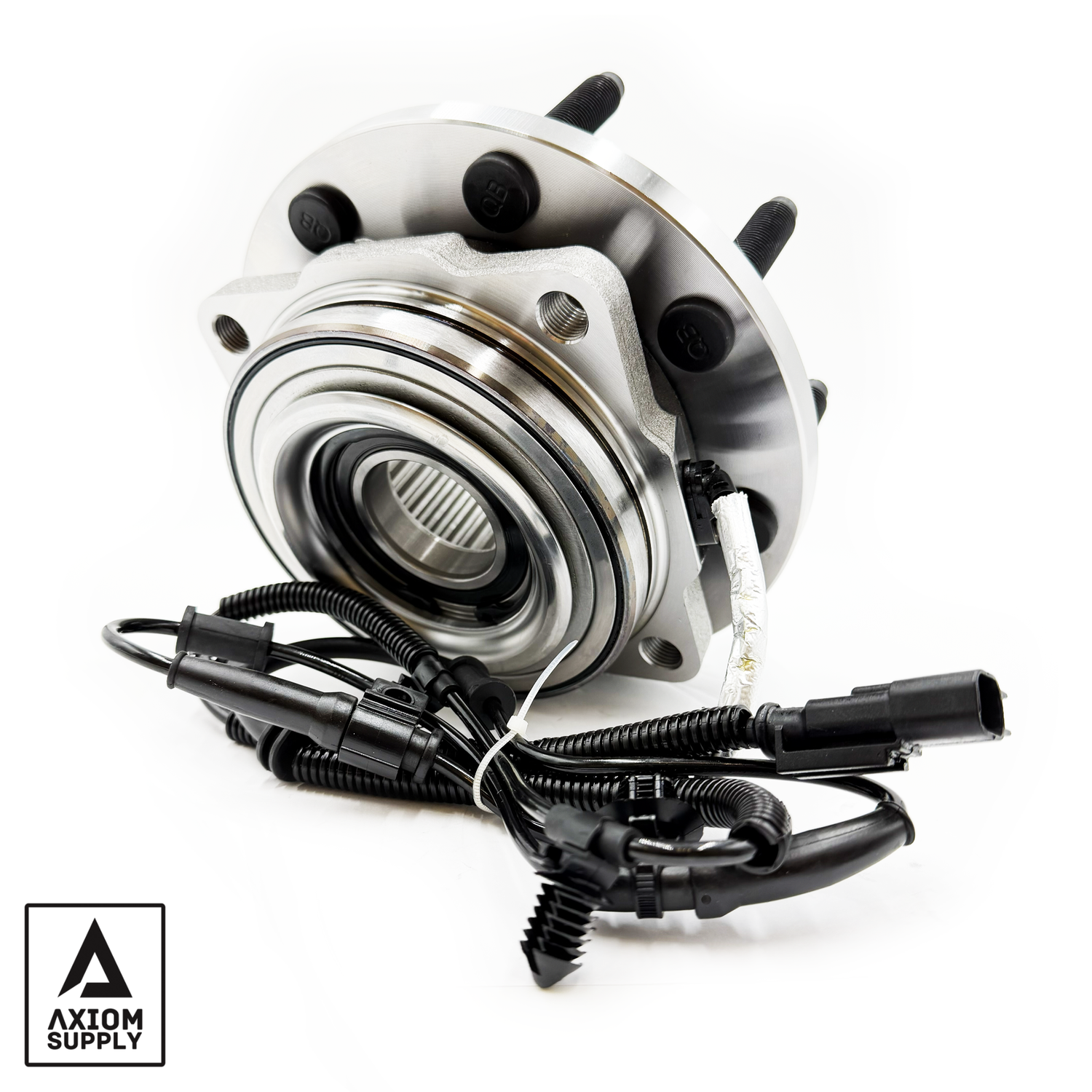

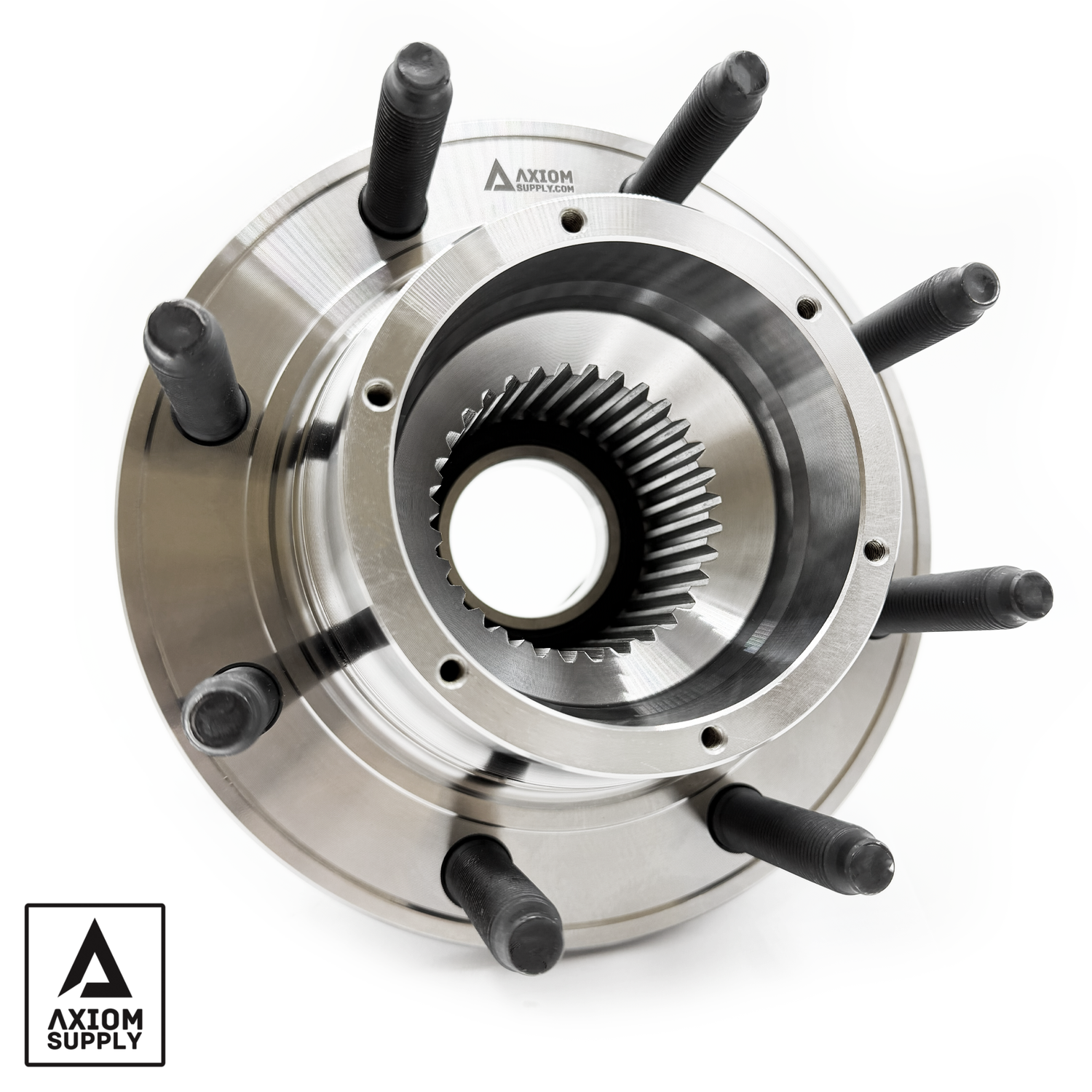

Axiom Supply GM Pattern Hybrid Wheel Bearing & Hub Assembly – Ford Dana 60 (2005+)

Finally—a true solution for running 8x6.5” (8x165.1) wheels on a Ford Dana 60 without cutting corners.

This Axiom Supply Hybrid Hub Assembly features a genuine 8x6.5-style hub flange integrated into a Ford Dana 60 unit bearing housing, giving you a true bolt-on 8x6.5 lug pattern—no redrilling, no machining, no compromises.

Built specifically for serious builders, this is the cleanest and strongest way to run 8x6.5 -pattern wheels on a Super Duty axle.


🔥 Key Features

  • Lug Pattern – 8x6.5” (8x165.1)
    No drilling. No machining. No adapters.

  • M14-1.5 Fine Thread Studs

  • Hybrid Hub Design
    Ford flange integrated into a Ford Dana 60 unit bearing housing

  • Fits 2005+ Ford Dana 60 Front Axles

  • Precision Tapered Roller Bearings
    High-performance grease for smooth, maintenance-free operation

  • Heavy-Duty Hub Construction
    Reduces hub-face deflection under load

  • Premium Grade 10.9 Studs
    Cold-formed and zinc-plated for maximum strength and corrosion resistance

  • Integrated ABS Sensor
    Maintains accurate signal in harsh conditions

  • Complete Bolt-In Assembly
    Fits left or right side with no modifications required


🛠️ Why This Hub Matters

Most 8x6.5 pattern conversions involve:

  • Redrilling factory hubs

  • Machining existing components

  • Running wheel adapters

All of which introduce potential weak points.

This assembly eliminates those issues with a purpose-built design that delivers:

  • Stronger hub integrity

  • Cleaner installation

  • True bolt-on compatibility

  • Long-term reliability under load

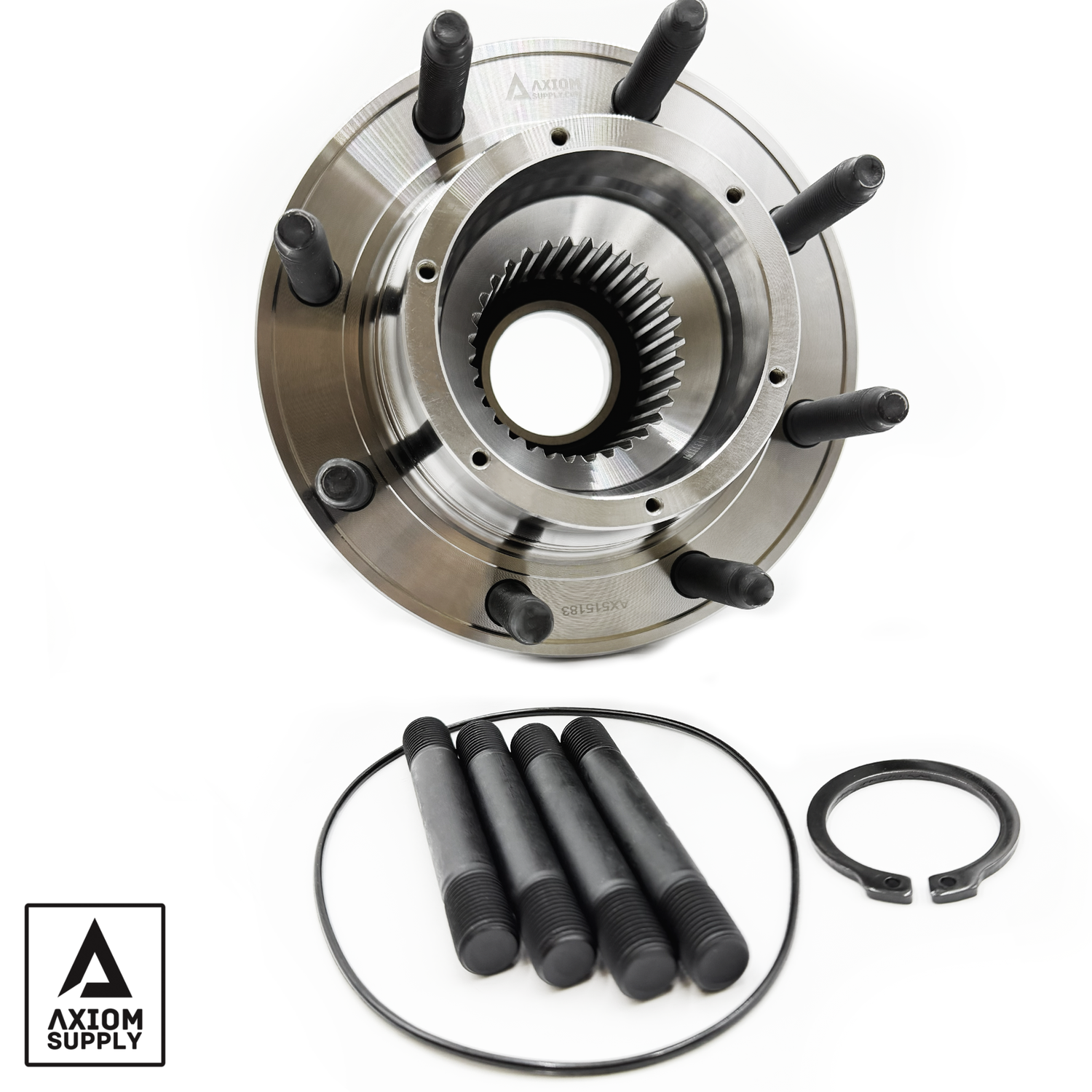

📦 What’s Included

  • (1) Wheel Bearing & Hub Assembly with integrated ABS wire

  • (4) Mounting bolts

  • (1) O-ring

  • (1) Retainer ring


⏱️ Installation

  • Direct bolt-in replacement

  • Fits left or right side

  • Typical install time: ~2 hours

  • No special modifications required


🔧 Torque Specifications

Hub Nut Procedure:

  1. While rotating hub, tighten to 30 ft-lbs (40 Nm)

  2. Loosen 2 full turns

  3. Retighten while rotating to 17–24 ft-lbs (22–34 Nm)

  4. Back off 175°

  5. Final torque to 17 ft-lbs

  • Spindle Bolts (4): 133 lb-ft

  • Caliper Bolts (2): 166 lb-ft


🛡️ Axiom No-Nonsense Lifetime Warranty

Backed by a lifetime warranty to the original purchaser against:

  • Manufacturer defects

  • Premature wear

  • Breakage

Push it to the limit—if it fails, they’ll make it right.


If you’re building a serious truck or axle swap and want a true 8x6.5 bolt pattern without compromise, this Axiom Supply Hybrid Hub Assembly is the cleanest, strongest solution available.
