SKU: B426KB4L7

Chrysler Hemi Compatible 426 c.i. Engine and 4L65/70E Automatic Transmission - 610 Horsepower - Standard Edition Builder Series - Black Pulley Kit - Fuel Injected

No reviews yet. Bought this? Write the first review
Regular price $27,395.00
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Overview:

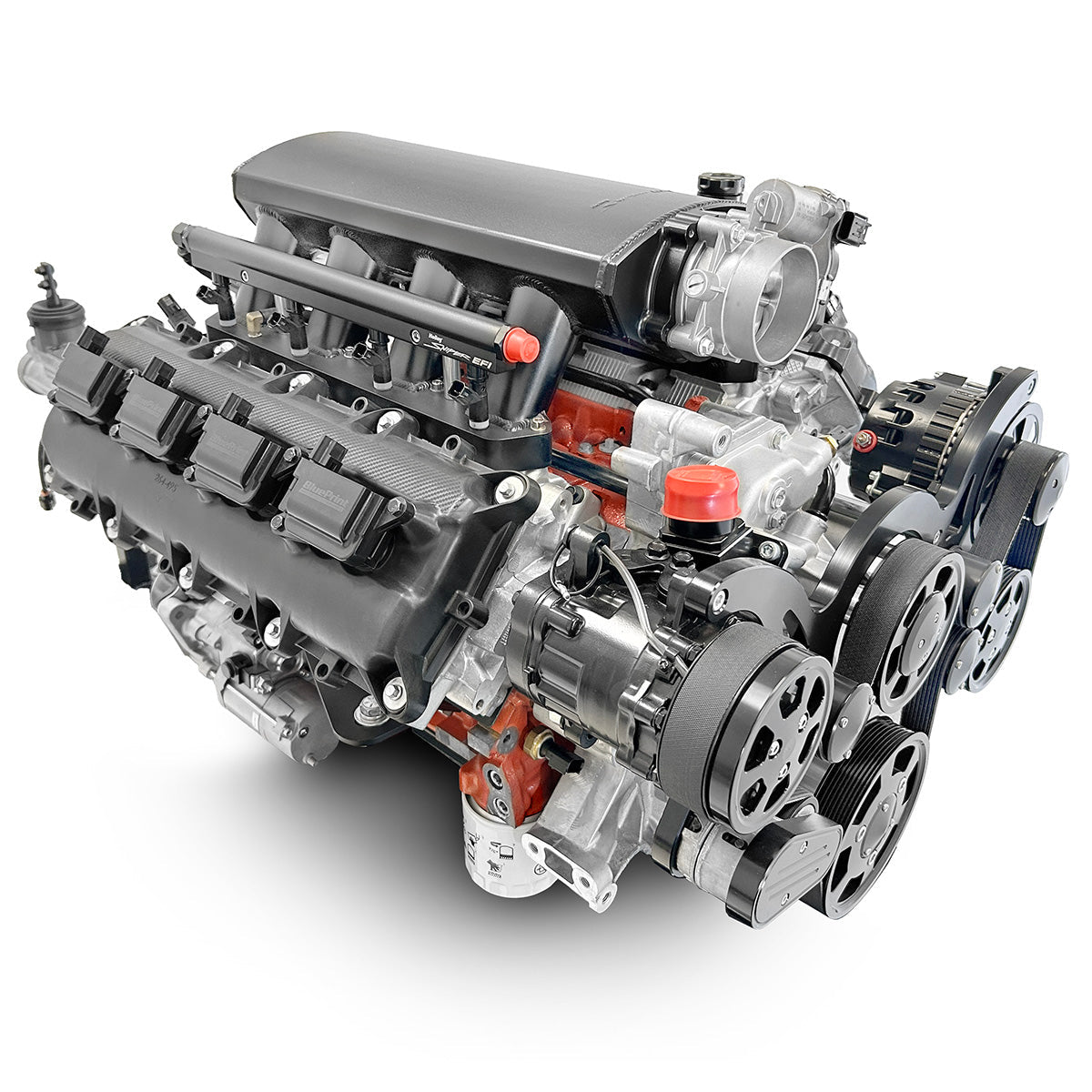

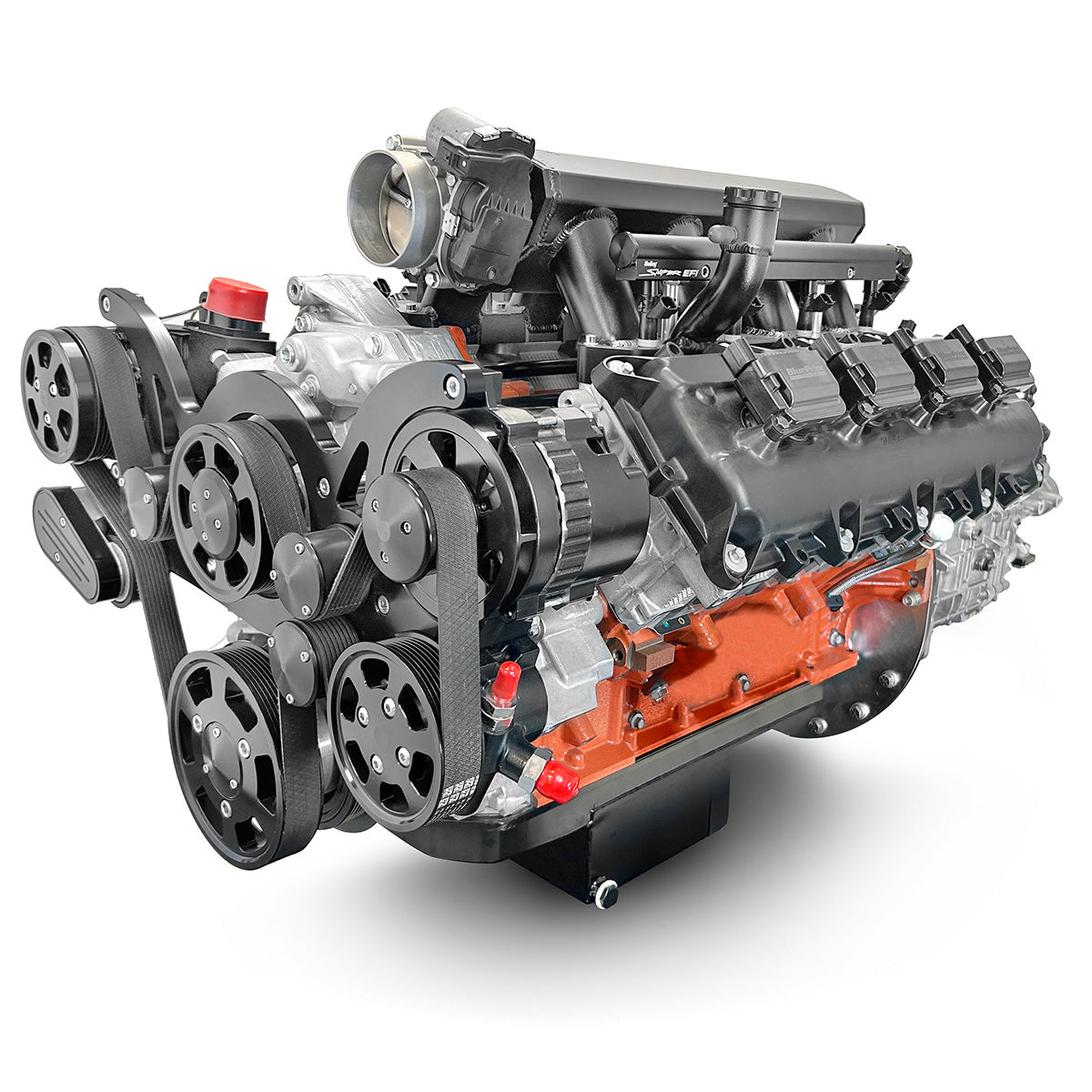

This BluePrint Engines Gen III HEMI crate engine with a complete 4L65/70E four-speed automatic transmission is a fully integrated, high-performance powertrain solution delivering 610 horsepower and 525 ft-lbs. of torque with a reliable 10.48:1 compression ratio. Built with a forged crank, forged pistons, and a hydraulic roller cam, and topped with Gen III HEMI Apache aluminum cylinder heads and a fabricated intake manifold, this engine combines modern muscle with proven durability. Fuel injection, a throttle body, and Holley Terminator ECU controller kit and wiring harness provide advanced electronic control and drivability, while key components like spark plugs, coils, harmonic balancer, timing cover, valve covers, and a muscle car-style mid-sump oil pan ensure it's ready for swap applications. The black front accessory drive includes a water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor, delivering both function and show-quality looks. Paired with a robust overdrive transmission, this crate engine package is ideal for street cruisers, resto-mods, and pro-touring builds needing modern HEMI performance in a complete, turn-key setup.

Description:

  • Horsepower & Torque: 610 Horsepower / 525 FT. LBS
  • Cylinder Heads: Gen III Hemi Apache Aluminum Cylinder Heads
  • Compression Ratio: 10.48:1
  • Pistons Forged

Block:

  • Engine Manufactured and Machined in the USA!
  • NEW “BGE” Hellcat Engine Block
  • 4-Bolt Main
  • 4.090" Bore
  • 1-Piece Rear Main Seal

Rotating Assembly:

  • Forged Steel Crank
  • 4.050" Stroke
  • 6.125" Connecting Rods
  • Forged Pistons
  • Internally Balanced Front and Rear

Cylinder Heads:

  • Gen III Hemi Apache Aluminum Cylinder Heads
  • 73cc Chamber
  • 2.140" Intake / 1.650" Exhaust Valves

Cam Specs:

  • Hydraulic Roller Cam
  • .610 Intake / .611 Exhaust Lift
  • 231 Intake / 255 Exhaust Duration
  • @.050-113 Degree Lobe Separation

IGNITION TIMING:

  • Controlled by ECU

Also Includes:

  • Fuel Injection
  • Throttle Body
  • Harmonic Balancer
  • Fabricated Intake Manifold
  • Muscle Car Style - Mid Sump Swap Oil Pan
  • Spark Plugs
  • Coil
  • Timing Cover
  • Valve Covers
  • Holley Terminator ECU Controller Kit and Wiring Harness

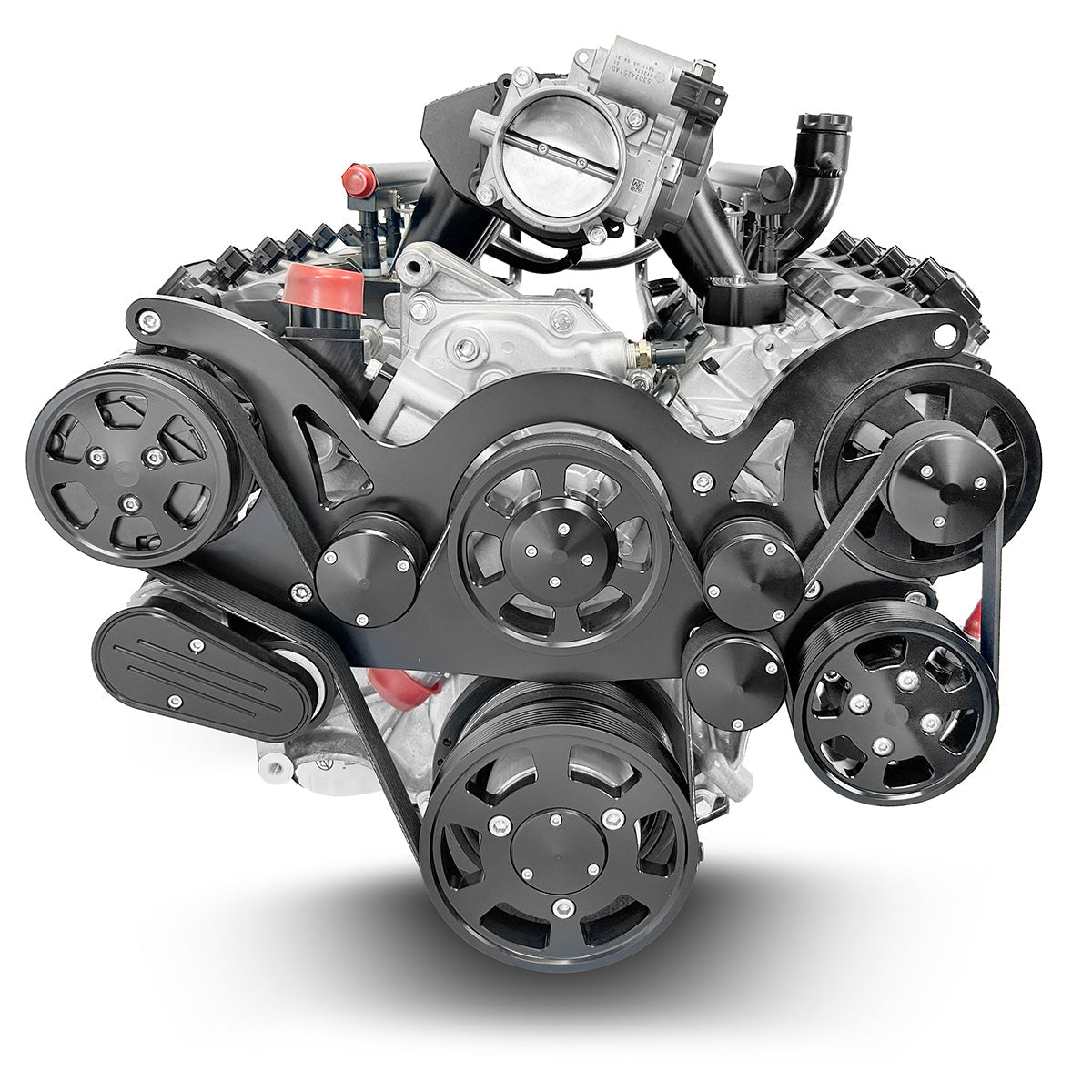

  • Black Front Accessory Drive -
    • Water Pump
    • Type II Power Steering Pump
    • Remote Power Steering Pump Reservoir
    • 140amp 1-wire Alternator
    • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete 4L65/70E Four Speed Automatic Transmission Package:

  • 4L65/70E Complete Package
  • Electronic Transmission Controller Included
  • 2200-2400 Stall Torque Converter
  • Flex Plate
  • Starter

Notes:

  • Features 2013+ 58X reluctor wheel
  • 2009+ crankshaft spacing
  • 2009+ car timing cover
  • VVT locked out
  • MDS – eliminated
