Overview:

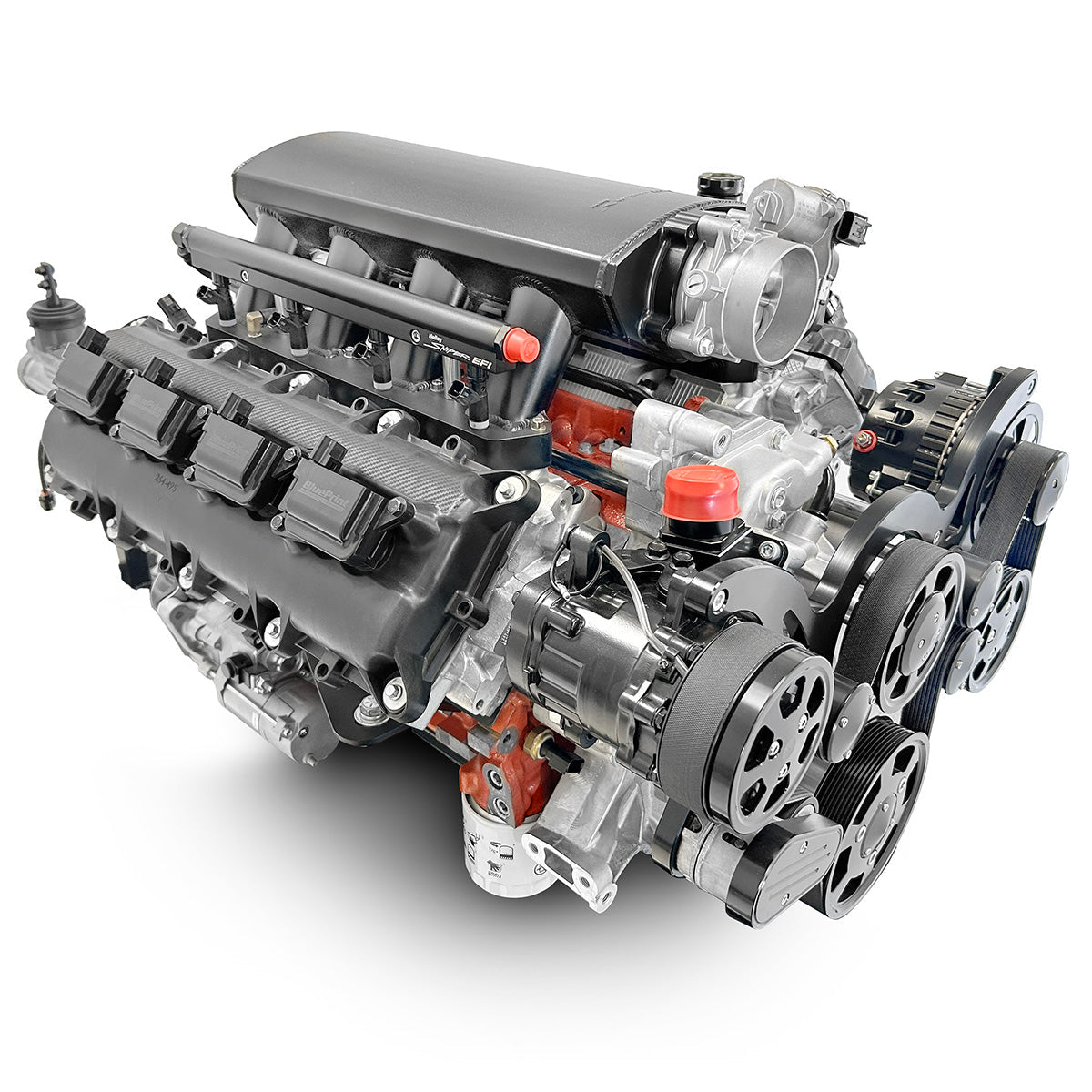

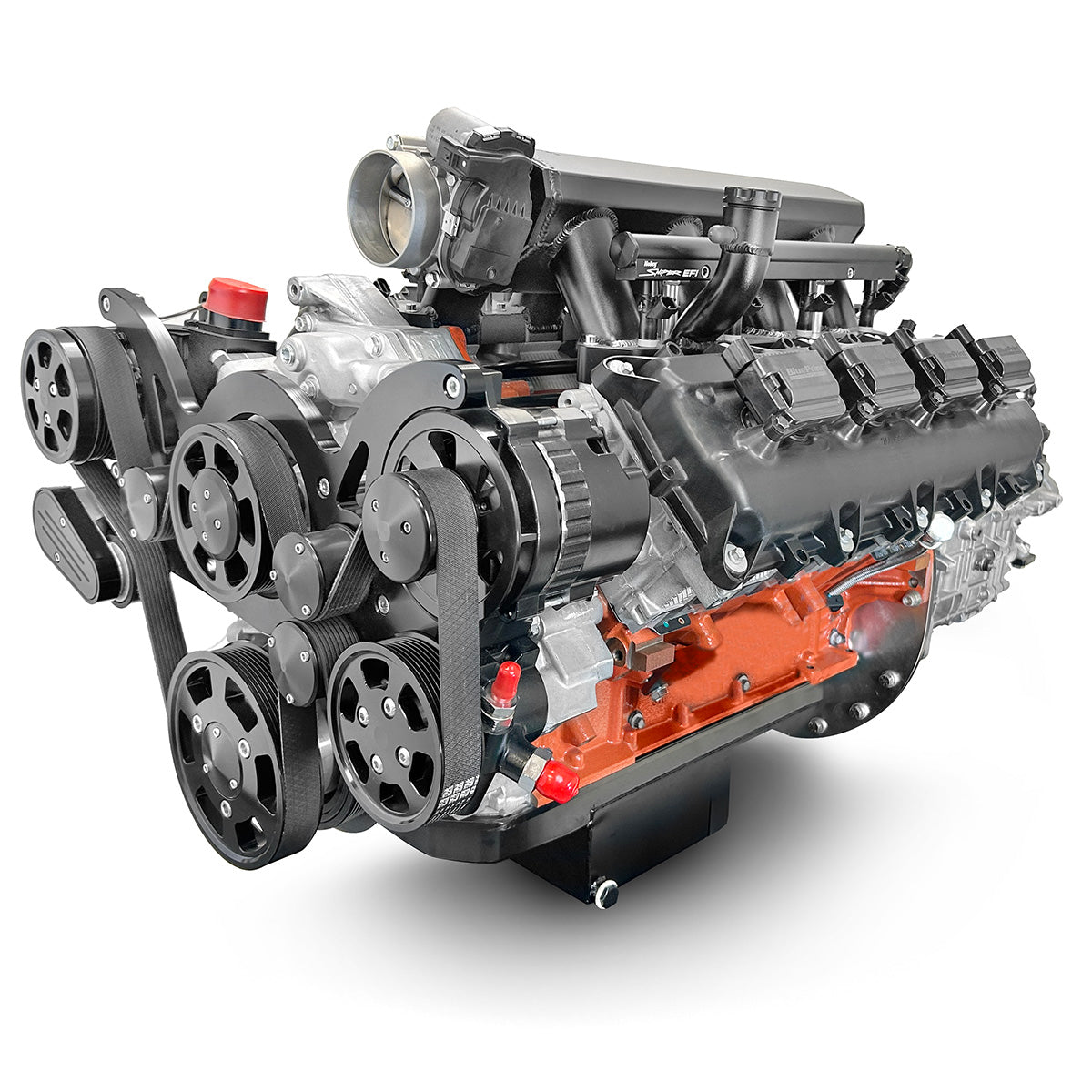

This BluePrint Engines Gen III HEMI crate engine with TKX five-speed transmission package is a complete, high-performance drivetrain solution engineered for street and pro-touring builds. Delivering 610 horsepower and 525 ft-lbs. of torque with a 10.48:1 compression ratio, it’s built with premium internals—including a forged crank, forged pistons, and a hydraulic roller cam—for durability and power under real-world driving conditions. Gen III HEMI Apache aluminum cylinder heads and a fabricated intake manifold ensure excellent airflow, while modern throttle body fuel injection and a Holley Terminator ECU controller kit with wiring harness provide precise tuning and drivability.
The package is complemented by a fully assembled TKX five-speed transmission, including a flywheel, for smooth shifting and high-performance street use. A black front accessory drive system adds function and style, with a water pump, Type II power steering pump and remote reservoir, 140-amp 1-wire alternator, and a compact 7B10 peanut-style A/C compressor. A muscle car-style mid-sump oil pan makes this setup swap-friendly for classic applications. Whether you're building a resto-mod, a weekend cruiser, or a street-strip machine, this package delivers turn-key modern HEMI power with the reliability and performance BluePrint Engines is known for.
Description:
- Horsepower and Torque: 610 Horsepower / 525 ft. lbs. Torque
- Compression Ratio: 10.48:1
- Gen III Hemi Apache Aluminum Cylinder Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- Engine Manufactured and Machined in the USA!
- NEW “BGE” Hellcat Engine Block
- 4-Bolt Main
- 4.090" Bore
- 1-Piece Rear Main Seal
Rotating Assembly:
- Forged Steel Crank
- 4.050" Stroke
- 6.125" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- Gen III Hemi Apache aluminum cylinder heads
- 73cc chamber
- 2.140" intake/ 1.650" exhaust valves
Cam Specs:
- Hydraulic Roller
- .614 Intake / .614 Exhaust Lift
- 231 Intake / 255 Exhaust Duration
- @.050-115.5 LSA
Ignition Timing:
- Controlled by ECU
Also Includes:
- Fuel Injection
- Throttle Body
- Flywheel
- Harmonic Balancer
- Fabricated Intake Manifold
- Muscle Car Style - Mid Sump Swap Oil Pan
- Spark Plugs
- Coil
- Timing Cover
- Valve Covers
-
Holley Terminator ECU Controller Kit and Wiring Harness

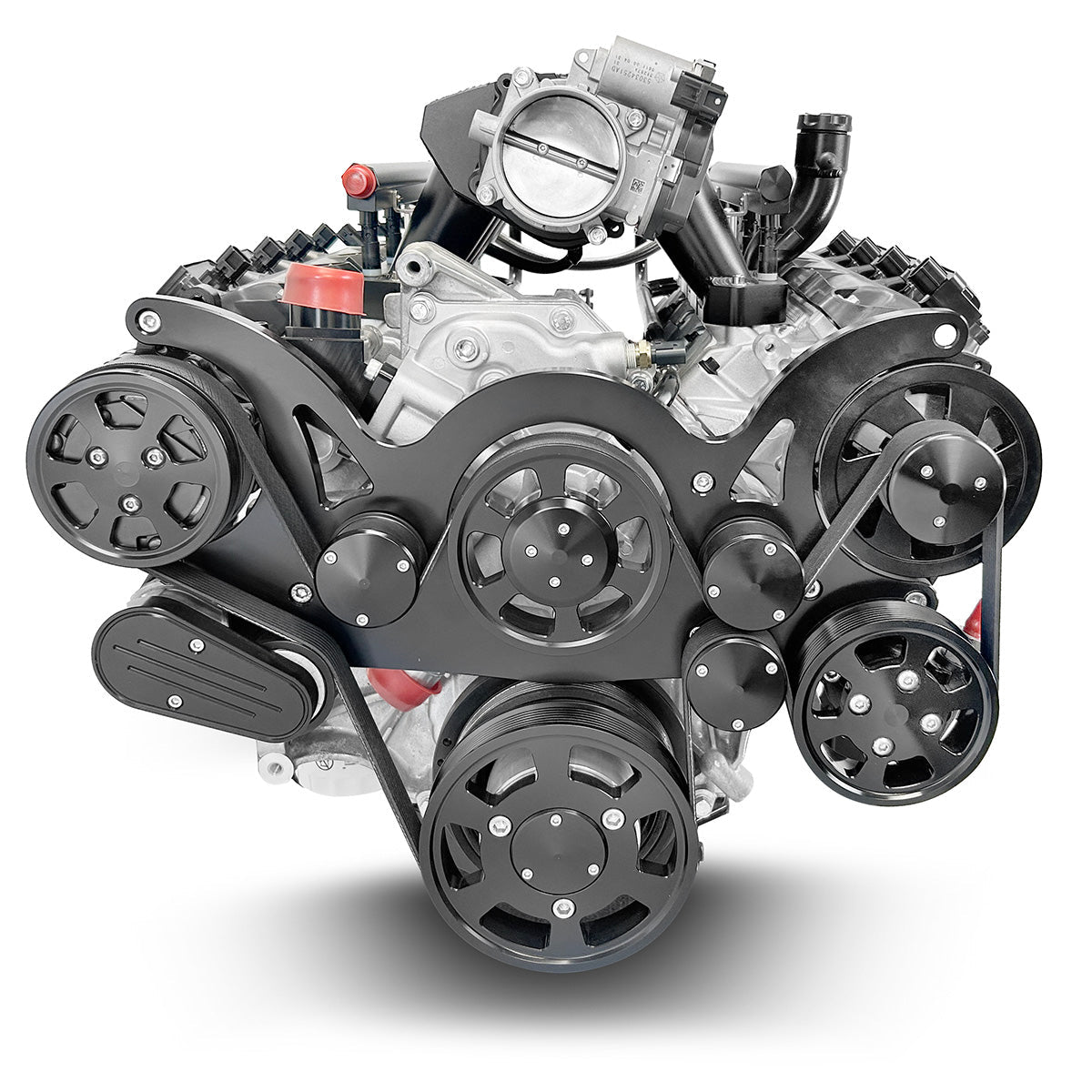

- Black Front Accessory Drive -
- Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Style Air Conditioning Compressor
Assembled with Complete TKX Five Speed Transmission Package:
- Mcleod Super Street Pro Twin Disc Clutch
- Hydraulic Throw Out Bearing
- Bell Housing
- Billet Flywheel
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
- Features 2013+ 58X reluctor wheel
- 2009+ crankshaft spacing
- 2009+ car timing cover
- VVT locked out
- MDS – eliminated
