Banda Electra BASS 8k1 Car Amplifier 8800 Watts RMS 1 Ohms
Banda Electra BASS 8k1 Car Amplifier 8800 Watts RMS 1 Ohms - Black is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
Banda Electra BASS 8k1 Car Amplifier 8800 Watts RMS 1 Ohms
Banda Electra BASS 8k1 Car Amplifier 8800 Watts RMS 1 Ohms - Black is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description

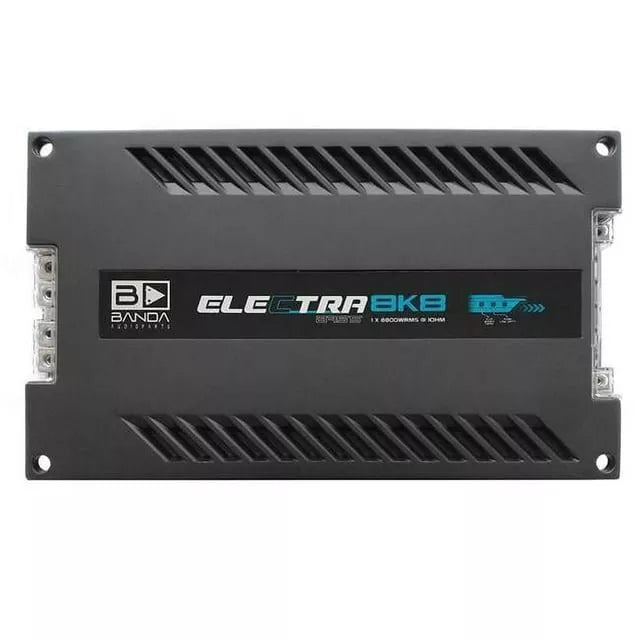

Banda Electra Bass 8K8 Amplifier Module Power 1 OHM - 8800 WATTS RMS
The ELECTRA line was developed especially for those looking for an incomparable bass. It has a frequency response from 5 to 500Hz (-3dBs). Due to this, ELECTRA will only play Subwoofers, Bass. The BASS BOOST @ 45Hz feature is a plus, further boosting your system's bass.
Designed in a 100% aluminum chassis, it works with a power of 8800 WRMS with 1 input channel for connection and 1 Ohm impedance. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection.
- Operating class: Class D bridged
- Maximum Power 14.4v @ 1 Ohm: 11000 WRMS
- Maximum Power 14.4v @ 2 Ohms: 7000 WRMS
- Maximum Power 12.6v @ 1 Ohm: 8800 WRMS
- Maximum Power 12, 6v @ 2 Ohms: 5100 WRMS
- Efficiency @ 2 Ohms: 84%
- Efficiency @ 1 Ohm: 79%
- Input Voltage: 9 - 15V
- Input Impedance: 100K Ohms
- Total Harmonic Distortion + Noise: <1%
- Sensitivity Input: 180mV to 2.5V
- Signal to Noise Ratio: 85dBs
- Frequency Response: 18 to 500Hz (-3dBs)
- HPF (Subsonic): 20 - 80Hz @ 12dB/octave Linkwitz-Riley
- LPF (Crossover): 80 - 500Hz @ 12dB/octave Linkwitz-Riley
- Bass Boost @ 45Hz: Variable 0 to +18dBs
- Recommended Fuse: 500 A
- Resting Current: ~4.0A
- Maximum Current (music signal): 880A
- Power Cables (recommended min.): 2 x 50mm / 2 x 0 AWG
- Output Cables (recommended min. recommended): ): 2 x 10mm / 2 x 6 AWG
- Gain control
- Signal input in differential mode
- Forced ventilation through micro fans
- Blue LED indicator of: Power supply and amplifiers on/On
- Red LED indicator of: Output distortion ( Clipping) or short-circuit at the output
- Yellow LED indicator of: Battery voltage below specified.
- Weight (Kg): 8
- Height (mm): 60
- Width (mm): 264
- Depth (mm): 443
