BASS HEAD GARAGE BHG-WM - Wattmeter
BASS HEAD GARAGE BHG-WM - Wattmeter is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Features:
- Measure True Amplifier Power output (W)
- Measure Apparent Power (VA)
- Measure Phase Difference between Voltage and Current into reactive loads (PF)
- Measure AC Volts (V)
- Measure AC Current (A)
- Measure Max Amplifier Output with PEAK mode.
Package contains:

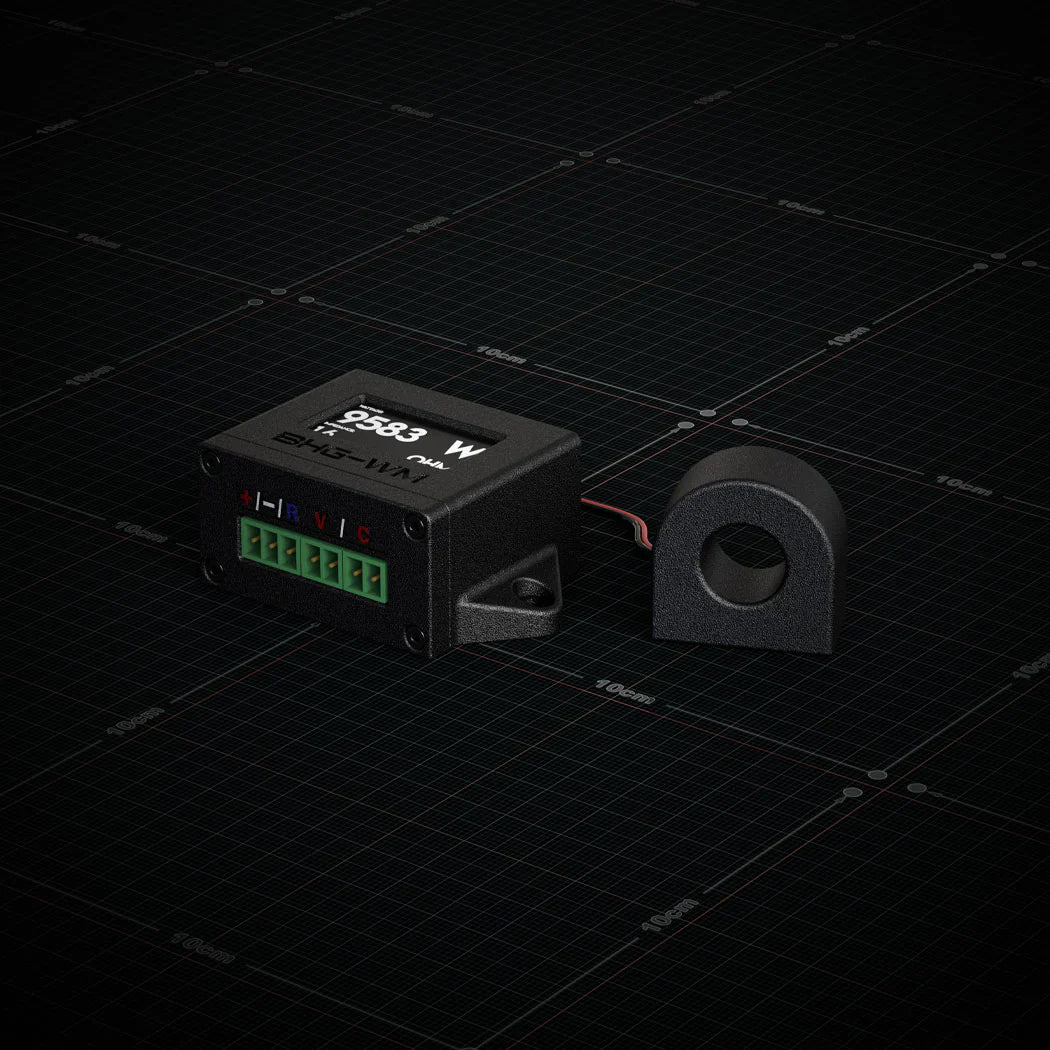

1x BHG-WM Wattmeter
1x 150A Current transformer.
1x 3.81 MM 3-pin connector
2x 3.81 MM 2-pin connector
Instruction Manual: Download
Features:
- Measure True Amplifier Power output (W)
- Measure Apparent Power (VA)
- Measure Phase Difference between Voltage and Current into reactive loads (PF)
- Measure AC Volts (V)
- Measure AC Current (A)
- Measure Max Amplifier Output with PEAK mode.
Package contains:
1x BHG-WM Wattmeter
1x 150A Current transformer.
1x 3.81 MM 3-pin connector
2x 3.81 MM 2-pin connector
Instruction Manual: Download

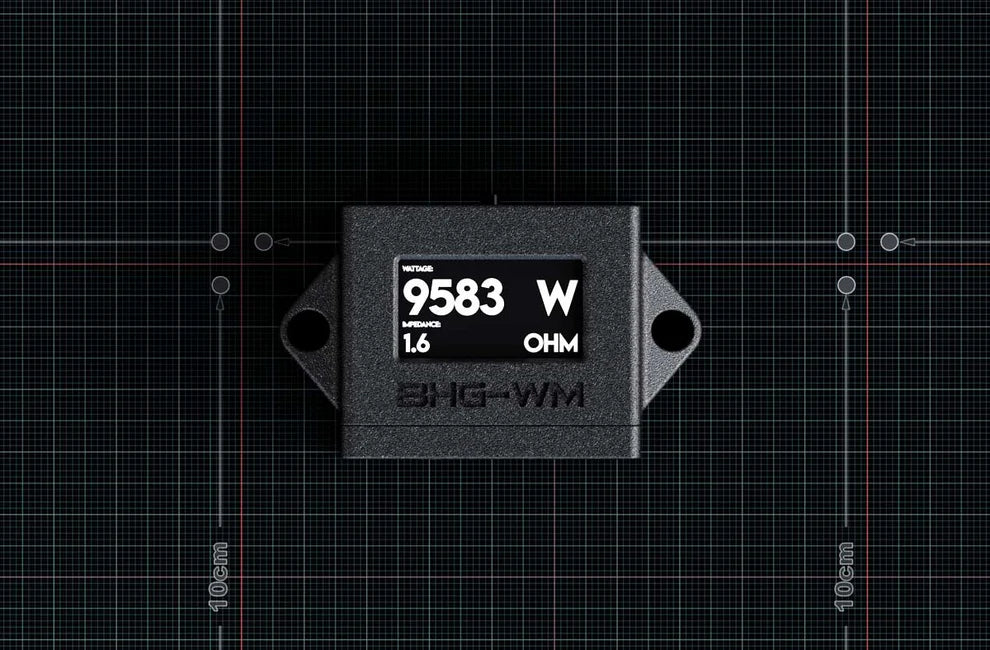

Display modes:
Wattage & Impedance
Voltage & Current
Apparent Power & Power factor
Wiring:
+ Battery Positive
- Battery Ground
R - Remote (Head Unit)
V - Connect to Car Amplifier speaker output + & -
C - Connect to the Current Transformer that goes around the positive or negative speaker wire.
