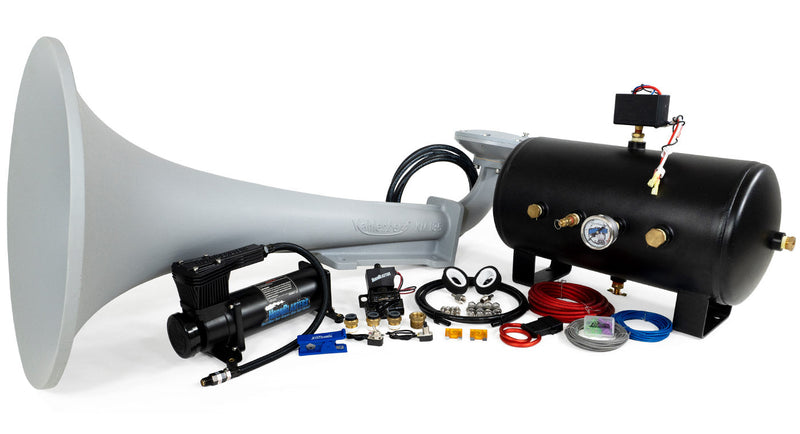

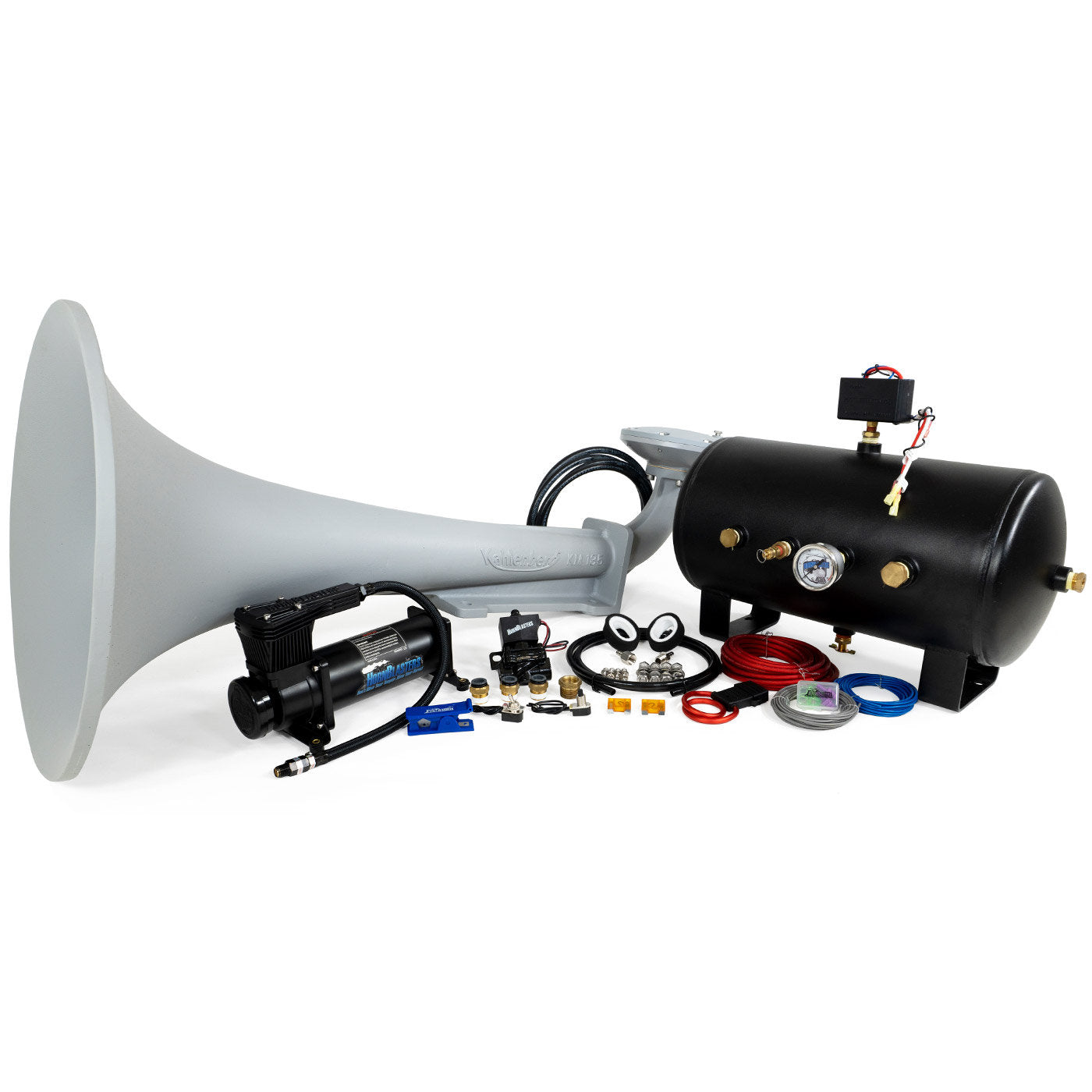

Battleship KM-135 Horn Kit
Battleship KM-135 Horn Kit is backordered and will ship as soon as it is back in stock.
Description
Description
DO YOU SPEAK BATTLESHIP? WE DO.
Upgrade to the king of the seas and the roads! Introducing the KM-135 Air Horn, fit for battleships, aircraft carriers, and now the baddest of the bad vehicles. This epic horn delivers a deep and thundering sound that will leave the paint on the walls, but just barely.
Don't just settle for a horn, bring your set up to the next level with a purpose-built 5-gallon 8-port air tank. It's not just for show, this tank has room for all your pneumatic needs, from tire inflation to air suspension.
Powering this beastly system is the heavy-duty HornBlasters 1NM compressor, capable of filling this mighty 5-gallon tank in just 2 minutes (± 10 sec.). Don't be content with just any horn, upgrade to the KM-135 Air Horn and be the envy of all who hear you.
-
Marine-Grade Power: Featuring the KM-135 Air Horn, originally designed for battleships and aircraft carriers, this kit brings a thunderous, paint-shaking sound to the toughest vehicles on the road.
- Multifunctional Air System: Equipped with a robust 5-gallon air tank, prepare for versatile pneumatic applications, from tire inflation to supplying air to air suspension.
- Quick Recovery: Driven by the heavy-duty HornBlasters 1NM compressor, this kit recovers in roughly 2 minutes, offering minimal downtime and maximum impact.
- Unparalleled Sound: Ensure your presence is unmistakably felt and heard for distances stretching up to 2-3 miles.

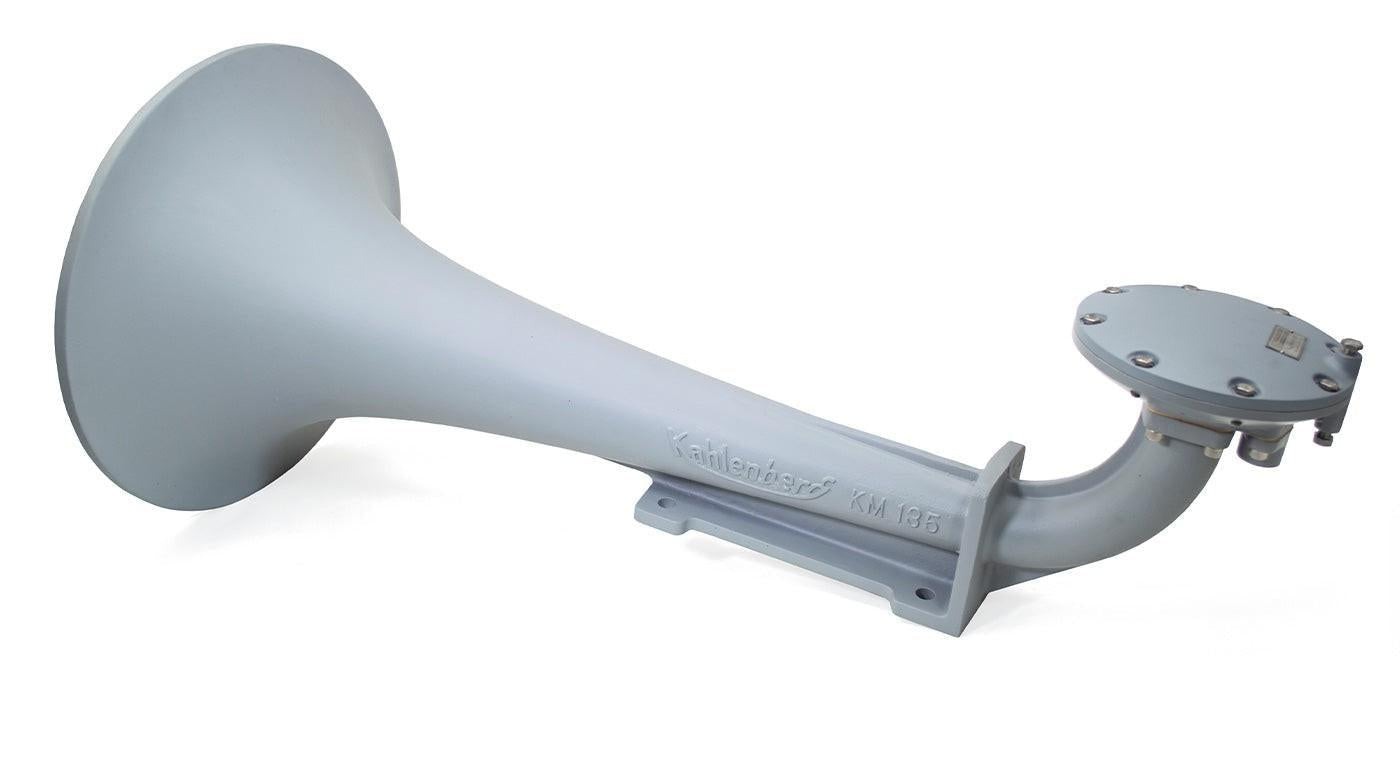

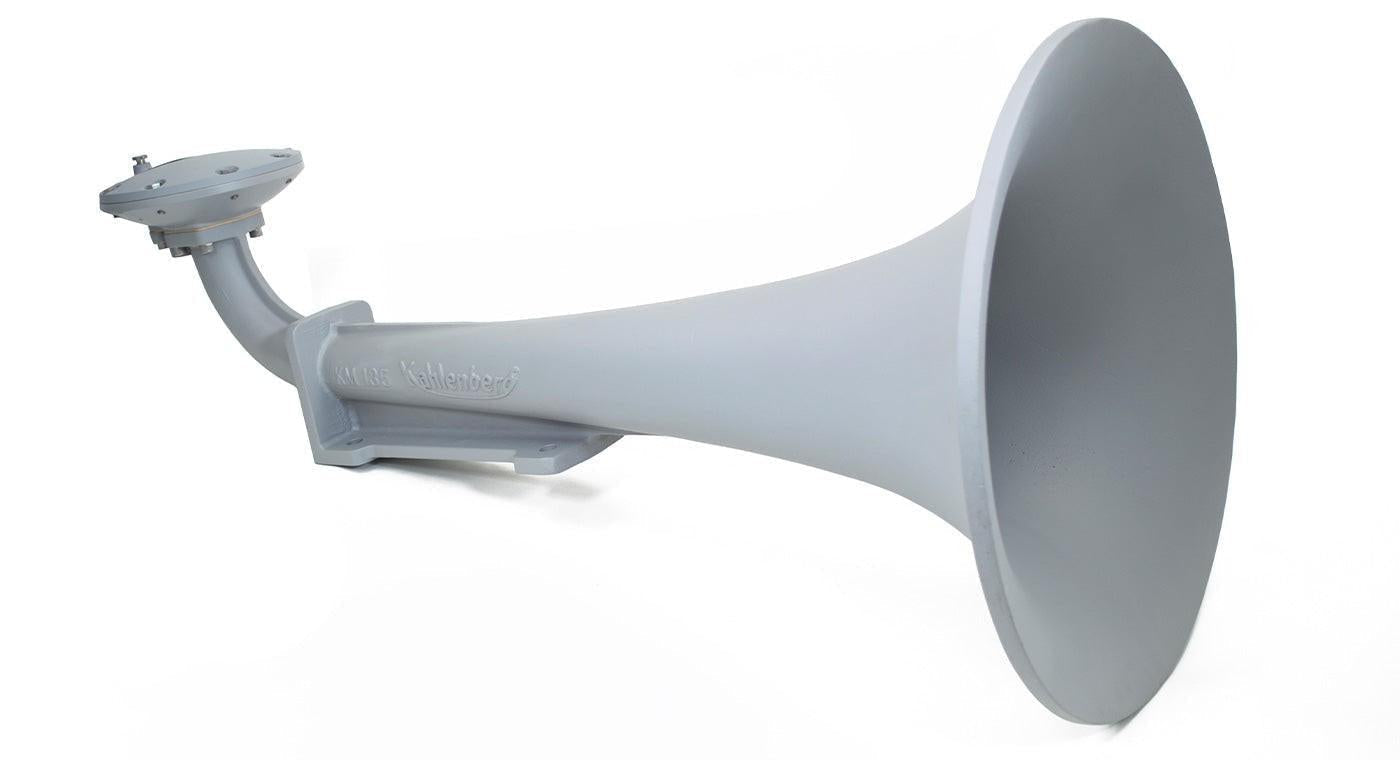

- Battleship Horn (KM135)
- 1/2" NPT Black Widow stainless steel electric air valve
- 5-gallon 8 port air tank
-

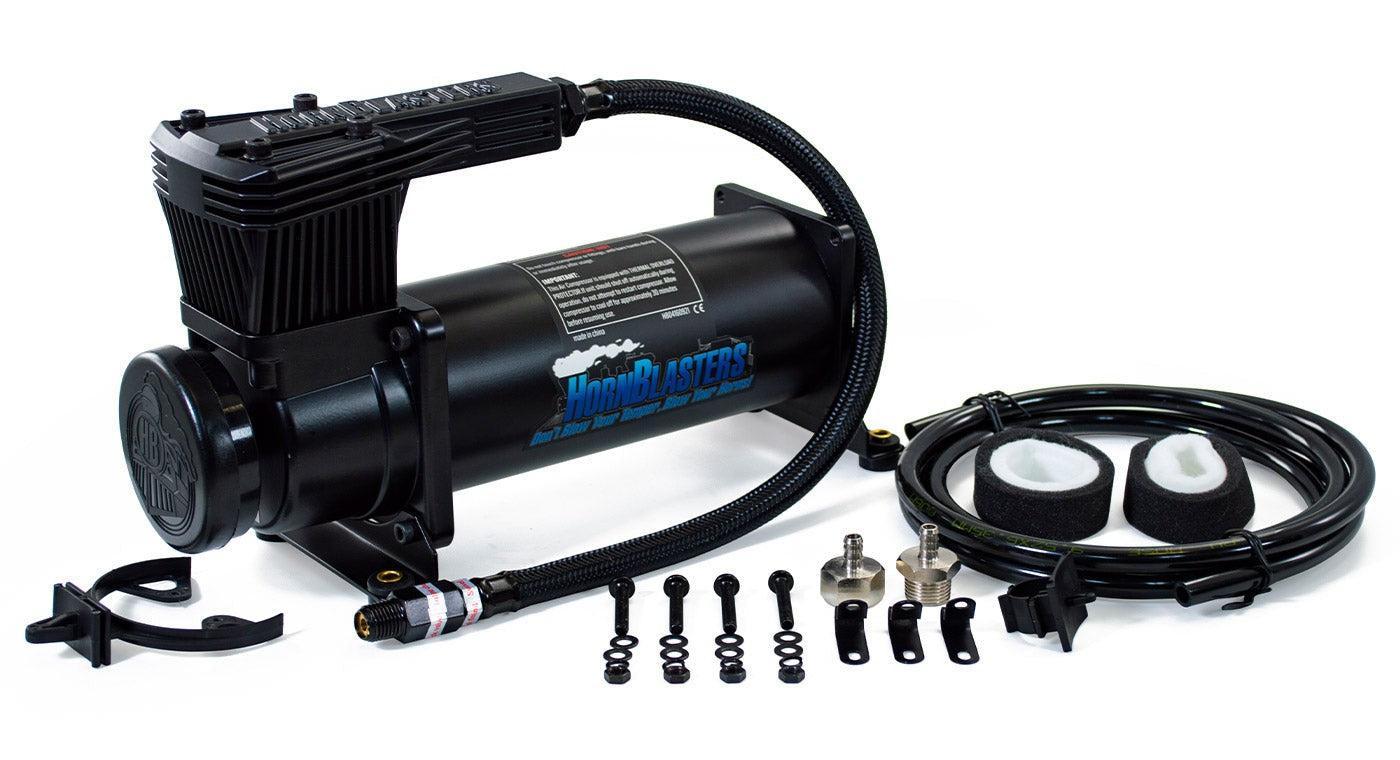

HORNBLASTERS 1NM STEALTH BLACK Air Compressor
- 110/150 PSI pressure switch w/ 40 amp relay
- Remote mountable intake filter
- Spare air filter elements
- 17ft of 1/2" D.O.T. approved air line
- 6 ft of 3/8" air line (for air compressors air intake)
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
-
22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire

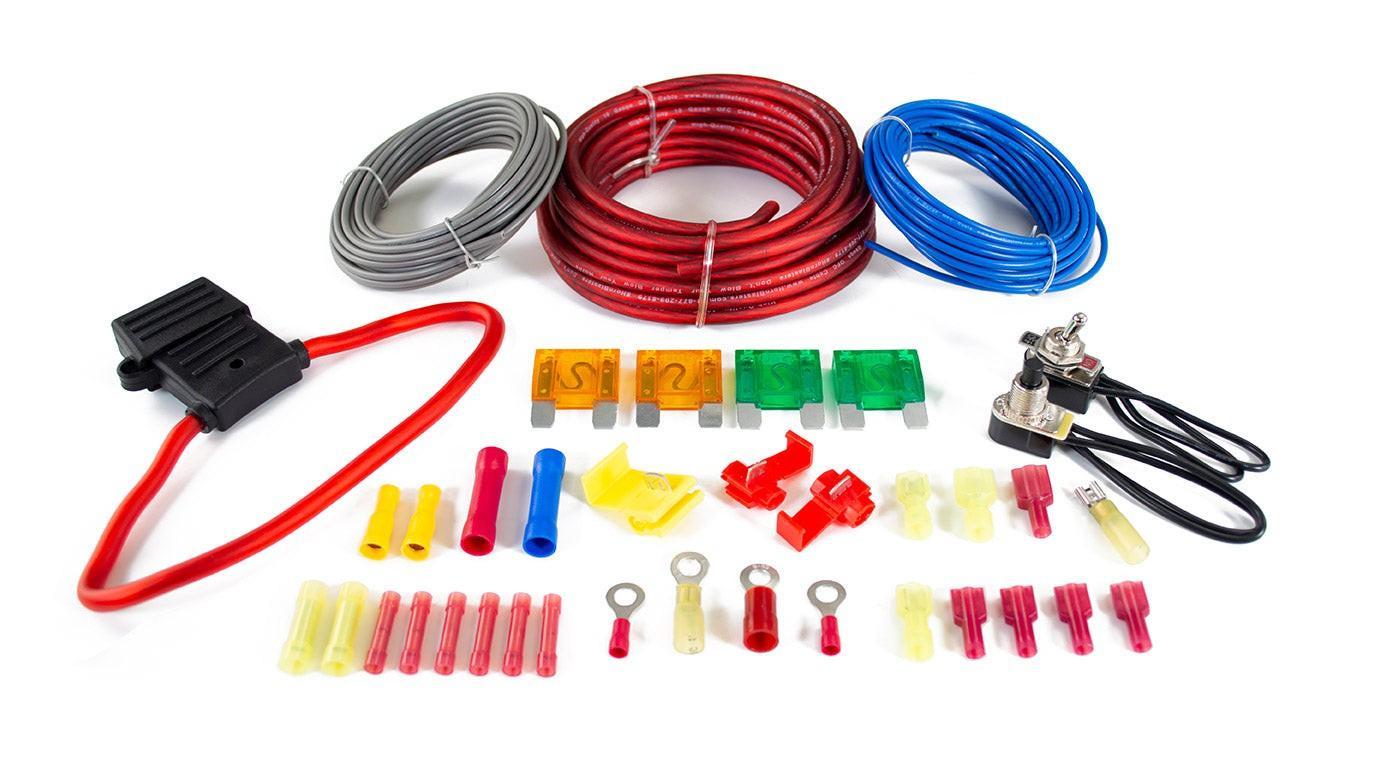

- Complete wiring kit with fuse holder & fuses
- Brass NPT fitting kit with safety blowoff & drain cock
- Mounting hardware
- Air line cutter
- Detailed instructions
- Earplugs
| Part Number | HK-BS135-544K |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | BS135 Battleship Horn |
| Horn Length | 42" (1066.8 mm) |
| Horn Width | 20" (508 mm) |
| Horn Height | 20" (508 mm) |
| Horn Weight | 45 lbs (14Kg) |
| Horn Material | Cast Aluminum |
| Air Tank | HornAir 5-gallon 8 port air tank |
| Tank Length | 20.5″ (520.7 mm) |
| Tank Diameter | 9.5″ (241.3 mm) |
| Tank Height | 11.5″ (292.1 mm) (With Legs) |
| Tank Weight | 20 lb (9.07 Kg) |
| Tank Ports | x7 1/2" NPT, x1 3/4" NPT |
| Max amperage | 25 Amps |
| Maximum duty cycle | 100% @ 100 PSI |
| Flow Rate @ 0 PSI | 1.75 CFM |
| Maximum working pressure | 200 PSI |
| Compressor length | 10.75″ (273.05 mm) |
| Compressor width | 4″ (101.6 mm) |
| Compressor height | 6.75″ (171.45 mm) |
5-Gallon Air Tank Dimensional Drawing
-
