Bean Machine Micro Sump - 1980-2003 Ford F-Series

Bean Machine Micro Sump – Billet Fuel Tank Sump

Built off the proven design of Beans Diesel’s original fuel sump, the Bean Machine Micro Sump delivers the same simplicity and reliability in a more compact package. Designed for fast, no-tank-drop installation, this sump requires only a single 1-1/2" hole and one bolt, making it one of the easiest and cleanest fuel sump solutions on the market.

Perfect for modern high-flow fuel systems, the Micro Sump can be used as a fuel feed or return, making it an ideal match for aftermarket lift pumps and performance applications.

🔥 Key Features:

• One-Hole, One-Bolt Design – Simple install without dropping the fuel tank

• Compact Size – Ideal for tight spaces while maintaining excellent flow

• Billet Construction – CNC-machined from 6061 billet aluminum

• Leak-Free Sealing – O-ring design ensures a tight, long-lasting seal

• Sediment Control – Integrated standpipe helps reduce debris entering the fuel system

• Multi-Purpose Use – Can be used as a fuel feed or return

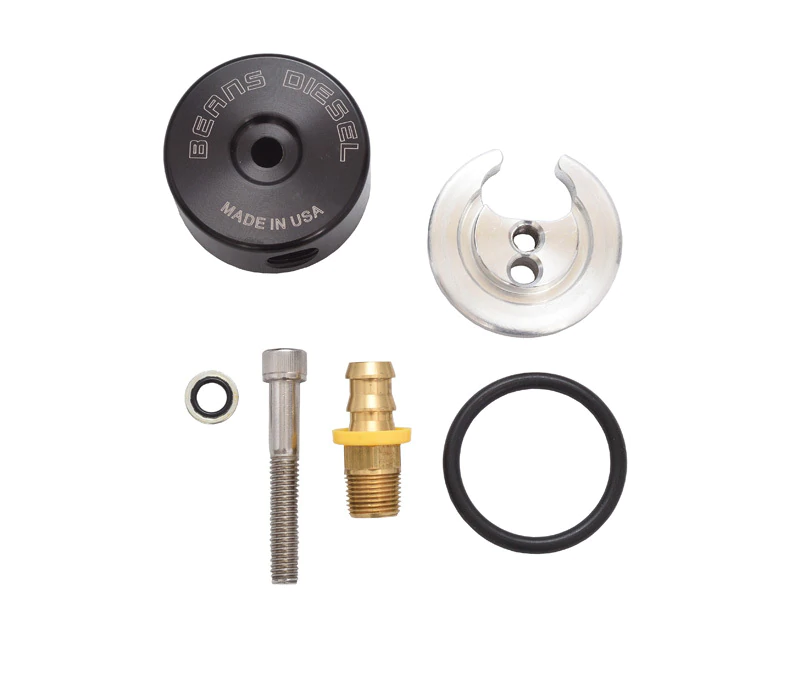

• High-Quality Hardware – Stainless steel hardware included

• Push-Lock Fitting – Includes brass 1/2" push-lock fitting

⚠️ Installation Notes:

• Requires drilling one 1-1/2" hole in the fuel tank

• Inner ring installs inside the tank

• Hole saw and drain are NOT included — a 1-1/2" hole saw is required

✅ Proven Design:
This sump design has been so effective it’s been widely copied — beware of low-quality knockoffs. The Bean Machine Micro Sump is built to last and trusted in real-world diesel performance applications..
