Description
Description
- High Quality Design- Black Diamond utilizes only the best materials to provide you with high quality sound you can trust
- Single Voice Coil (SVC)- This high strength voice coil built with Kapton can handle high power applications
- Powerful Sound- With 550W max power and 275W RMS, the DIA-XT8 provides enough power to tackle a full range of audio
- Efficiency- The DIA-XT8 sounds great with just instrumentals, and, even better with vocals. Get the most out of your system by upgrading to a speaker that gives you everything you're missing from your stock car stereo
- Product Dimensions- LxWxH (in inches) 9" x 9" x 5

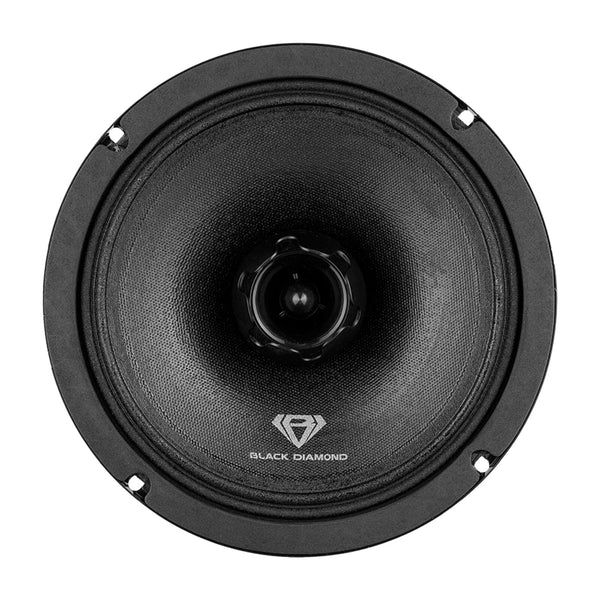

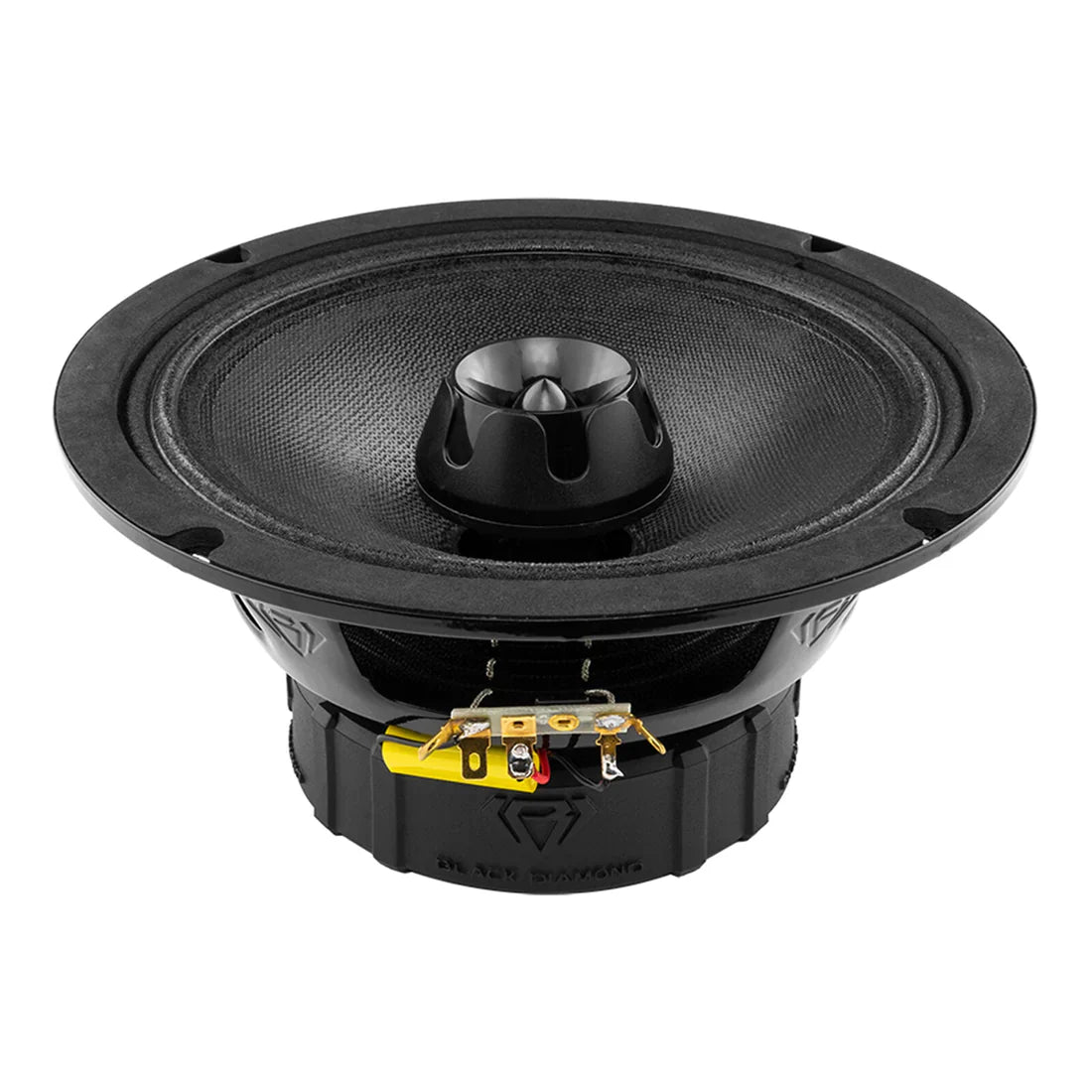

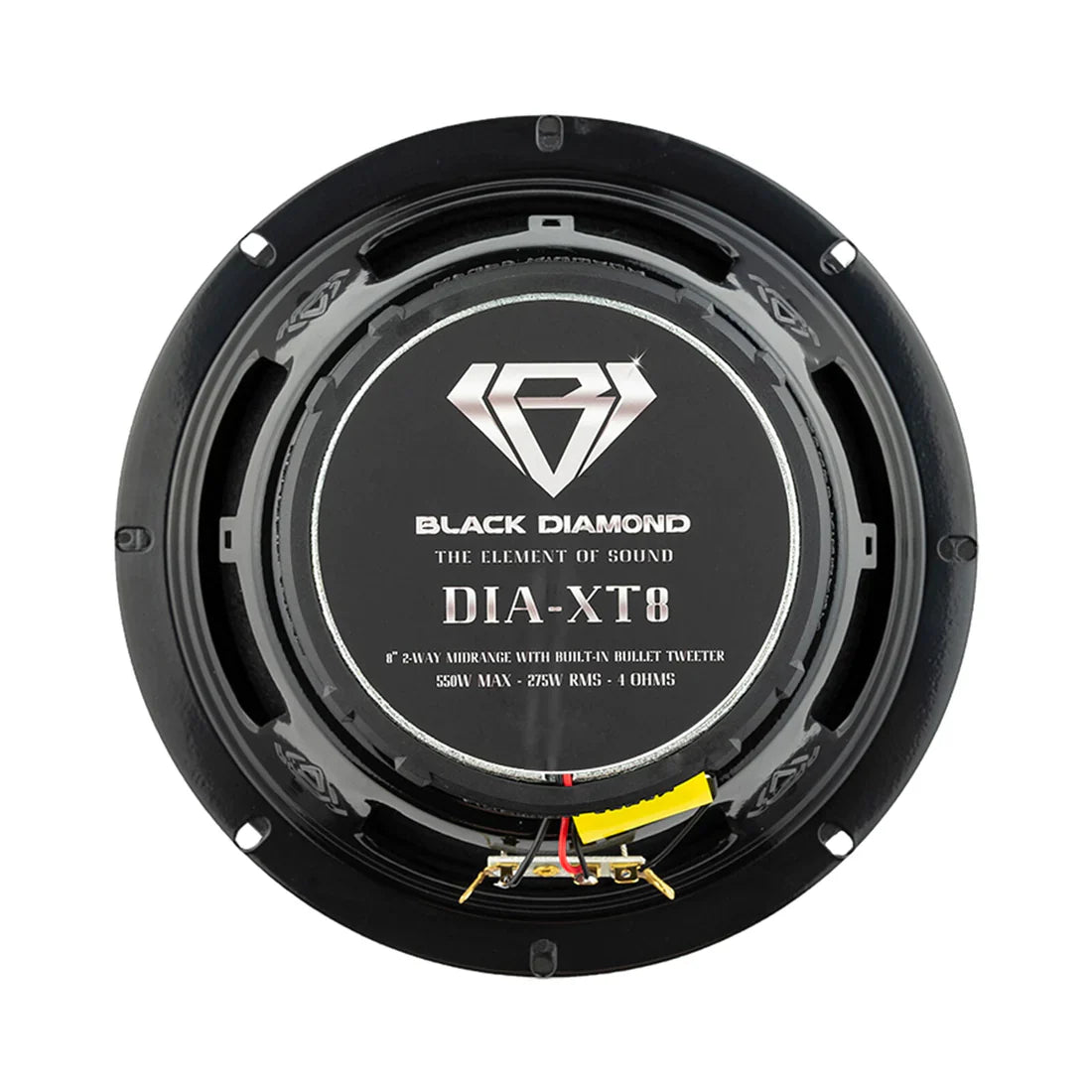

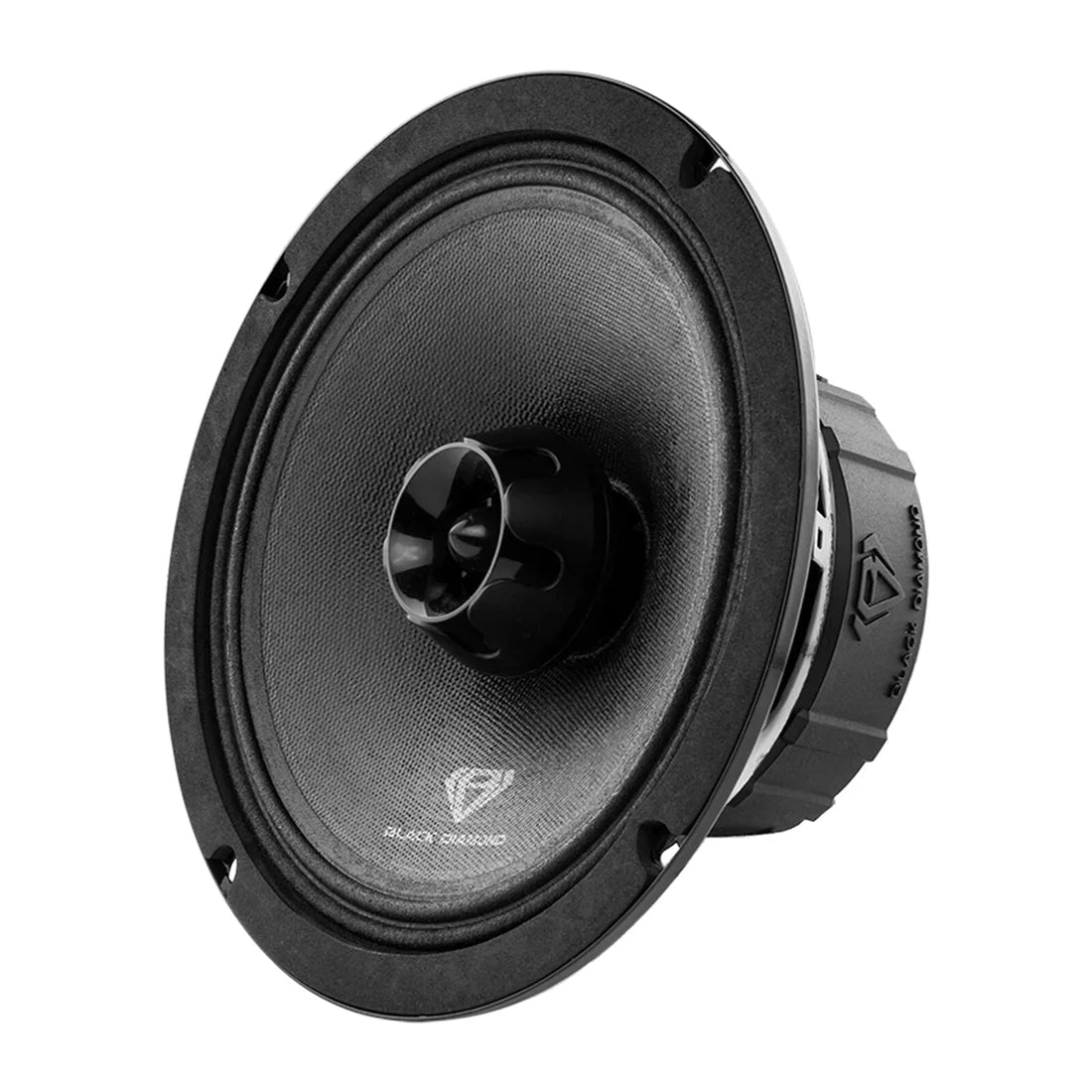

Black Diamond Car Audio 8" Mid-Range Loud Speaker 4 Ohm 550W NEO Tweeter DIA-XT8
This Listing Includes:
- (1) 8" Midrange Loudspeaker DIA-XT8
Black Diamond introduces a midrange that handles it all! A mid-range driver that can answer the call to handle the most significant part of the audible sound spectrum. A speaker that sounds great with just instrumentals and, even better with vocals. This midrange has power you can count on! The DIA-XT8 delivers an impressive 550 Watts Max Power with 275 Watts RMS at 4 Ohms, which is enough to tackle a full range of audio. Exclusive Black Diamond design. 27oz magnet with 1.5 inch high strength voice coil for high power applications.
Get the most out of your system by upgrading to a speaker that gives you everything you're missing from your stock stereo. Discover what a true midrange speaker can do for you!
FEATURES:
- Built-In Bullet
- 550 Max Watts power handling
GENERAL SPECIFICATIONS:
- Nominal Diameter: 8"
- RMS Power Handling: 275 Watts
- MAX Power Handling: 550 Watts
- Nominal Impedance: 4 Ohm
- Sensitivity: (1w/1m): 98 dB
- Frequency Response: 85Hz-22KHz
- Recommended Hi Pass Crossover: 100 Hz
WOOFER SPECIFICATIONS:
- Voice Coil Diameter: 1.5 / 38.6 mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Non-Pressed Paper
- Surround Material: Cloth
- Basket Material: Steel
- Magnet Material: Ferrite
- Magnet Weight: 27 oz
THIELE & SMALL PARAMETERS:
- Equivalent Volume: 12.402L
- Excursion: 16mm
- Free Air Resonance: 110Hz
- Mechanical Factor: 3.906
- Electrical Factor: 0.76
- Total Factor: 0.636
- CD Resistance: 3.2 Ohms
TWEETER SPECIFICATIONS
- Voice Coil Diameter: 1"
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Aluminum Alloy
- Magnet Material: Neodymium
- Magnet Weight: .44 oz
MEASUREMENTS:
- Overall Diameter : 8.25 / 210mm
- Overall Depth: 3.85 / 98mm
- Front Mount Baffle Cutout: 7.13 / 181 mm
- Mounting Depth: 3.58 / 91 mm
- Motor Diameter: 4.6 / 117mm
