SKU: BP4002CTC1D

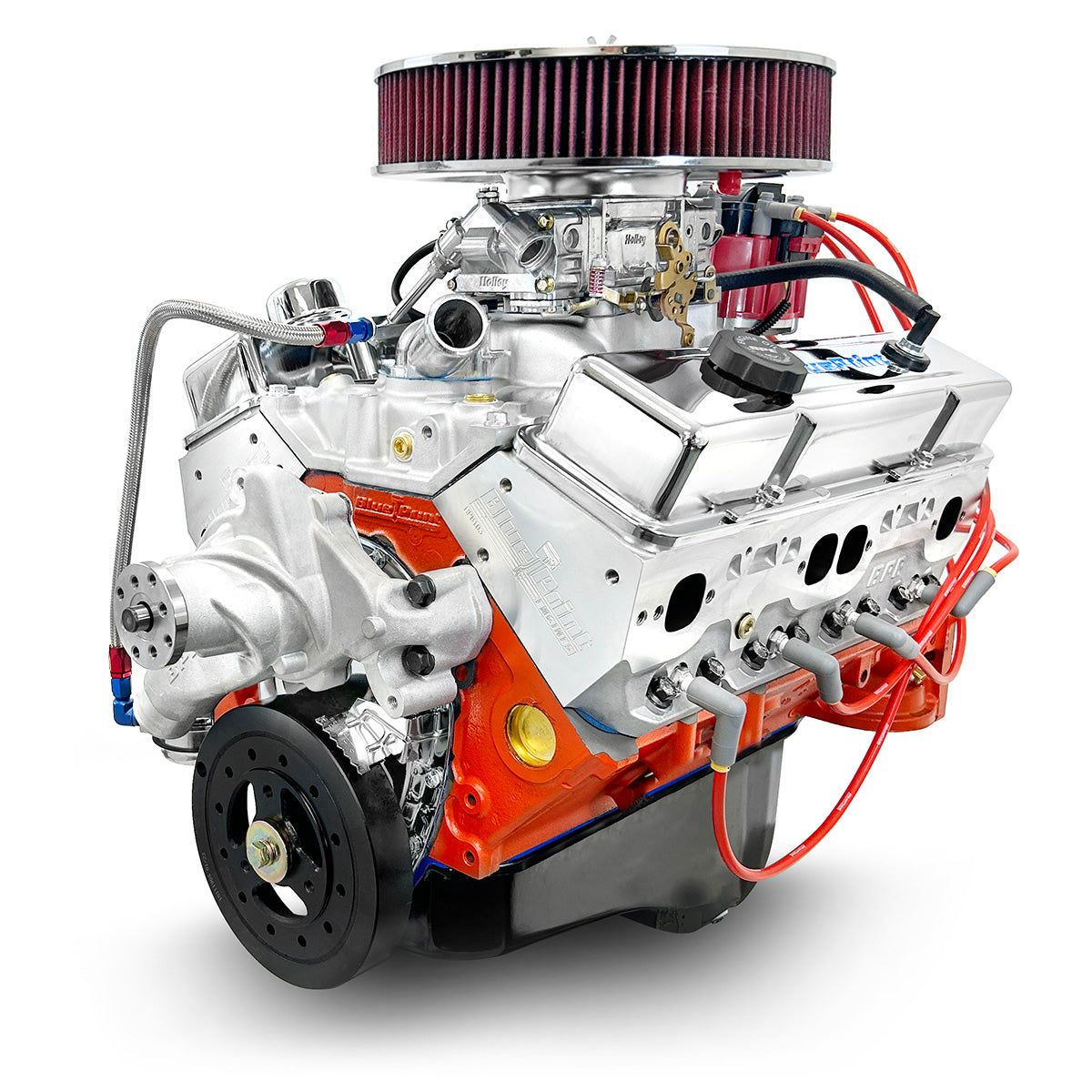

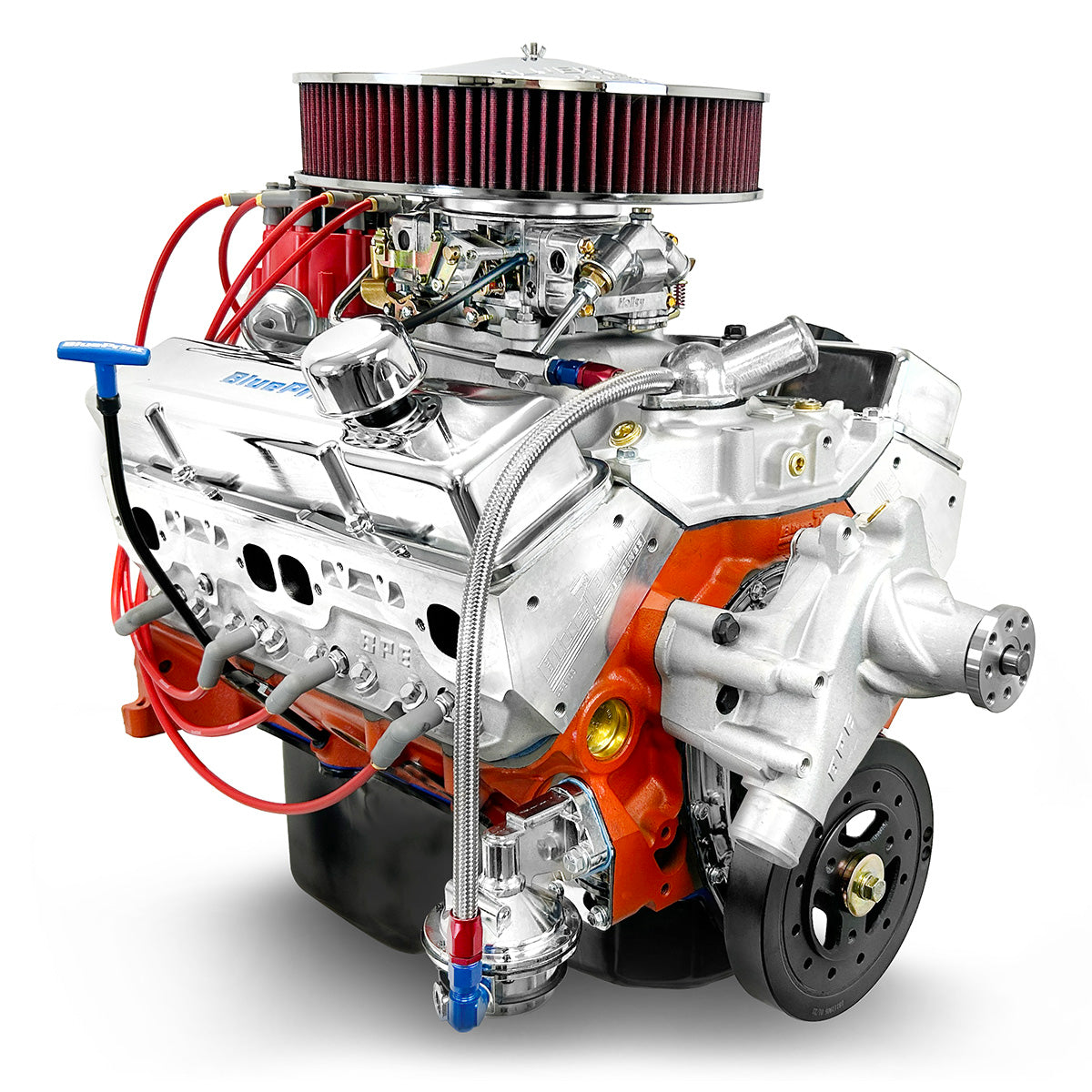

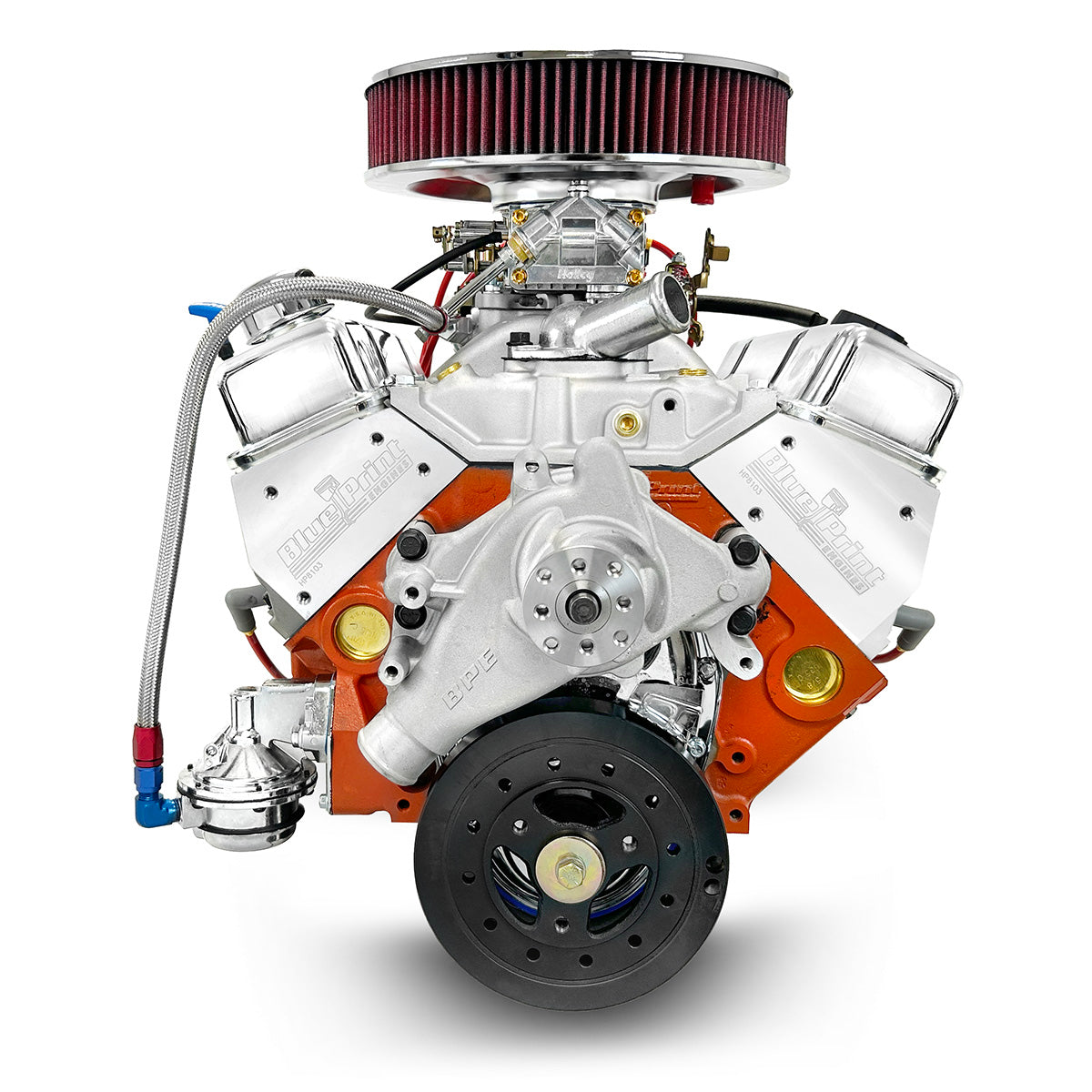

GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Carbureted

No reviews yet. Bought this? Write the first review
Regular price $8,399.00
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Description:

  • Horsepower & Torque: 500 Horsepower / 510 ft. lbs. Torque
  • Compression Ratio: 10.3:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.125" Bore

Rotating Assembly:

  • BluePrint Forged Steel Crankshaft
  • 3.750" Stroke
  • 5.700" Connecting Rods w/ 150,000 PSI Bolts
  • Forged Pistons
  • Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP8103
  • 64cc Chamber
  • 2.08" Intake / 1.60" Exhaust Valves
  • 220cc Intake / 67cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .553 Intake / .576 Exhaust Lift
  • 236 Intake / 242 Exhaust Duration
  • @ .050-110 Degree Lobe Separation

Ignition Timing:

  • 10-16° Initial and Total Timing 32-34° at 3500 RPM

Also Includes:

  • Holley 850cfm Double Pumper Carburetor - BPP04781S
  • Satin Aluminum Intake Manifold - BPP350VINT
  • HEI Ready Run Distributor - BPP350RBK
  • Thermostat and Thermostat Housing
  • Long Style Water Pump - BPP67265
  • Mechanical Fuel Pump - BPP61073
  • Valve Covers - BPP9518
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Timing Cover
  • Oil Pan

Notes:

  • Not for EGR
  • The Aftermarket intake manifold and heads installed on this engine may not be compatible with OEM accessory brackets that use intake or exhaust mounted bosses.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
