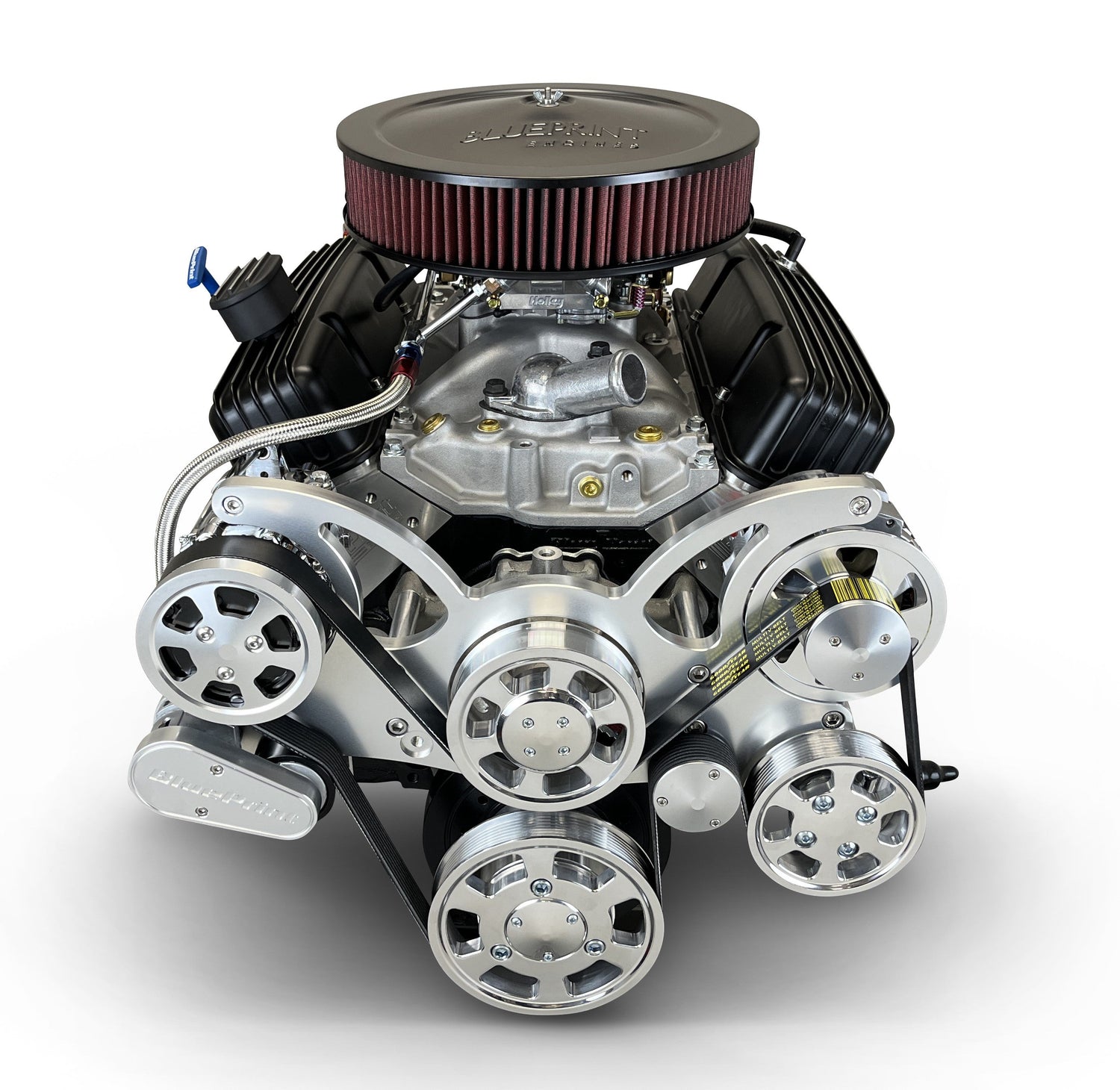

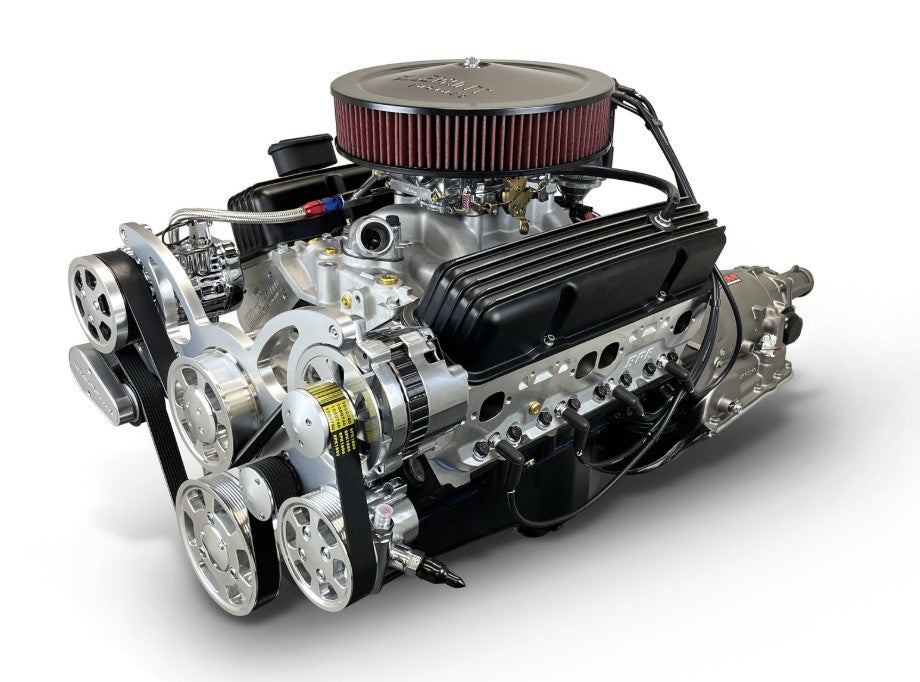

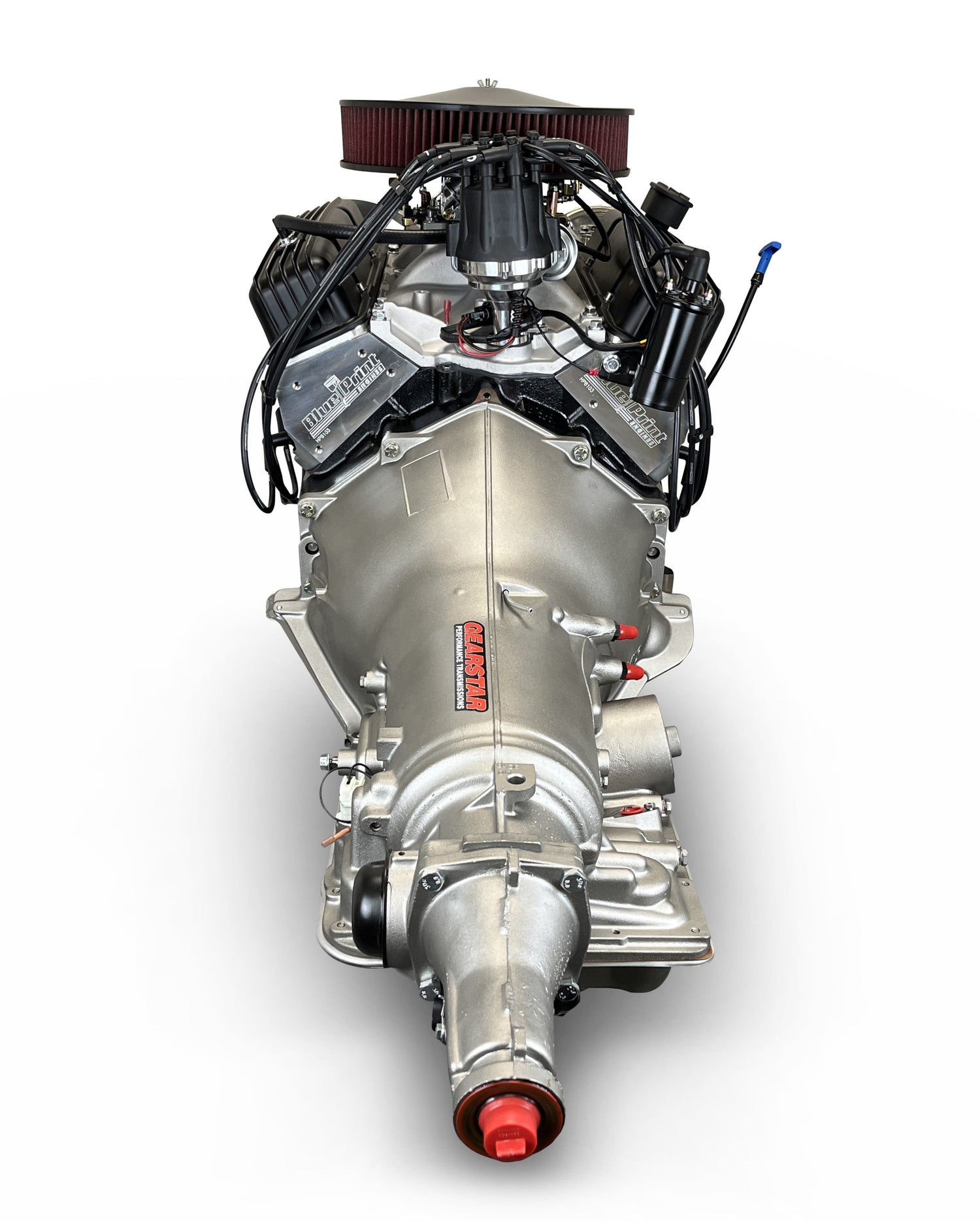

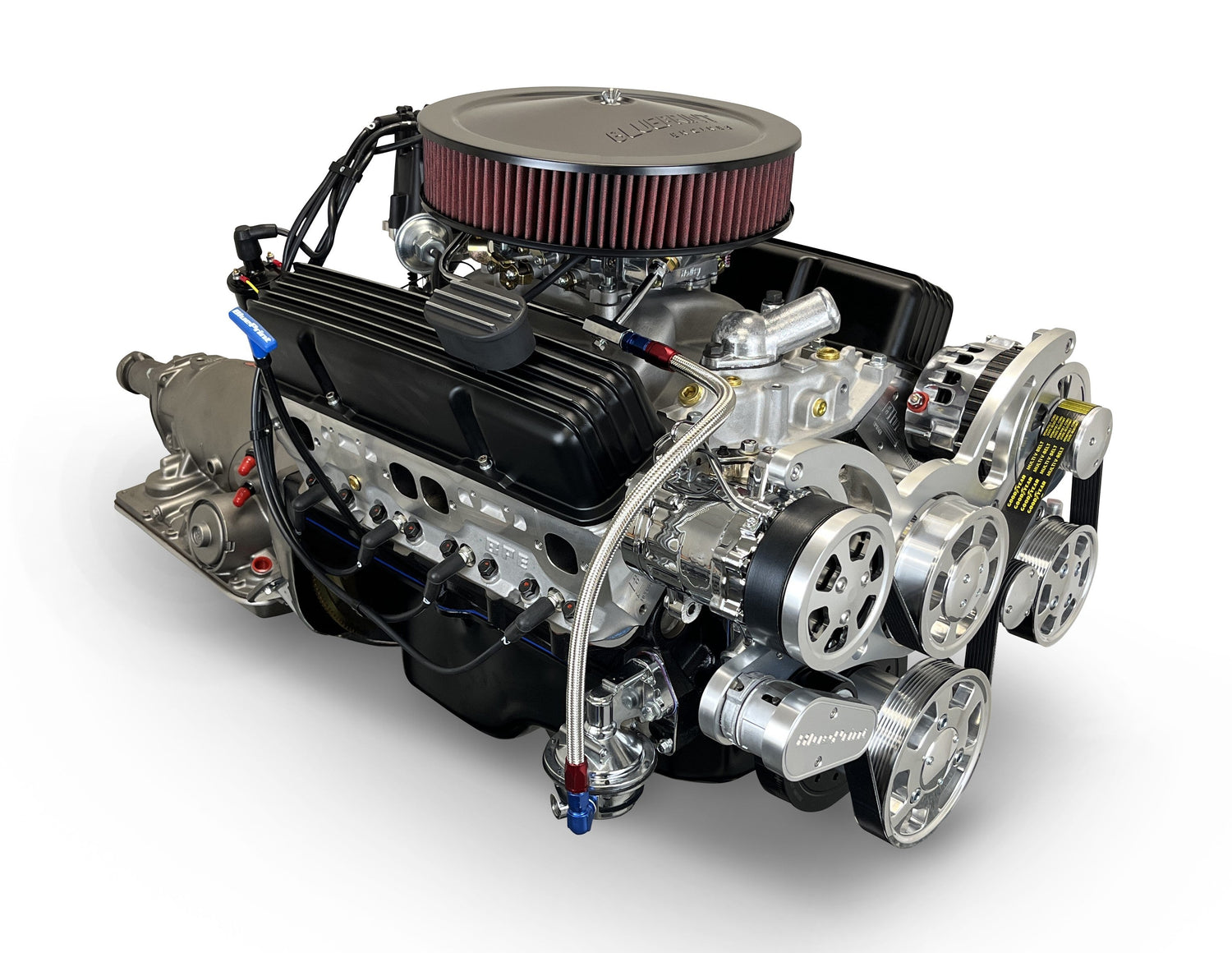

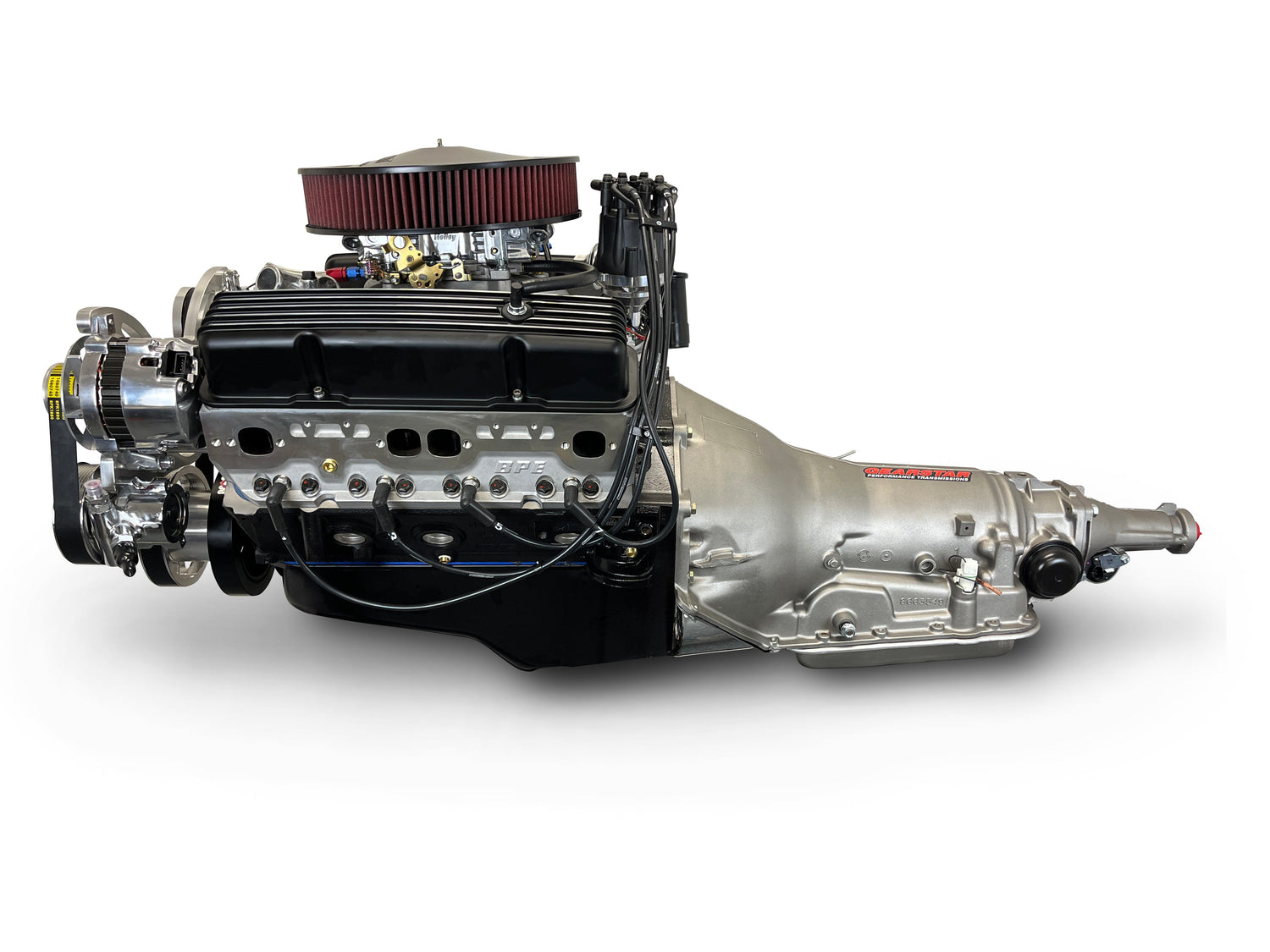

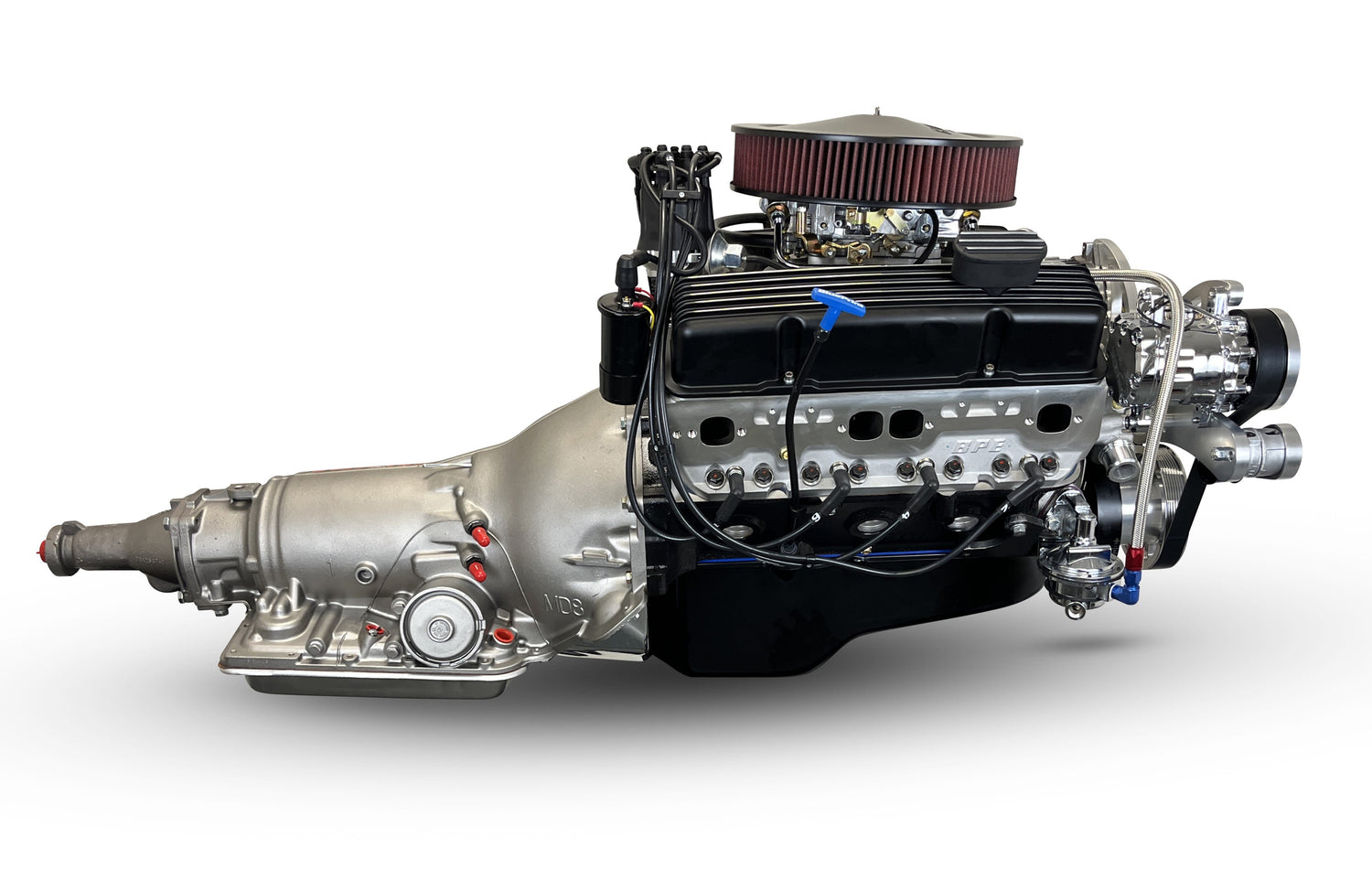

GM Small Block Compatible 400 c.i. Engine and 700R4 Automatic Transmission - 500 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted
GM Small Block Compatible 400 c.i. Engine and 700R4 Automatic Transmission - 500 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
GM Small Block Compatible 400 c.i. Engine and 700R4 Automatic Trans...
GM Small Block Compatible 400 c.i. Engine and 700R4 Automatic Transmission - 500 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Description:
- Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
- Compression Ratio: 10.3:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.125" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 3.750" Stroke
- Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Forged Pistons
- Internally Balanced Front - Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .555 Intake / .576 Exhaust Lift
- 236 Intake / 242 Exhaust Duration
- @ .050-110 Degree Lobe Separation
Ignition Timing:
- 10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
- Intake Manifold Dual Plane Satin Aluminum - BPP350VINT
- Holley 750cfm Classic Carburetor - BPP080508S
- Pro Series Ready Run Distributor - BPP3503BK
- Thermostat Housing - BPP10108470
- Mechanical Fuel Pump - BPP61073
- Thermostat - BPP180TS
- Spark Plugs - BPP7938
- Plug Wire Separators
- Spark Plug Wires
- Valve Covers
- Timing Cover
- Oil Filter
- Oil Pan
- Polished Front Accessory Drive - BPP350FDACPS4
- Reverse Rotation Short Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Style Air Conditioning Compressor
Assembled with Complete 700r4 Automatic Transmission Package:
- 700R4 Complete Package
- 2200-2400 Stall Torque Converter
- Flex Plate
- Starter
Notes:
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear, or sender housing.
- Package Ships assembled as pictured.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
