Description
Description

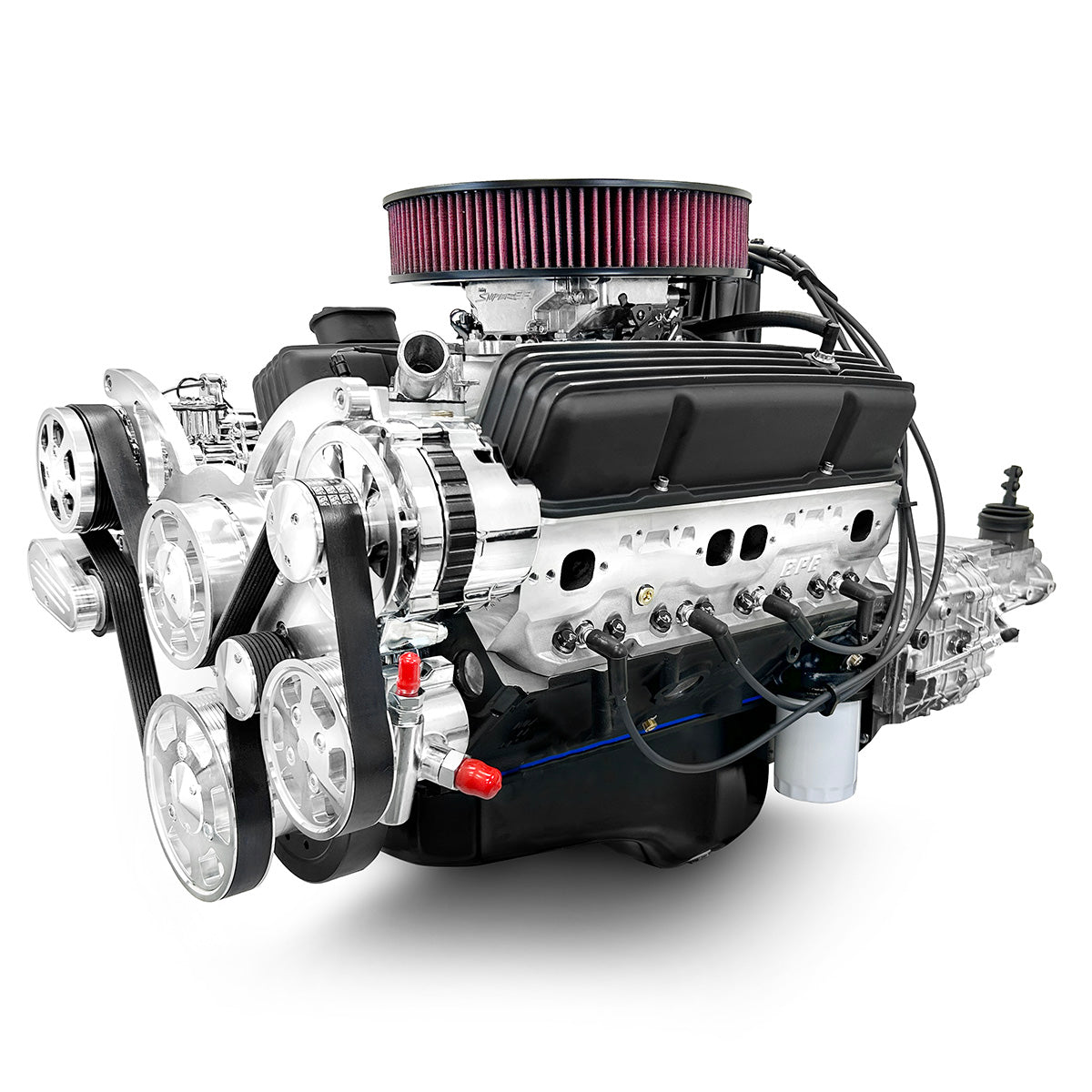

**This package features a carbureted engine. EFI engine pictured as rep image.
Description:
- Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
- Compression Ratio: 10.3:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.125" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 3.750" Stroke
- Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Forged Pistons
- Internally Balanced Front - Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .555 Intake / .576 Exhaust Lift
- 236 Intake / 242 Exhaust Duration
- @ .050-110 Degree Lobe Separation
Ignition Timing:
- 10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
- Holley 850cfm Double Pumper Carburetor w/ Manual Choke
- Intake Manifold Dual Plane Satin Aluminum - BPP350VINT
- Pro Series Ready Run Distributor - BPP3503BK
- Thermostat Housing - BPP10108470
- Mechanical Fuel Pump - BPP61073
- Thermostat - BPP180TS
- Spark Plugs - BPP7938
- Plug Wire Separators
- Spark Plug Wires
- Valve Covers
- Timing Cover
- Oil Filter
- Oil Pan
- Polished Front Accessory Drive - BPP350FDACPS4
- Reverse Rotation Short Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Style Air Conditioning Compressor
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Bell Housing
- Billet Flywheel
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
-
The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
- Package Ships assembled as pictured.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
