Description
Description
Description:
- Horsepower & Torque: 815 Horsepower / 775 FT. LBS. Torque
- Compression Ratio: 11.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.600" Bore
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)
Rotating Assembly:
- New BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam 6.635" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
Cam Specs:
- Cam Type: Roller
- .698 Intake / .698 Exhaust Lift
- 272 Intake / 282 Exhaust duration
- @.050-110 Degree Lobe Separation
Also Includes:
- Valve Covers
- Oil Pan
- Timing Cover
- Harmonic Balancer
- Fuel Injection System
- Intake Manifold
- Pro Series Ready Run Distributor - BPP3503BK
- Aeromotive A1000 Fuel Pump
- Thermostat and Thermostat Housing
- Black Pulley Kit - BPP454FDPSAC4BK
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Assembled with Complete 4l80e Automatic Transmission Package:
- 4L80E Complete Package with Electronic Controller Included
- W/Lockup Capability
- 3800+ Stall Torque Converter
- Flex Plate
- Starter
4L80E Gear Ratios:
- 1: 2.482
- 2: 1.482
- 3: 1.00
- 4: 0.750
- R: 2.077
Notes:
- Not for use in pollution-controlled vehicles.
- This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
- Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.

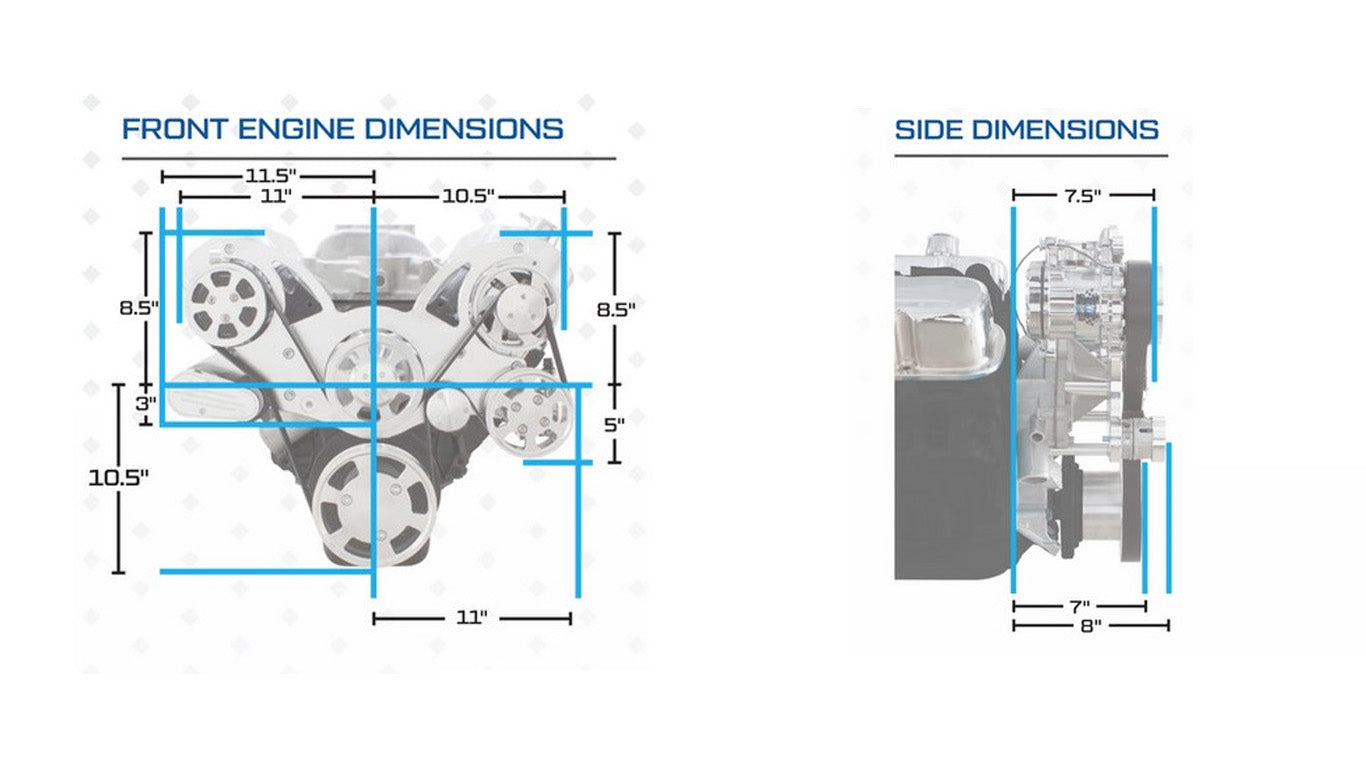

- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
