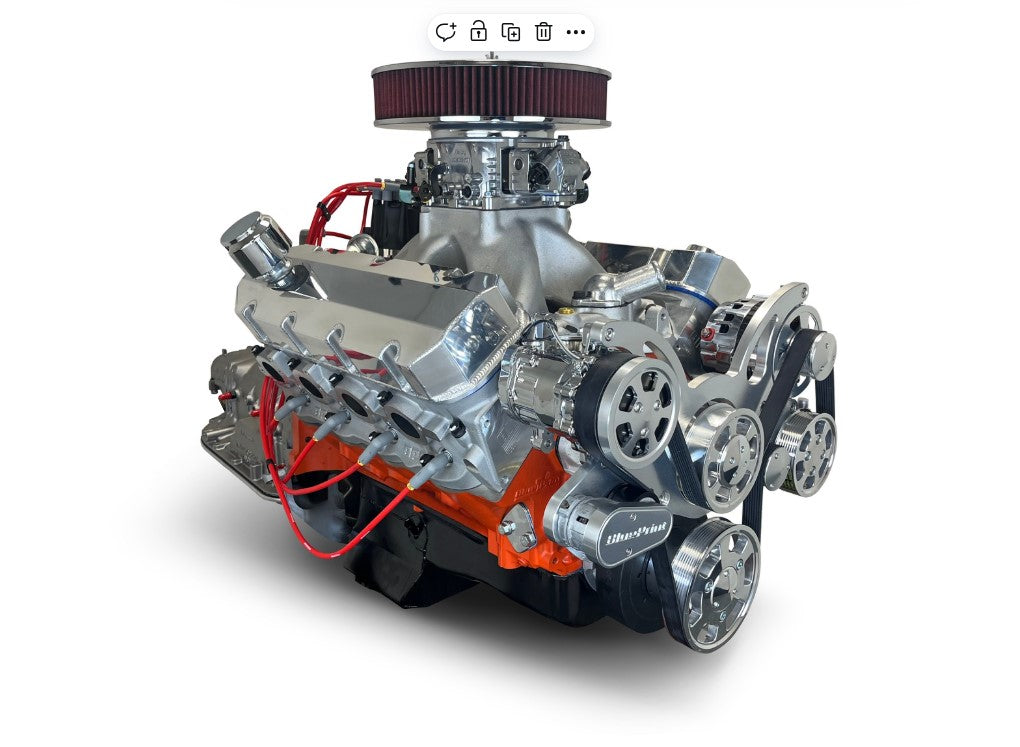

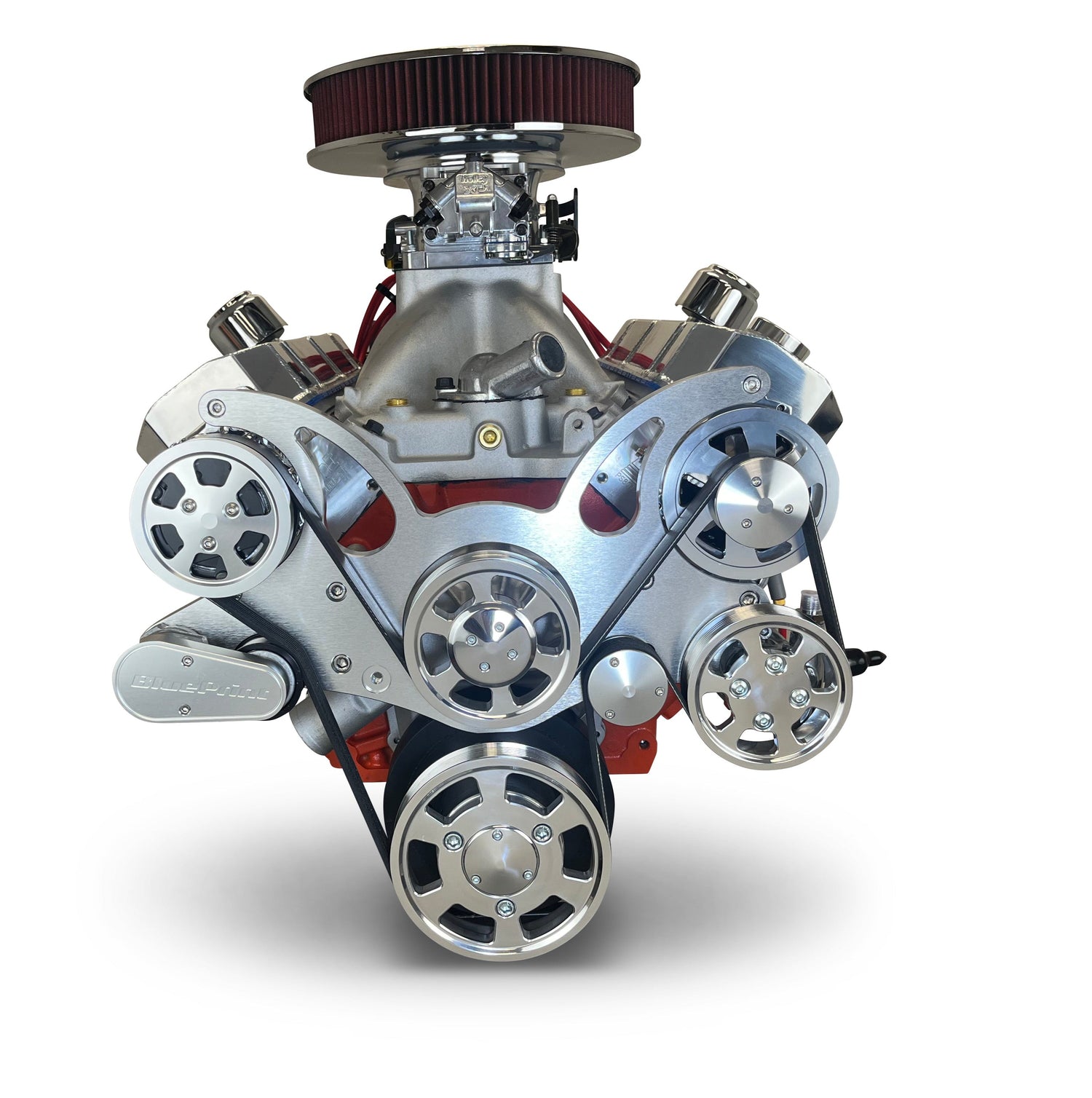

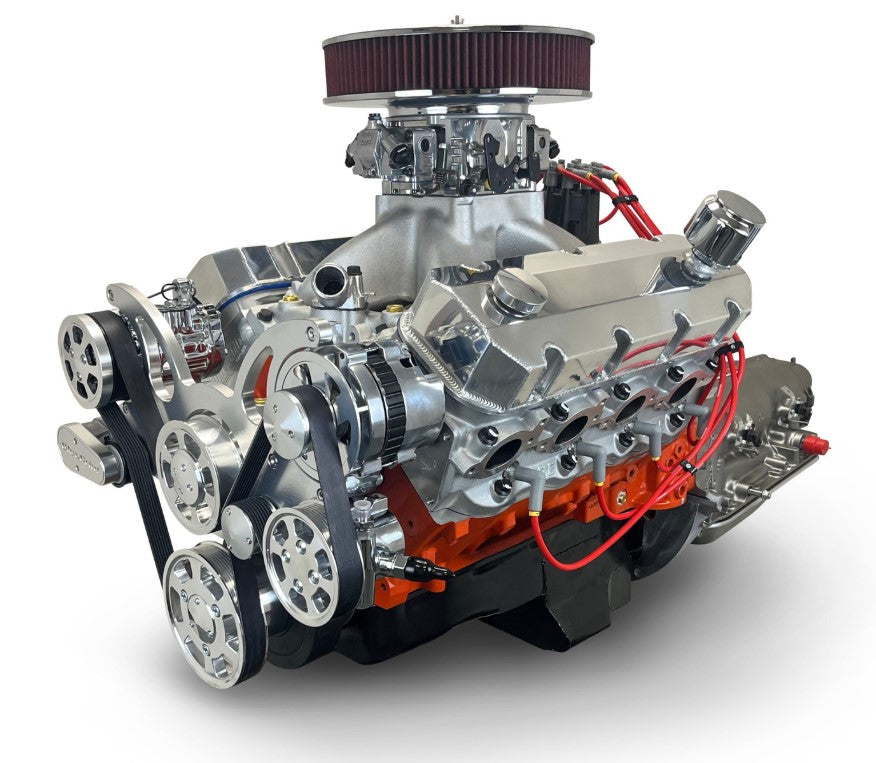

GM Big Block Compatible 632 c.i. Pro Series Engine and 4L80E Automatic Transmission - 815 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted
GM Big Block Compatible 632 c.i. Pro Series Engine and 4L80E Automatic Transmission - 815 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
GM Big Block Compatible 632 c.i. Pro Series Engine and 4L80E Automa...
GM Big Block Compatible 632 c.i. Pro Series Engine and 4L80E Automatic Transmission - 815 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Description:

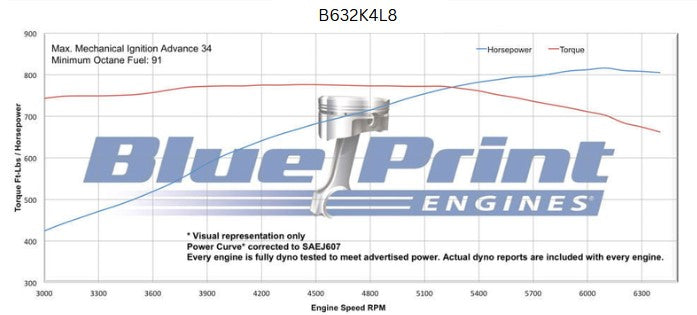

- Horsepower & Torque: 815 Horsepower / 775 FT LBS
- Compression Ratio: 11.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.600" Bore
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam 6.635" Connecting Rods
- Forged Pistons
- Internally Balanced
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
Cam Specs:
- Cam Type: Roller
- .698 Intake / .698 Exhaust Lift
- 272 Intake / 282 Exhaust Duration
- @.050-110 Degree Lobe Separation
Also Includes:
- Valve Covers
- Oil Pan
- Timing Cover
- Harmonic Balancer
- 1250cfm Holley Carburetor
- Intake Manifold
- Pro Series Ready Run Distributor - BPP3503BK
- Electric Fuel Pump
- Thermostat and Thermostat Housing
- Polished Pulley Kit - BPP454FDPSAC4
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir

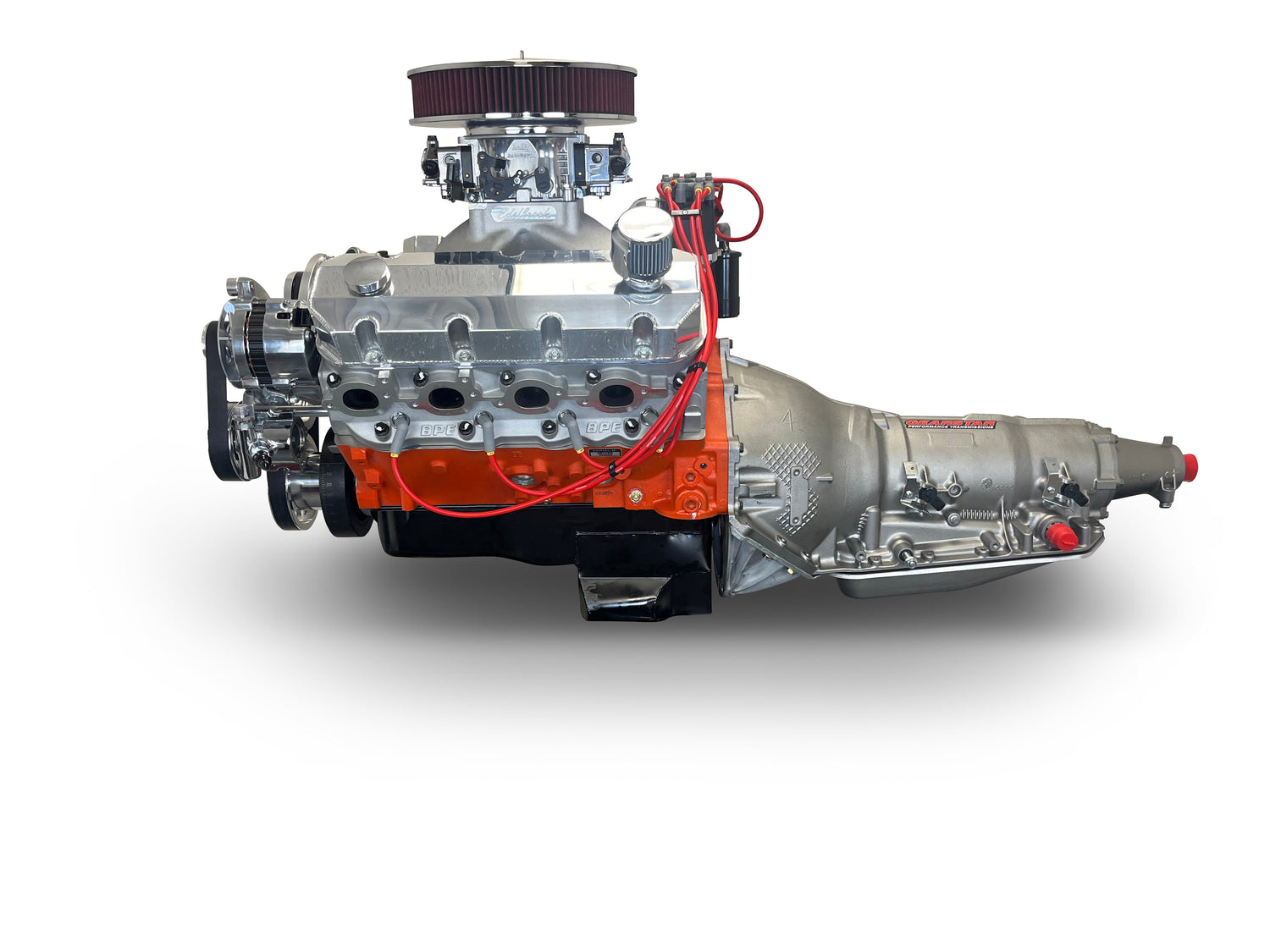

Assembled with Complete 4l80e Automatic Transmission Package:
- 4L80E Complete Package with Electronic Controller Included
- W/Lockup Capability
- 3800+ Stall Torque Converter
- Flex Plate
- Starter
4L80E Gear Ratios:
- 1: 2.482
- 2: 1.482
- 3: 1.00
- 4: 0.750
- R: 2.077
Notes:
- Not for use in pollution-controlled vehicles.
- This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
- Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
