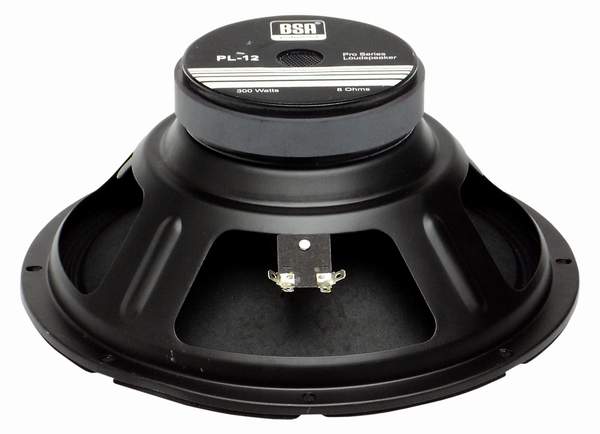

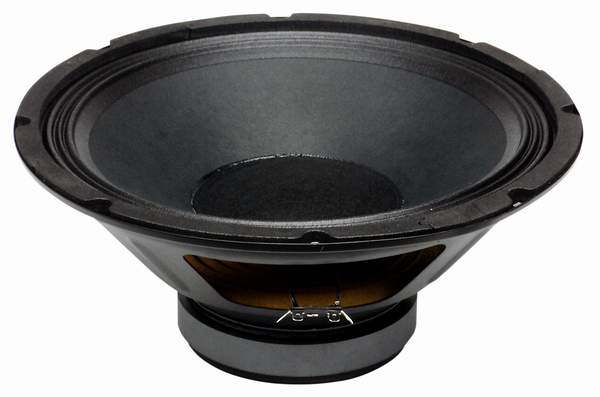

BSA PL-12 12" Mid Range Driver

Name: BSA PL-12 12" Mid Range Driver
Price: 79.95 USD
Availability: InStock

No reviews yet. Bought this? Write the first review

$79.95

Shipping calculated at checkout.

Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Nominal impedance 8 Ohm
Rated power 300 W
Musical power 600 W
Sensitivity @ 1W , 1m 98 dB
Frequency range 50 - 4500 Hz
Voice Coil DC Resistance RE 6,3 Ohm
Resonance Frequency FS 39,6 Hz
Mechanical Q Factor QMS 11,32
Elektrical Q Factor QES 0,55
Total Q Factor QTS 0,53
Mechanical Moving Mass MMS 33,5 g
Equivalent Acoustic Volume VAS 129,821 L
Maximum Linear Displacement XMAX 1,1 mm
Reference Effi ciency EFF 2,91 %
Diaphragm Area SD 507 cm2
Voice Coil Inductance @ 1kHz LE 0,58 mH
Total Weight 3,5 Kg
