CAN-AM DEFENDER 4" PORTAL GEAR LIFT

CAN-AM DEFENDER 4" PORTAL GEAR LIFT

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.
GDP Portals Will Revamp Your Ride
GDP didn’t make the first side-by-side portal kit on the market—just the first kit that anybody gave a damn about. If you’re looking for a way to completely redefine your Can-Am Defender, look no further than SuperATV’s GDP 4” Portal Gear Lift. Choose between a 15% or 30% gear reduction, and add a dual idler gear for strength that you can’t find anywhere else. Get ready to discover why GDP is the most respected name in the portal game.

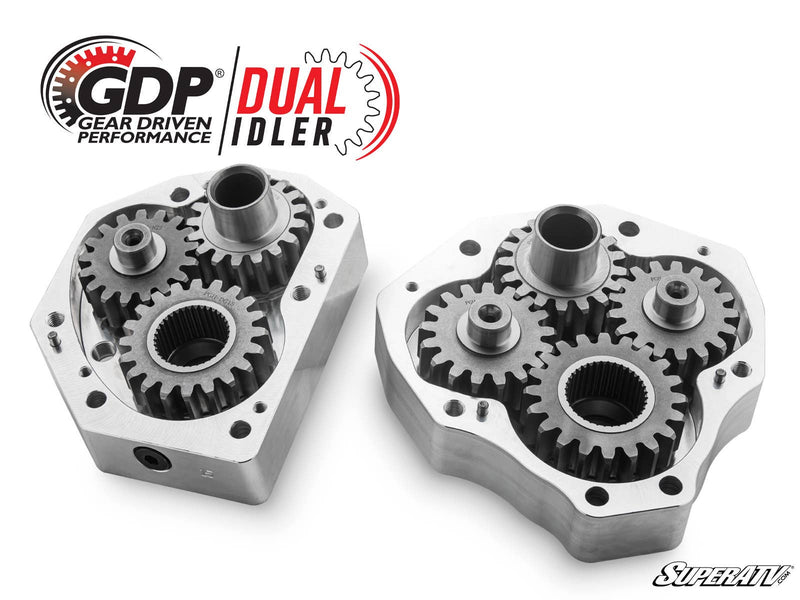

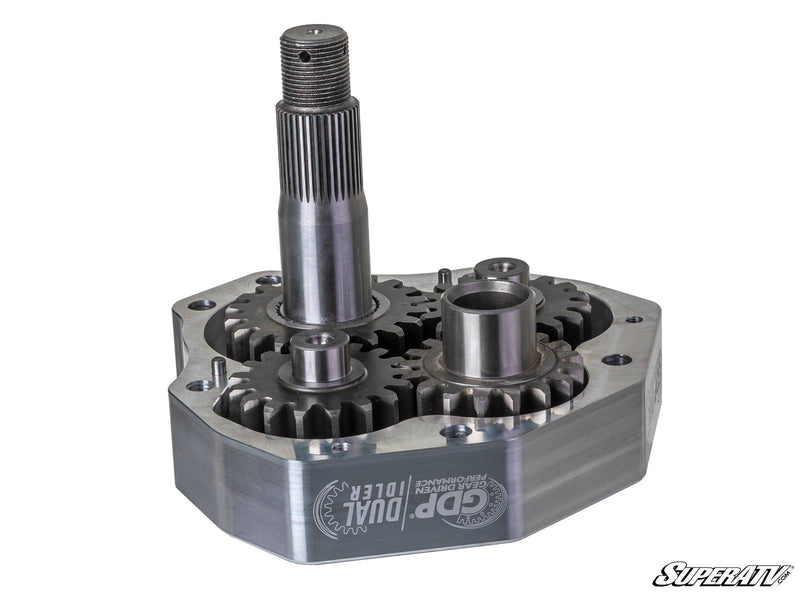

What is a Dual Idler®?

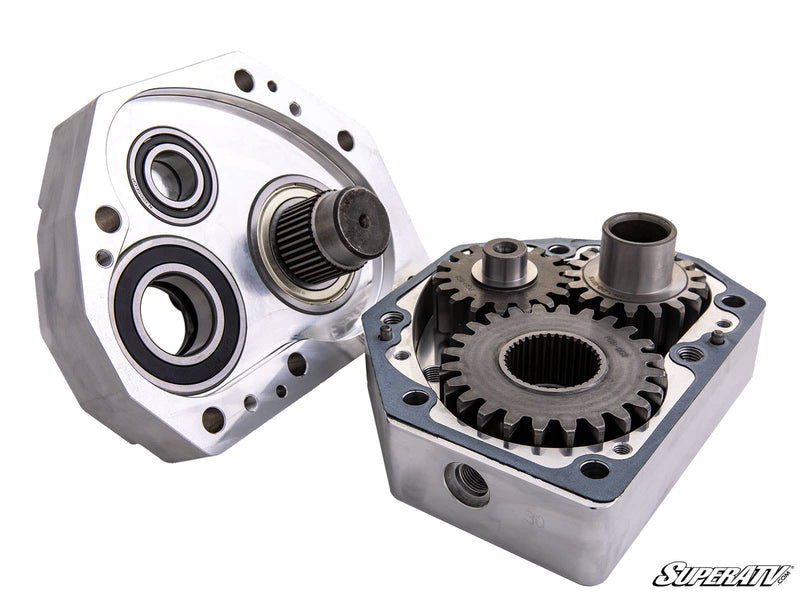

Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.

Perfect for All Riding Styles
It doesn’t matter where, when, or how you ride—there’s a GDP Portal Gear Lift for you. From the trails to mud bogs to wide-open dunes, our portals make every ride better. Get a 15% gear reduction to enjoy speedy rides and a torque boost. Or go for a 30% gear reduction to really gear down and turn those monster tires. You can even add a dual idler gear for ultimate strength. Our Can-Am Defender dual idler portals are perfect for riders who don’t slow down for anything.

A Gear Reduction That Protects Your Drivetrain
Portals put the gear reduction right in the hub, after your transmission, prop shaft, differential, and axles. That means it reduces stress on your entire drivetrain. You get more power and your most vital components will last longer, too. That’s a win-win.

Nothing Is Stronger Than GDP
We know how you ride—pedal to the metal, full send, the whole nine yards. That’s why we made sure GDP portals are the strongest on the planet. They’re available with cast or billet aluminum housings that are thicker and stronger than any other portal housings on the market. And they have 5/16” thick backing plates made from an advanced steel alloy. All of that comes together to bring you the best damn portal gear lift imaginable.

Advanced Gaskets, Seals, and Bearings
Our portals use:
  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • A sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout so you can forget about oil leaks
  • Double-angular contact output bearings to prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Complete the Package with a Frame Stiffener
Portals and monster tires are fun, but they can place additional stress on your machine’s frame. To make your suspension bulletproof, we recommend adding a SuperATV Frame Stiffener when you install your new Can-Am portals!

Top-Rated Customer Service
Still need a little help getting exactly what you need? With GDP, you get a dedicated portal tech support team. Give us a call so we can get the perfect set of portals in your hands today.

4” Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings.
(4) Universal hubs and stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(2) Steel steering arms
Extended brake lines
All required hardware, including recessed castle nut socket
Frame stiffener (optional)


Max Tire Size Recommendations for 4” Portal Gear Lift
Max Tire Size Required Suspension Setup with 4" Portals
26" Stock
27" 3" Lift Kit
28" to 34" 2" Forward Offset A-Arms
28" to 38" 6" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator .
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.


Patent # 11,299,042

Patent # 11,318,787

WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.

⚠ California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
READ LESWARRANTY & RETURNS

Limited Lifetime Warranty

When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.

SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, rotors, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.

Procedures for obtaining warranty service:

Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.

If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.

Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.

If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design.  Customer will be notified and we will repair for a $250 fee.

Replacement bearings, seals and gaskets can be found at

 https://platinumhpsolutions.com

Thank you for your business!
